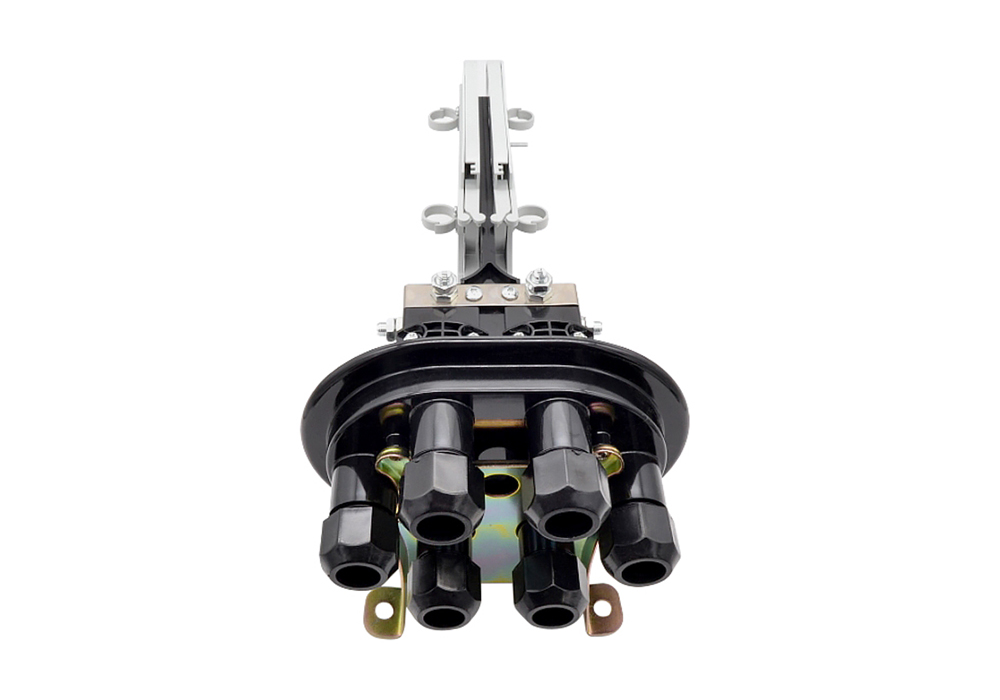

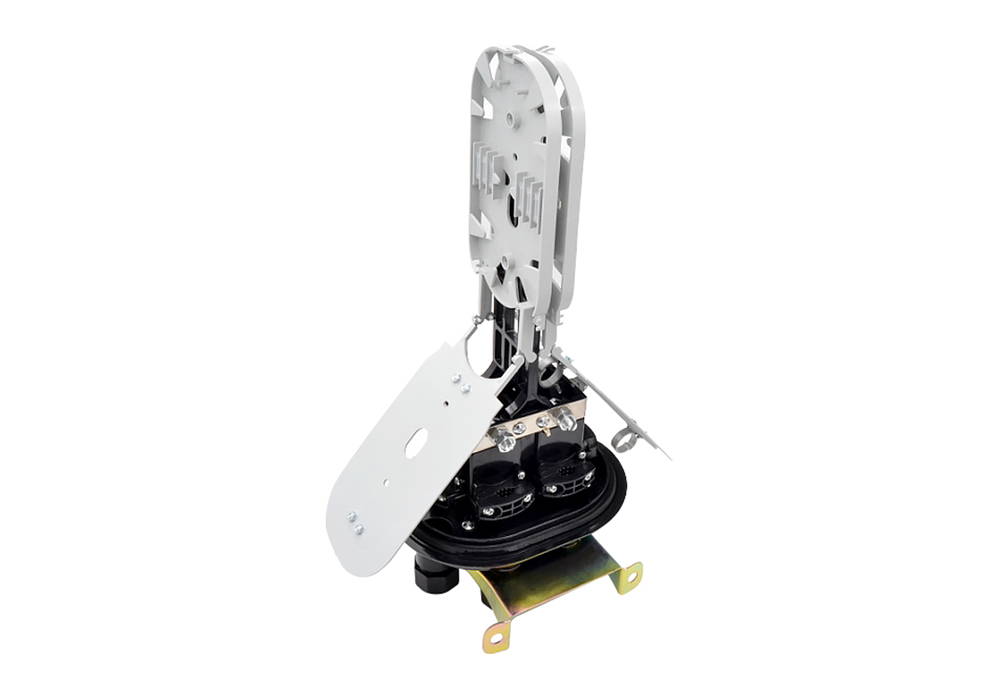

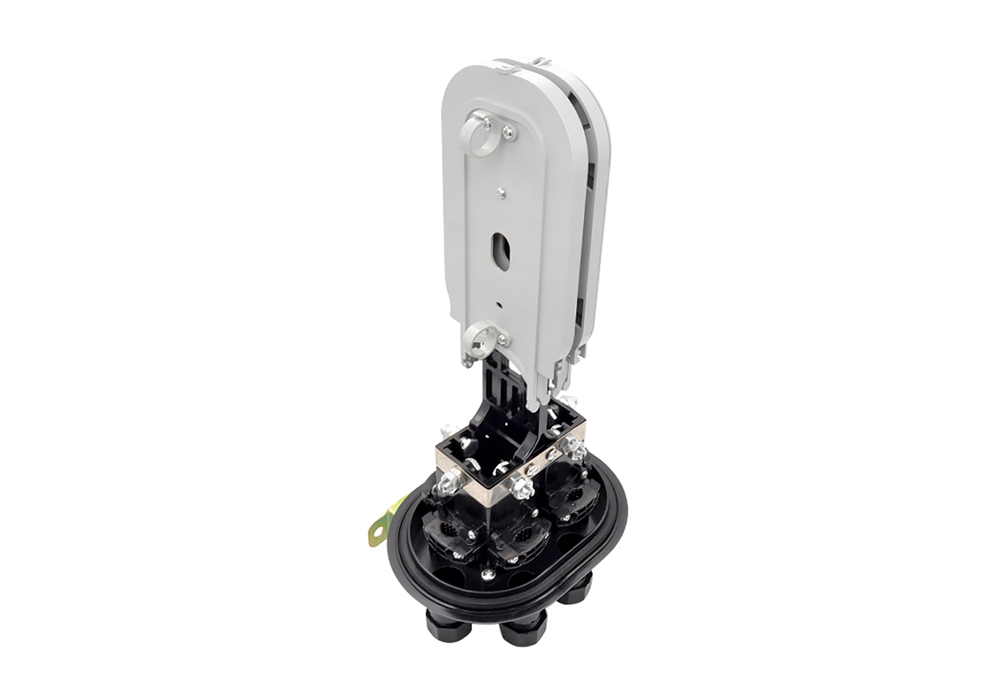

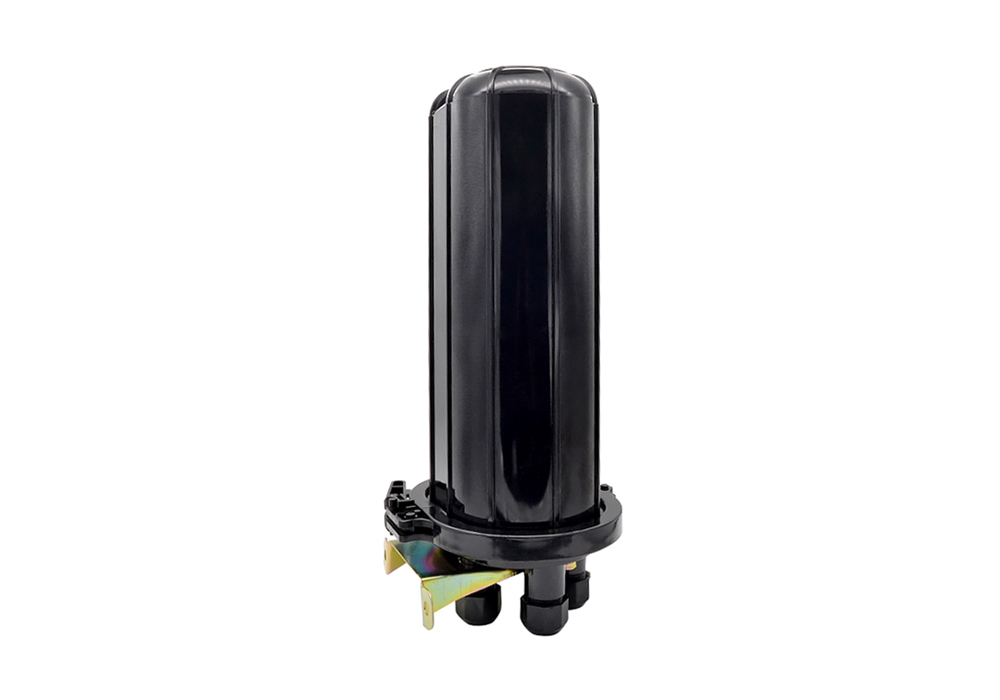

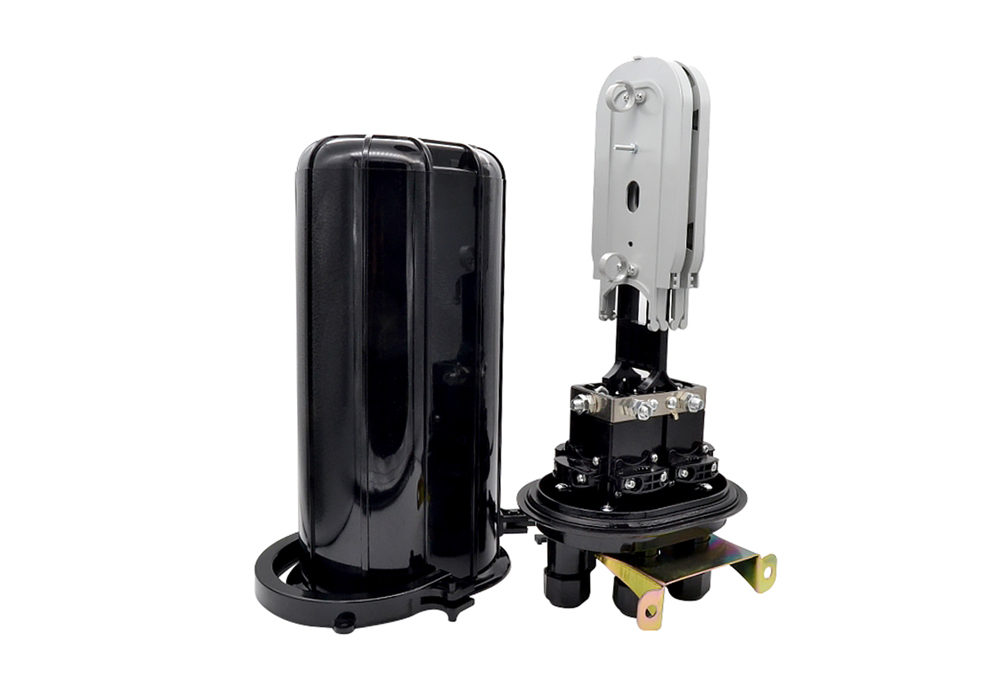

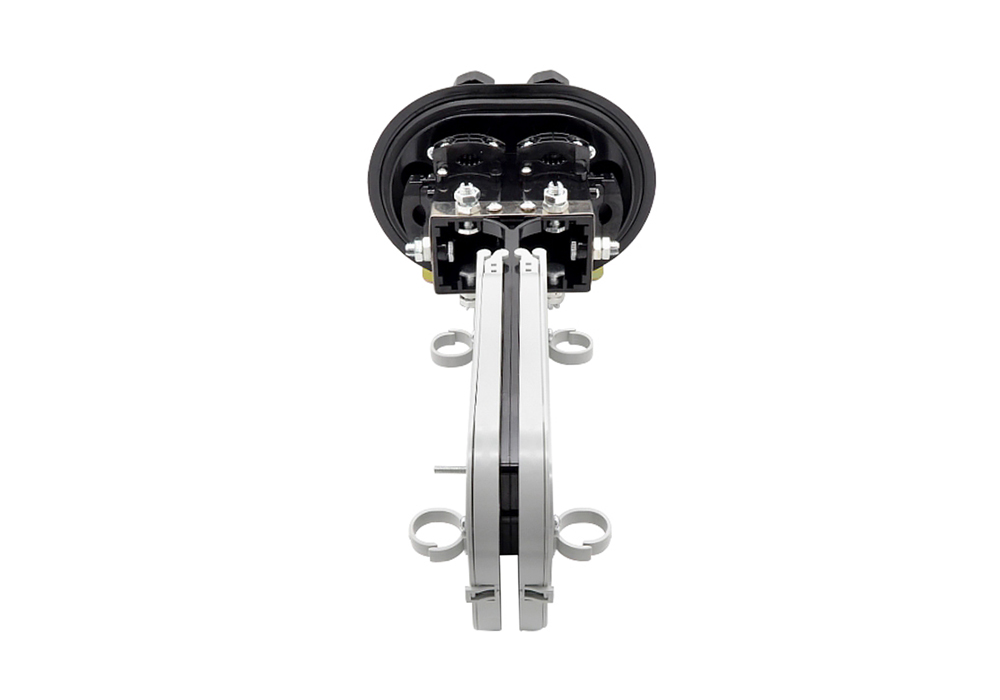

Dome Enclosure - OC-DO05
NEXCONEC Dome closure is the best designed and innovative solution for fiber cabling installation. It adopts fully mechanical sealing structure for good sealing performance of fiber cable over 240fibers. The different sizes of cable entrances provide the great flexibility for cables installation.
FEATURES AND APPLICATIONS
- Higher density
- Adequate space for fibers storage
- Easy operation
- Single Core or Mass Fusion splice
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 455 x 220 mm |
| Weight (Kg) | 3.3 - 4.2 Kg |
| Splice Tray Capacity | 24 fibers |
| Max Number of Trays | 10 pcs |
| Max. Capacity (Fibers) | 240 fibers |

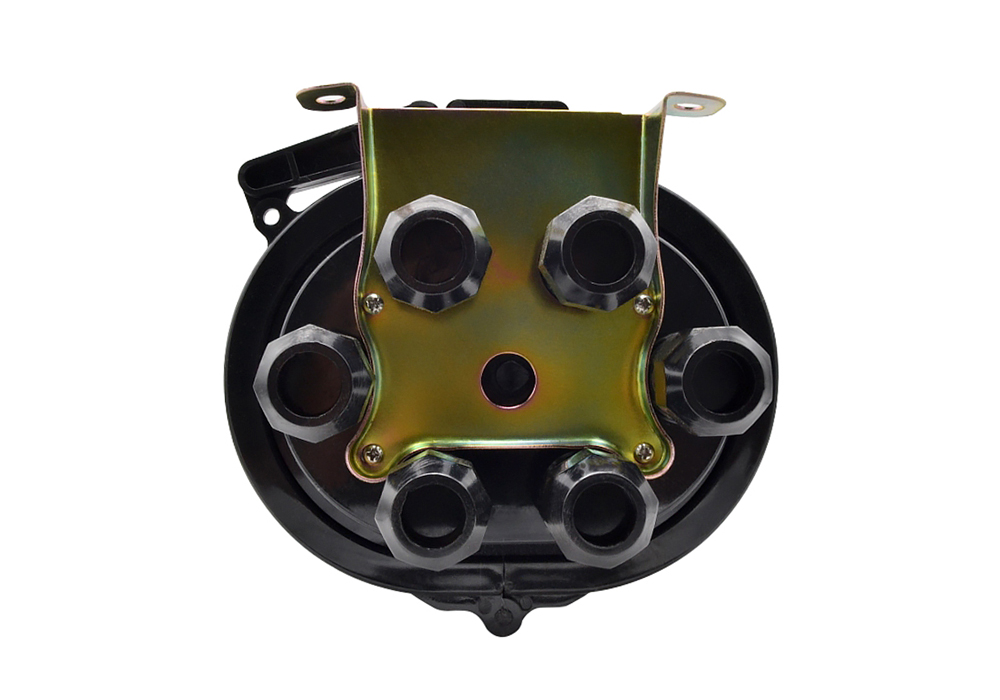

| Number of Inlet/Outlet Ports | 6 |
| Diameter of Fiber Cable | Φ8mm - Φ21mm |
| Sealing Structure | Mechanical |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃ ~ 65℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO05-24 | FO Dome Enclosure 24FO MEC |
| OC-DO05-48 | FO Dome Enclosure 48FO MEC |
| OC-DO05-72 | FO Dome Enclosure 72FO MEC |
| OC-DO05-96 | FO Dome Enclosure 96FO MEC |
| OC-DO05-144 | FO Dome Enclosure 144FO MEC |
| OC-DO05-168 | FO Dome Enclosure 168FO MEC |
| OC-DO05-192 | FO Dome Enclosure 192FO MEC |
| OC-DO05-216 | FO Dome Enclosure 216FO MEC |
| OC-DO05-240 | FO Dome Enclosure 240FO MEC |
