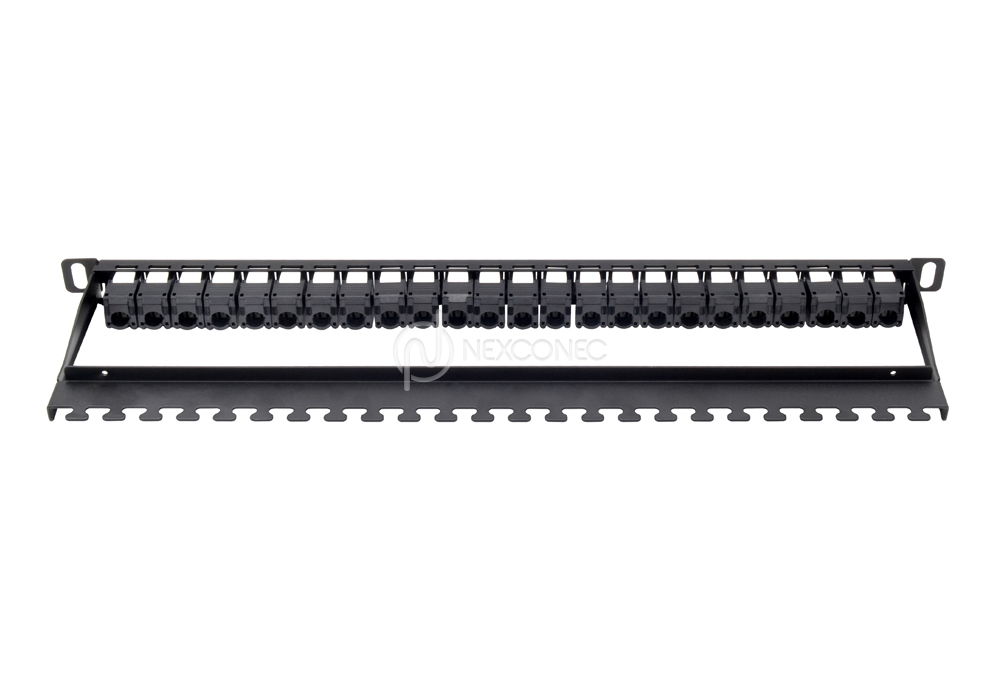

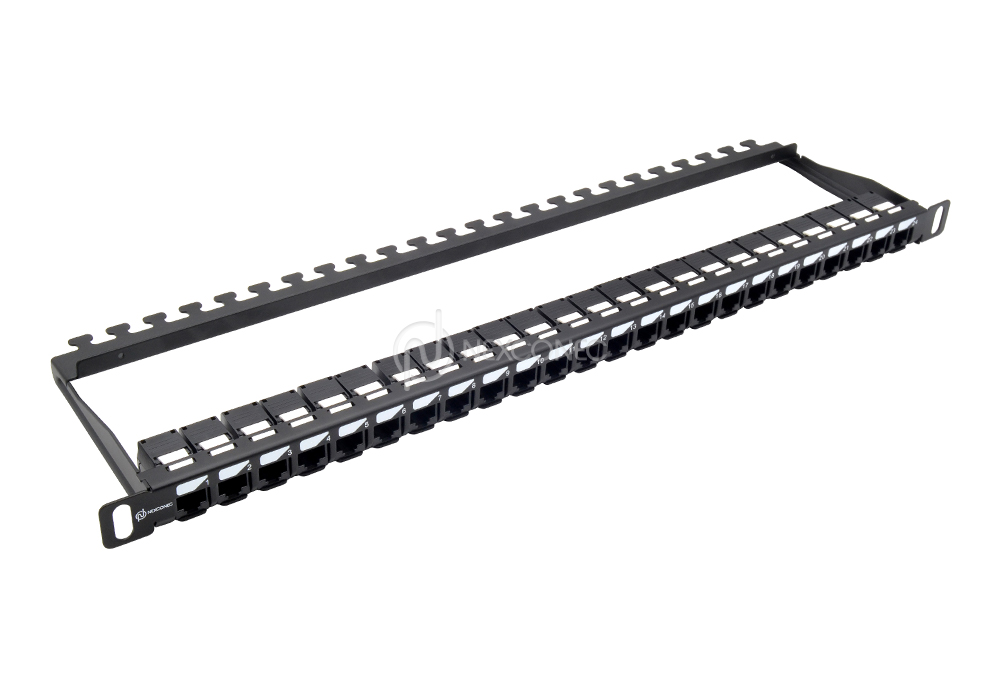

0.5U CAT6 UTP Patch Panel – CM60.5UKBK
NEXCONEC 0.5U Cat6 UTP 24 ports keystone patch panel is the special designed patch panel for use in high density network deployment, allows flexibility for the users during installations. It gives you the benefits of only using ports required by installing the desired number of jacks into the frame.
With the silkscreen printed port identification number which help the end user to recognize the ports while/after installation in the rack. Each single piece of Category 6 UTP keystone jacks is well sit in each port of the patch panel, which gives great flexibility to installations on site and conform to ANSI/TIA/EIA 568A-B.2.2001, ISO/IEC11801:2002 and EN50173-2 standards.
FEATURES AND APPLICATIONS
- 0.5U design
- Compatible with all NEXCONEC UTP keystone jacks
- 19’’ rack mountable
- Support up to 24port in 0.5U height
- Supplied with rear cable managers and fixings
- Port numerically identified
- Supports category 6 (Class E) networks running up to 250MHz applications
- Connection between wall outlets or equipment
- Backwards compatible with category 5e distribution systems
| Parameters | Value |
|---|---|
| U Size | 0.5U (22.3mm) |
| Width | 482.6mm |
| Depth | 99mm |
| Frame Material | Cold-rolled steel |
| Material Thickness | 1.6mm |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Net Weight | 0.3KG |
| Packed Weight | 0.5KG |
| Color | Black, RAL 9004 |
| Part Number | Product Description |
|---|---|
| CM60.5UKBK | NEXCONEC 0.5U Cat6 24port UTP KJ Patch Panel |
