Fiber Optic Management System

Meet Your Definitive Solution

We are an engineering company that develops and builds state of the art fiber and copper connectivity products. Our products are simple to use, reliable, scalable and with quality excellence.

While traditional high density fiber splice enclosures support the port counts required, their design typically results in unmanageable clusters of cables bunched awkwardly in the back of the enclosure, and components that are difficult at best to access. For instance, fiber cables crowded in the front and rear of the enclosure often blocks access to connectors or cassettes.

NGX Ultra High Density Solution
NGX Ultra High Density Solution - Brochure 2024

Fiber Optic Management System.

Download Brochure

As IT managers are increasingly tasked with providing higher data speeds as well as higher density and controlling costs by maximizing return on assets. High-performance data centers need a solution that delivers easier MACs and the flexibility to migrate to higher data speeds as business needs push for ever-greater transaction volumes. The NGX UHD fibre patch panel Solution addresses these needs head-on.

Our products make reliable connections between networking and data storage equipment. Nexconec refreshes the traditional cabling industry with technology, innovation and manufacturing capabilities. We bring innovation in network connectivity!

Fast, Flexible and Future-Proofed Connectivity in the Datacenter.

Increased demand for efficiency and need for space.

Lower cost of operation with high degree of agility and flexibility.

Lower environmental impact along with scalable and modular solutions.

Did you watch these?

360° XR Viewer

Click & Drag to move through.

Scroll wheel to Zoom in/out.

Double click to Full Screen.

Press ESC to exit Full Screen.

For Higher Density Demand, We have the Answer

The data center is all about data speed and optimizing space, and high density is how you maximize the usage of those two things, and the NGX Ultra High Density Solution achieves both. Our solution is designed for optimum serviceability and manageability, increasing your power draw (computing power) per square foot or rack. While simultaneously providing the scalability to increase density as business demands evolve.

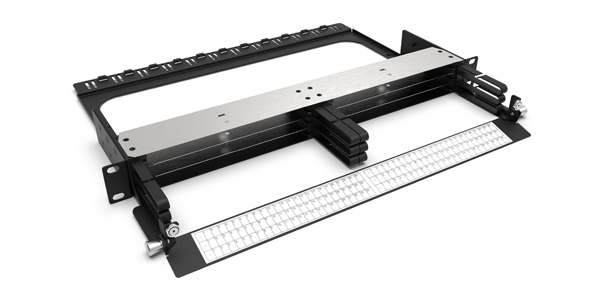

Ultra High Density

  • 6 slots per chassis up to 144FO with LC Ports in only 1U height. Modular chassis with large choice of modules.
Ultra High Density

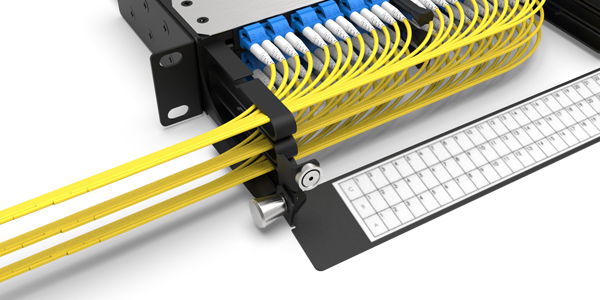

Side Fingers Management

Side Fingers Management

  • You can manage cable and ensure your rack cables are well organized and protected, besides easy to access.

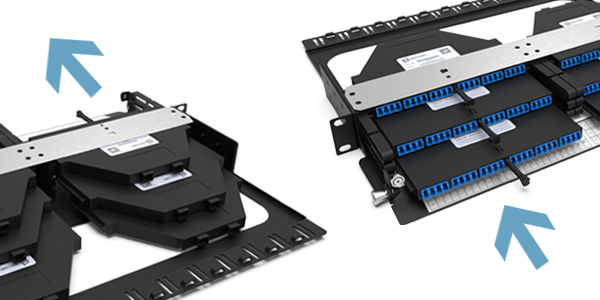

Front and Rear Installation

  • Access on front and rear allows cables to be inserted into the ports directly in an easy and fast way, improving cable management efficiency.
Front and Rear Installation

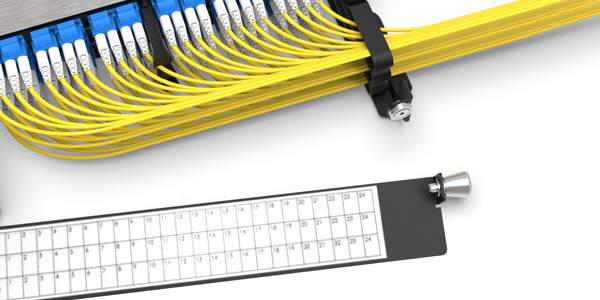

Removable Front Door

Removable Front Door

  • Easy to access with patch cord protection for high level of security and labeling feature for your accurate control.

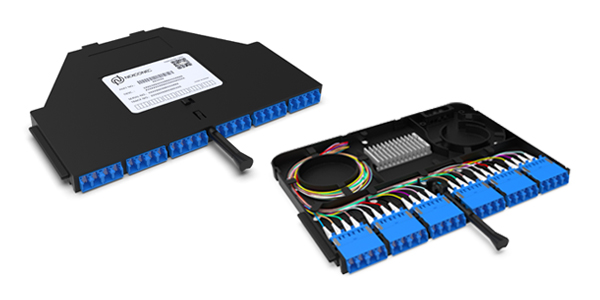

NGX Modules

  • Compact size cassettes for an easy installation inside with secure access. Rotating lock of module designed to easily plug.
NGX Modules
Removable Front Door

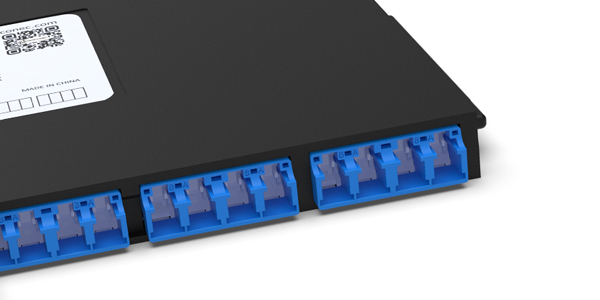

Laser & Dustproof Shuttered Adapters

  • Dustproof LC adapter with Internal shutter has been designed to meet the need of today's networking and telecommunication platforms, eye safety and connector cleanliness necessity.

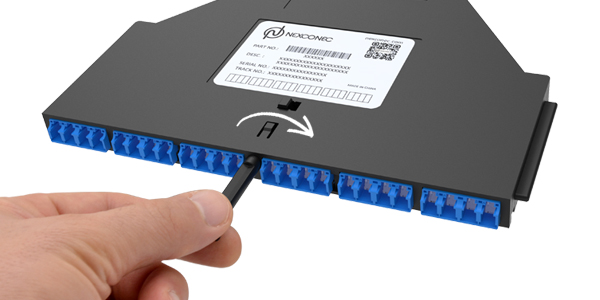

Push/Pull Rotating Lock System

  • The unique NGX module locking system is designed as a tab for users to push/pull modules into the chassis and lock the module in the chassis with no additional tool.
NGX Modules

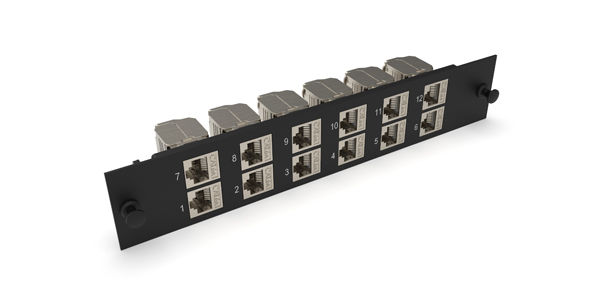

Copper Module

Keystone Jack Copper Module

  • Provides the great flexibility to installer to build hybrid network with both fiber and copper connections within the same unit.

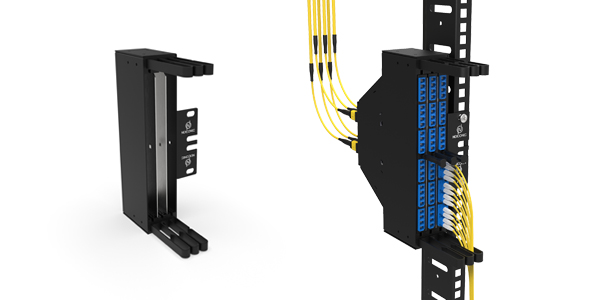

Zero RU Bracket

  • Adds an additional patch panel location to free up extra space in the cabinet & installs vertically in the cabinet rail. Creates a convenient point for distribution of patch cables.
NGX Zero Ru Bracket
