0.5U UTP/STP Unloaded Patch Panel – CMX0.5XXX
NEXCONEC 0.5U 24 ports unloaded keystone patch panel is the special designed patch panel for use in high density network deployment, allows flexibility for the users during installations. It gives you the benefits of only using ports required by installing the desired number of jacks into the frame.
This unloaded keystone jack patch panel comes with cable ties, cage nuts and rear cable management bar as standard.
FEATURES AND APPLICATIONS
- 0.5U design

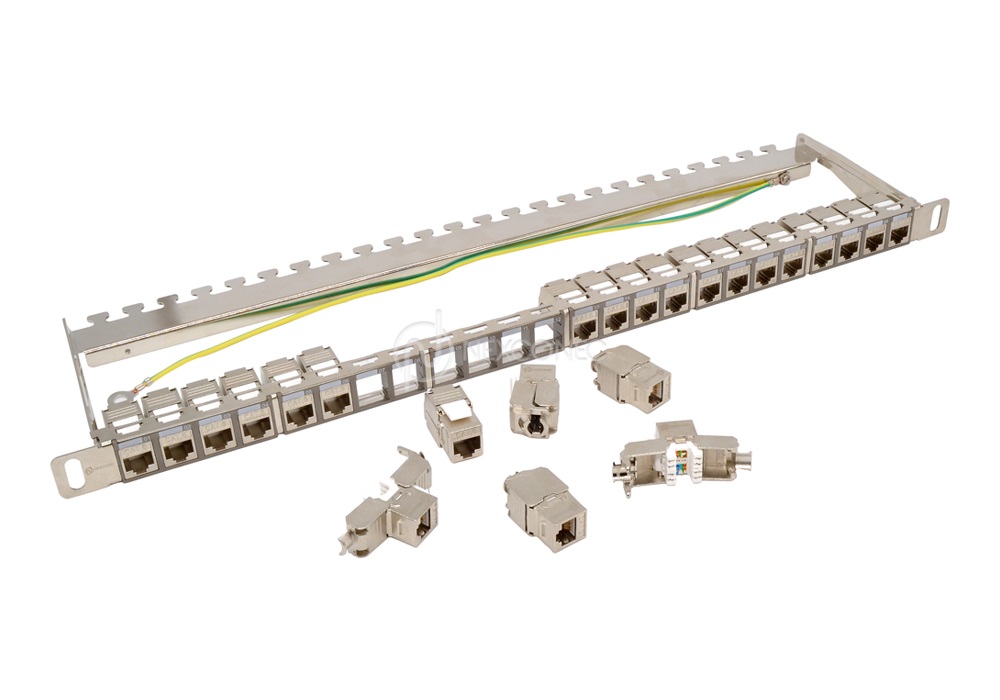

- Compatible with all NEXCONEC UTP and STP keystone jacks
- 19’’ rack mountable
- Support up to 24port in 0.5U height

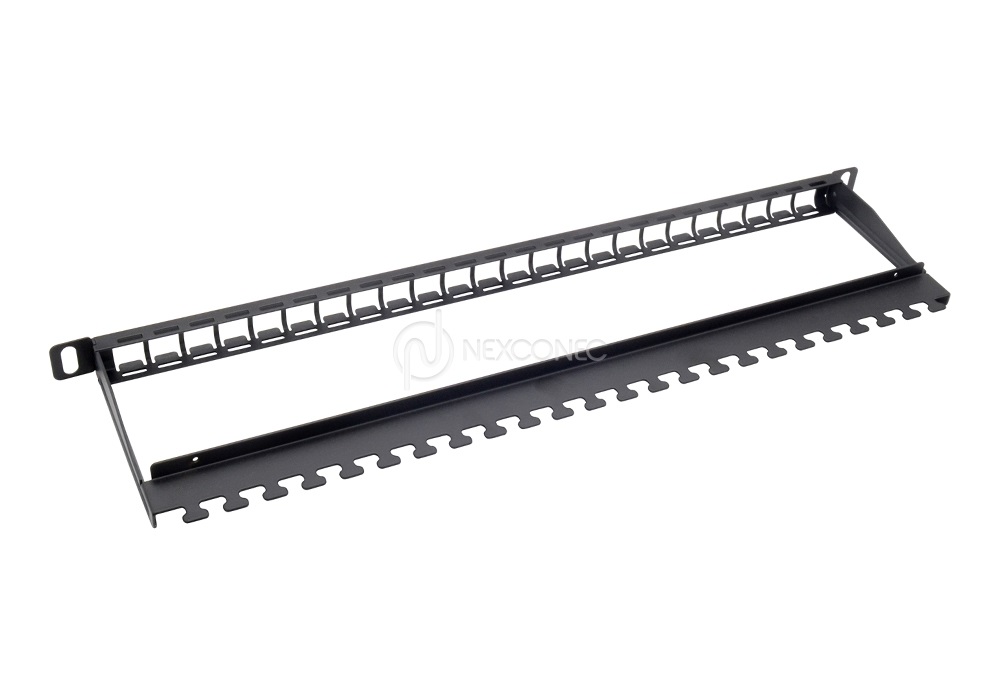

- Supplied with rear cable managers and fixings
- Connection between wall outlets or equipment’s
- Compatible with all categories of unshielded and shielded keystone jacks
| Parameters | Value |
|---|---|
| U Size | 0.5U (22.3mm) |
| Depth | 99mm |
| Net Weight | 0.3KG |
| Frame Material | Cold-rolled steel |
| Material Thickness | 1.6mm |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Width | 482.6mm |
| Packed Weight | 0.5KG |
| Color | Black, RAL 9004 (for UTP) Metallic color (for STP) |
| Part Number | Product Description |
|---|---|

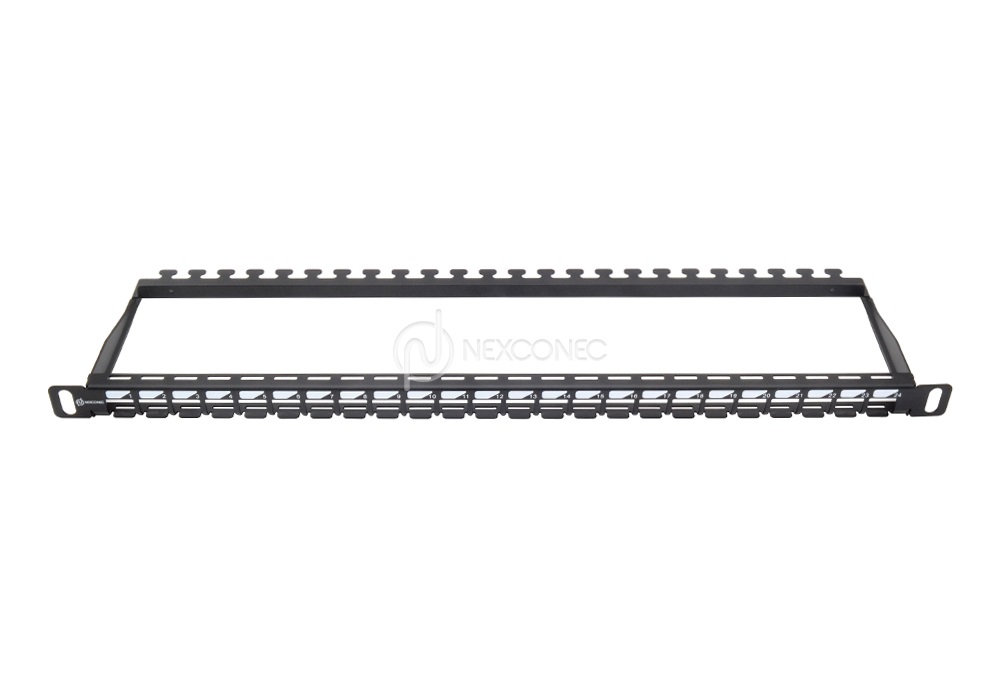

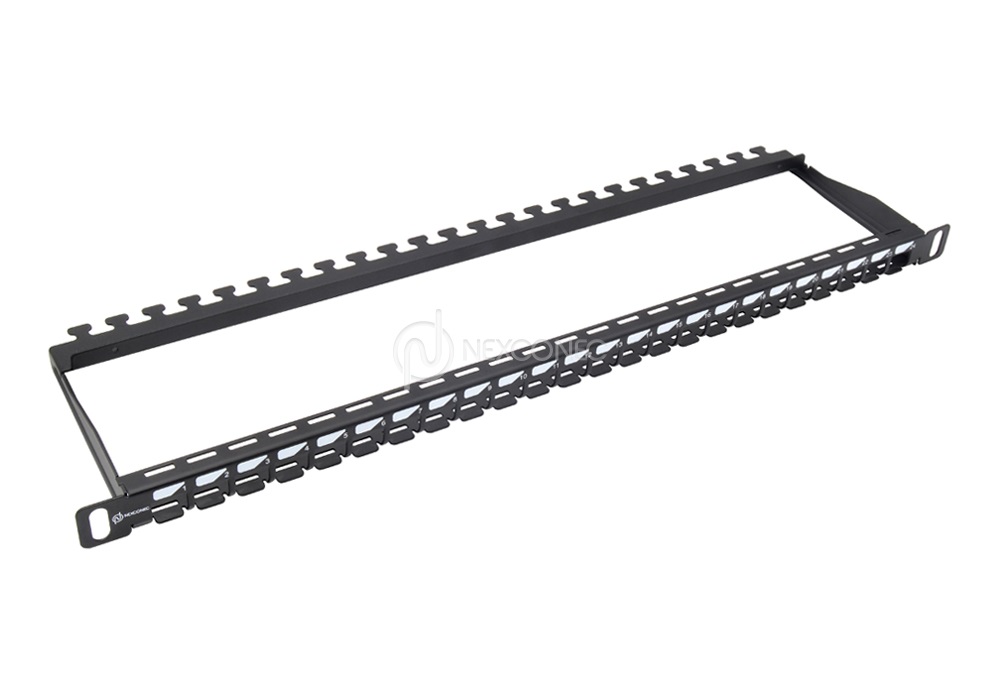

| CMX0.5UUN | NEXCONEC 0.5U 24port UTP KJ Patch Panel, Unloaded |

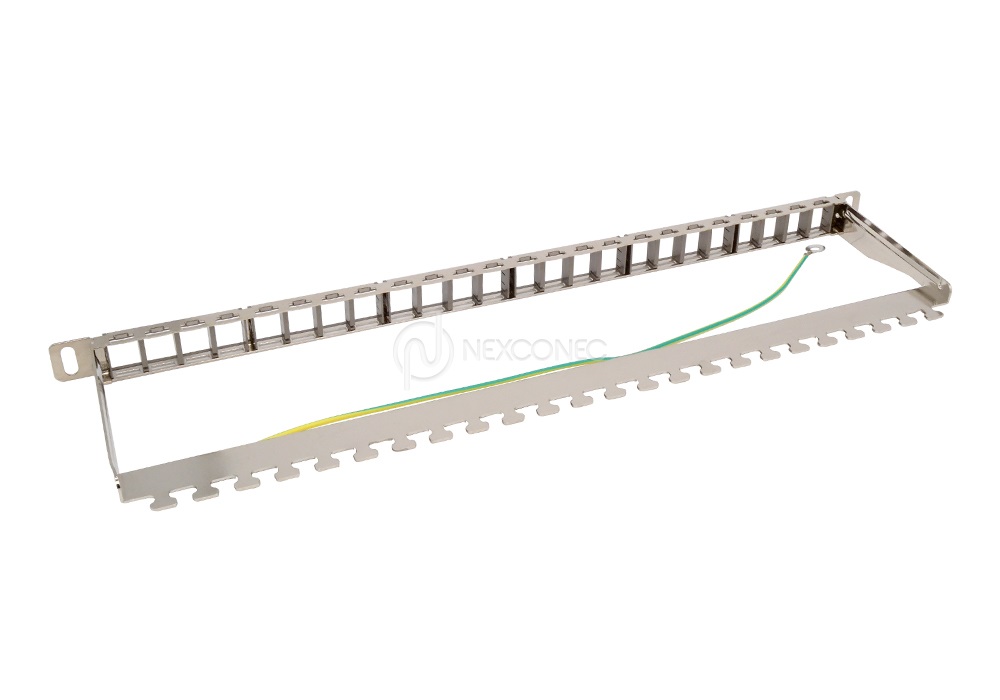

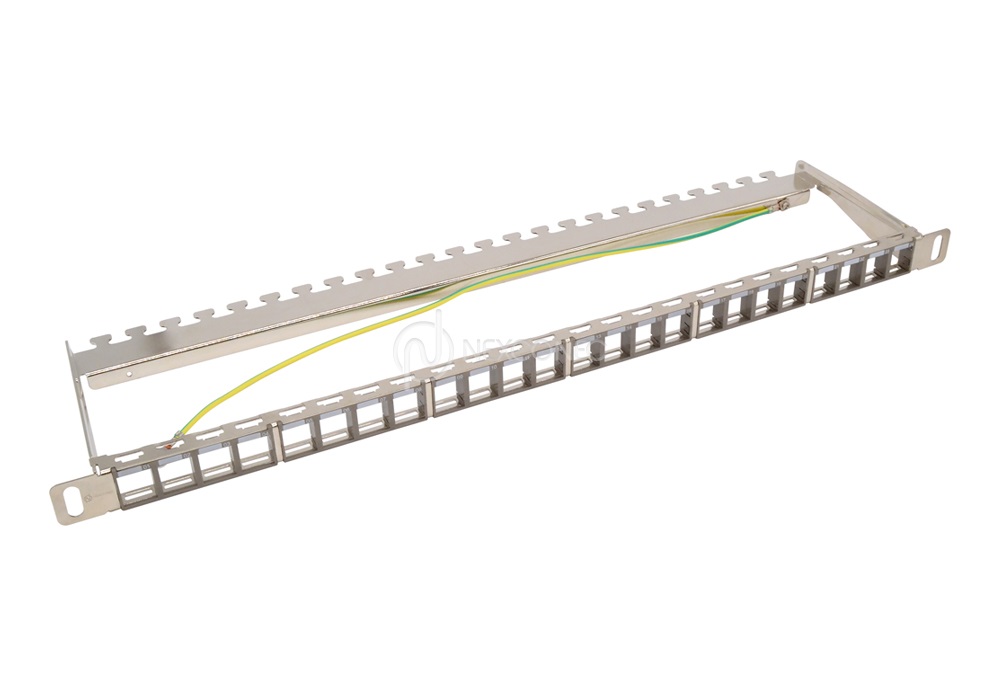

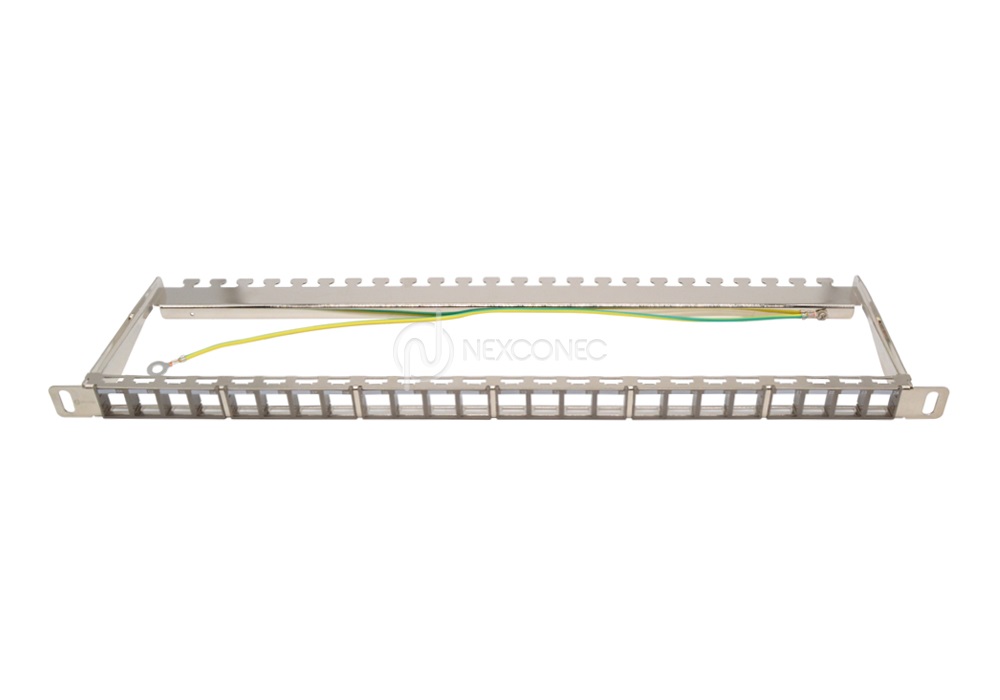

| CMX0.5SUN | NEXCONEC 0.5U 24port FTP Shielded KJ Patch Panel, Unloaded |
