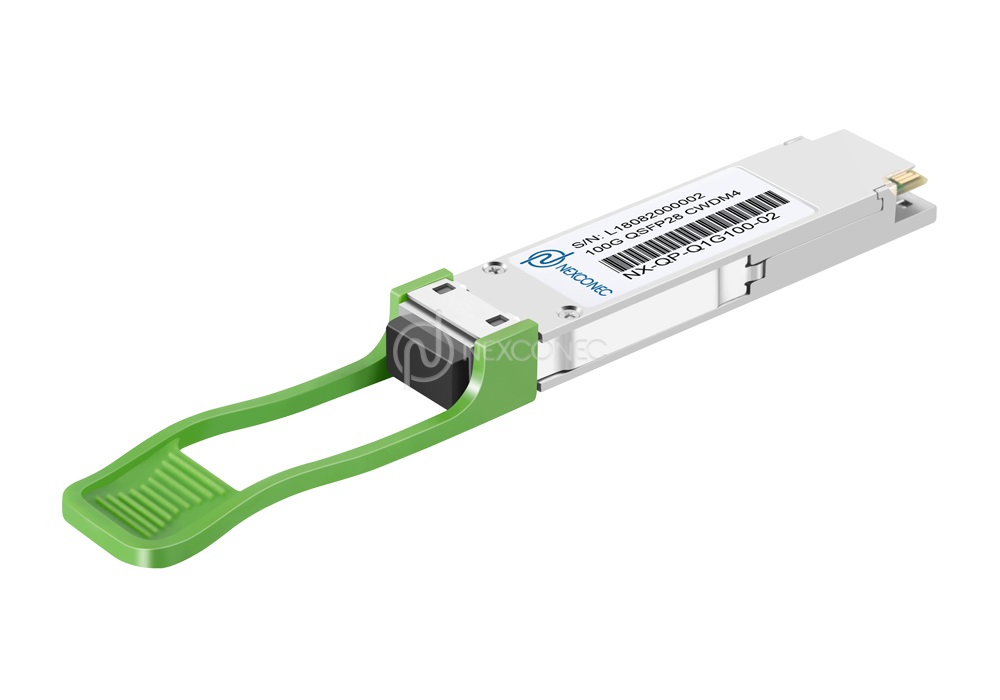

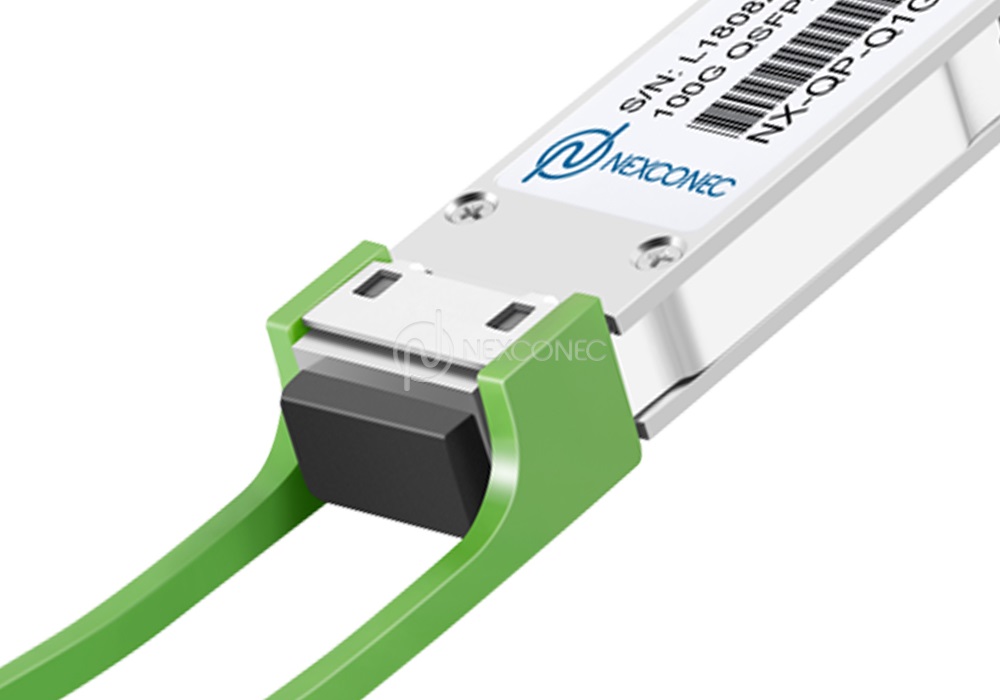

100G QSFP28 CWDM4 Transceiver
Nexconec 100G QSFP28 CWDM4 Transceivers are designed for 100G Ethernet CWDM4 links over duplex single mode fibers, support transmission distance up to 10km with FEC using CWDM wavelengths (1271nm, 1291nm, 1311nm, 1331nm).
FEATURES AND APPLICATIONS
- Hot-pluggable QSFP28 form factor
- Compliant with QSFP MSA standard; Compliant with 100G CWDM4 MSA standard
- 4 channels full-duplex transceiver module; Supports 100Gbps aggregate bit rate
- 4 channels DFB CWDM uncooled transmitter; 4 channels PIN ROSA
- Maximum link length of up to 10km on SMF with KR4 FEC
- Duplex LC receptacles
- Built-in digital diagnostic functions
- Operating case temperature range: 0 to 70°C
- 3.5W maximum power dissipation; Single 3.3V power supply
- RoHS-6 compliant (lead free)
- Data Center Interconnect; 100G CWDM4 applications; Infiniband EDR interconnects; Enterprise networking
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QP-Q1G100-02-xx | QSFP28 | 100G | CWDM | 2km | DFB CWDM | PIN | LC | -6.5~2.5dBm | -10.0dBm |
| NX-QP-Q1G100-10-xx | QSFP28 | 100G | CWDM | 10km | DFB CWDM | PIN | LC | -6.0~2.5dBm | -13.0dBm |
| Part Number | Product Description |
|---|---|
| NX-QP-Q1G100-02-xx | QSFP28 CWDM4 Transceiver LC Duplex 2km |
| NX-QP-Q1G100-10-xx | QSFP28 CWDM4 Transceiver LC Duplex 10km |
1. Where (02 = 2km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
