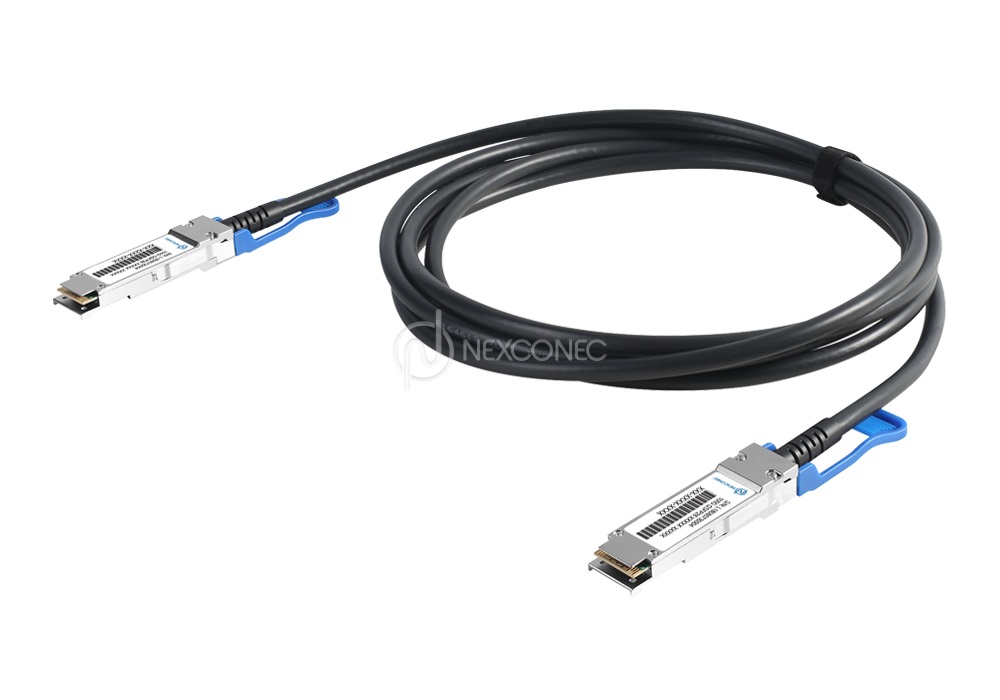

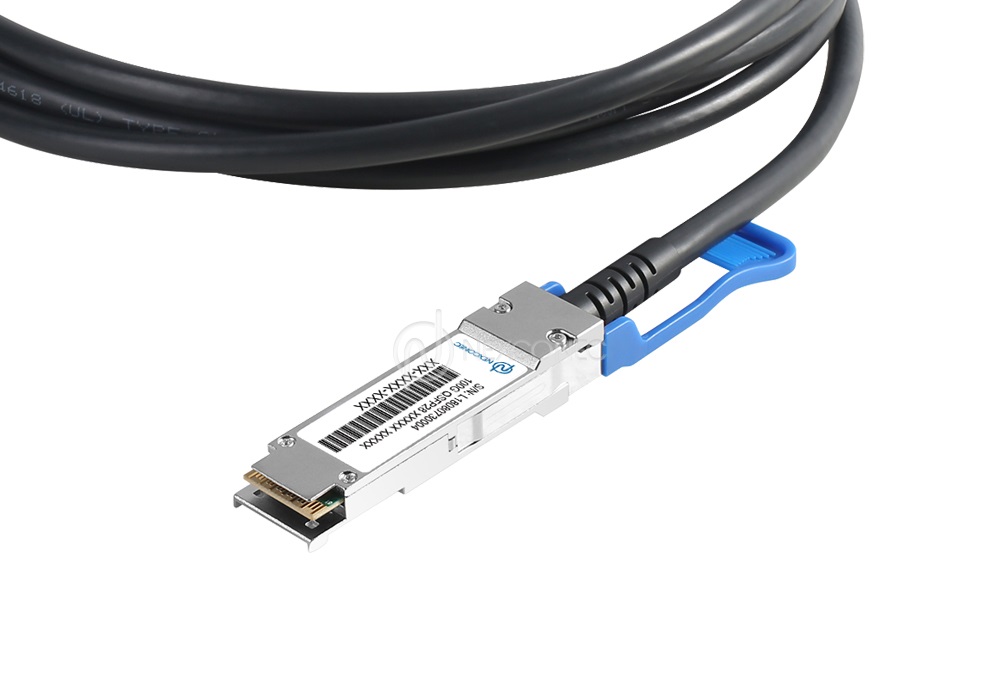

100G QSFP28 DAC
Nexconec QSFP28 Direct Attach Cables are compliant with the SFF-8665 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 5m).
FEATURES AND APPLICATIONS
- Up to 28.3125Gbps data rate per channel
- Operating temperature: 0~70℃
- Single 3.3V power supply
- RoHS compliant
- Compliant with SFF-8665
- 100G Ethernet
| Part Number | Package | Data Rate | Length | Cable AWG |
|---|---|---|---|---|
| NX-XF-DG100-0.5-xx | QSFP28 | 100G | 0.5m | 30 AWG |
| NX-XF-DG100-01-xx | QSFP28 | 100G | 1m | 30 AWG |
| NX-XF-DG100-03-xx | QSFP28 | 100G | 3m | 30 AWG |
| NX-XF-DG100-05-xx | QSFP28 | 100G | 5m | 26 AWG |
| Part Number | Product Description |
|---|---|
| NX-XF-DG100-0.5-xx | 100G QSFP28 DAC 30 AWG 0.5m |
| NX-XF-DG100-01-xx | 100G QSFP28 DAC 30 AWG 1m |
| NX-XF-DG100-03-xx | 100G QSFP28 DAC 30 AWG 3m |
| NX-XF-DG100-05-xx | 100G QSFP28 DAC 26 AWG 5m |
1. Where (01 = 1m, 05 = 5m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
