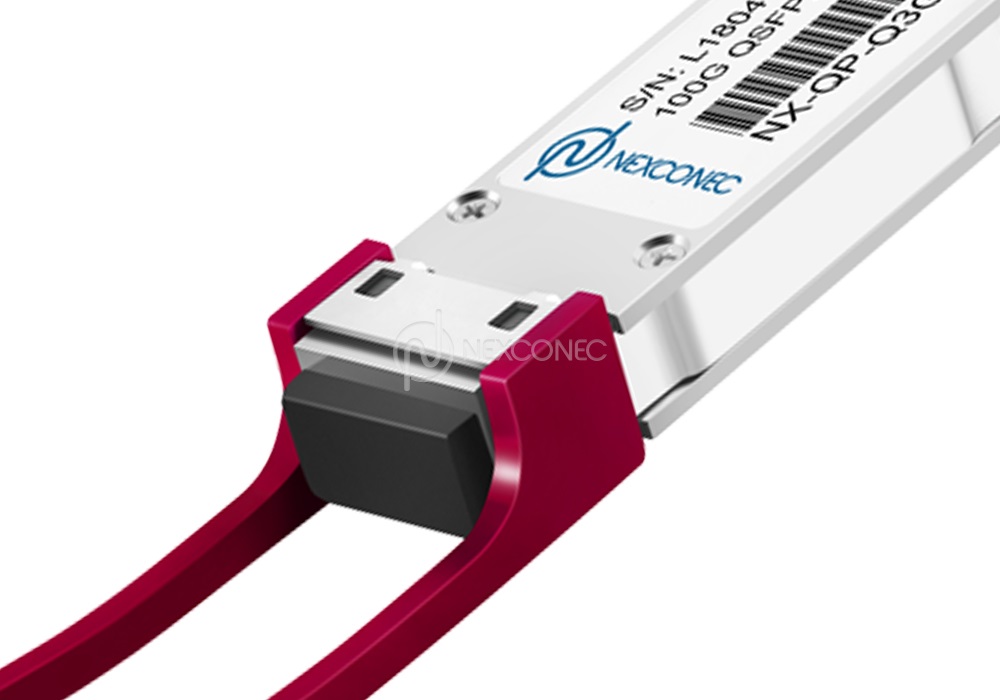

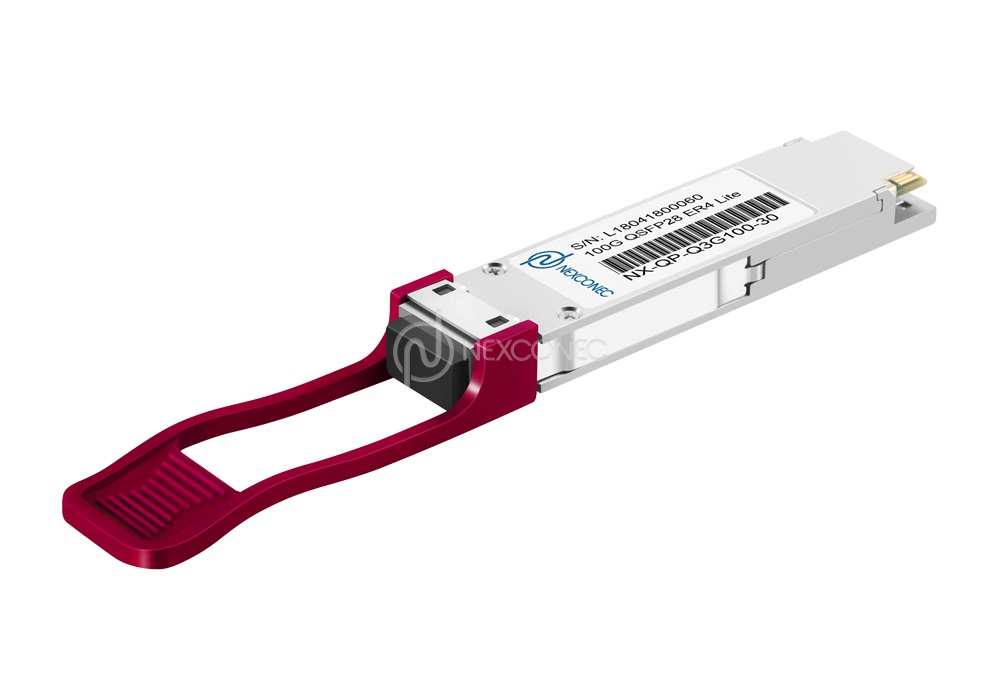

100G QSFP28 ER4 Lite Transceiver
Nexconec QSFP28 ER4 Lite Transceivers are designed for 100G Ethernet 100GBASE-ER4, 4WDM-40 and OTN OTU4 links over duplex single mode fibers, support transmission distance up to 40km without FEC and 40km with FEC using LWDM wavelengths (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm).
FEATURES AND APPLICATIONS
- Hot-pluggable QSFP28 form factor
- Compliant with QSFP MSA standard, IEEE 802.3ba 100GBASE-ER4 standard
- Compliant with 100G 4WDM-40 MSA standard, OTN OTU4 standard
- 4 channels full-duplex transceiver module; Supports 100Gbps aggregate bit rate
- 4 channels EML LAN-WDM cooling transmitter; 4 channels APD ROSA
- Internal CDR circuits on both receiver and transmitter channels
- Maximum link length of up to 80km on SMF with or without FEC
- Duplex LC receptacles; Built-in digital diagnostic functions
- 3.8W maximum power dissipation; Single 3.3V power supply
- Operating case temperature range: 0 to 70°C
- RoHS-6 compliant (lead free)
- IEEE 802.3ba 100GBASE-ER4；100G 4WDM-40；OTU4
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QP-Q3G100-30-xx | QSFP28 | 100G | LWDM | 30km | EML LWDM | APD | LC | -2.9~4.5dBm | -16.6dBm |
| NX-QP-Q3G100-40-xx | QSFP28 | 100G | LWDM | 40km | EML LWDM | SOA+PIN | LC | -2.5~4.5dBm | -18.5dBm |
| NX-QP-Q3G100-80-xx | QSFP28 | 100G | LWDM | 80km | EML LWDM | SOA+PIN | LC | -2.0~6.5dBm | -28.0dBm |
| Part Number | Product Description |
|---|---|
| NX-QP-Q3G100-30-xx | QSFP28 ER4 Lite Transceiver LC Duplex LWDM 30km |
| NX-QP-Q3G100-40-xx | QSFP28 ER4 Lite Transceiver LC Duplex LWDM 40km |
| NX-QP-Q3G100-80-xx | QSFP28 ZR4 Lite Transceiver LC Duplex LWDM 80km |
1. Where (30 = 30km, 40 = 40km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
