100G QSFP28 LR1 BiDi TRANSCEIVER

QSFP28 LR1 BiDi Transceiver
QSFP28 LR1 BiDi Transceiver
QSFP28 LR1 BiDi Transceiver QSFP28 LR1 BiDi Transceiver

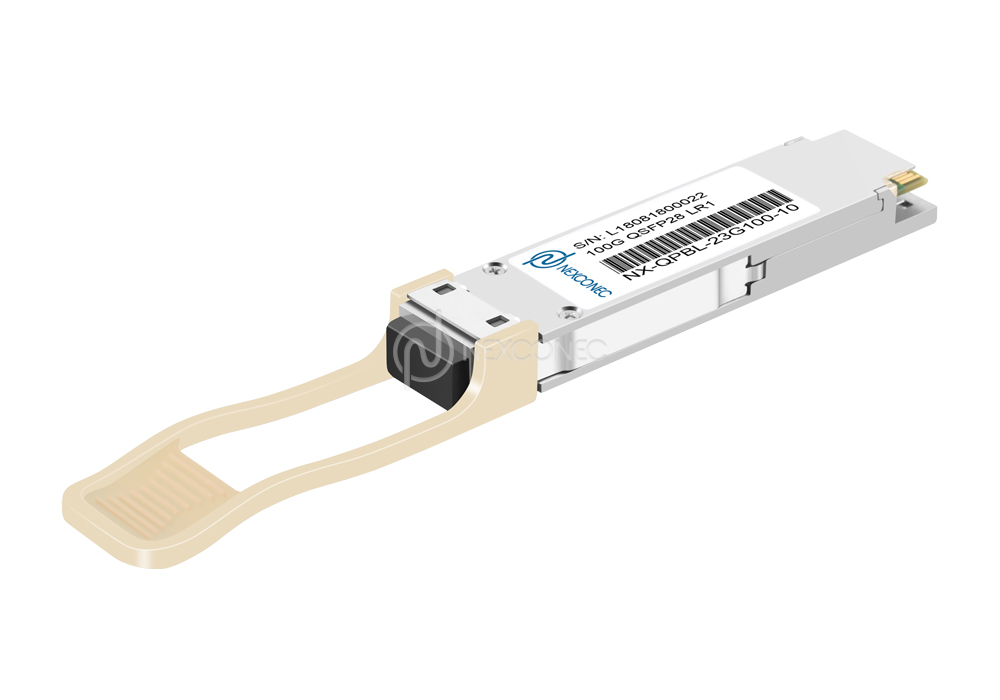

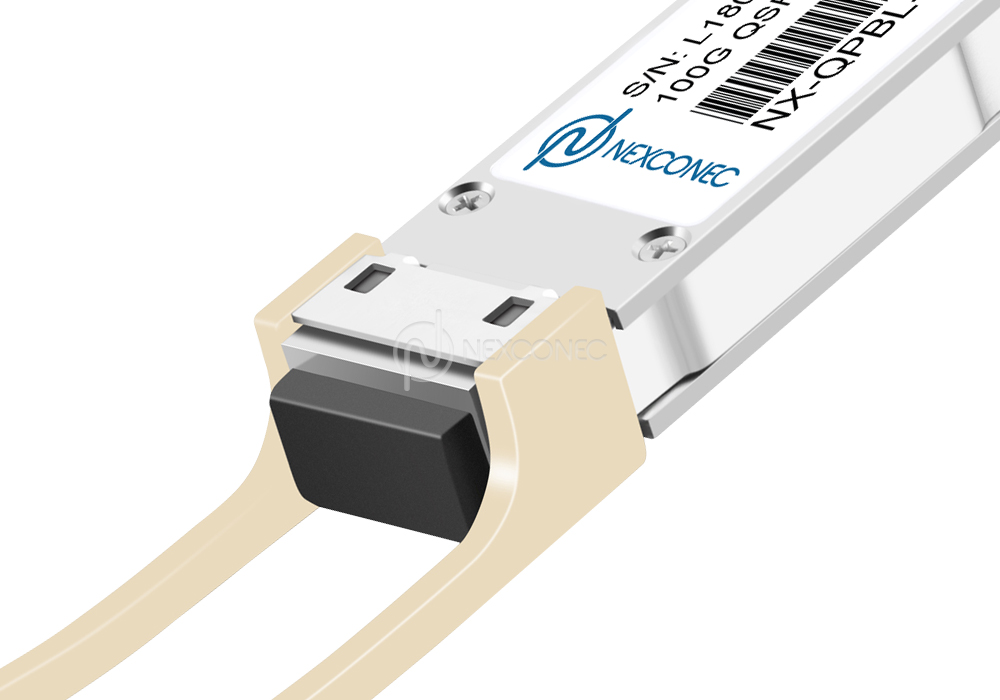

Nexconec QSFP28 LR1 BiDi Transceivers are designed for 100G Ethernet 100GBASE-LR1 links over duplex single mode fibers, support transmission distance up to 30km using wavelengths (1270nm, 1330nm, 1304nm and 1309nm).

FEATURES AND APPLICATIONS
  • Supports 106.25Gb/s PAM4
  • Digital Diagnostics Monitoring Interface
  • Built-in 100G PAM4 DSP
  • Up to 30km reach over SMF
  • Hot Pluggable
  • BiDi LC receptacle
  • Commercial operating case temperature range: 0~ 70ºC
  • RoHS-6 Compliant
  • Power dissipation < 4.5 W
  • TDECQ<3.9dB

Product Information

pdfDATASHEET.pdf View Download
Part Number Package Data Rate Wavelength Reach TX RX Connector TX Power RX Sensitivity
NX-QPBL-23G100-10-xx QSFP28 100G 1270nm 10km DFP PIN LC -1.4~4.5dBm -6.1dBm
NX-QPBL-32G100-10-xx QSFP28 100G 1330nm 10km DFP PIN LC -1.4~4.5dBm -6.1dBm
NX-QPBL-23G100-20-xx QSFP28 100G 1291nm 20km EML PIN LC 0~6.6dBm -7.6dBm
NX-QPBL-32G100-20-xx QSFP28 100G 1311nm 20km EML PIN LC 0~6.6dBm -7.6dBm
NX-QPBL-23G100-30-xx QSFP28 100G 1304nm 30km EML APD LC 0~5.6dBm -12.5dBm
NX-QPBL-32G100-30-xx QSFP28 100G 1309nm 30km EML APD LC 0~5.6dBm -12.5dBm
Part Number Product Description
NX-QPBL-23G100-10-xx QSFP28 100G LR1 BiDi Transceiver LC Simplex SM, (Tx1270nm/Rx1330nm) 10km
NX-QPBL-32G100-10-xx QSFP28 100G LR1 BiDi Transceiver LC Simplex SM, (Tx1330nm/Rx1270nm) 10km
NX-QPBL-23G100-20-xx QSFP28 100G LR1 BiDi Transceiver LC Simplex SM, (Tx1291nm/Rx1311nm) 20km
NX-QPBL-32G100-20-xx QSFP28 100G LR1 BiDi Transceiver LC Simplex SM, (Tx1311nm/Rx1291nm) 20km
NX-QPBL-23G100-30-xx QSFP28 100G ER1 BiDi Transceiver LC Simplex SM, (Tx1304nm/Rx1309nm) 30km
NX-QPBL-32G100-30-xx QSFP28 100G ER1 BiDi Transceiver LC Simplex SM, (Tx1309nm/Rx1304nm) 30km
1. Where (10 = 10km, 20 = 20km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
