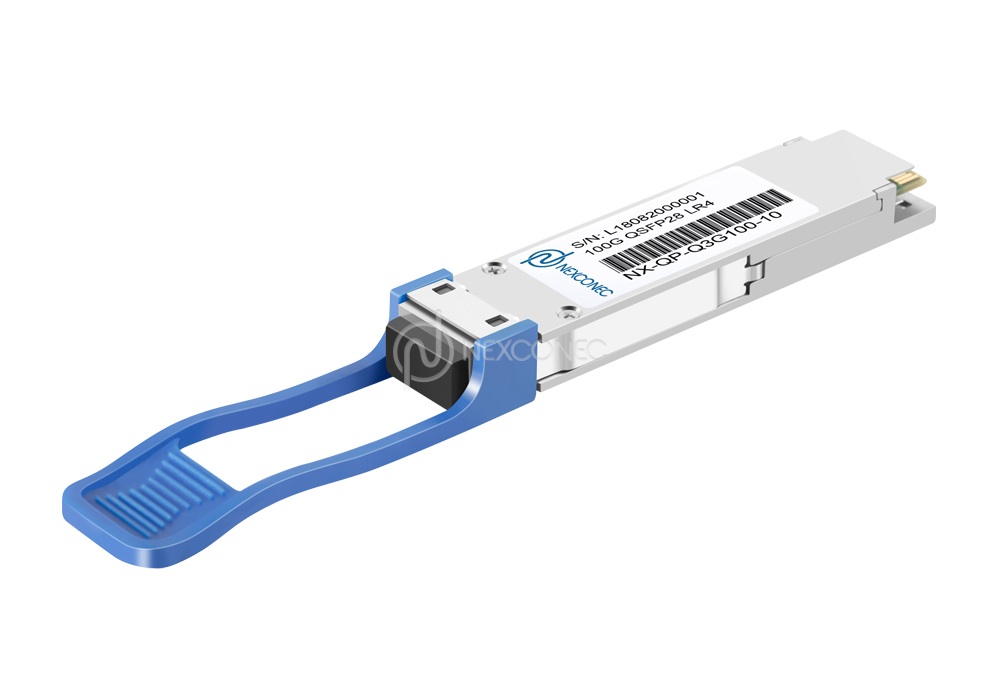

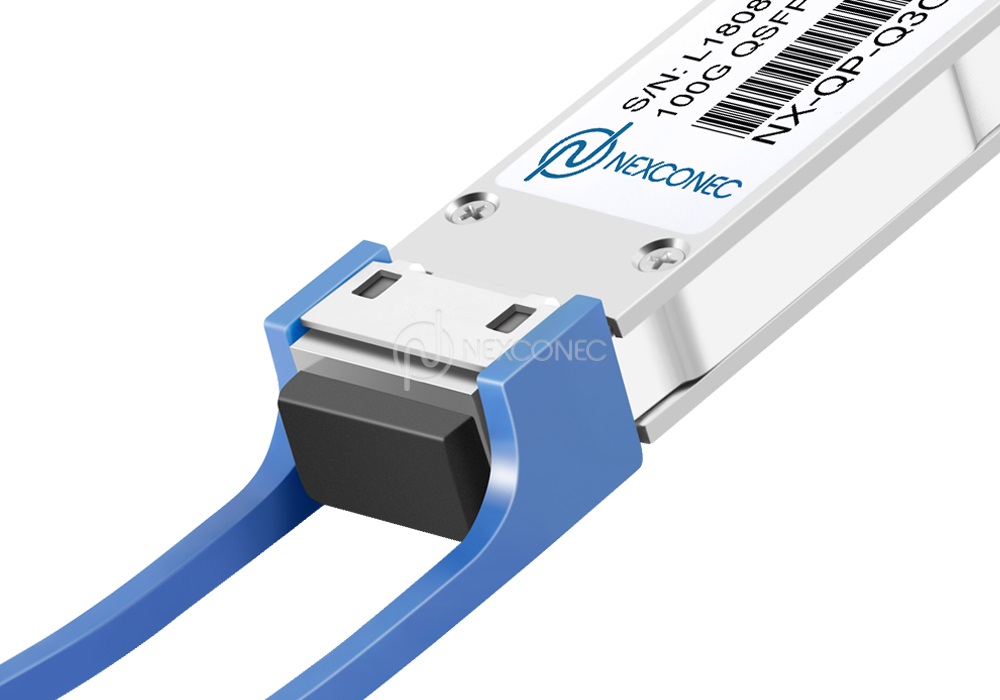

100G QSFP28 LR4 Transceiver
Nexconec QSFP28 LR4 Transceivers are designed for 100G Ethernet 100GBASE-LR4 links over duplex single mode fibers, support transmission distance up to 20km using LWDM wavelengths (1296nm, 1300nm, 1305nm and 1309nm).
FEATURES AND APPLICATIONS
- Hot-pluggable QSFP28 form factor
- Compliant with QSFP MSA standard and IEEE 802.3ba 100GBASE-LR4 standard
- 4 channels full-duplex transceiver module; Supports 100Gbps aggregate bit rate
- 4 channels DFB LWDM cooling transmitter; 4 channels PIN ROSA
- Internal CDR circuits on both receiver and transmitter channels
- Maximum link length of up to 20km on SMF
- Duplex LC receptacles; Built-in digital diagnostic functions
- 3.5W maximum power dissipation; Single 3.3V power supply
- Operating case temperature range: 0 to 70°C
- RoHS-6 compliant (lead free)
- IEEE 802.3ba 100GBASE-LR4
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QP-Q3G100-10-xx | QSFP28 | 100G | LWDM | 10km | DFB LWDM | PIN | LC | -4.3~4.5dBm | -10.6dBm |
| NX-QP-Q3G100-20-xx | QSFP28 | 100G | LWDM | 20km | DFB LWDM | PIN | LC | -1.0~4.5dBm | -12.0dBm |
| Part Number | Product Description |
|---|---|
| NX-QP-Q3G100-10-xx | QSFP28 LR4 Transceiver LC Duplex LWDM 10km |
| NX-QP-Q3G100-20-xx | QSFP28 LR4 Transceiver LC Duplex LWDM 20km |
1. Where (10 = 10km, 20 = 20km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
