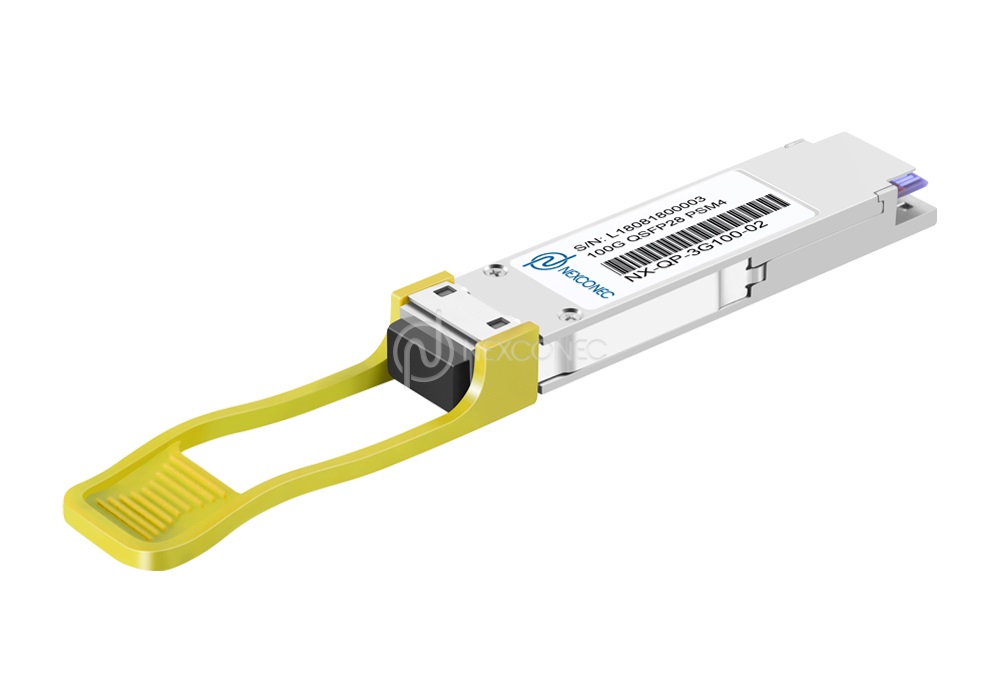

100G QSFP28 PSM4 Transceiver
Nexconec 100G QSFP28 PSM4 Transceivers (NX-QP-3G100-02) are designed for 100G Ethernet PSM4 links over multiple single mode fibers, support transmission distance up to 2km using 1310nm wavelengths.
FEATURES AND APPLICATIONS
- Hot-pluggable QSFP28 form factor
- Compliant with QSFP MSA standard; Compliant with 100G PSM4 MSA standard
- 4 channels full-duplex transceiver module; Supports 100Gb/s aggregate bit rate
- 4 channels 1310nm DFB lasers; 4 channels PIN photo detector array
- Maximum link length of 2km on SMF
- Single MTP/MPO receptacle; Built-in digital diagnostic functions
- 3.5W maximum power dissipation; Single 3.3V power supply
- Operating case temperature range: 0 to 70°C
- RoHS-6 compliant (lead free)
- 100GE direct interconnection
- 100GE to 4x 25GE breakout interconnection
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QP-3G100-02-xx | QSFP28 | 100G | 1310nm | 2km | DFB | PIN | LC | -6.0~2.0dBm | -10.1dBm |
| Part Number | Product Description |
|---|---|
| NX-QP-3G100-02-xx | QSFP28 PSM4 Transceiver LC Duplex 1310nm 2km |
1. Where (02 = 2km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
