100G QSFP28 SR4 Transceiver

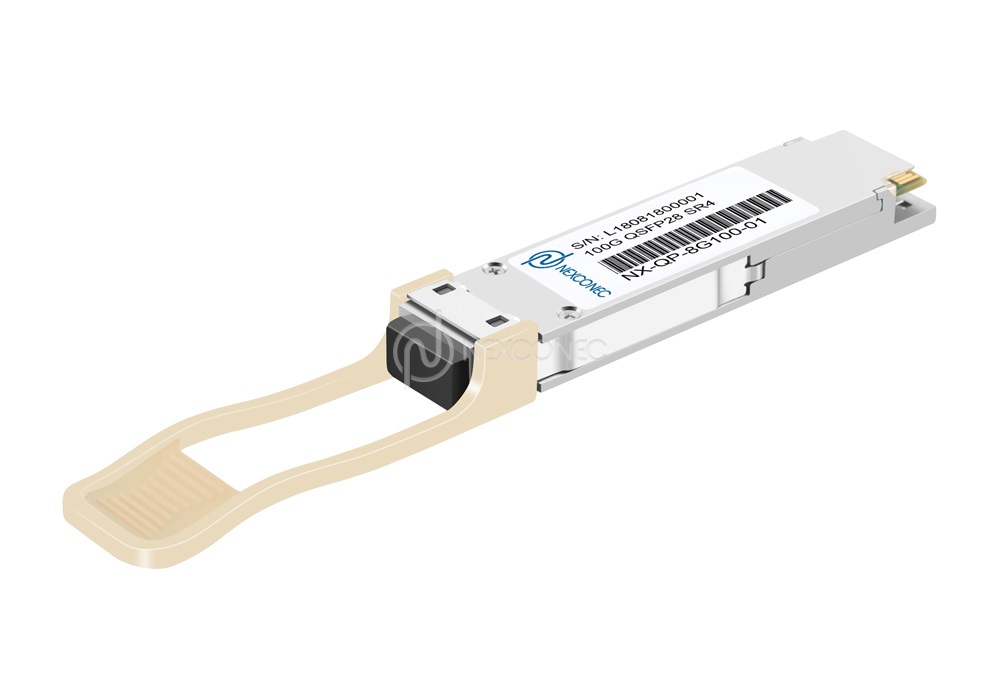

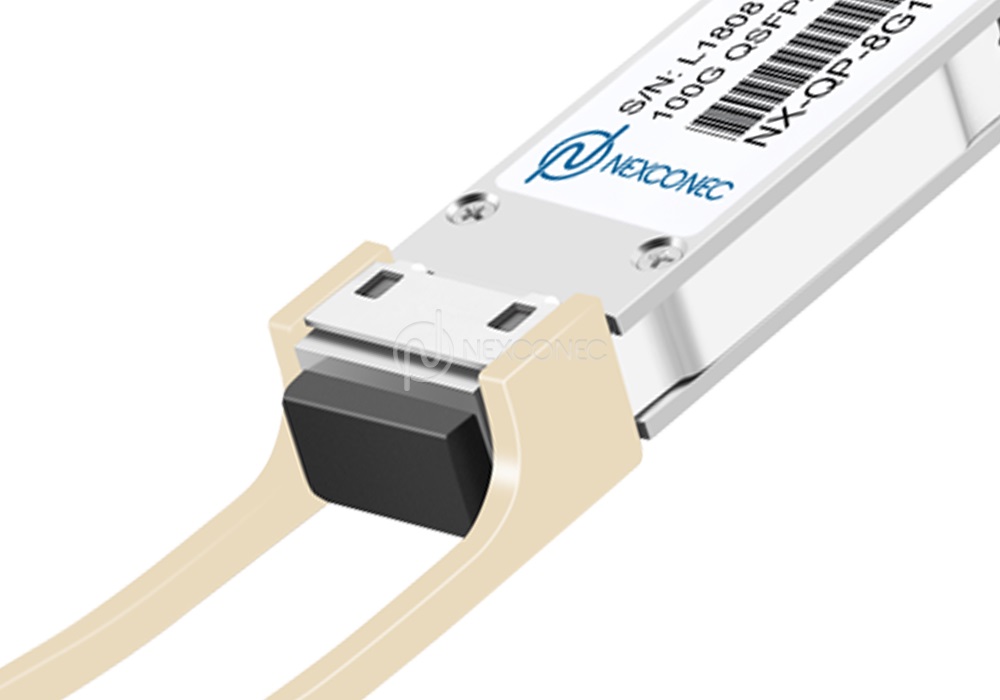

Nexconec 100G QSFP28 SR4 Transceivers (NX-QP-8G100-01) are designed for 100G Ethernet 100GBASE-SR4 links over multiple multimode fibers, support transmission distance up to 100m using 850nm wavelengths.
FEATURES AND APPLICATIONS
- Hot-pluggable QSFP28 form factor
- Compliant with QSFP MSA standard; Compliant with IEEE 802.3bm 100GBASE-SR4 standard
- 4 channels full-duplex transceiver module; Supports 100Gb/s aggregate bit rate
- 4 channels 850nm VCSEL array; 4 channels PIN photo detector array
- Maximum link length of 70m on OM3 MMF or 100m on OM4 MMF
- Single MTP/MPO receptacle; Built-in digital diagnostic functions
- Operating case temperature range: 0 to 70°C
- 2.5W maximum power dissipation; Single 3.3V power supply
- RoHS-6 compliant (lead free)
- IEEE 802.3bm 100GBASE-SR4
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QP-8G100-01-xx | QSFP28 | 100G | 850nm | 100m | VCSEL | PIN | MTP/MPO | -8.4~2.4dBm | -10.3dBm |
| Part Number | Product Description |
|---|---|
| NX-QP-8G100-01-xx | QSFP28 SR4 Transceiver MTP/MPO 850nm 100m |
1. Where (01 = 100m) denotes reach in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
