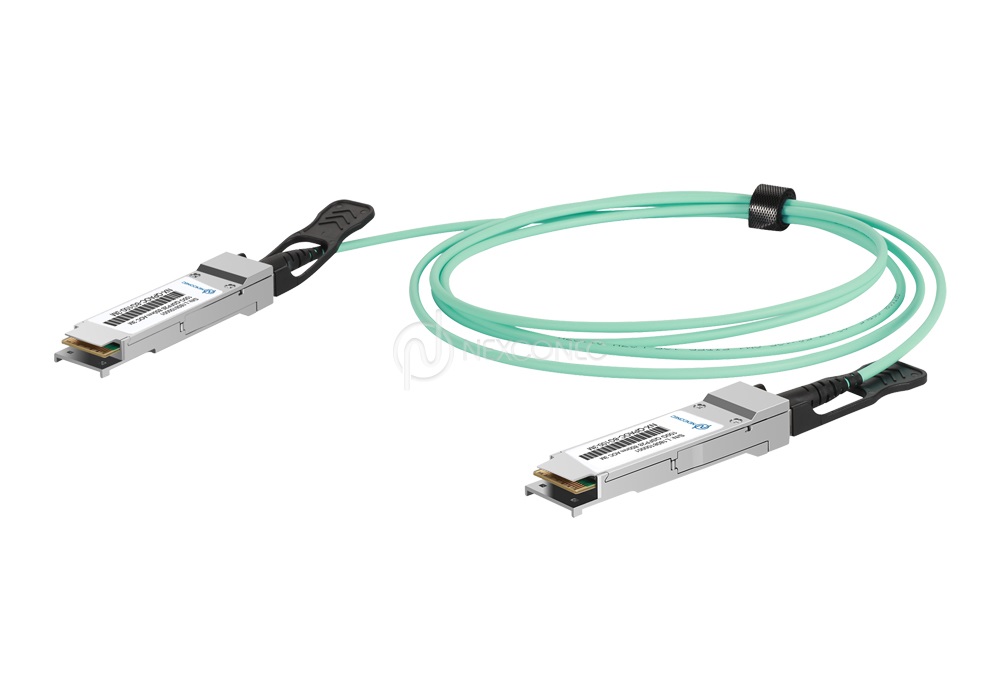

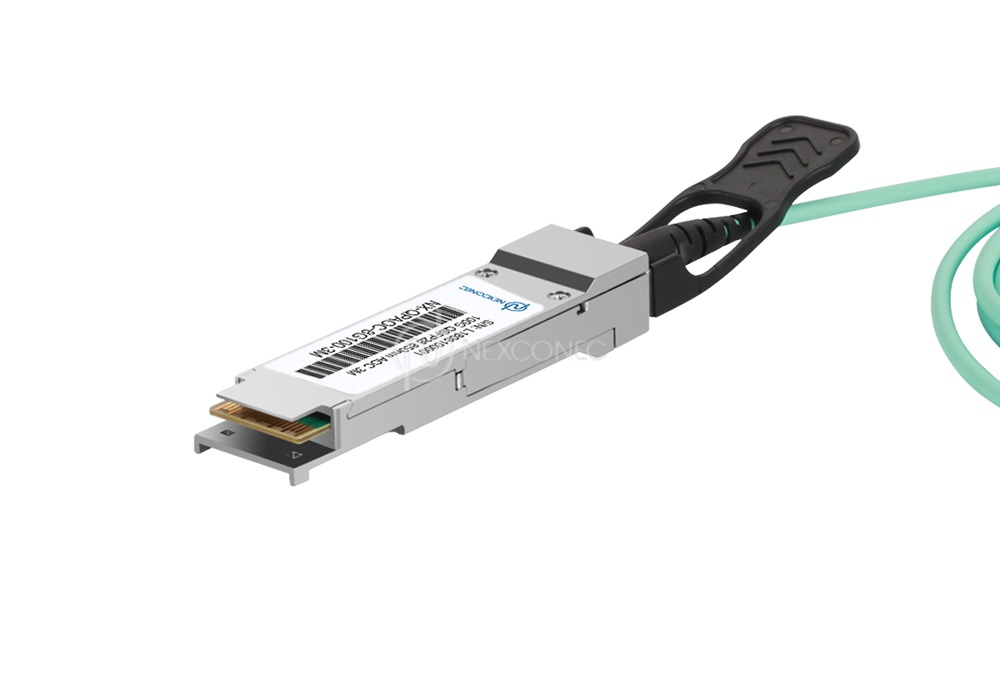

100Gbps QSFP28 ACTIVE OPTICAL CABLE
Four-channel full-duplex active optical cable / Reliable VCSEL technology using multimode fiber.
FEATURES AND APPLICATIONS
- 4 channels full-duplex transceiver modules
- 4 channels 850nm VCSEL array, 4 channels PIN photo detector array
- Transmission data rate up to 28.05Gbps per channel, 100Gbps total
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- Hot Pluggable QSFP form factor, Single MPO connector receptacle
- Built-in digital diagnostic functions
- 3.3V power supply voltage; Low power consumption <3.5W
- Operating case temperature 0°C to +70°C
- RoHS 6 compliant (lead free)
- IEEE 802.3bm 100GBASE SR4; Infiniband EDR; 128G Fibre Channel; 4x28Gb/s Multimode OTN
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-QPAOC-8G100-01-xx | QSFP28 | 100G | 850nm | 1m | VCSEL | PIN |
| NX-QPAOC-8G100-02-xx | QSFP28 | 100G | 850nm | 2m | VCSEL | PIN |
| NX-QPAOC-8G100-03-xx | QSFP28 | 100G | 850nm | 3m | VCSEL | PIN |
| NX-QPAOC-8G100-05-xx | QSFP28 | 100G | 850nm | 5m | VCSEL | PIN |
| NX-QPAOC-8G100-07-xx | QSFP28 | 100G | 850nm | 7m | VCSEL | PIN |
| NX-QPAOC-8G100-10-xx | QSFP28 | 100G | 850nm | 10m | VCSEL | PIN |
| NX-QPAOC-8G100-15-xx | QSFP28 | 100G | 850nm | 15m | VCSEL | PIN |
| NX-QPAOC-8G100-20-xx | QSFP28 | 100G | 850nm | 20m | VCSEL | PIN |
| NX-QPAOC-8G100-30-xx | QSFP28 | 100G | 850nm | 30m | VCSEL | PIN |
| NX-QPAOC-8G100-50-xx | QSFP28 | 100G | 850nm | 50m | VCSEL | PIN |
| NX-QPAOC-8G100-100-xx | QSFP28 | 100G | 850nm | 100m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-QPAOC-8G100-01-xx | 100Gbps QSFP28 Active Optical Cable 850nm 1m |
| NX-QPAOC-8G100-02-xx | 100Gbps QSFP28 Active Optical Cable 850nm 2m |
| NX-QPAOC-8G100-03-xx | 100Gbps QSFP28 Active Optical Cable 850nm 3m |
| NX-QPAOC-8G100-05-xx | 100Gbps QSFP28 Active Optical Cable 850nm 5m |
| NX-QPAOC-8G100-07-xx | 100Gbps QSFP28 Active Optical Cable 850nm 7m |
| NX-QPAOC-8G100-10-xx | 100Gbps QSFP28 Active Optical Cable 850nm 10m |
| NX-QPAOC-8G100-15-xx | 100Gbps QSFP28 Active Optical Cable 850nm 15m |
| NX-QPAOC-8G100-20-xx | 100Gbps QSFP28 Active Optical Cable 850nm 20m |
| NX-QPAOC-8G100-30-xx | 100Gbps QSFP28 Active Optical Cable 850nm 30m |
| NX-QPAOC-8G100-50-xx | 100Gbps QSFP28 Active Optical Cable 850nm 50m |
| NX-QPAOC-8G100-100-xx | 100Gbps QSFP28 Active Optical Cable 850nm 100m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
