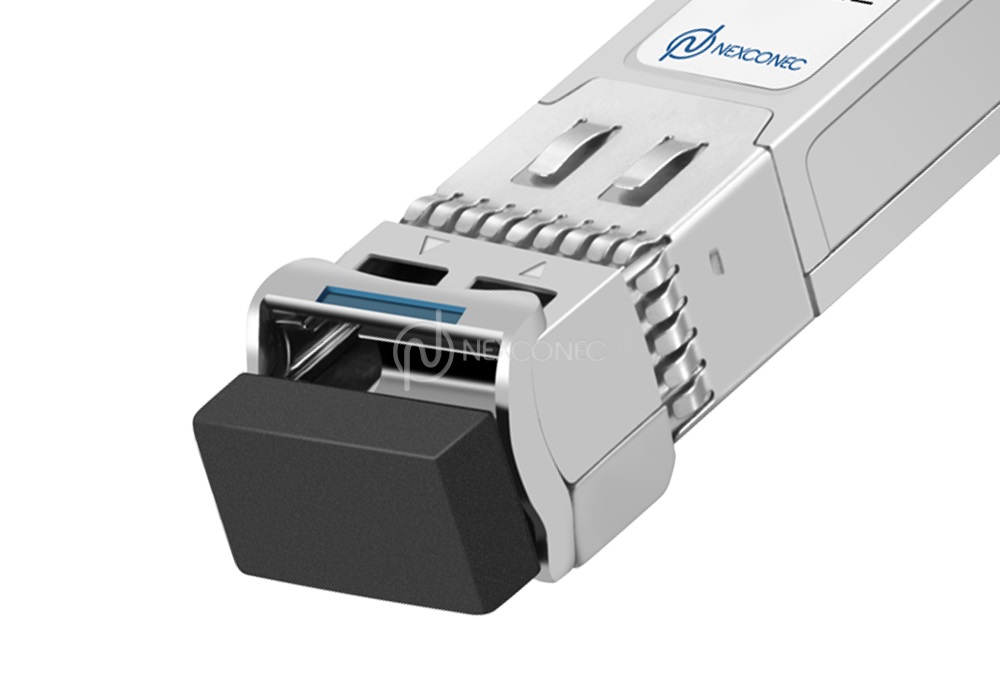

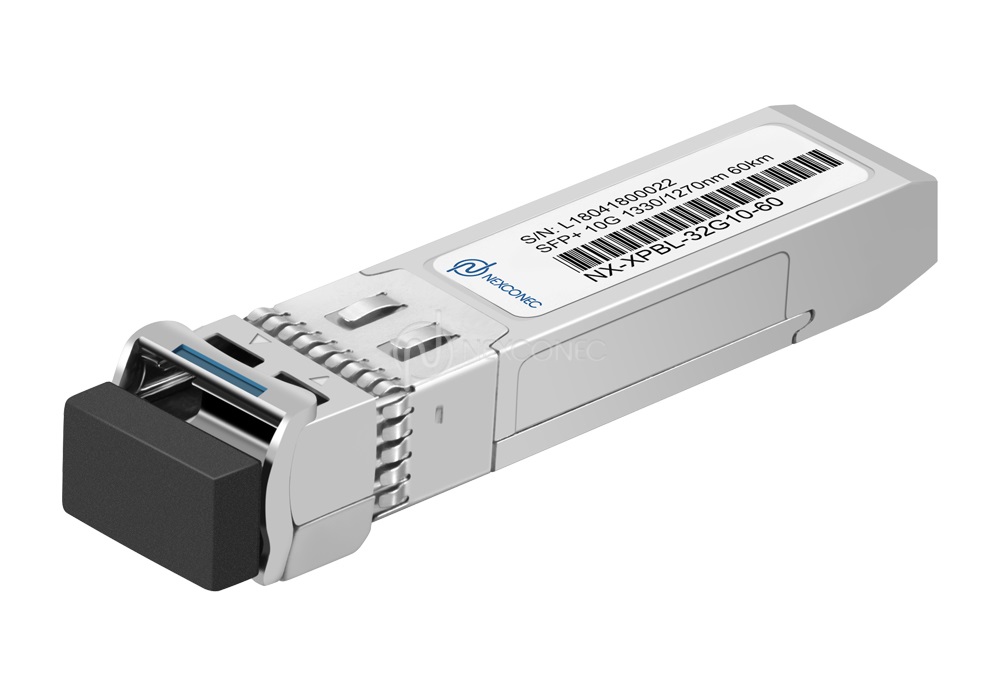

10G SFP+ BiDi TRANSCEIVER
Nexconec 10G SFP+ BiDi Transceivers, with Single Fiber Bi-directional interface, support 1 to 11.3GB/s bi-directional data links, 1270nm and 1330nm wavelengths combination, commercial and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- Supports up to 10.7Gbps bit rates
- Hot-pluggable SFP+ footprint
- Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
- Hot-pluggable
- Single +3.3V power supply
- International Class1 laser safety certified
- Operating temperature range: Commercial: -5℃~+70℃, Industrial: -40℃~+85℃
- RoHS Compliant
- 10Gbps Optical systems, 10GBASE-LR at 10.3125Gbps,10GBASE-LW at 9.953Gbps, LTE systems, Other Optical links
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-XPBL-23G10-10-xx | SFP+ | 10G | 1270/1330nm | 10km | DFB | PIN | LC | -6~-1dBm | -14.4dBm |
| NX-XPBL-32G10-10-xx | SFP+ | 10G | 1330/1270nm | 10km | DFB | PIN | LC | -6~-1dBm | -14.4dBm |
| NX-XPBL-23G10-20-xx | SFP+ | 10G | 1270/1330nm | 20km | DFB | PIN | LC | -3~2dBm | -15dBm |
| NX-XPBL-32G10-20-xx | SFP+ | 10G | 1330/1270nm | 20km | DFB | PIN | LC | -3~2dBm | -15dBm |
| NX-XPBL-23G10-40-xx | SFP+ | 10G | 1270/1330nm | 40km | DFB | PIN | LC | 0~5dBm | -15dBm |
| NX-XPBL-32G10-40-xx | SFP+ | 10G | 1330/1270nm | 40km | DFB | PIN | LC | 0~5dBm | -15dBm |
| NX-XPBL-23G10-60-xx | SFP+ | 10G | 1270/1330nm | 60km | DFB | APD | LC | 0~5dBm | -20dBm |
| NX-XPBL-32G10-60-xx | SFP+ | 10G | 1330/1270nm | 60km | DFB | APD | LC | 0~5dBm | -20dBm |
| NX-XPBL-45G10-80-xx | SFP+ | 10G | 1490/1550nm | 80km | EML | APD | LC | 0~4dBm | -23dBm |
| NX-XPBL-54G10-80-xx | SFP+ | 10G | 1550/1490nm | 80km | EML | APD | LC | -1~3dBm | -23dBm |
| NX-XPBL-45G10-100-xx | SFP+ | 10G | 1490/1550nm | 100km | EML | APD | LC | -1~4dBm | -24dBm |
| NX-XPBL-54G10-100-xx | SFP+ | 10G | 1550/1490nm | 100km | EML | APD | LC | -1~4dBm | -24dBm |
| Part Number | Product Description |
|---|---|
| NX-XPBL-23G10-10-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1270/1330nm) 10km |
| NX-XPBL-32G10-10-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1330/1270nm) 10km |
| NX-XPBL-23G10-20-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1270/1330nm) 20km |
| NX-XPBL-32G10-20-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1330/1270nm) 20km |
| NX-XPBL-23G10-40-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1270/1330nm) 40km |
| NX-XPBL-32G10-40-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1330/1270nm) 40km |
| NX-XPBL-23G10-60-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1270/1330nm) 60km |
| NX-XPBL-32G10-60-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1330/1270nm) 60km |
| NX-XPBL-45G10-80-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1490/1550nm) 80km |
| NX-XPBL-54G10-80-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1550/1490nm) 80km |
| NX-XPBL-45G10-100-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1490/1550nm) 100km |
| NX-XPBL-54G10-100-xx | SFP+ BiDi Transceiver, 10G LC Simplex (1550/1490nm) 100km |
1. Where (10 = 10km, 20 = 20km etc.) denotes reach in kilometers.
2. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-XPBL-23G10-10F-xx).
3. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
4. Find Compatible Short codes in datasheet at Order Information area.
