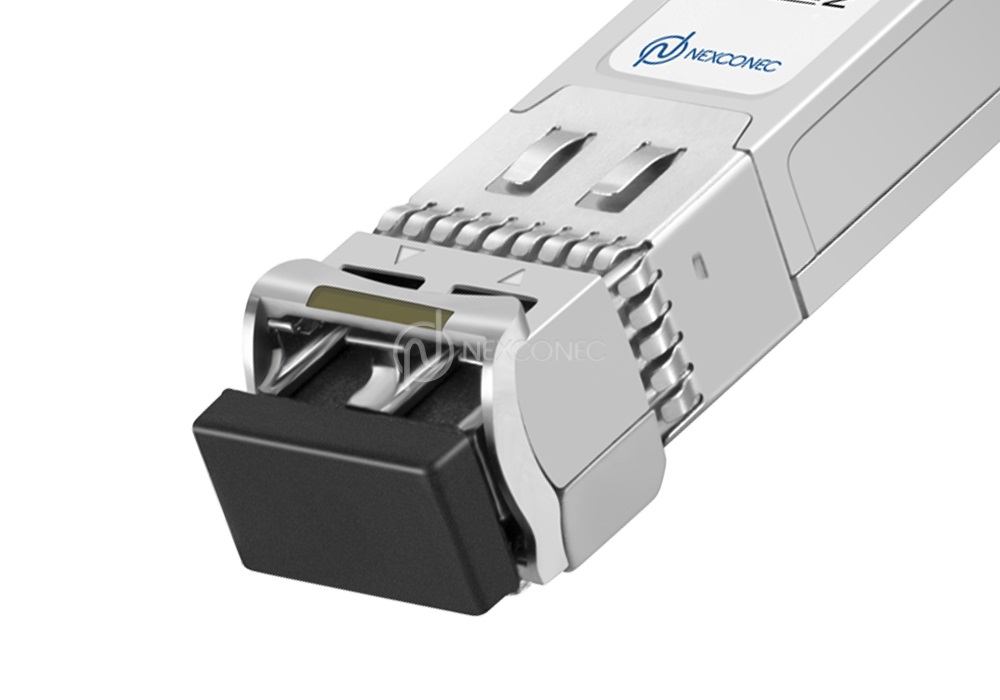

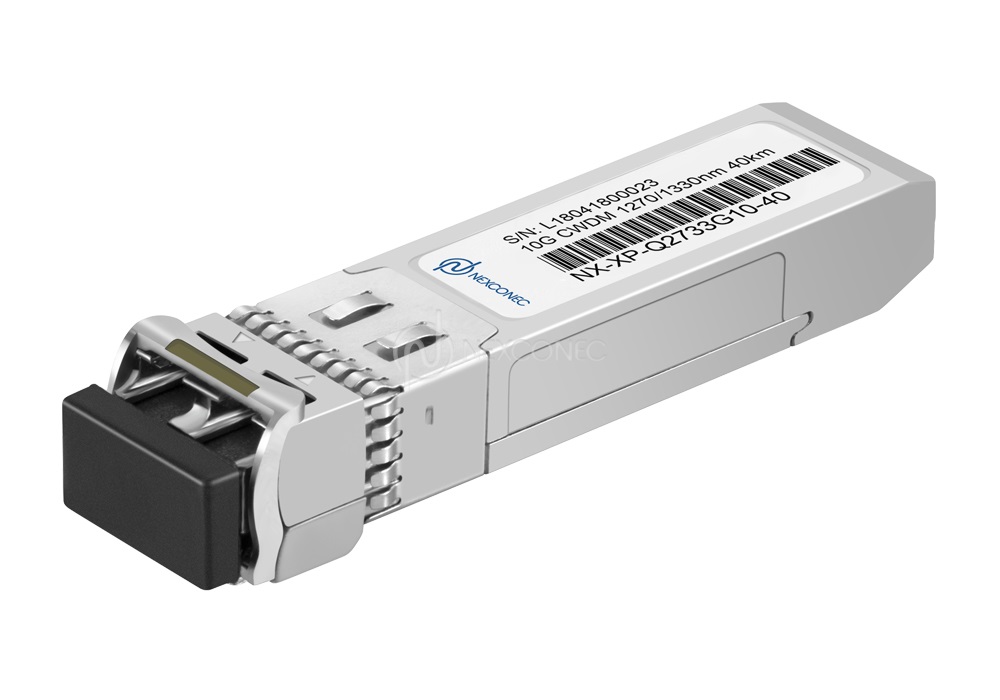

10G SFP+ CWDM Transceiver
Nexconec 10G SFP+ CWDM Transceivers operate at a single wavelength which ranging from 1271nm-1611nm with wavelength space, 20nm on single mode fiber, and cover wide various applications and distances: CWDM LR, CWDM ER, CWDM 70KM for data centers, metro network, wireless and transmission network.
FEATURES AND APPLICATIONS
- Supports up to 10.7Gbps bit rates
- Hot-pluggable SFP+ footprint
- Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
- Working at one single wavelength in CWDM wavelength range
- Single +3.3V power supply
- International Class1 laser safety certified
- Operating temperature range: Commercial: -5℃~+70℃ ,Industry: -40℃~+85℃
- ROHS Compliant
- 10Gbps Optical systems, 10GBASE-LR at 10.3125Gbps,10GBASE-LW at 9.953Gbps, LTE systems, Other Optical links
| Part Number | Package | Data Rate | One Wavelength in this Range | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-XP-Q2G10-10 | SFP+ | 10G | *C1 (1271-1331nm) | 10km | DFB CWDM | PIN | LC | -6~-0.5dBm | -14.4dBm |
| NX-XP-Q3G10-40 | SFP+ | 10G | *C2 (1351-1391nm) | 40km | DFB CWDM | PIN | LC | 0~5dBm | -15dBm |
| NX-XP-Q4G10-40 | SFP+ | 10G | * C3 (1471-1611nm) | 40km | EML CWDM | PIN | LC | -1~3dBm | -16dBm |
| NX-XP-Q4G10-80 | SFP+ | 10G | * C3 (1471-1611nm) | 80km | EML CWDM | APD | LC | -1~4dBm | -23dBm |
| Part Number | Product Description |
|---|---|
| NX-XP-Q2G10-10AA-xx | 10G SFP+ CWDM Transceiver LC Duplex **AA nm 10km |
| NX-XP-Q3G10-40AA-xx | 10G SFP+ CWDM Transceiver LC Duplex **AA nm 40km |
| NX-XP-Q4G10-40AA-xx | 10G SFP+ CWDM Transceiver LC Duplex **AA nm 40km |
| NX-XP-Q4G10-80AA-xx | 10G SFP+ CWDM Transceiver LC Duplex **AA nm 80km |
1. * Please select one single wavelength in the wavelength range for each transmitting distance.
2. **AA represents the working wavelength (Channel Number) which is selected.
3. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-XP-Q2G10-10AAF-xx).
4. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
5. Find Compatible Short codes in datasheet at Order Information area.
