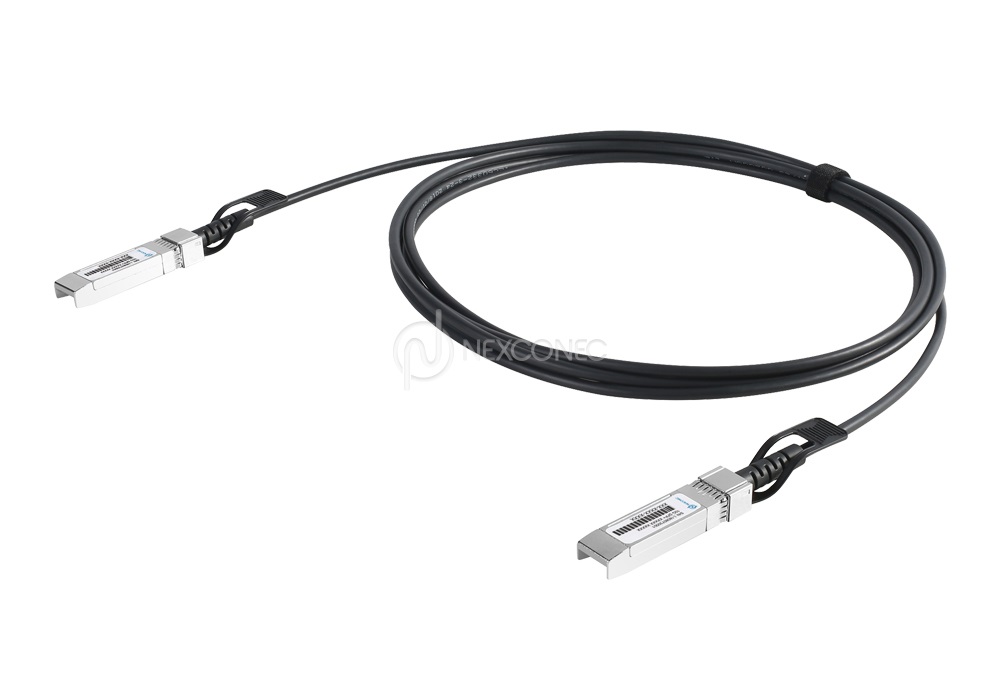

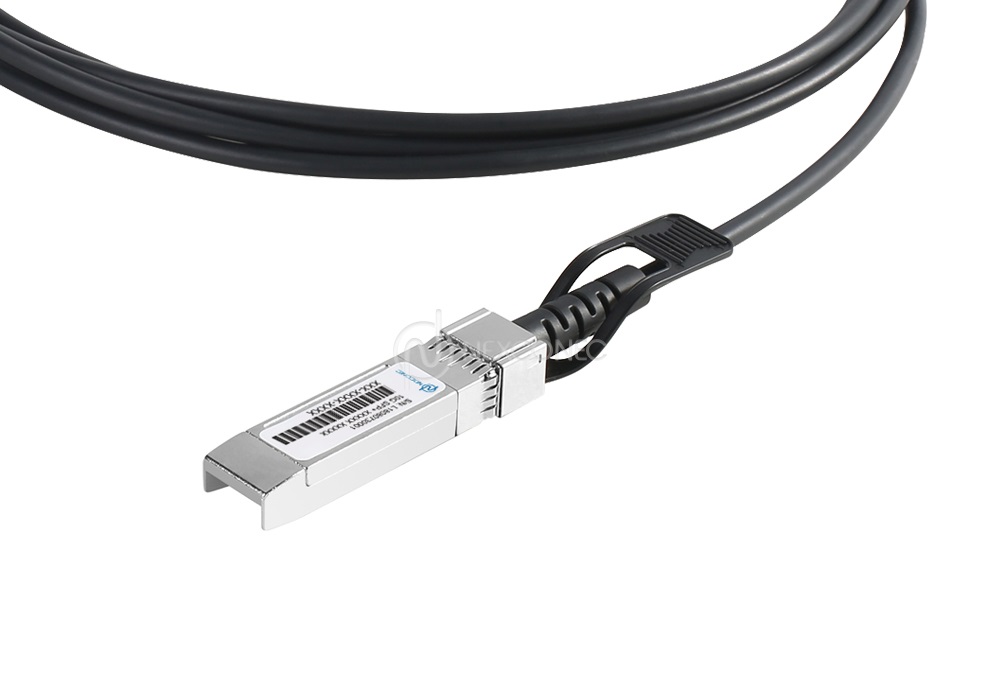

10G SFP+ DAC
Nexconec SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 10m).
FEATURES AND APPLICATIONS
- Up to 10.3125Gbps data rate per channel
- Operating temperature: 0~70℃
- Single 3.3V power supply
- RoHS compliant
- Compliant with SFF-8431, 8432 and 8472
- 10G Ethernet
| Part Number | Package | Data Rate | Length | Cable AWG |
|---|---|---|---|---|
| NX-XF-DG10-0.5-xx | SFP+ | 10G | 0.5m | 30 AWG |
| NX-XF-DG10-01-xx | SFP+ | 10G | 1m | 30 AWG |
| NX-XF-DG10-02-xx | SFP+ | 10G | 2m | 30 AWG |
| NX-XF-DG10-03-xx | SFP+ | 10G | 3m | 30 AWG |
| NX-XF-DG10-04-xx | SFP+ | 10G | 4m | 26 AWG |
| NX-XF-DG10-05-xx | SFP+ | 10G | 5m | 26 AWG |
| NX-XF-DG10-06-xx | SFP+ | 10G | 6m | 24 AWG |
| NX-XF-DG10-07-xx | SFP+ | 10G | 7m | 24 AWG |
| NX-XF-DG10-10-xx | SFP+ | 10G | 10m | 24 AWG |
| Part Number | Product Description |
|---|---|
| NX-XF-DG10-0.5-xx | 10G SFP+ DAC 30 AWG 0.5m |
| NX-XF-DG10-01-xx | 10G SFP+ DAC 30 AWG 1m |
| NX-XF-DG10-02-xx | 10G SFP+ DAC 30 AWG 2m |
| NX-XF-DG10-03-xx | 10G SFP+ DAC 30 AWG 3m |
| NX-XF-DG10-04-xx | 10G SFP+ DAC 26 AWG 4m |
| NX-XF-DG10-05-xx | 10G SFP+ DAC 26 AWG 5m |
| NX-XF-DG10-06-xx | 10G SFP+ DAC 24 AWG 6m |
| NX-XF-DG10-07-xx | 10G SFP+ DAC 24 AWG 7m |
| NX-XF-DG10-10-xx | 10G SFP+ DAC 24 AWG 10m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
