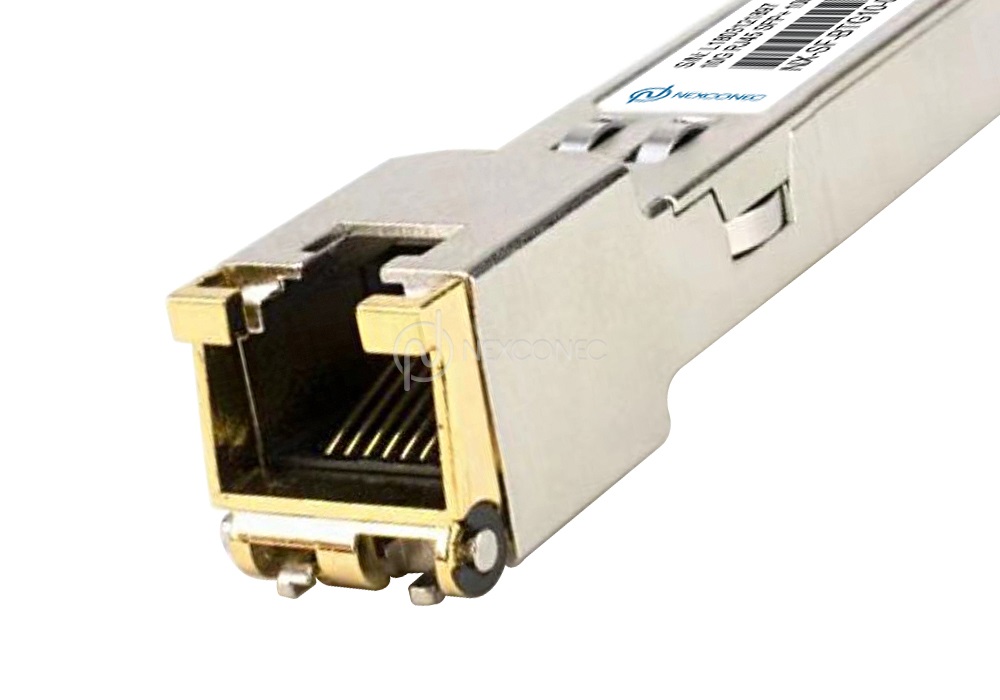

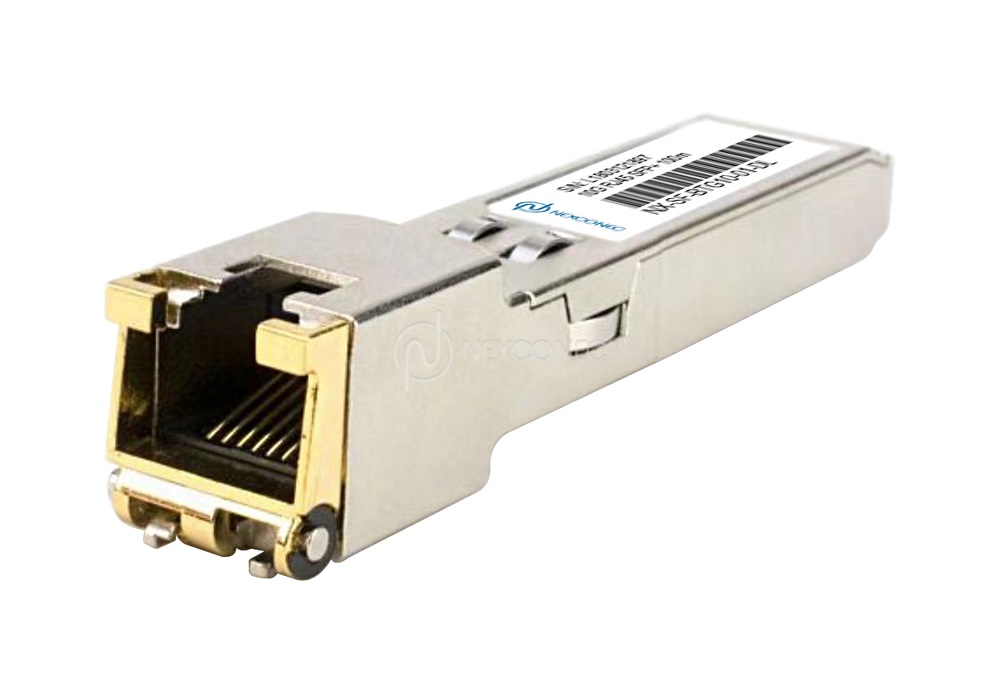

10G SFP+ RJ45 Transceiver
Nexconec SFP+ transceivers RJ45 connector, data rate range 10G, maximum distance up to 100m (10/100/1000M Auto-negotiation), all transceivers’ specifications and features are fully compliant with SFP+ MSA, commercial and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
- Single +3.3V power supply
- Compact RJ-45 connector assembly
- Hot-pluggable SFP footprint
- 10 Gigabit Ethernet over Cat6a cable
- Compact RJ-45 connector assembly
- Operating temperature range: 0~70℃/-40~85℃
- RoHS Compliant
- Switch to Switch Interface
- Router/Server interface
- Switched backplane applications
| Part Number | Package | Data Rate | Temp | Reach | TX | RX | Connector | TX In/Out | RX In/Out |
|---|---|---|---|---|---|---|---|---|---|
| NX-SF-BTG10-01-xx | SFP+ | 10G | 0~70 | 100m | Zout | Zin | RJ45 | 100/50 Ohm | 100/50 Ohm |
| NX-SF-BTG10-01F-xx | SFP+ | 10G | -40~85 | 100m | Zout | Zin | RJ45 | 100/50 Ohm | 100/50 Ohm |
| Part Number | Product Description |
|---|---|
| NX-SF-BTG10-01-xx | SFP+ Transceiver 10G RJ45 100m (10/100/1000M Auto-negotiation) |
| NX-SF-BTG10-01F-xx | SFP+ Transceiver 10G RJ45 100m (10/100/1000M Auto-negotiation) Industrial Grade |
1. Where (01 = 100m, 01F = 100m etc.) denotes reach in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
