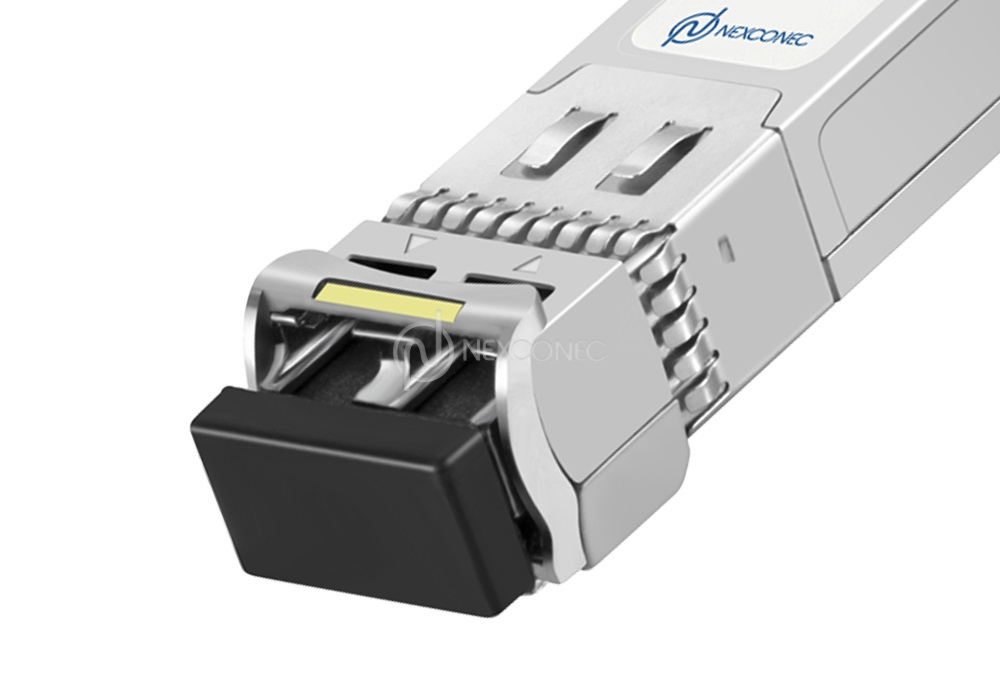

10G SFP+ Transceiver
Nexconec 10G SFP+ Transceivers, cover wide various applications and distances: ER, LR, SR, ZR. They are compliant with IEEE802.3ea, SFF-8472 and SFF-8431. Commercial and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- Up to 9.95Gbps to 10.5Gbps
- Single +3.3V power supply
- Hot-pluggable
- AC coupling of LVPECL signals
- International Class1 laser safety certified
- Operating temperature range: Commercial: -5℃~+70℃, Industry: -40℃~+85℃
- RoHS Compliant
- DDMI function available with internally calibrated mode
- 10GBASE-LR/LW,10G Fiber Channel
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-XP-8G10-01-xx | SFP+ | 10G | 850nm | 300m | VCSEL | PIN | LC | -6~-1dBm | -11dBm |
| NX-XP-3G10-02-xx | SFP+ | 10G | 1310nm | 2km | FP | PIN | LC | -8.2~0.5dBm | -14.4dBm |
| NX-XP-3G10-10-xx | SFP+ | 10G | 1310nm | 10km | DFB | PIN | LC | -8.2~0.5dBm | -14.4dBm |
| NX-XP-3G10-20-xx | SFP+ | 10G | 1310nm | 20km | DFB | PIN | LC | -3~2dBm | -14.4dBm |
| NX-XP-3G10-40-xx | SFP+ | 10G | 1310nm | 40km | DFB | PIN | LC | -1~4dBm | -15dBm |
| NX-XP-5G10-40-xx | SFP+ | 10G | 1550nm | 40km | EML | PIN | LC | -1~3dBm | -16dBm |
| NX-XP-5G10-80-xx | SFP+ | 10G | 1550nm | 80km | EML | APD | LC | -1~4dBm | -23dBm |
| NX-XP-5G10-100-xx | SFP+ | 10G | 1550nm | 100km | EML | APD | LC | -1~4dBm | -24dBm |
| Part Number | Product Description |
|---|---|
| NX-XP-8G10-01-xx | SFP+ Transceiver, 10G-LC DX, MM 850nm, 300Mtr |
| NX-XP-3G10-02-xx | SFP+ Transceiver, 10G-LC DX, SM 1310nm, 2KM |
| NX-XP-3G10-10-xx | SFP+ Transceiver, 10G-LC DX, SM 1310nm, 10KM |
| NX-XP-3G10-20-xx | SFP+ Transceiver, 10G-LC DX, SM 1310nm, 20KM |
| NX-XP-3G10-40-xx | SFP+ Transceiver, 10G-LC DX, SM 1310nm, 40KM |
| NX-XP-5G10-40-xx | SFP+ Transceiver, 10G-LC DX, SM 1550nm, 40KM |
| NX-XP-5G10-80-xx | SFP+ Transceiver, 10G-LC DX, SM 1550nm, 80KM |
| NX-XP-5G10-100-xx | SFP+ Transceiver, 10G-LC DX, SM 1550nm, 100KM |
1. Where (01 = 300m, 02 = 2km etc.) denotes reach in kilometers.
2. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-XP-8G10-01F-xx).
3. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
4. Find Compatible Short codes in datasheet at Order Information area.
