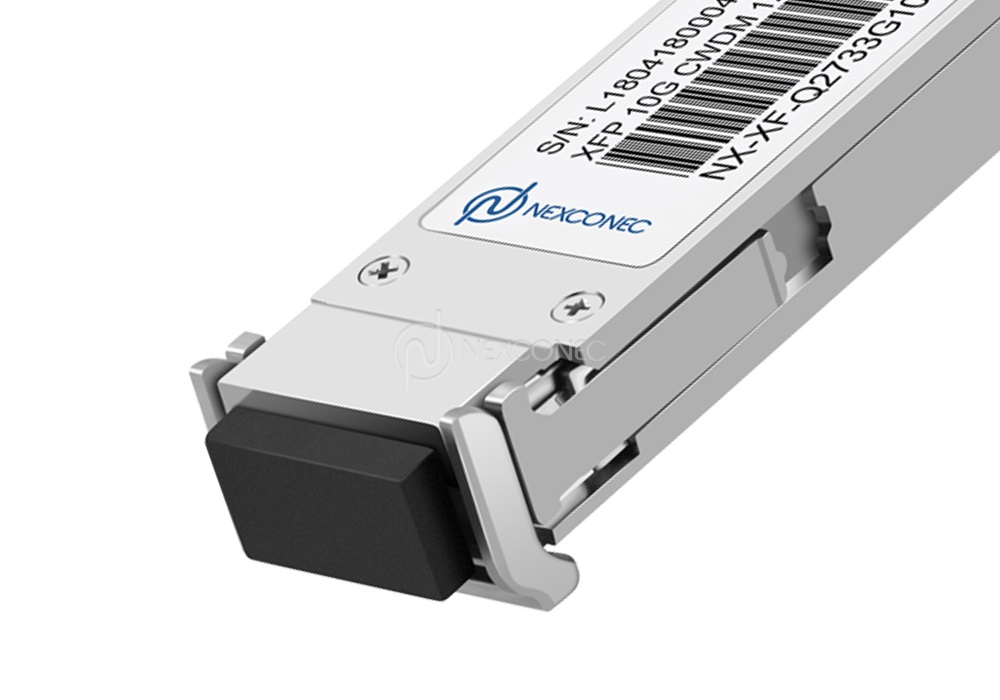

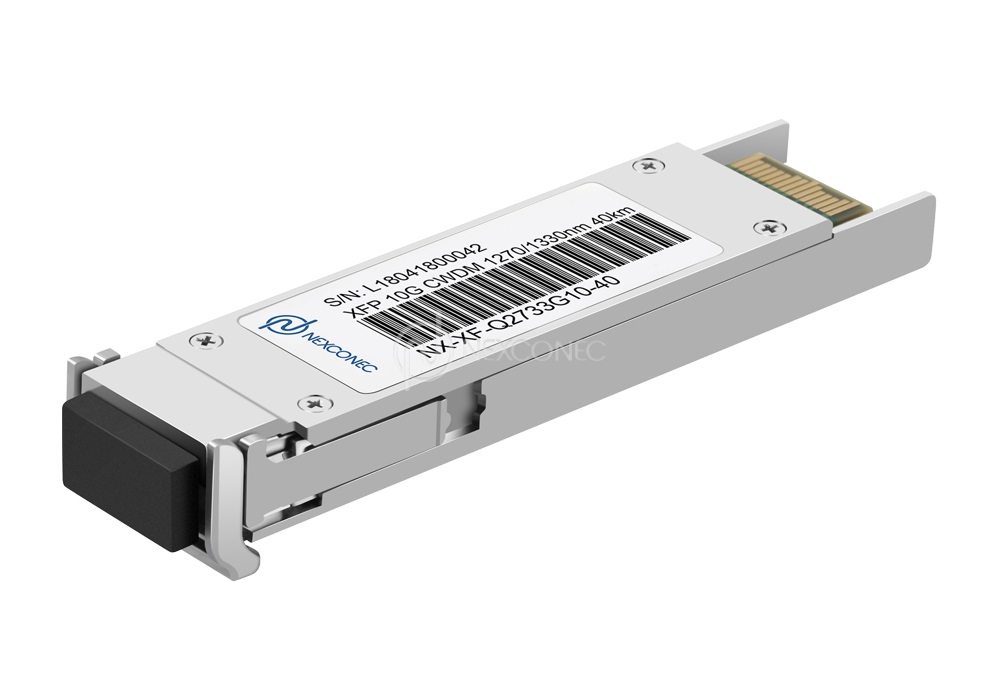

10G XFP CWDM Transceiver
Nexconec 10G XFP CWDM Transceivers operate at 1270nm to 1610nm wavelength on single mode fiber. They are used in Ethernet, CPRI, Fiber Channel.
FEATURES AND APPLICATIONS
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Supports Lineside and XFI loopback; Full Duplex LC connector
- Metal enclosure, for lower EMI
- Single +3.3V power supply; Power dissipation < 2.5W
- Hot-pluggable; RoHS Compliant
- Operating temperature range: Standard: 0 to +70°C, Industrial: -40 to +85°C
- No Reference Clock required; Built-in digital diagnostic functions
- Standard bail release mechanism
- 10GBASE-ZR/ZW, 10G Ethernet, SONET OC-192 & SDH STM 64
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-XF-Q1G10-20-xx | XFP | 10G | 1270-1330nm | 20km | DFB CWDM | PIN | LC | -1~4dBm | -15dBm |
| NX-XF-Q1G10-40-xx | XFP | 10G | 1270-1330nm | 40km | EML CWDM | PIN | LC | -1~4dBm | -16.5dBm |
| NX-XF-Q1G10-80-xx | XFP | 10G | 1270-1330nm | 80km | EML CWDM | APD | LC | 0~5dBm | -24dBm |
| Part Number | Product Description |
|---|---|
| NX-XF-Q1G10-20-xx | XFP CWDM Transceiver LC Duplex 1270-1330nm 20km |
| NX-XF-Q1G10-40-xx | XFP CWDM Transceiver LC Duplex 1470-1610nm 40km |
| NX-XF-Q1G10-80-xx | XFP CWDM Transceiver LC Duplex 1470-1610nm 80km |
1. Where (20 = 20km, 40 = 40km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
