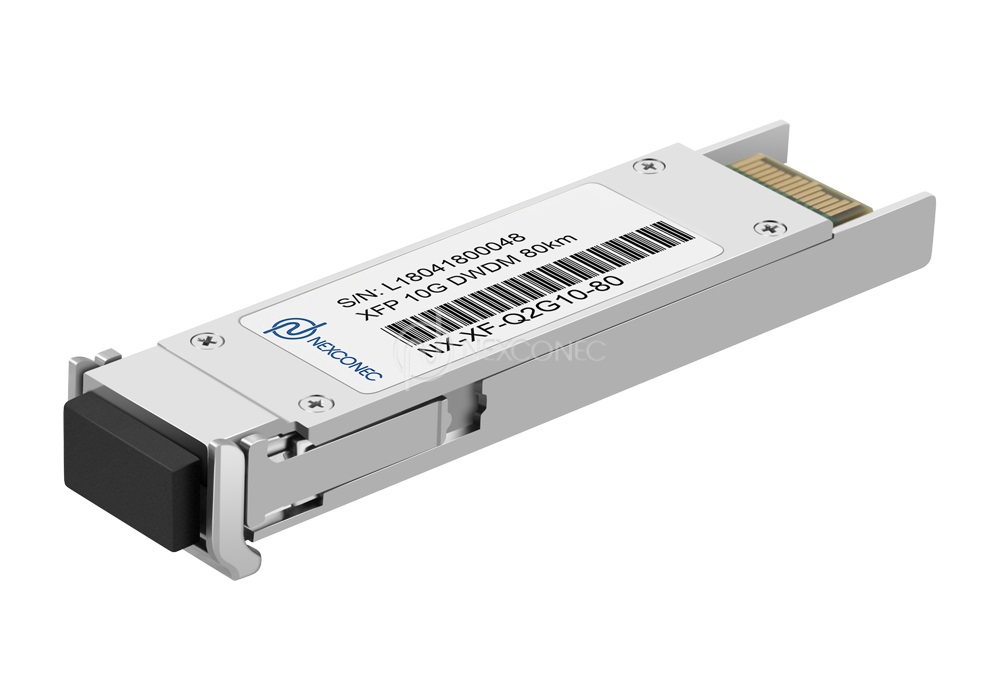

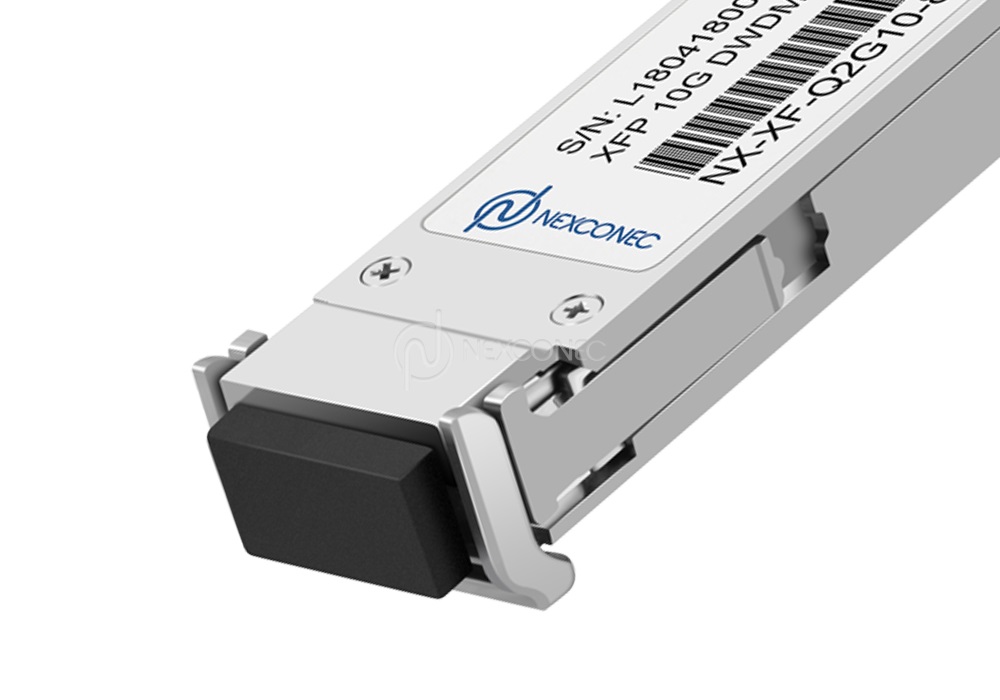

10G XFP DWDM Transceiver
Nexconec 10G XFP DWDM Transceivers support 8.5G and 10G CDR optional, support C-Band and 50GHz OR 100GHz grid for DWDM XFP, commerical and industrial operating temperature optional, low power consumption.
FEATURES AND APPLICATIONS
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Full Duplex LC connector
- Metal enclosure, for lower EMI
- Single +3.3V power supply
- Operating temperature range: Standard: 0 to +70°C, Industrial: -40 to +85°C
- RoHS Compliant
- Compilant with XFP MSA;Hot-pluggable
- Standard bail release mechanism
- 10GBASE-ZR/ZW, 10G Ethernet, SONET OC-192 & SDH STM 64
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-XF-Q2G10-40-xx | XFP | 10G | DWDM | 40km | EML DWDM | PIN | LC | -1~4dBm | -16.5dBm |
| NX-XF-Q2G10-80-xx | XFP | 10G | DWDM | 80km | EML DWDM | APD | LC | 0~5dBm | -24dBm |
| Part Number | Product Description |
|---|---|
| NX-XF-Q2G10-40-xx | XFP DWDM Transceiver LC Duplex 40km |
| NX-XF-Q2G10-80-xx | XFP DWDM Transceiver LC Duplex 80km |
1. Where (40 = 40km, 80 = 80km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
