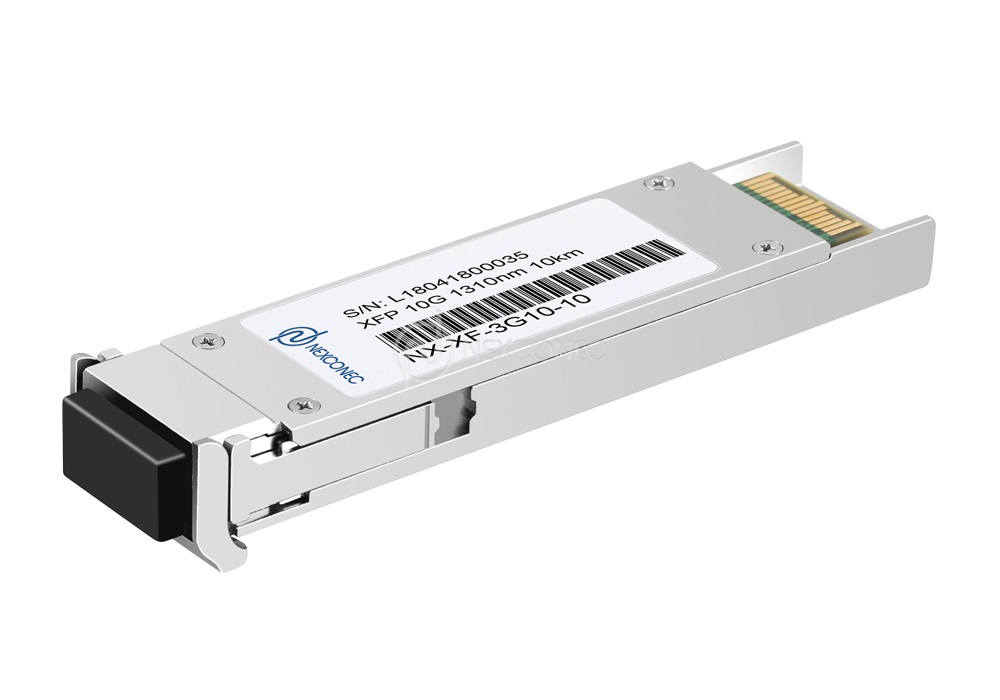

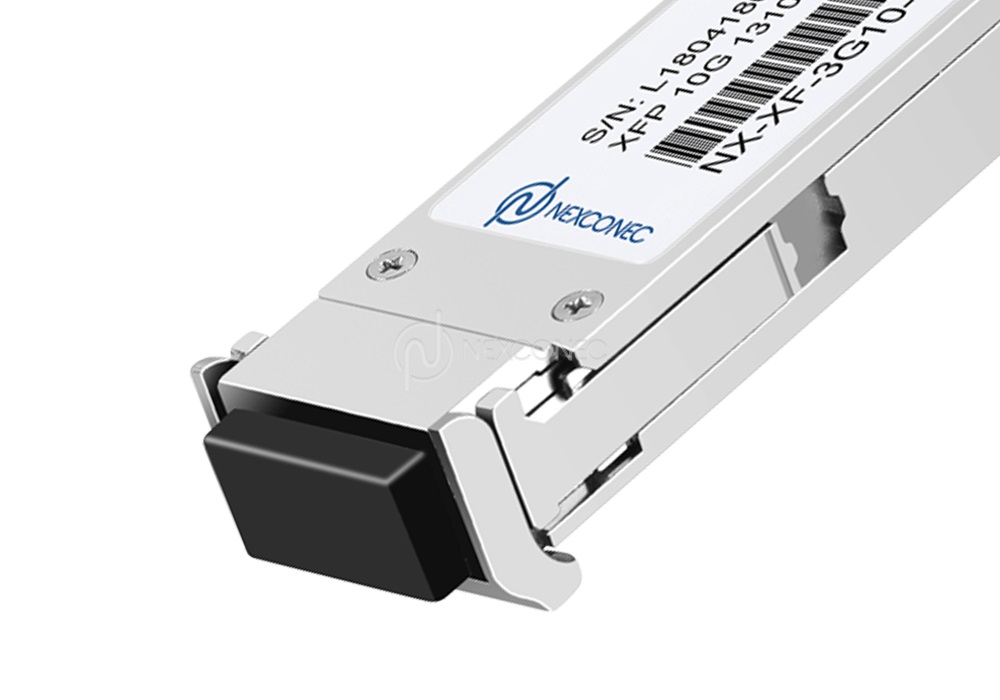

10G XFP Transceiver
Nexconec 10G XFP Transceivers support 8.5G and 10G CDR optional, 1550nm EML transmitter for ER and ZR, commerical and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- Up to 11.1Gbps Data Links
- Single +3.3V power supply, power dissipation < 1.5W
- Hot-pluggable
- Operating temperature range: Standard: 0 to +70°C, Industrial: -40 to +85°C
- ROHS Compliant
- Compliant with EMI,ESD
- Compliant with MSA SFP+ specification(SFF-8431), SFF-8472, SFP+ MSA, XFP MSA
- Compliant to IEEE 802.3ae
- 10GBASE-ZR/ZW, 10G Ethernet, SONET OC-192 & SDH STM 64
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-XF-8G10-01-xx | XFP | 10G | 850nm | 300m | VCSEL | PIN | LC | -6~-1dBm | -10dBm |
| NX-XF-3G10-01-xx | XFP | 10G | 1310nm | 300m | FP | PIN | LC | -6~-1dBm | -15dBm |
| NX-XF-3G10-10-xx | XFP | 10G | 1310nm | 10km | DFB | PIN | LC | -6~-1dBm | -15dBm |
| NX-XF-5G10-40-xx | XFP | 10G | 1550nm | 40km | EML | PIN | LC | -1~4dBm | -16.5dBm |
| NX-XF-5G10-80-xx | XFP | 10G | 1550nm | 80km | EML | APD | LC | 0~5dBm | -24dBm |
| Part Number | Product Description |
|---|---|
| NX-XF-8G10-01-xx | 10G XFP SR Transceiver LC Duplex, (850nm) MMF 300m |
| NX-XF-3G10-01-xx | 10G XFP LRM Transceiver LC Duplex, (1310nm) SMF 300m |
| NX-XF-3G10-10-xx | 10G XFP LR Transceiver LC Duplex, (1310nm) SMF 10km |
| NX-XF-5G10-40-xx | 10G XFP ER Transceiver LC Duplex, (1550nm) SMF 40km |
| NX-XF-5G10-80-xx | 10G XFP ZR Transceiver LC Duplex, (1550nm) SMF 80km |
1. Where (01 = 300m, 10 = 10km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
