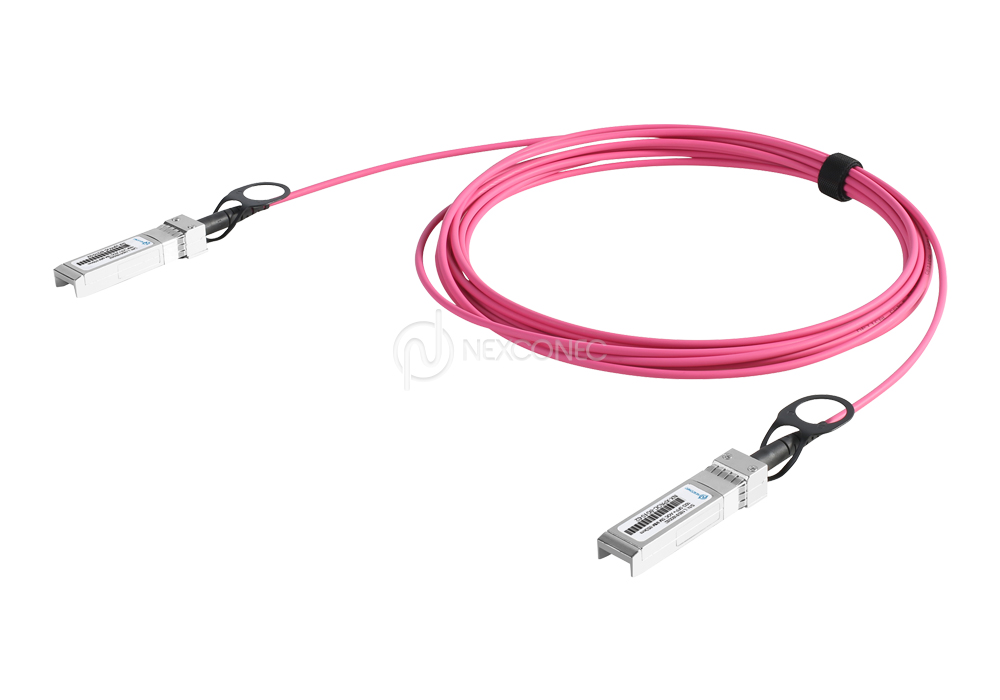

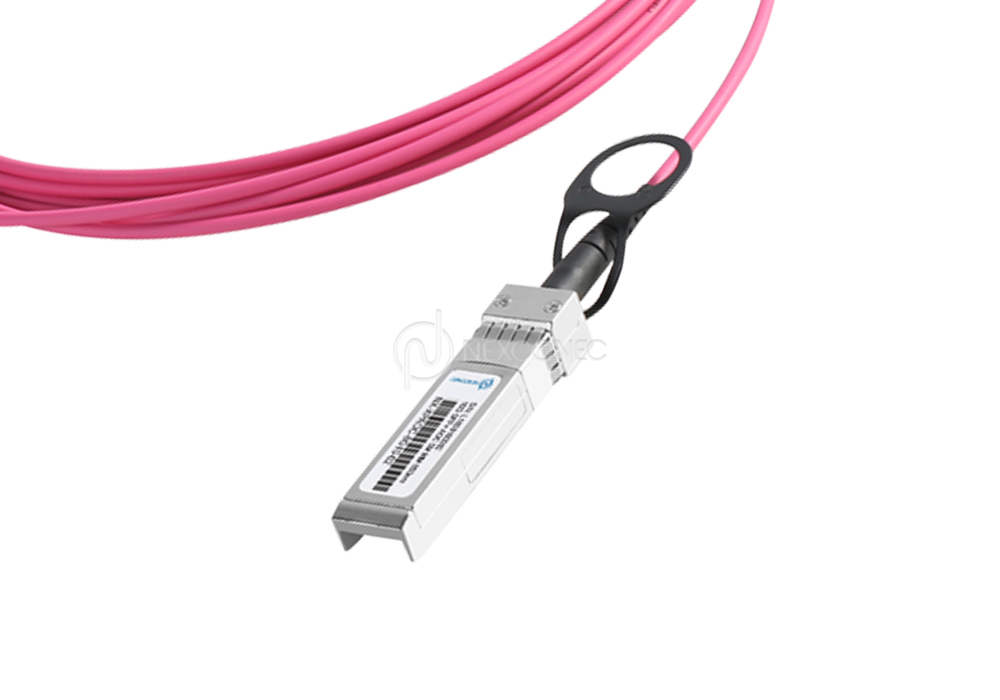

10Gbps SFP+ ACTIVE OPTICAL CABLE
Hot-pluggable SFP+ cable ends / Supports 10.3125Gbps bit rate, distance up to 100m on OM4/OM5 fiber.
FEATURES AND APPLICATIONS
- Supports 10.3125Gb/s bit rate
- Hot-pluggable SFP+ cable ends
- SFP+ housing with enhanced EMI shielding
- Pre-terminated twin axial cable / fiber cable
- Single 3.3V power supply
- Operating environment temperature 0 ~ 70℃
- Low power consumption
- 10G Ethernet; 10G Fiber Channel over Ethernet
- Applicable to 1X QDR / 1X DDR / 1x SDR Infiniband
- High capacity IO with SFP+ interface
- Data center and in-rack connection
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-XPAOC-8G10-01-xx | SFP+ | 10G | 850nm | 1m | VCSEL | PIN |
| NX-XPAOC-8G10-02-xx | SFP+ | 10G | 850nm | 2m | VCSEL | PIN |
| NX-XPAOC-8G10-03-xx | SFP+ | 10G | 850nm | 3m | VCSEL | PIN |
| NX-XPAOC-8G10-05-xx | SFP+ | 10G | 850nm | 5m | VCSEL | PIN |
| NX-XPAOC-8G10-07-xx | SFP+ | 10G | 850nm | 7m | VCSEL | PIN |
| NX-XPAOC-8G10-10-xx | SFP+ | 10G | 850nm | 10m | VCSEL | PIN |
| NX-XPAOC-8G10-15-xx | SFP+ | 10G | 850nm | 15m | VCSEL | PIN |
| NX-XPAOC-8G10-20-xx | SFP+ | 10G | 850nm | 20m | VCSEL | PIN |
| NX-XPAOC-8G10-30-xx | SFP+ | 10G | 850nm | 30m | VCSEL | PIN |
| NX-XPAOC-8G10-50-xx | SFP+ | 10G | 850nm | 50m | VCSEL | PIN |
| NX-XPAOC-8G10-100-xx | SFP+ | 10G | 850nm | 100m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-XPAOC-8G10-01-xx | 10Gbps SFP+ Active Optical Cable 850nm 1m |
| NX-XPAOC-8G10-02-xx | 10Gbps SFP+ Active Optical Cable 850nm 2m |
| NX-XPAOC-8G10-03-xx | 10Gbps SFP+ Active Optical Cable 850nm 3m |
| NX-XPAOC-8G10-05-xx | 10Gbps SFP+ Active Optical Cable 850nm 5m |
| NX-XPAOC-8G10-07-xx | 10Gbps SFP+ Active Optical Cable 850nm 7m |
| NX-XPAOC-8G10-10-xx | 10Gbps SFP+ Active Optical Cable 850nm 10m |
| NX-XPAOC-8G10-15-xx | 10Gbps SFP+ Active Optical Cable 850nm 15m |
| NX-XPAOC-8G10-20-xx | 10Gbps SFP+ Active Optical Cable 850nm 20m |
| NX-XPAOC-8G10-30-xx | 10Gbps SFP+ Active Optical Cable 850nm 30m |
| NX-XPAOC-8G10-50-xx | 10Gbps SFP+ Active Optical Cable 850nm 50m |
| NX-XPAOC-8G10-100-xx | 10Gbps SFP+ Active Optical Cable 850nm 100m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
