19" HIGH DENSITY OPEN FRAME RACK - OFxxU-xxx

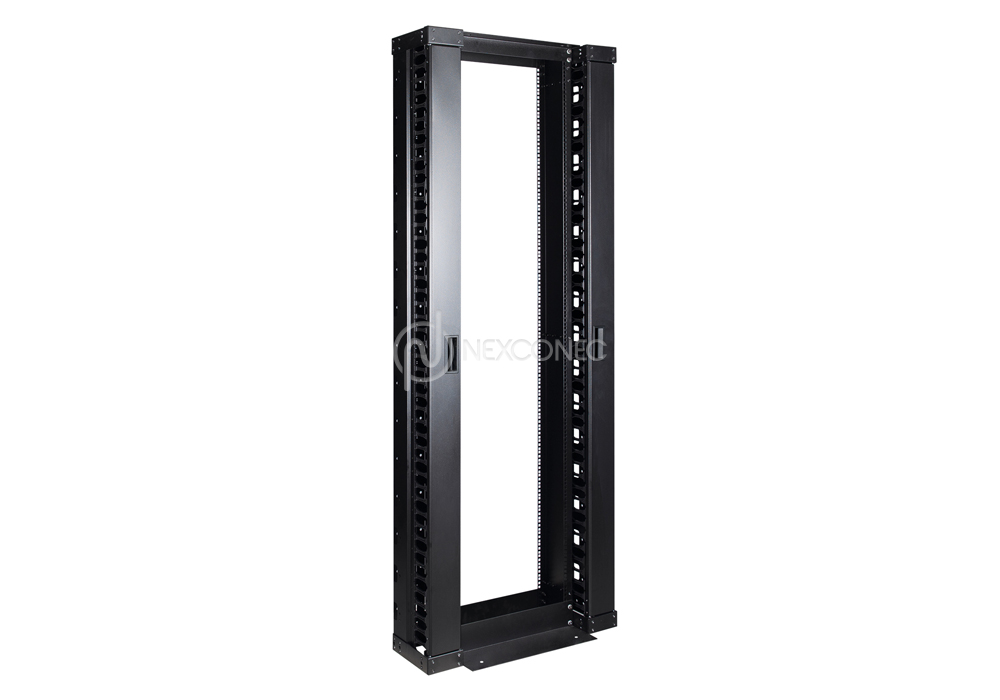

The NEXCONEC® High Density Open Frame Rack is designed to provide users with easy access to all sides of the mounted equipment. This open rack can be securely bolted to the floor and is ideal for data communications and networking applications. It is the perfect solution for cramped spaces where traditional cabinets cannot be installed.

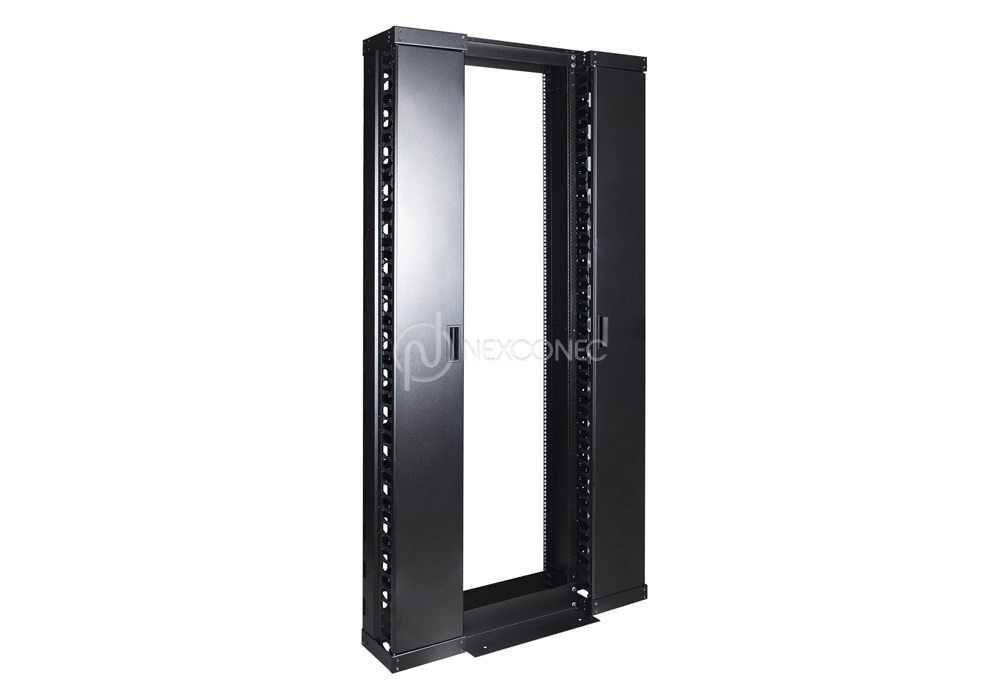

The open rack offered in 19” sizes with heights from 27U to 48U. Multiple racks can be linked together using a baying kit. Cable entry cut outs are included in the top and side frames for efficient cable routing. The rack features a duct cable manager on both the front and rear sides, complete with a Snap-on cover that can be opened from either side for user convenience.
The rack is offered in both assembled and disassembled options, complete with all necessary accessories for immediate shipment. Assembly of this open frame rack is straightforward and does not require any specialized tools.
PRODUCT HIGHLIGHTS
- Top cover provided with cable entry cutouts
- Cable managers with Snap-on covers
- Available in assembled or unassembled packaging
FEATURES
- Frame of solid steel construction
- Top cover provided with cable entry cutouts
- Front face and rear mounting flange
- Cable managers with Snap-on covers
- Available in assembled or unassembled packaging
APPLICATIONS
- Data Centers
- Telecommunications
- Wiring Closets
- Indoor Applications
| Parameters | Value | ||||
|---|---|---|---|---|---|
| Height Unit | 27U | 36U | 42U | 45U | 48U |
| Dimensions (WxDxH) mm | 530 x 380 x 1356 | 530 x 380 x 1756 | 530 x 380 x 2022 | 530 x 380 x 2156 | 530 x 380 x 2289 |
| Packaging (WxDxH) mm | 165 x 120 x 1375 | 165 x 120 x 1775 | 165 x 120 x 2040 | 165 x 120 x 2175 | 165 x 120 x 2310 |
| Net Weight | 20 Kgs | 22.5 Kgs | 23.5 Kgs | 24.1 Kgs | 24.7 Kgs |
| Depth of Rail | 80 mm | ||||
| Material | Cold Rolled Steel | ||||
| Housing Color | Black - RAL 9005 Grey - RAL 7035 |
||||
| Mounting Type | Standard 19” Rack | ||||
| Application | Indoor Application | ||||
| Loading Capacity | Up to 600 Kg | ||||
| Part Number | Product Description |
|---|---|
| OF27U-135* | 19” Open Frame Rack 27U with Side Manager 135mm width, Black |
| OF36U-135 | 19” Open Frame Rack 36U with Side Manager 135mm width, Black |
| OF42U-135 | 19” Open Frame Rack 42U with Side Manager 135mm width, Black |
| OF45U-135 | 19” Open Frame Rack 45U with Side Manager 135mm width, Black |
| OF48U-135 | 19” Open Frame Rack 48U with Side Manager 135mm width, Black |
| OF27U-270 | 19” Open Frame Rack 27U with Side Manager 270mm width, Black |
| OF36U-270 | 19” Open Frame Rack 36U with Side Manager 270mm width, Black |
| OF42U-270 | 19” Open Frame Rack 42U with Side Manager 270mm width, Black |
| OF45U-270 | 19” Open Frame Rack 45U with Side Manager 270mm width, Black |
| OF48U-270 | 19” Open Frame Rack 48U with Side Manager 270mm width, Black |
