1U 12 Ports SC Fiber Panel & Shelve - PPST2

PPST2 PPST2 PPST2 PPST2 PPST2 PPST2 PPST2 PPST2 PPST2

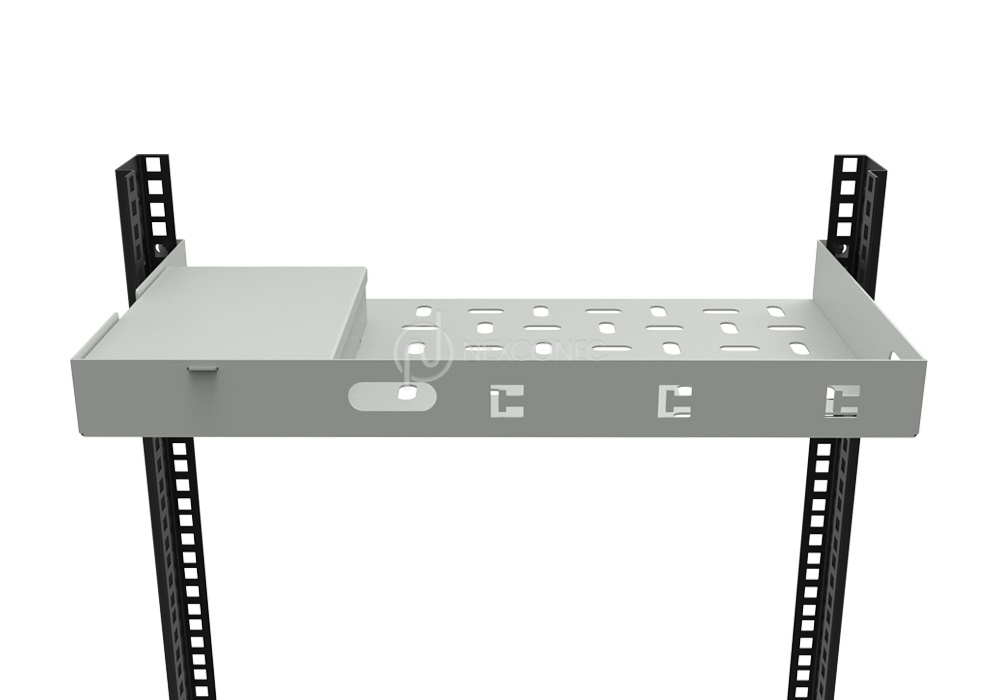

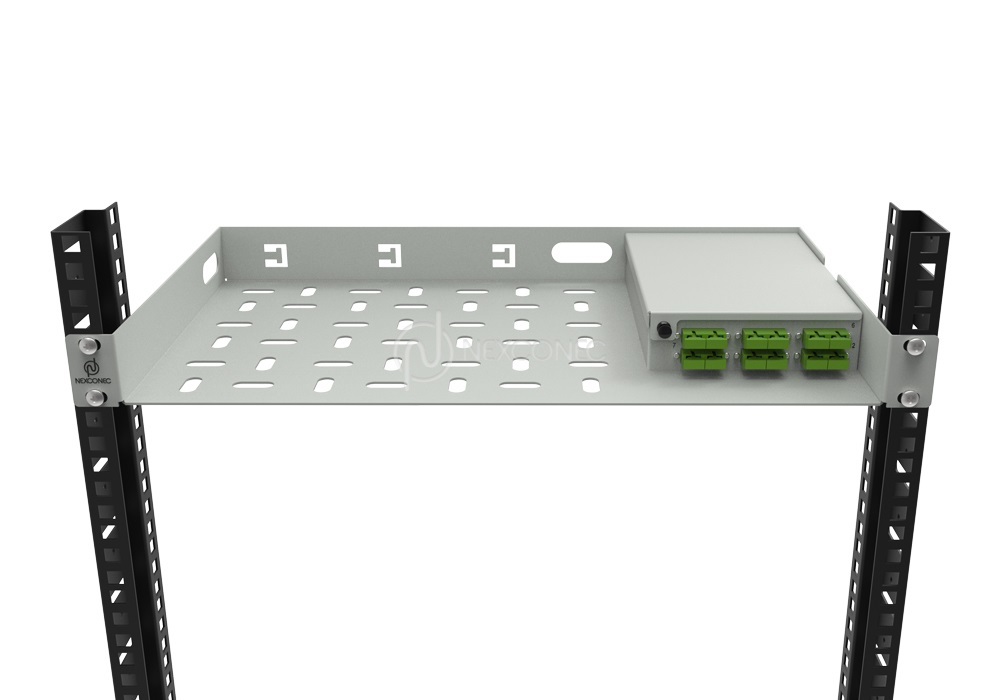

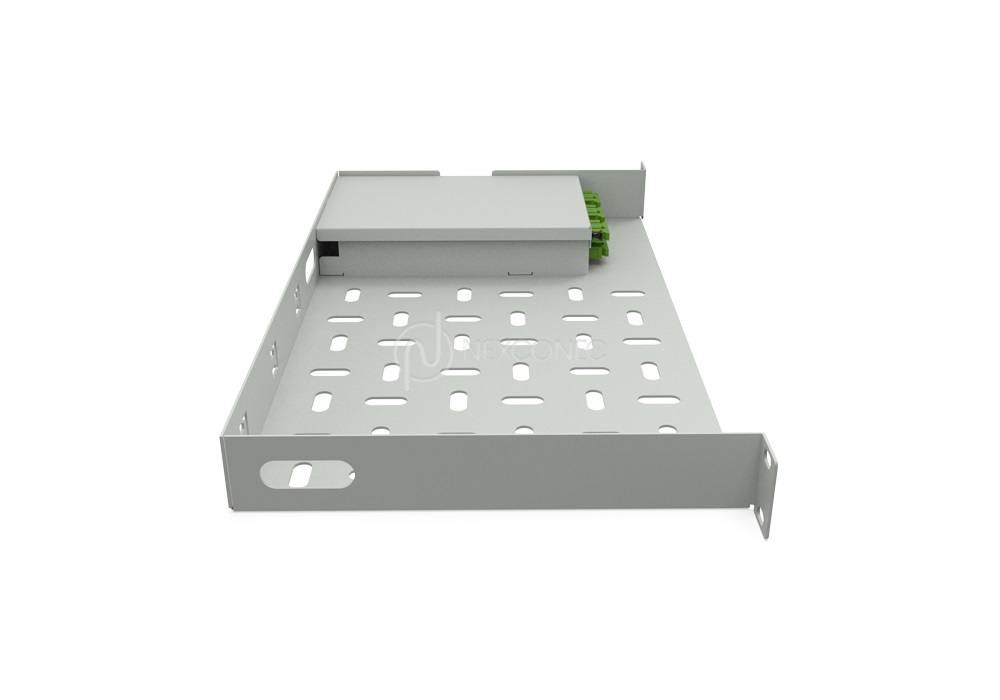

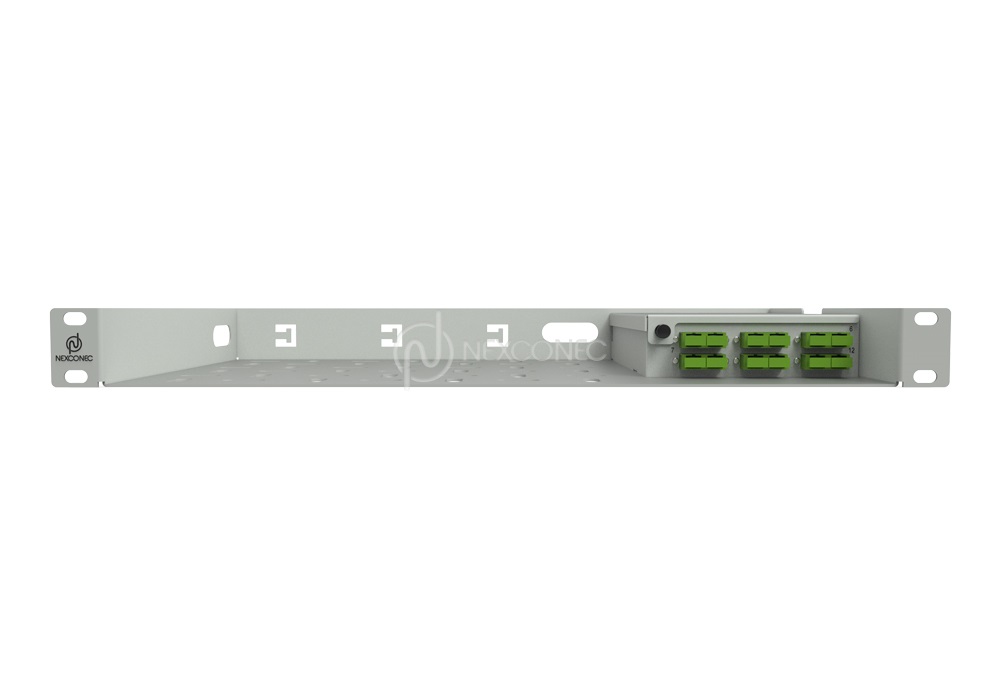

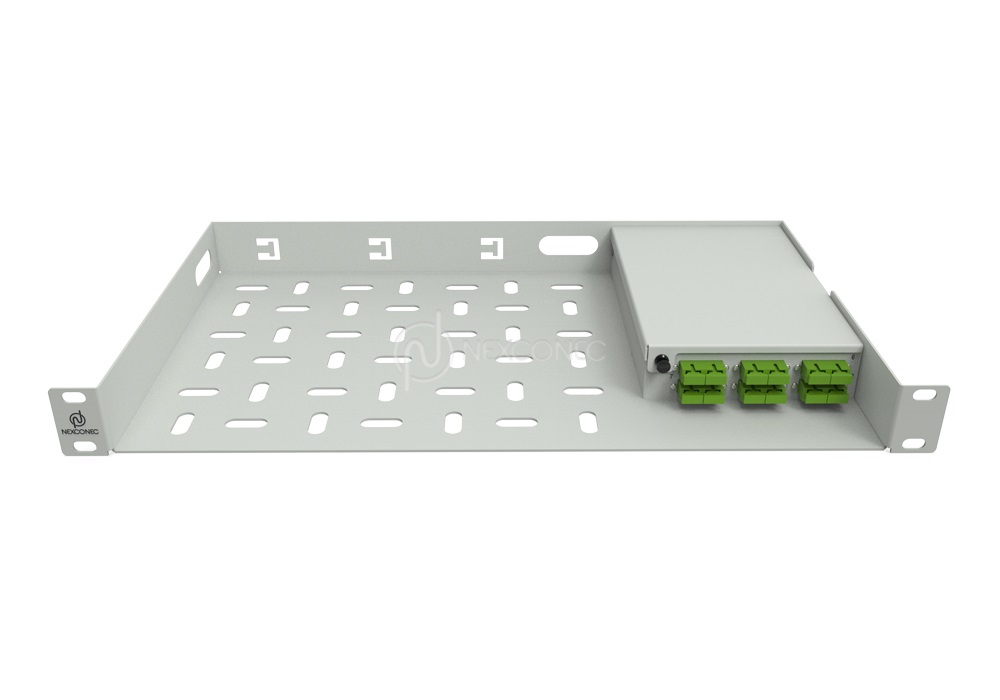

The NEXCONEC® 1U 12 ports SC optical fiber panel & shelve is a 19” (inches) standard mounting type metal rack, uniquely built to contain two separate compartments.

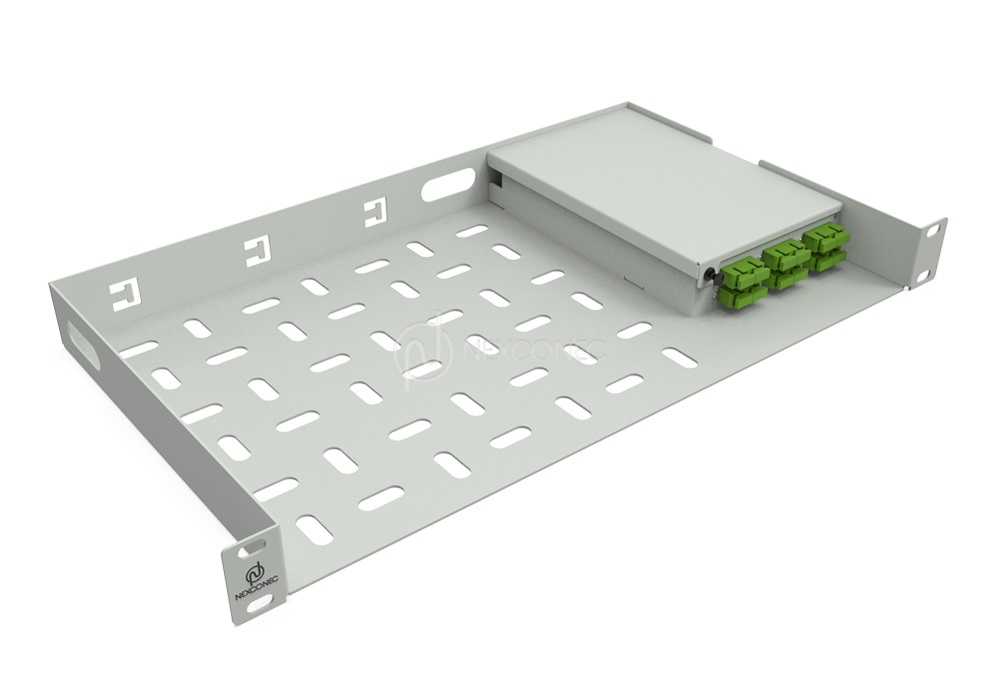

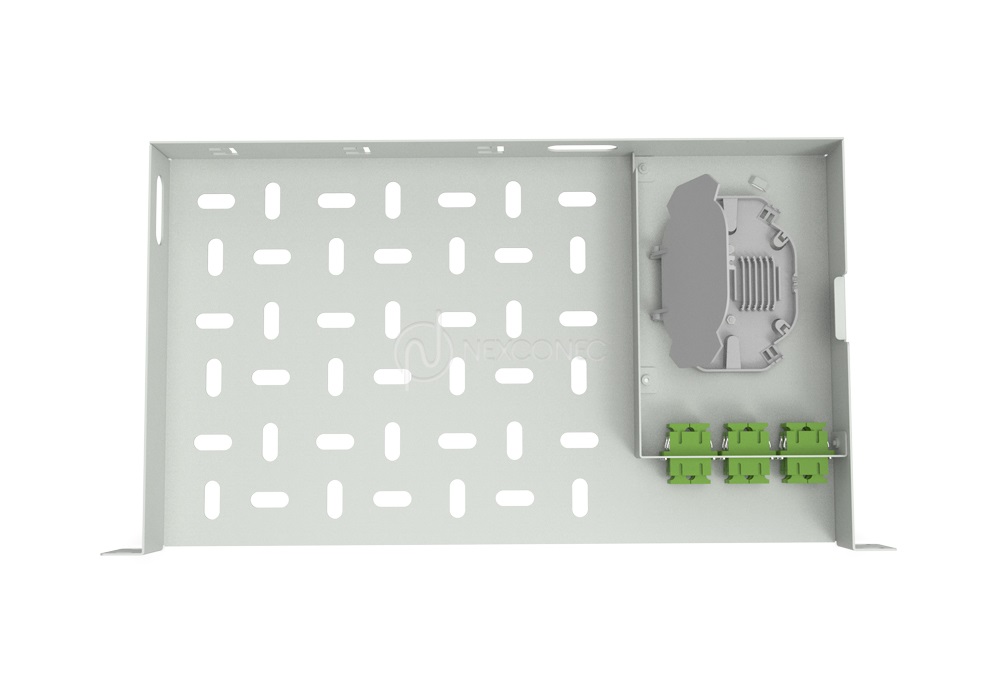

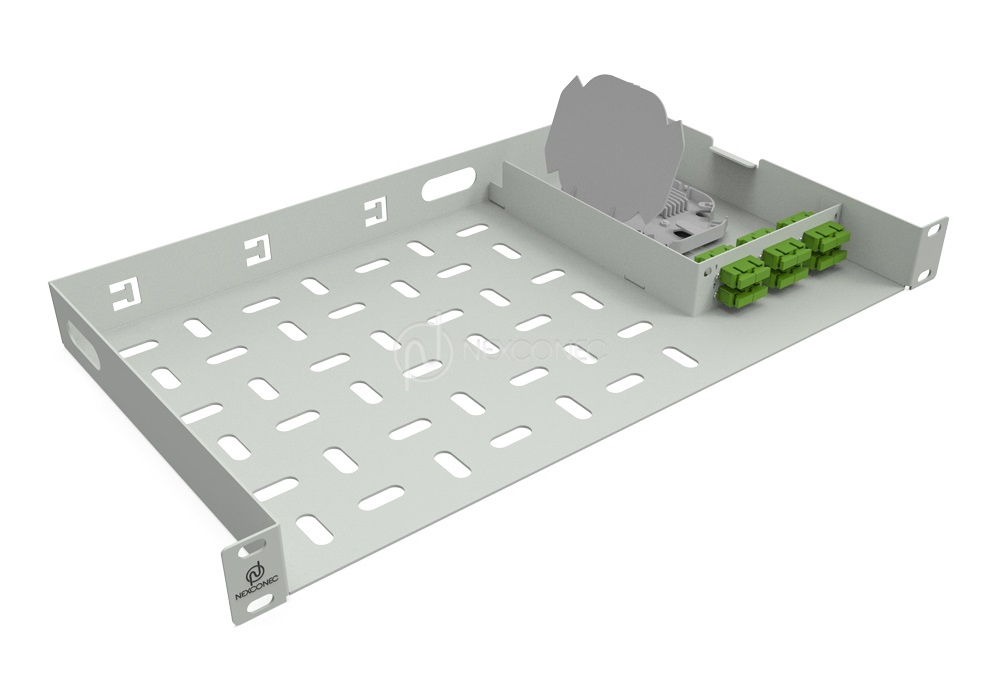

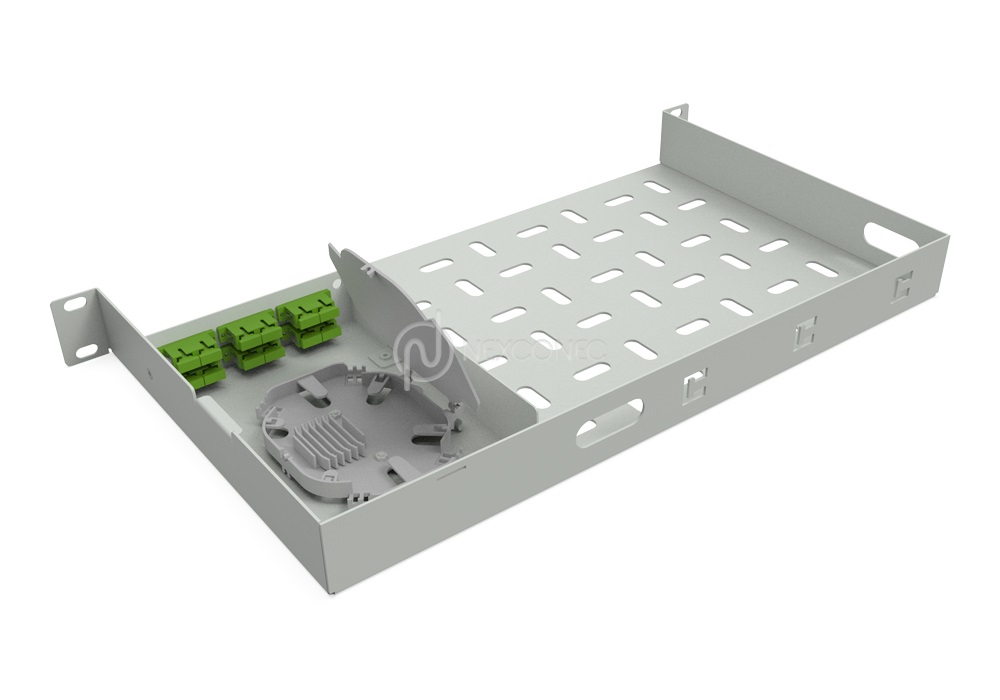

1. Optical Compartment: It comes with an optical area equipped with 6x SC duplex adapter ports & a splice tray for the storage and splicing of 12 fibers.

2. Electro-optical Compartment: The maximum size of (W)305.60mm x (D) 260mm area has capacities to accommodate and provide support for an electro-optical media converter (not included).

This fiber cable storage panel is ideal to use in the telecommunication room, data centers to store excess fibers and cables. It could make your fiber cable management neat and professional.

FEATURES AND APPLICATIONS
  • Standard 19” Rack mounting type
  • Recessed panel bracket mounting
  • Accommodate excess fiber cables
  • Up to 12FO Splicing
  • 2 openings dedicated to the passage of cables (optical, electrical)

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Value
Mounting Type Rack 19”
Opening Type Fixed
Access Type Front access
Cable Entry Direction Rear
Rear Cable Management Cable entry slots
Slot Type SC Duplex Footprint
Number of Ports 6x SC Duplex
Splice Capacity 12FO
Splice Accessories Splice tray, Bunny clips, Cable gland
Height Unit 1U
Dimensions (W x D x H in MM) 440 x 260 x 43.5
Shelve Dimensions (W x D in MM) 305.60 x 260
Material Cold rolled steel
Housing Color Grey (RAL 7035)
Application Indoor IP20
Lockable No
Net Weight 2 Kg
Part Number Product Description
PPST2 1U Fiber Storage Panel 6xSC Duplex Unloaded
