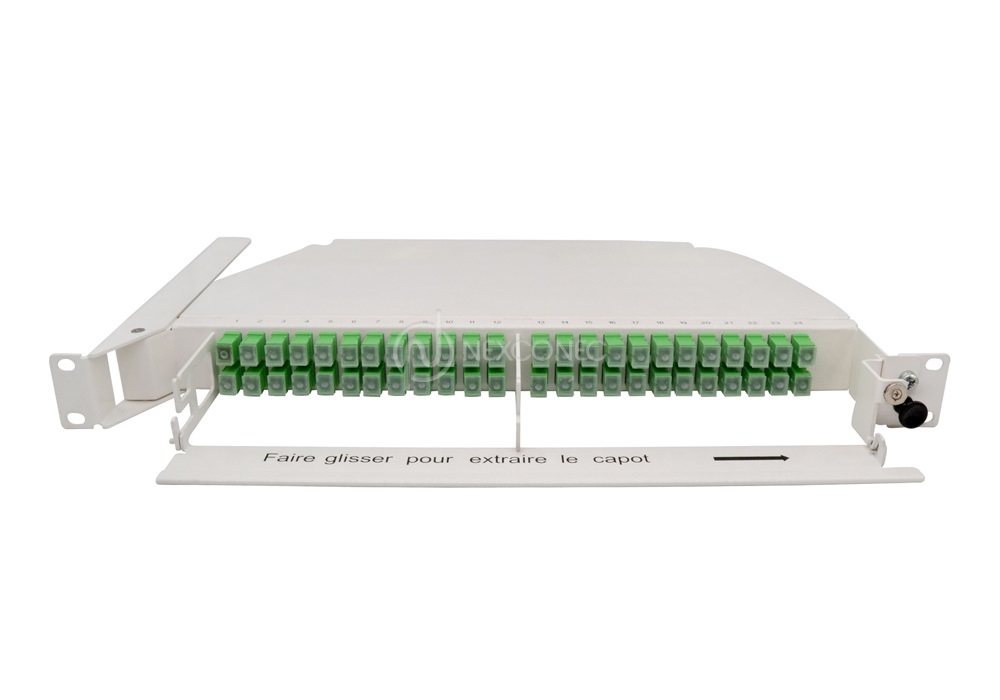

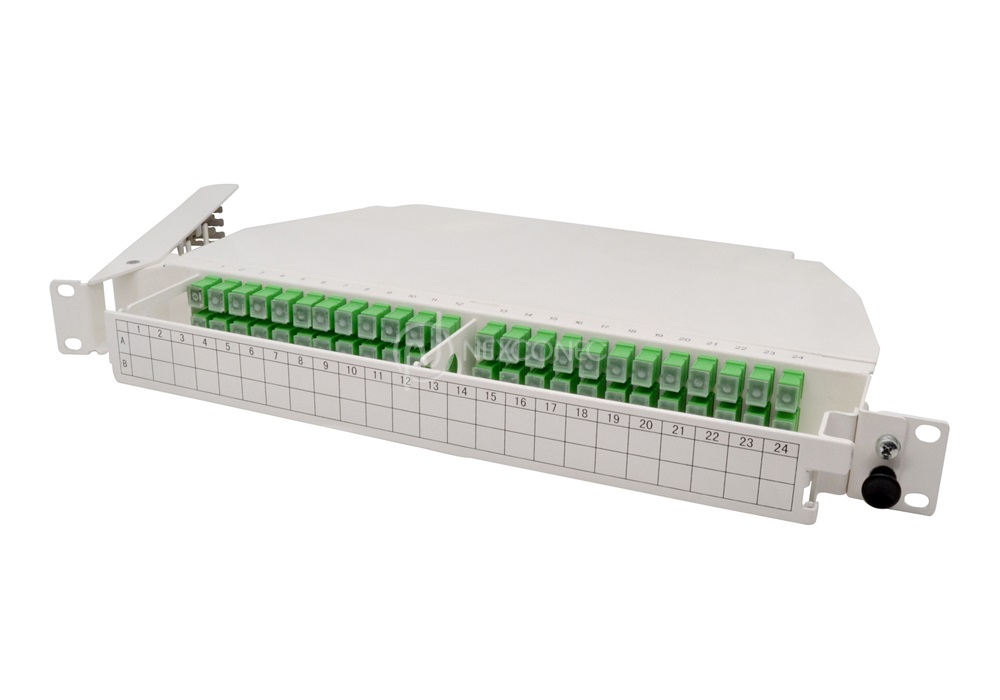

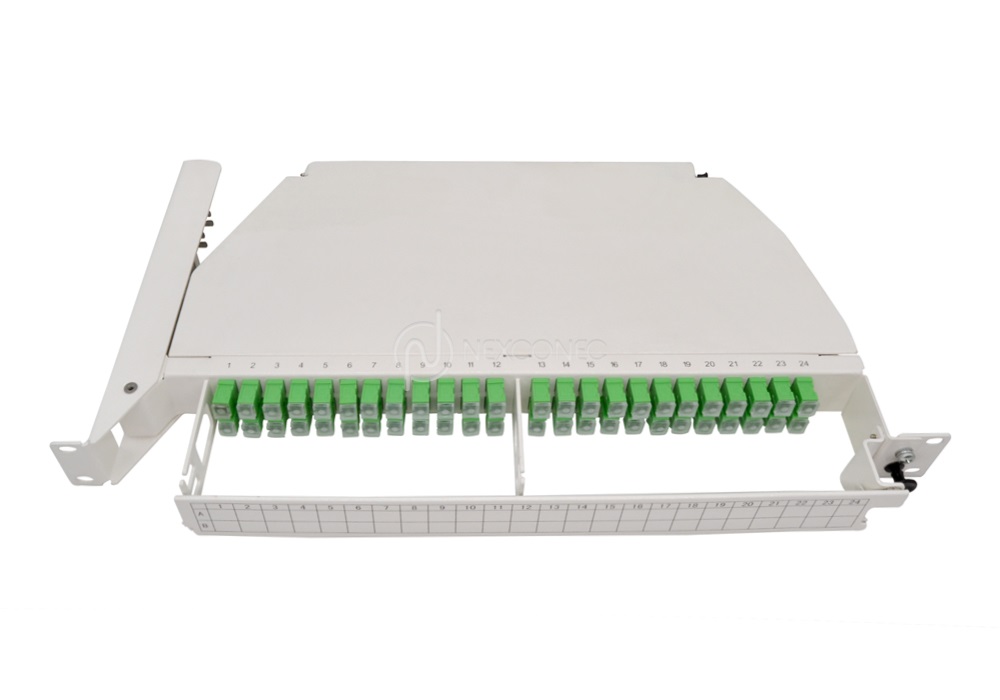

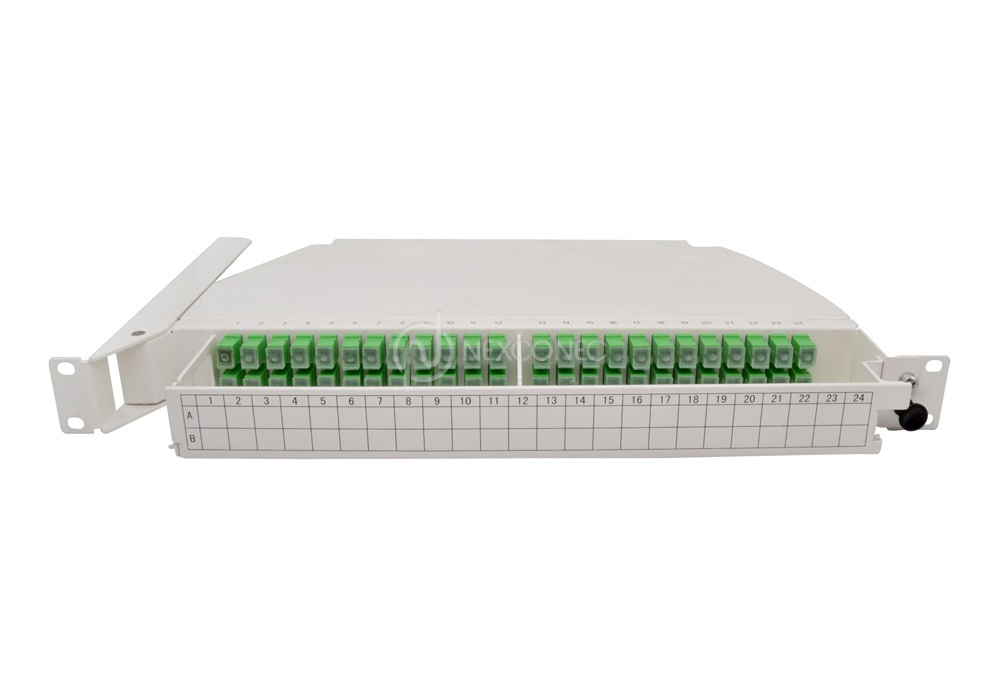

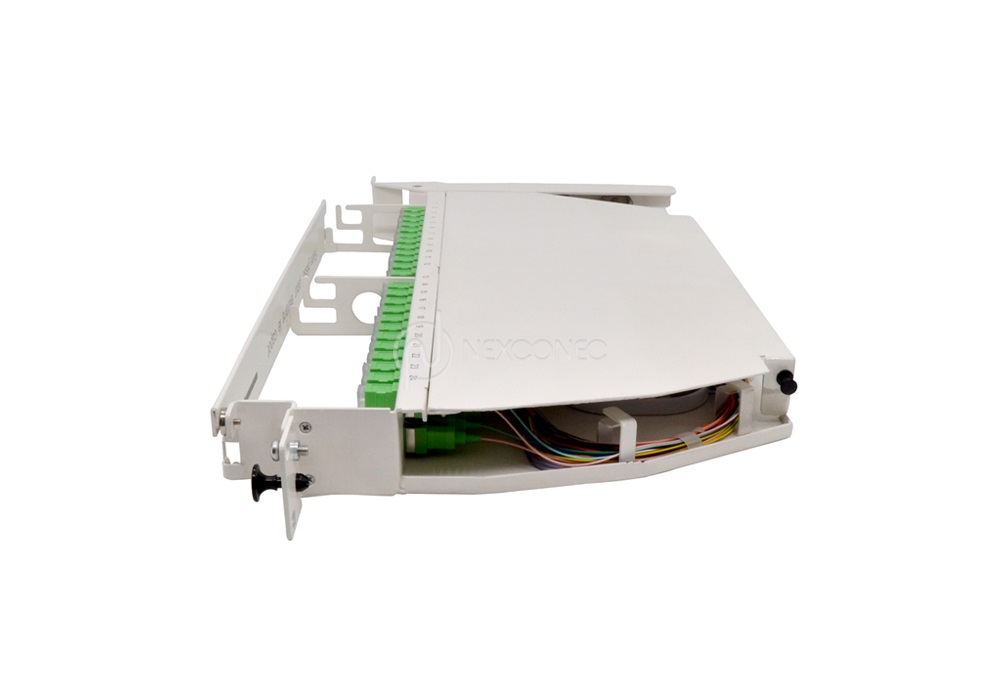

1U FIBER OPTICAL ROTARY PATCH PANEL - SW01-48SCA-xx

SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx SW01-48SCA-xx

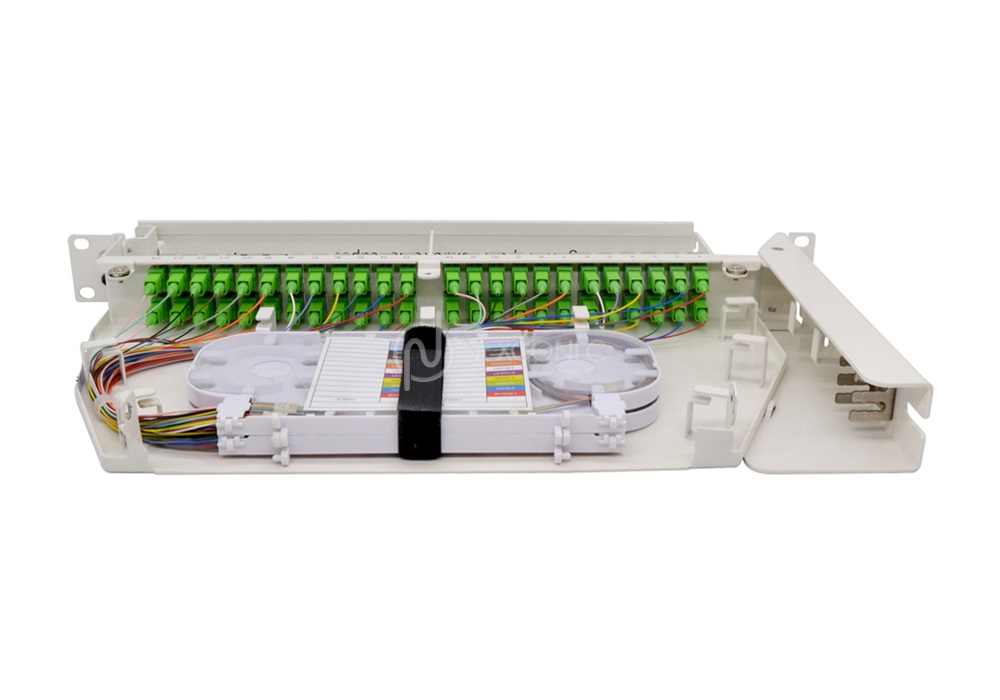

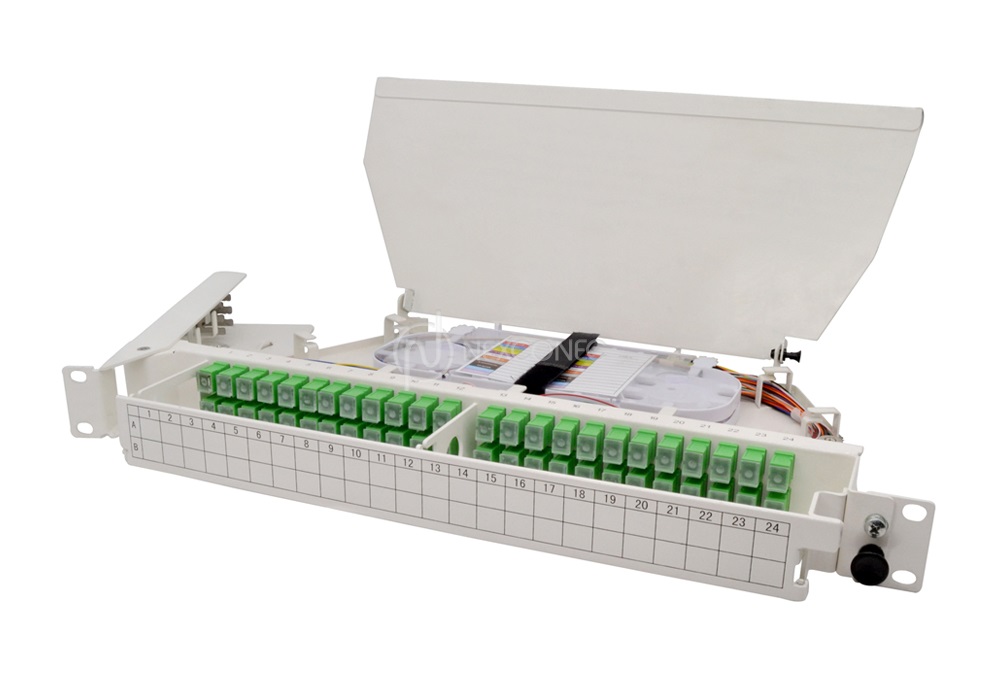

Rotary Swing out patch panels are designed for the FTTH networks, specifically for the street cabinet where full front access is required. This 1U panel accommodates 48 SC/APC adapters and is loaded with bend insensitive pigtails G657A2 and the complete splicing trays and rooting.

FEATURES AND APPLICATIONS
  • Holds up to 48 SC Simplex footprint adapters
  • Designed for 19'' and ETSI 21’’ frames
  • Right and left opening
  • Supplied fully loaded ready to splice
  • Datacenter storage area & Central office, POP
  • Fiber to the home (FTTH) Street cabinets
  • LAN/WAN

Product Information

pdfDATASHEET.pdf View Download
Mounting Type 19” and compatible ETSI 21”

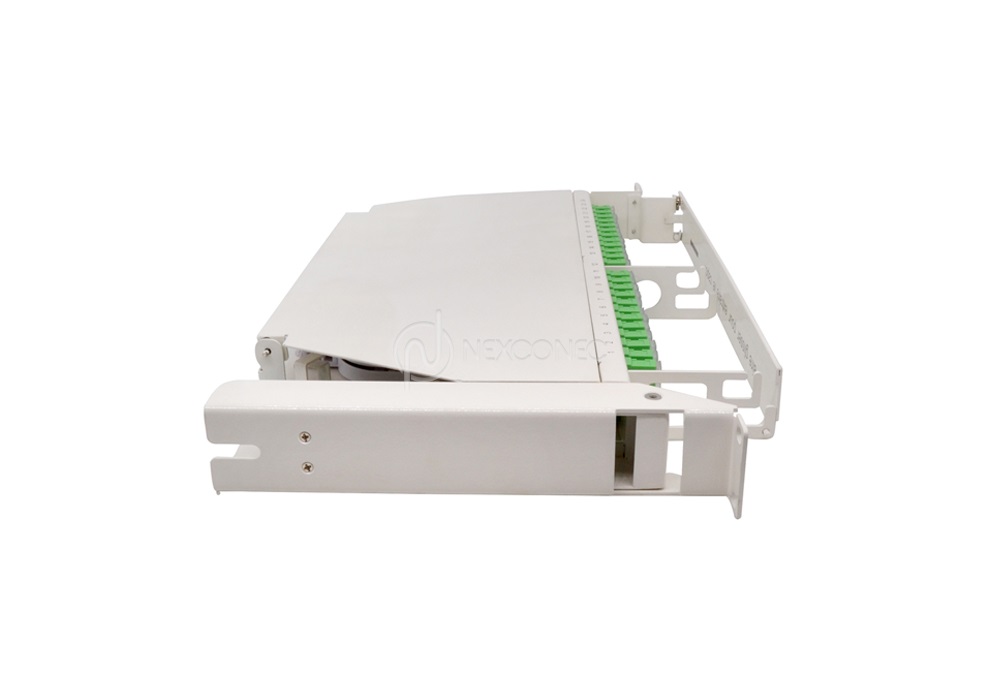

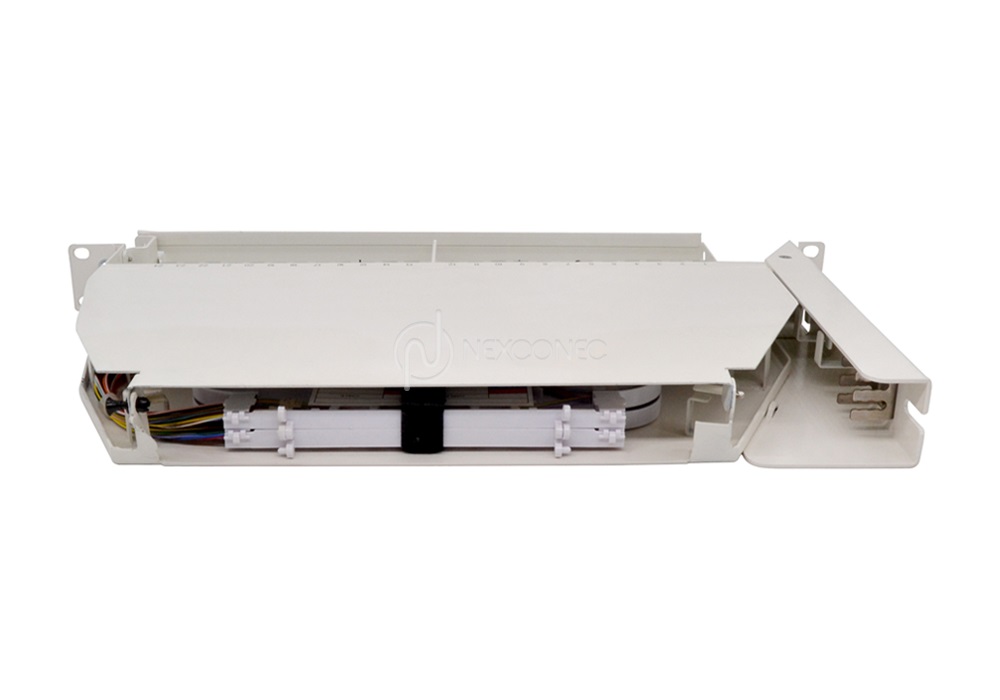

Opening Type Right or Left Hinge swing out
Dimension 44 x 482 x 265mm
Material Anticorrosive Steel and FR polymer
Housing Color Painted light grey RAL7035
Operating Temperature -25℃~+55℃(5 to 95% RH)
Net Weight 2.1kg
Slot Type SC/APC Simplex adapters
Number of Slots 48
Fiber Type Single mode Bend Insensitive G657A2 Easystrip
Insertion Loss IL ≤ 0,20dB / RL 65dB
Part Number Product Description
SW01-48SCA-LF 1U Pivot Panel 48FO SCA loaded Pigtails SC/APC OS2 G657A2 LSZH Easystrip, Opening Left
SW01-48SCA-RI 1U Pivot Panel 48FO SCA loaded Pigtails SC/APC OS2 G657A2 LSZH Easystrip, Opening Right
