1U Patching Panel (up to 96FO) - BPP03

BPP03 BPP03 BPP03 BPP03 BPP03 BPP03 BPP03 BPP03 BPP03

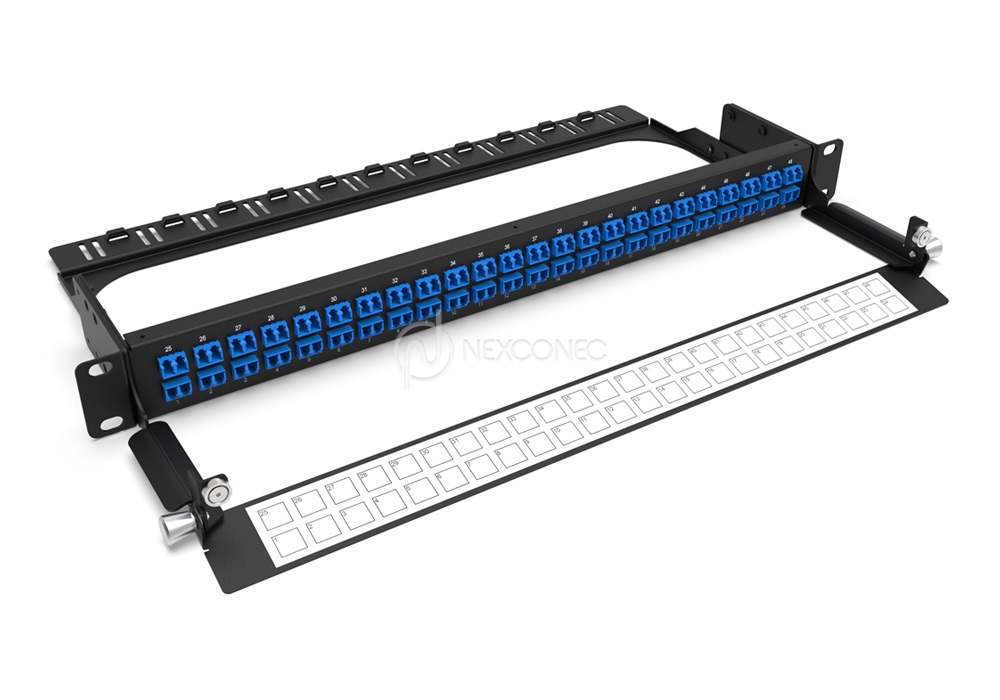

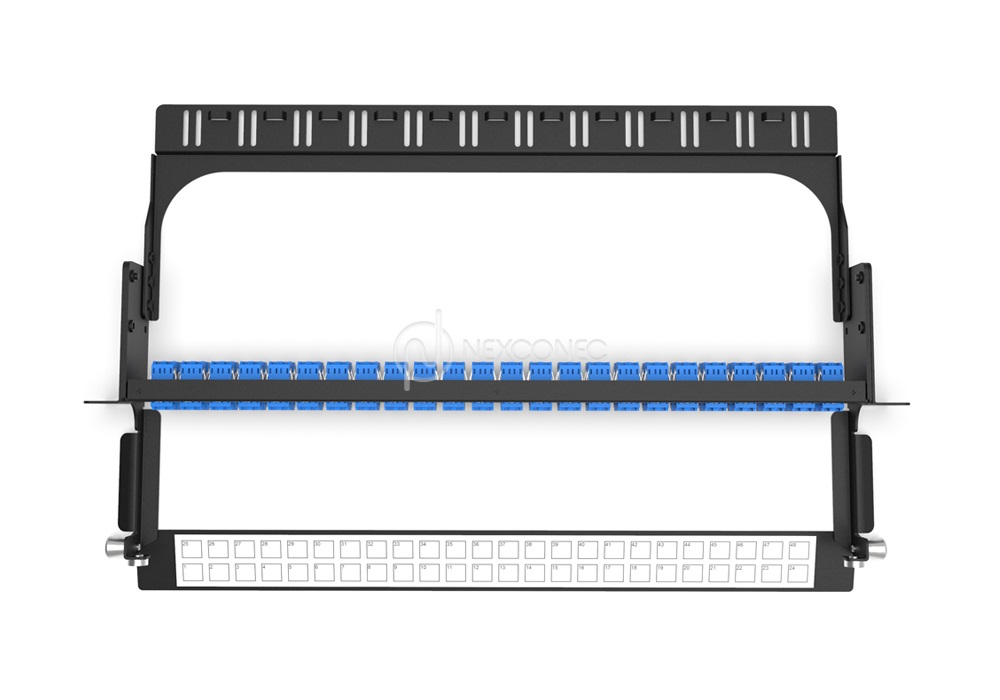

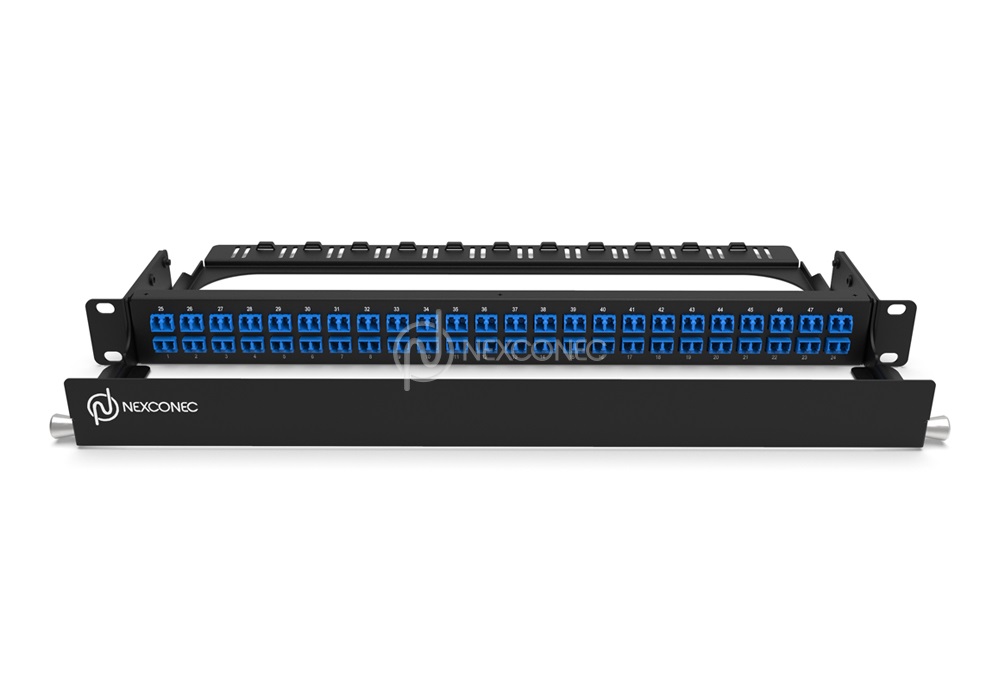

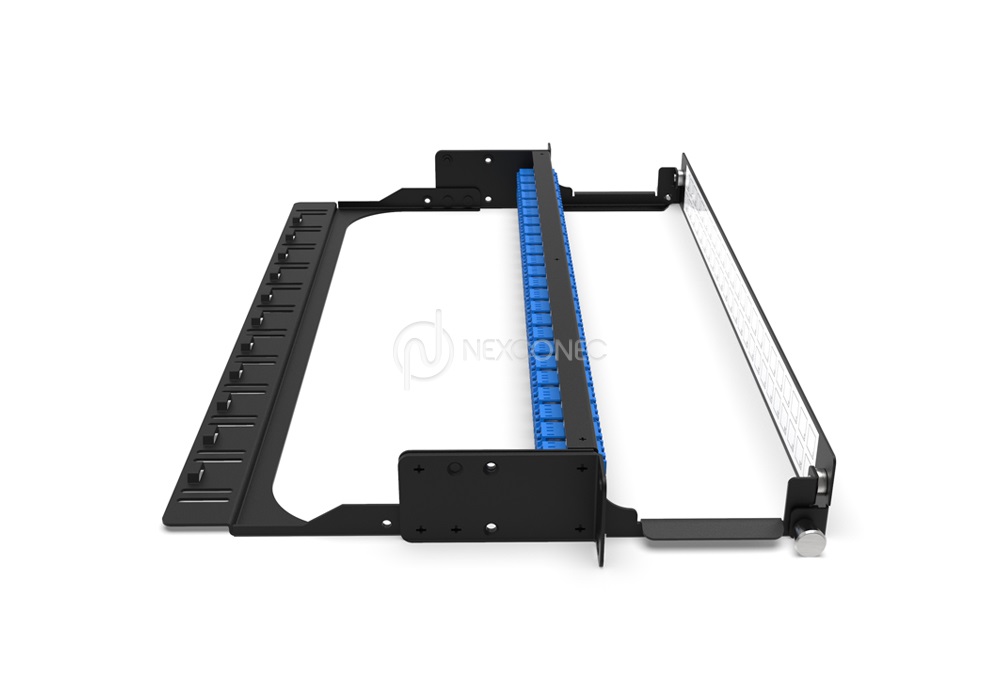

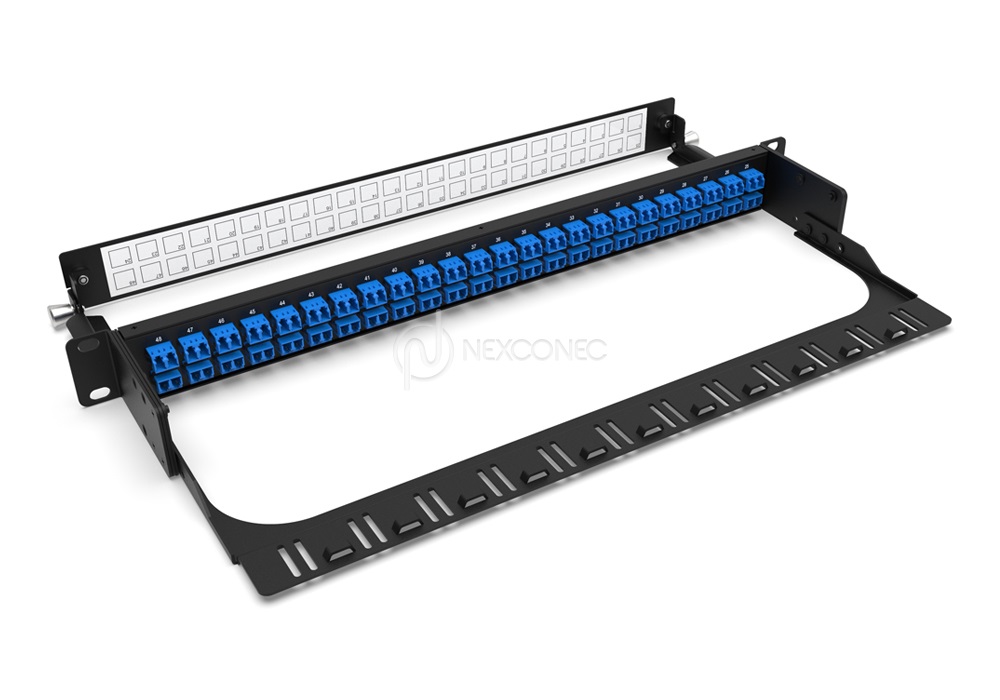

Nexconec Breakout Patching Panel is designed to provide housing for connections from an incoming preterm or trunks from the rear of the panel to patch cords on the front. The Open frame allows for quick and easy installation. It accepts up to 96FO with LC.

FEATURES AND APPLICATIONS
  • 1U height with SC, LC or MPO Thru Adapters
  • Up to 96FO in LC
  • Channel to route the patch cords to the rear of the rack within the 1U space
  • RoHS, REACH and SVHC
  • Datacentre & Enterprise network
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download

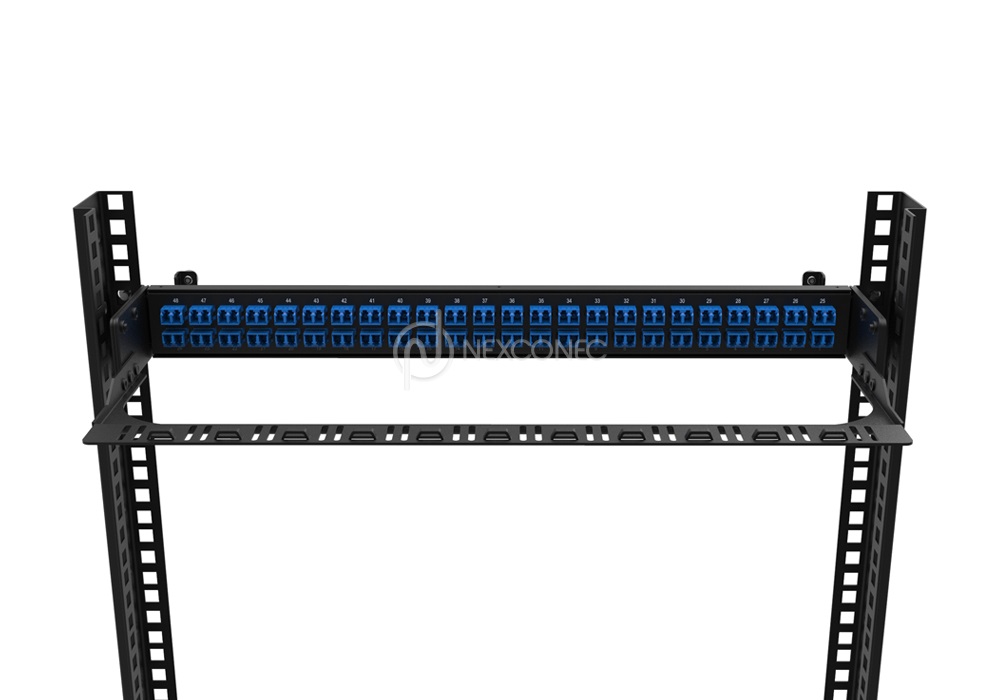

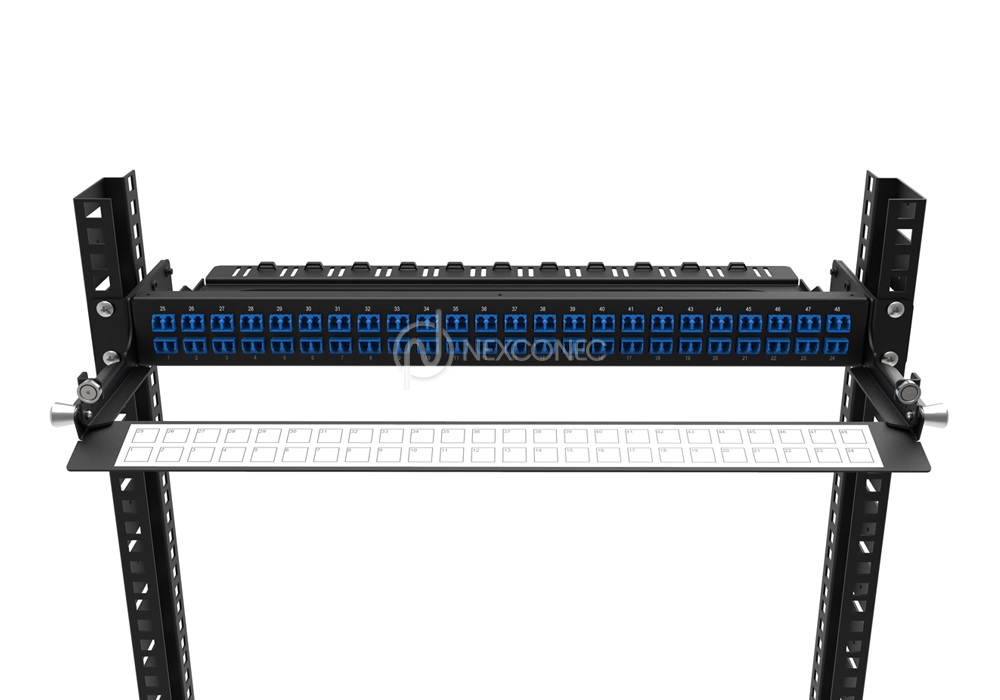

Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Dimensions (W x D x H in MM) 490 x 285.6 x 44
Net Weight 2.3KG
Opening Type Fixed
Access Type Front access
Front Cable Management Removable hinged door
Cable Entry Direction Rear and Front
Rear Cable Management Support bar
Slot Type SC Simplex / LC Duplex or MPO/MTP Footprint
Number of Slots 48
Fibre Capacity Up to 96 in LC / 48 in SC
Part Number Product Description
BPP03 1U Patching Panel 48 ports SC SX/LC Duplex Unloaded (up to 96LC)
