1U Sliding Panel Interchangeable Front Adapter Plate - SPPXX

SPPXX SPPXX SPPXX SPPXX SPPXX SPPXX SPPXX SPPXX SPPXX SPPXX SPPXX

Nexconec Interchangeable Front adapter plate and sliding patch panel permit stock reduction with these 2 parts constructions. Increased flexibility with 1 chassis in stock for all loading configuration and fiber counts within 1U. Attach the suitable front panel as per requirements.

The panel can also be pre-loaded completely with the required adapters or pre-loaded with pigtails and splice accessories. The tray is locked by 2 plastic latches and lowers to a 45deg angle when fully extended. Installation and labelling are simple and easy.

FEATURES AND APPLICATIONS
  • Recessed panel bracket mounting
  • Removable front adapter plate
  • Large choice of adapters plates with LC/SC/FC/ST and LGX
  • Fits standard 19” rack
  • 4 Rear Cable entries
  • Complete custom loading of panel with adapters, pigtails & accessories
  • Enterprise network & Datacentre
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables and conventional Splicing

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Dimensions (W x D x H in MM) 482 x 205 x 44.4
Net Weight 2.5Kg
Opening Type Sliding tray
Access Type Front access
Front Cable Management Optional
Cable Entry Direction Rear
Rear Cable Management 4 Cable Entries (OD: 2x PG13.5 and 2x PG16 mm)
Front Adapter Plate SC Simplex, SC Duplex, FC & ST Simplex Footprint , LGX
Part Number Product Description

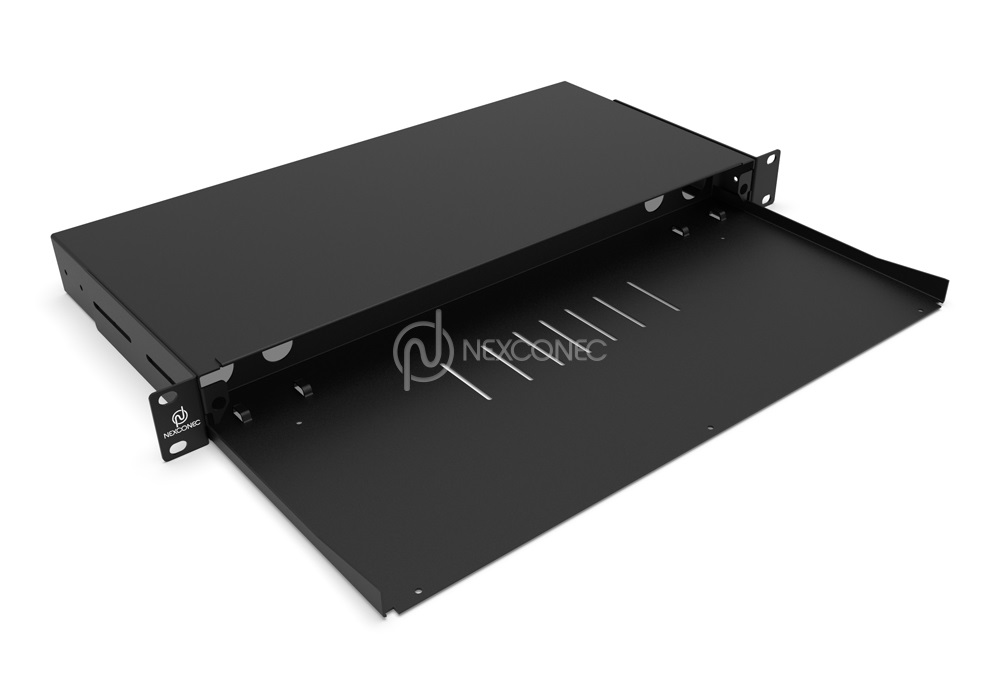

SPPXX 1U Sliding Panel no Front patching plate, Unloaded

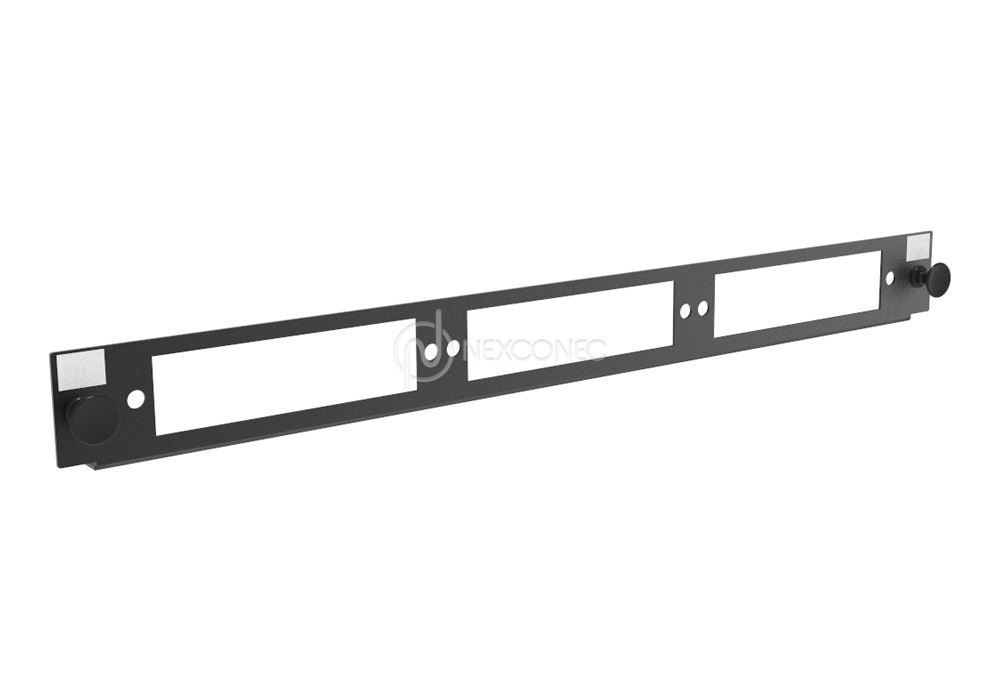

PLMP3 Adapter Plate for SPPXX Sliding Patch panel, 3 LGX Ports Unloaded

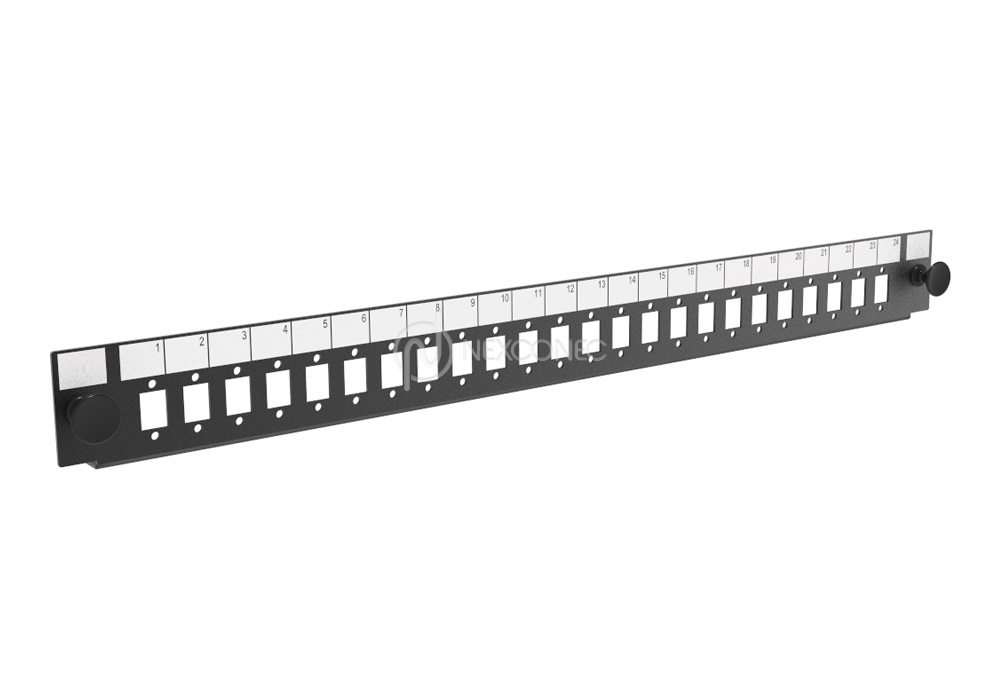

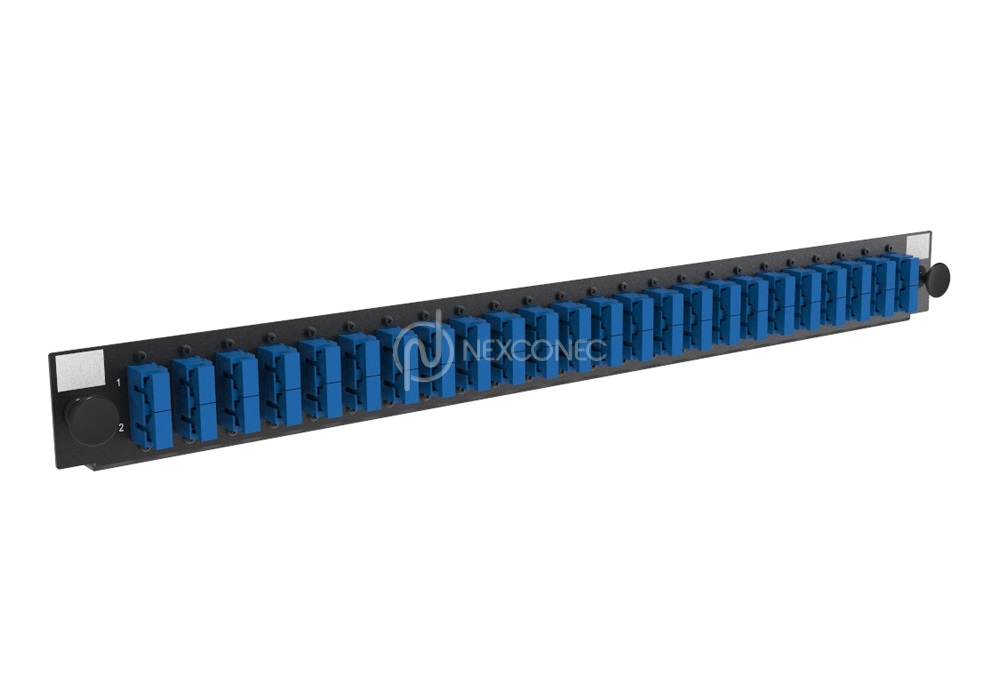

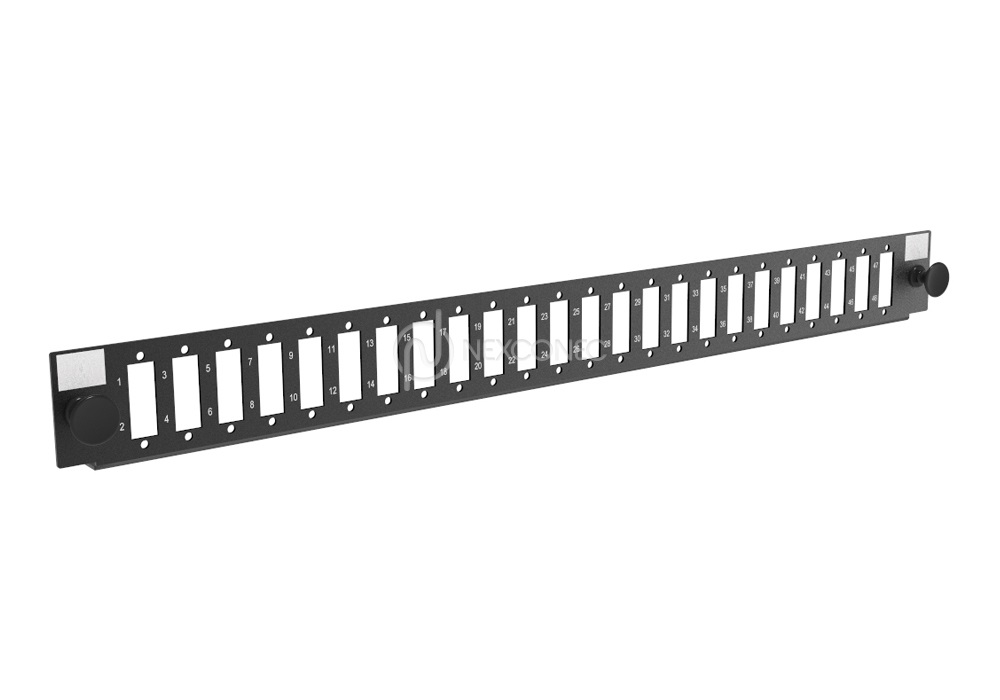

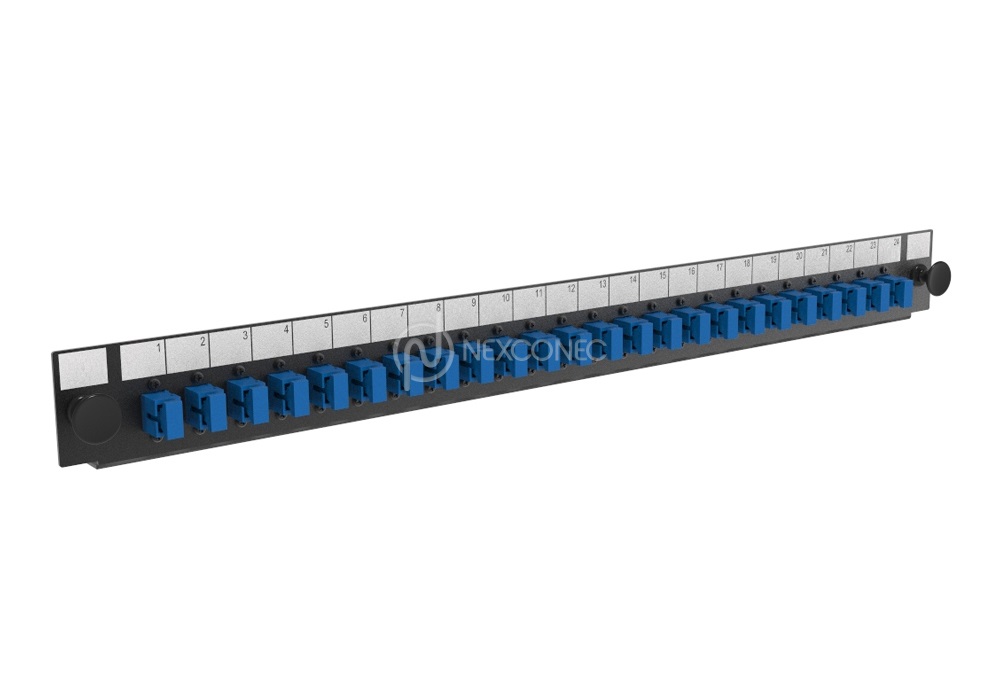

PL24S Adapter Plate for SPPXX Sliding Patch panel, 24 Ports SC SX / LC DX Unloaded

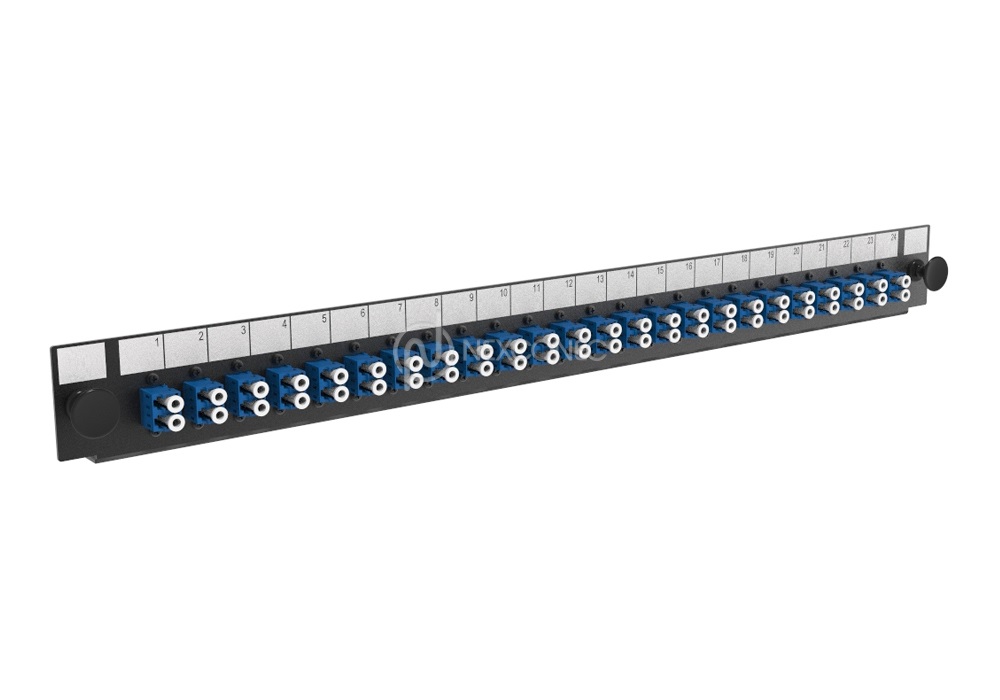

PL24D Adapter Plate for SPPXX Sliding Patch panel, 24 Ports SC DX / LC QD Unloaded

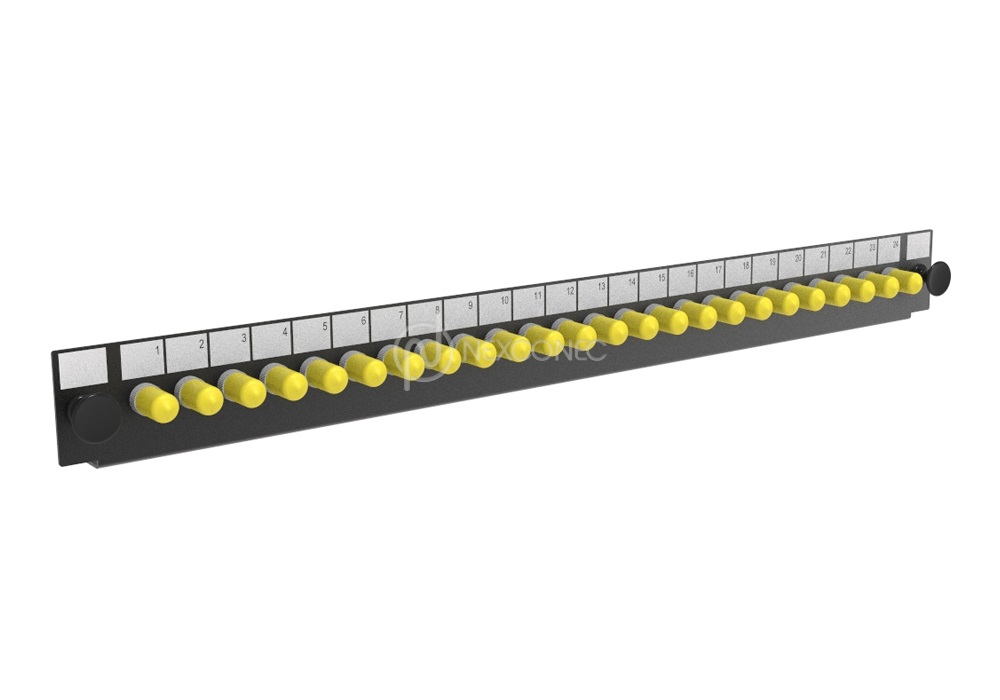

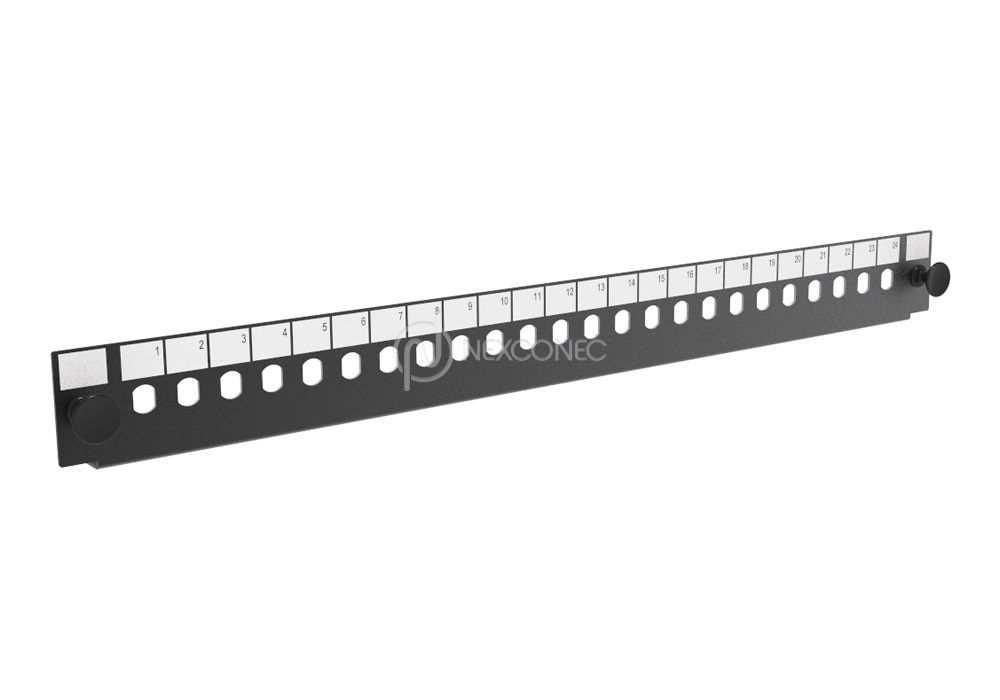

PL24F Adapter Plate for SPPXX Sliding Patch panel, 24 Ports FC/ST SX Unloaded

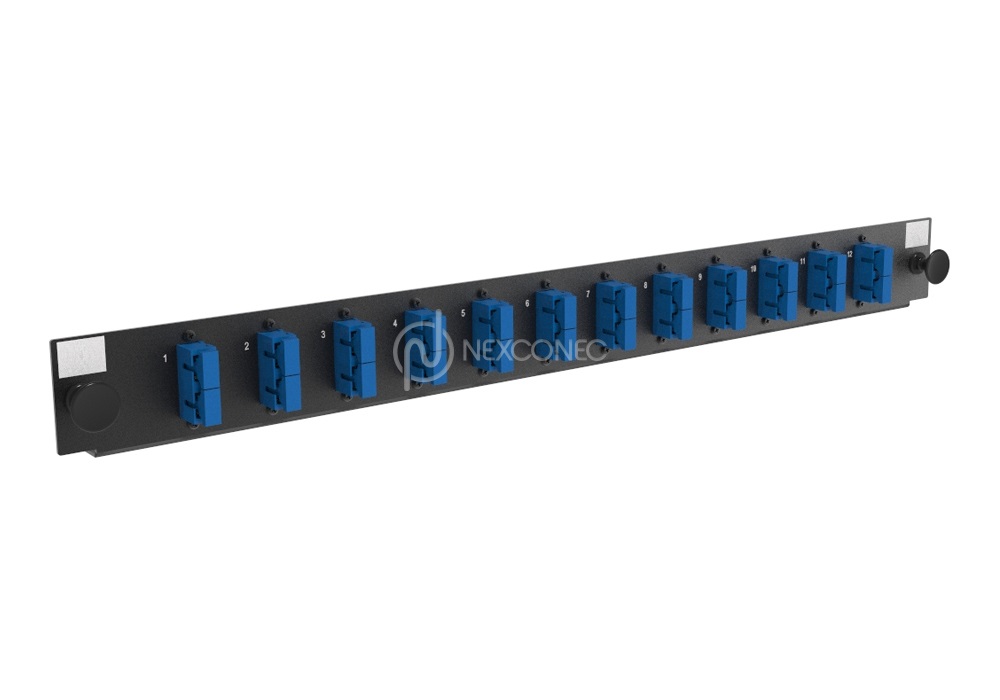

PL12D Adapter Plate for SPPXX Sliding Patch panel, 12 Ports SC DX / LC QD Unloaded
