1U SLIM PANEL DWDM MUX & DEMUX 16CH (UP TO 48CH) - WDMPPxx

WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx WDMPPxx

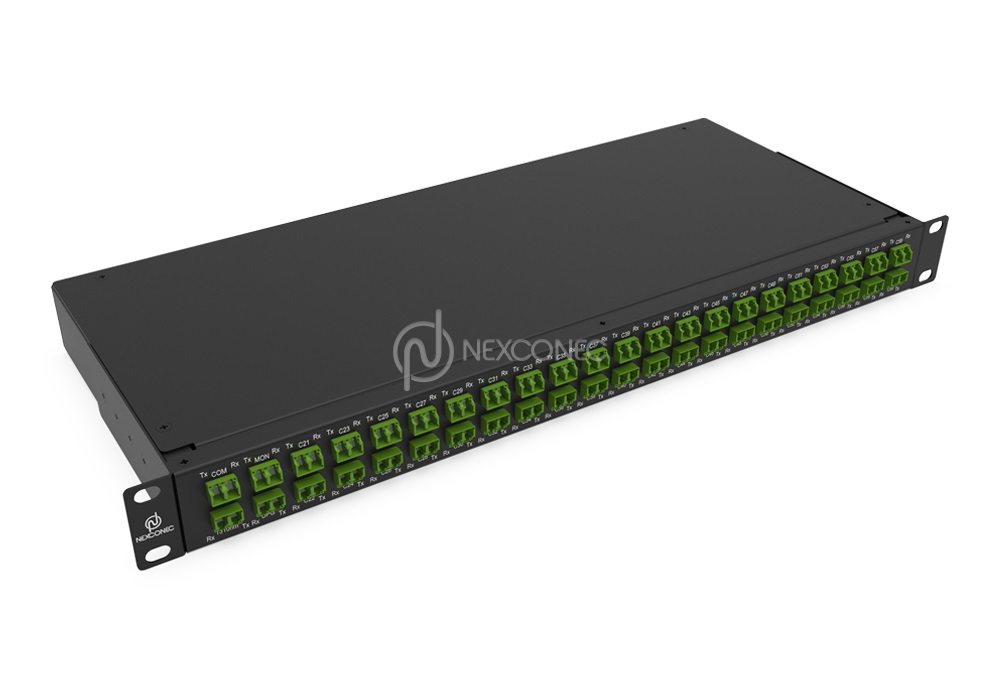

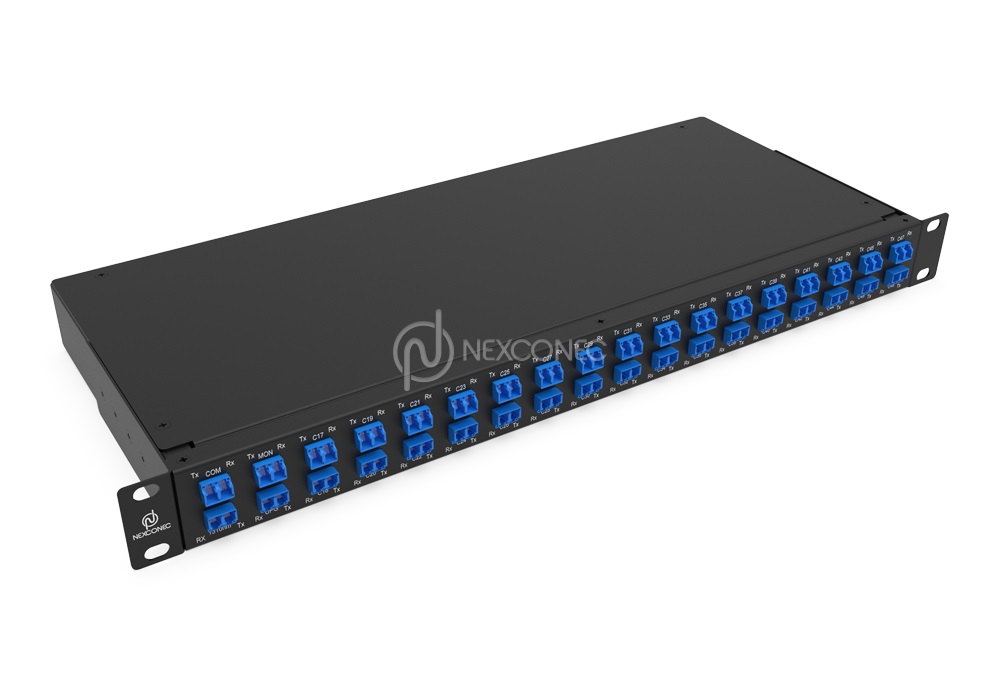

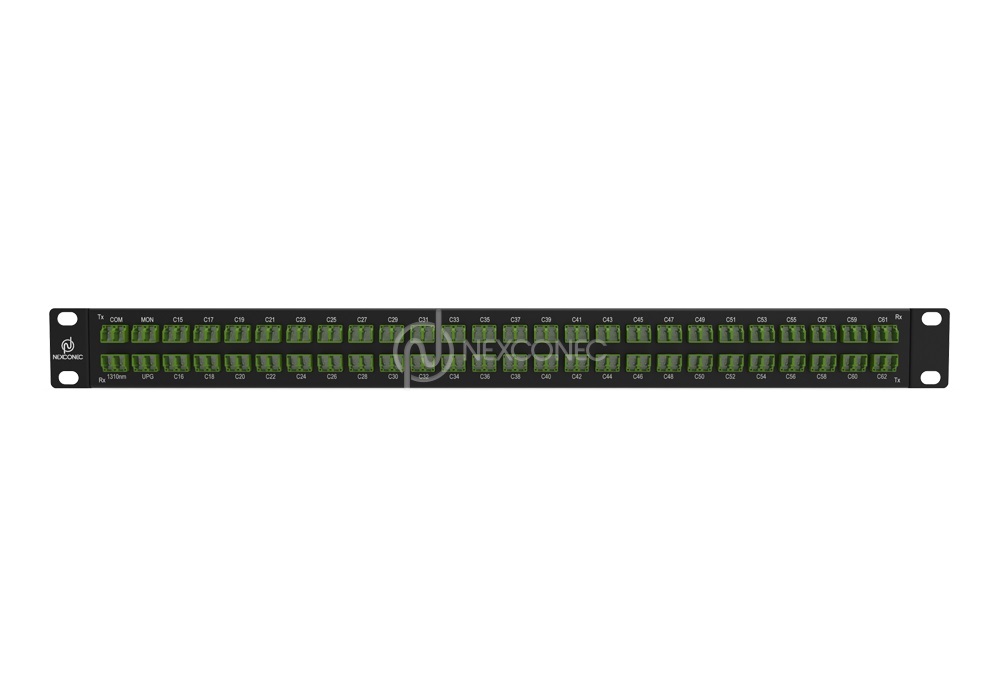

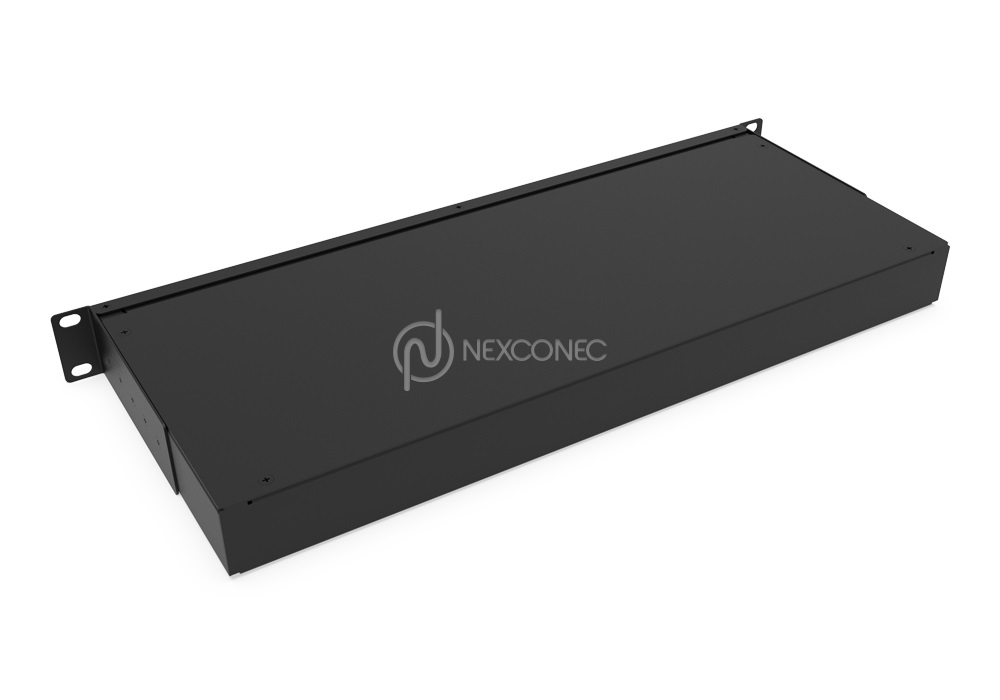

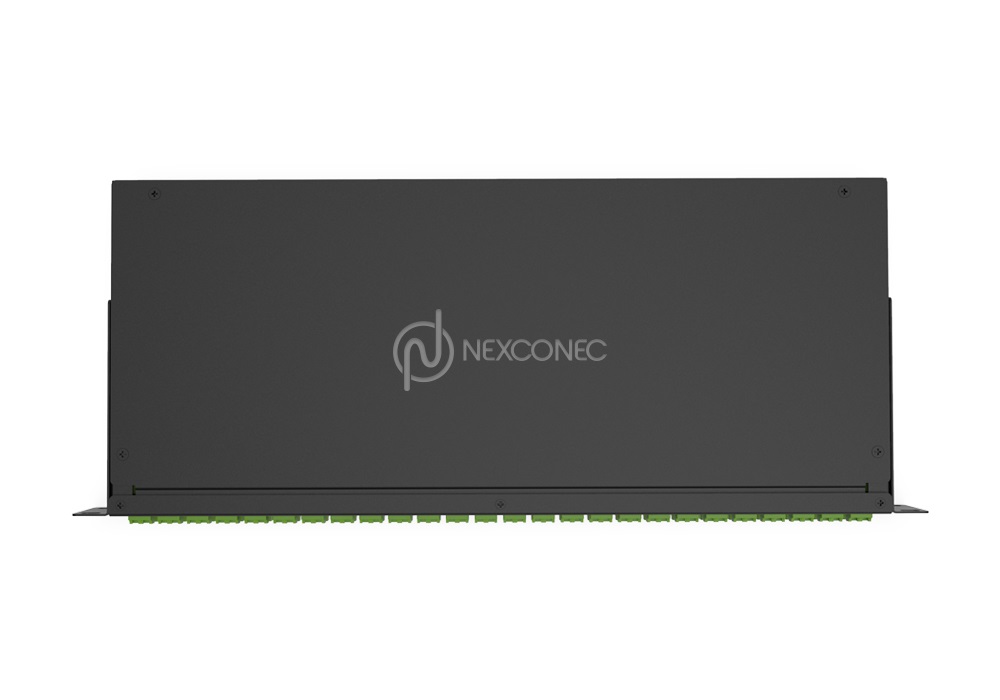

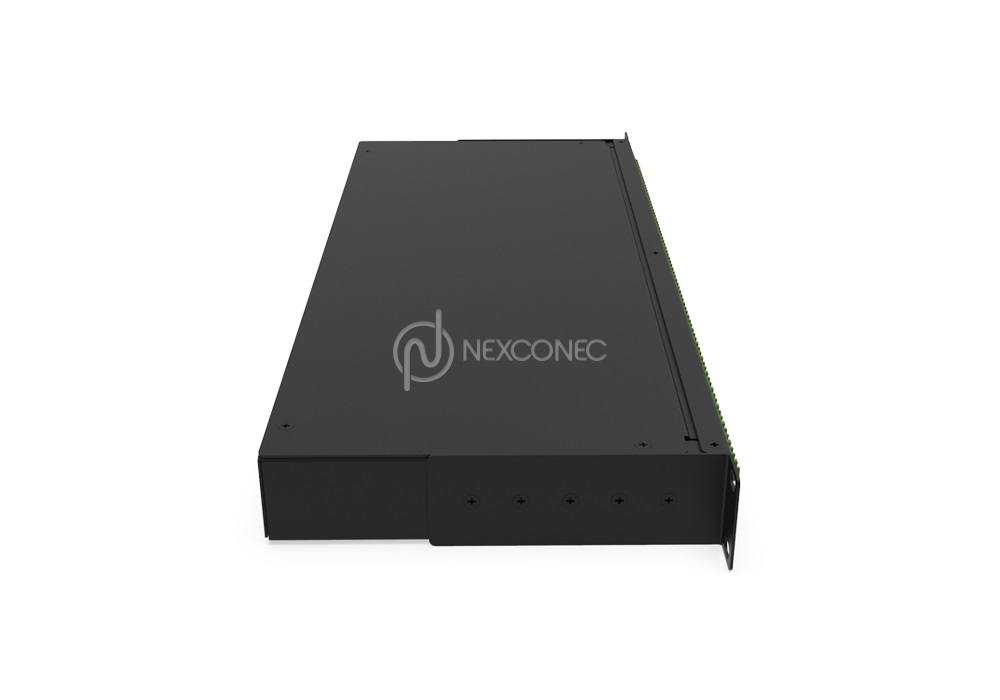

NEXCONEC® passive 4 channels up to 48 channels DWDM MUX or and DEMUX slim panel, allows you to multiplex 4 to 48 separate channels into one pair of fiber, de-multiplex the one pair fiber into 4 to 48 channels, which is mainly used in the long-haul transmission where wavelengths are integrated together over the C-band. This slim DWDM patch panel supports up to 48 channels inn 100GHz.

Its protocol and rate transparent supporting different applications such as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link. With slim patch panel design, it can support a wide range of architectures from simple point-to-point to ring configurations.

FEATURES AND APPLICATIONS
  • Low Insertion Loss
  • Wide Passband
  • High Channel Isolation
  • Shuttered dust proof LC adapters
  • Up to 48 channels for MUX & DEMUX

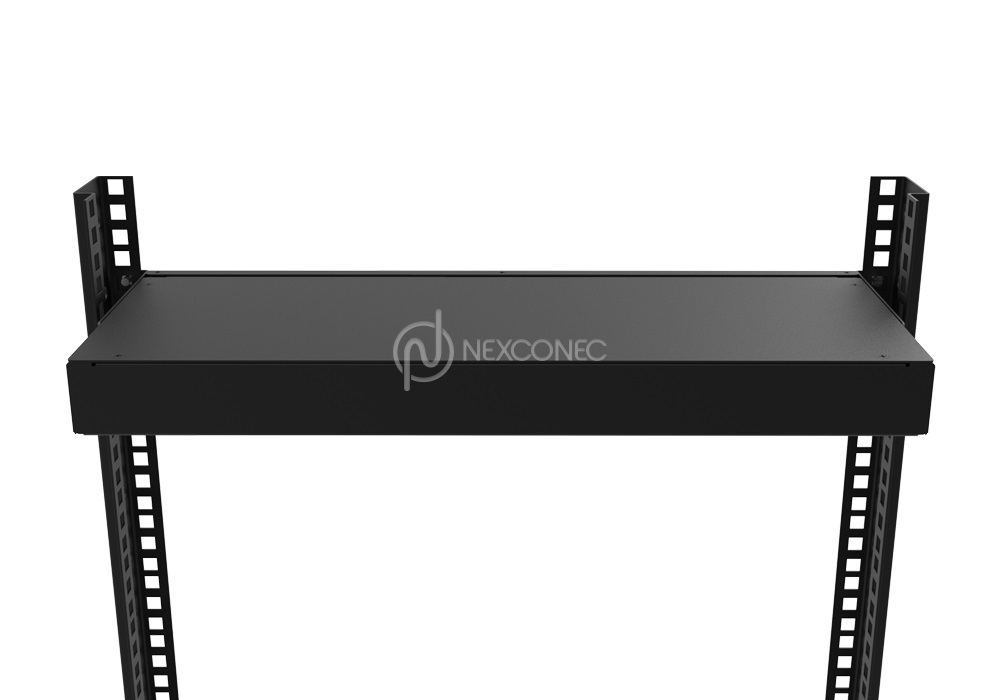

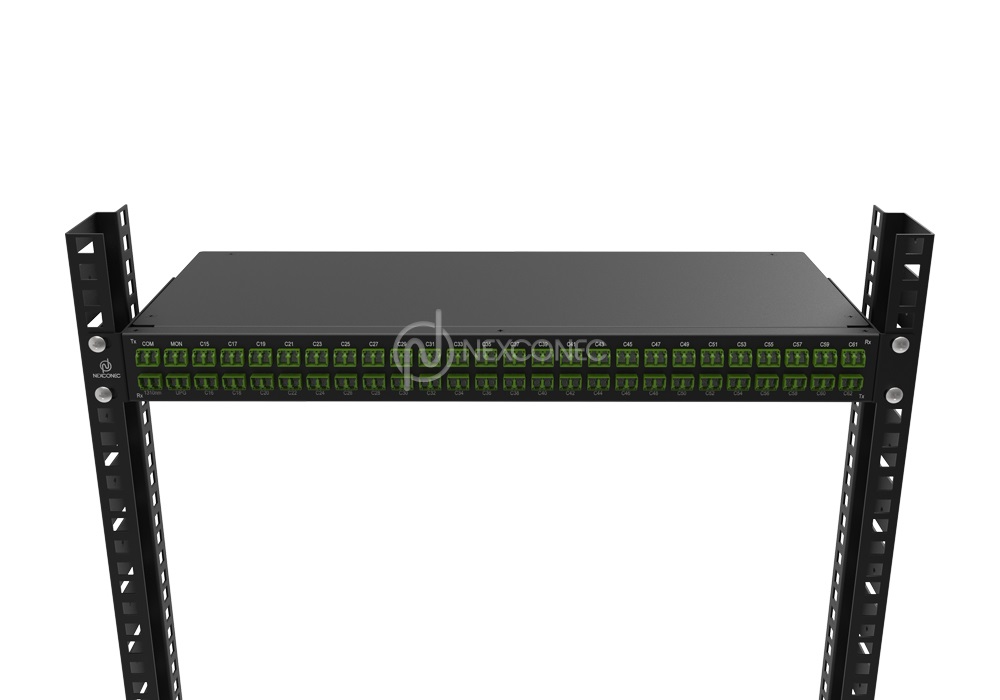

  • Easy installation, 19’’ rack mountable
  • High density, saving data center cabinet space
  • RoHS, REACH & SvHC compliant
  • Line Monitoring
  • WDM Network
  • Telecommunication
  • Cellular Application
  • Fiber Optical Amplifier
  • Access Network

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Units
Default Default
Default Default
Default Default
Default Default
Default Default
Default Default
Default Default
Part Number Product Description
1UDMD16LCAS 1U Slimline Panel loaded with 1x 16ch (C21 to C36) DWDM Mux & Demux, LC/APC in/out Shuttered, G.657A1, with extra 1310nm, and monitor & expansion port
1UDMD32LCAS 1U Slimline Panel loaded with 1x 32ch (C17 to C48) DWDM Mux & Demux, LC/APC in/out Shuttered, G.657A1, with extra 1310nm, and monitor & expansion port
1UDMD40LCAS 1U Slimline Panel loaded with 1x 40ch (C21 to C60) DWDM Mux & Demux, LC/APC in/out Shuttered, G.657A1, with extra 1310nm, and monitor & expansion port
1UDMD44LCAS 1U Slimline Panel loaded with 1x 44ch (C17 to C60) DWDM Mux & Demux, LC/APC in/out Shuttered, G.657A1, with extra 1310nm, and monitor & expansion port
1UDMD48LCAS 1U Slimline Panel loaded with 1x 48ch (C15 to C62) DWDM Mux & Demux, LC/APC in/out Shuttered, G.657A1, with extra 1310nm, and monitor & expansion port
