1U UTP Angled Unloaded Patch Panel - CMX1UVUN

CMX1UVUN CMX1UVUN CMX1UVUN CMX1UVUN CMX1UVUN

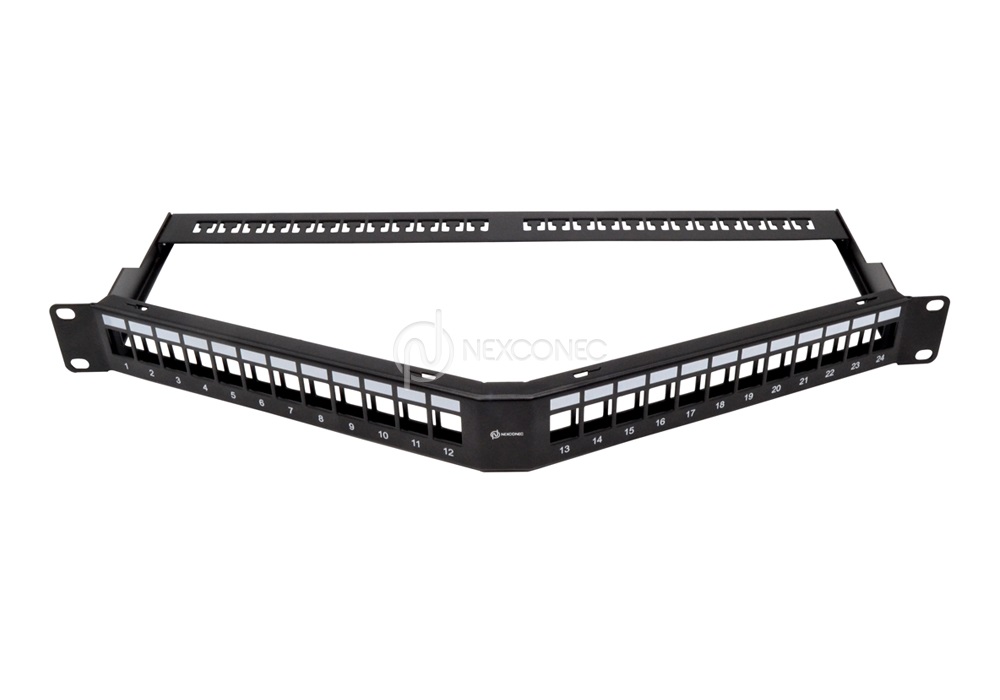

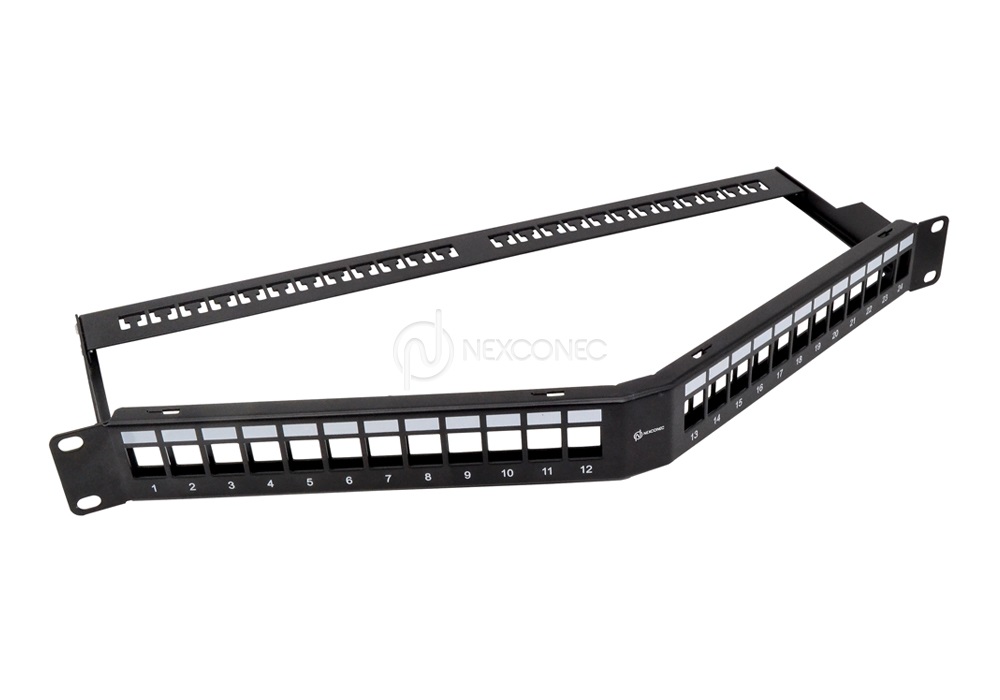

NEXCONEC 1U 24 ports angled unloaded keystone patch panel allows flexibility for the users during installations. It gives you the benefits of only using ports required by installing the desired number of jacks into the frame. With the front angular design, this panel will help the cable routed to left and right separately by increasing the cable bending radius.

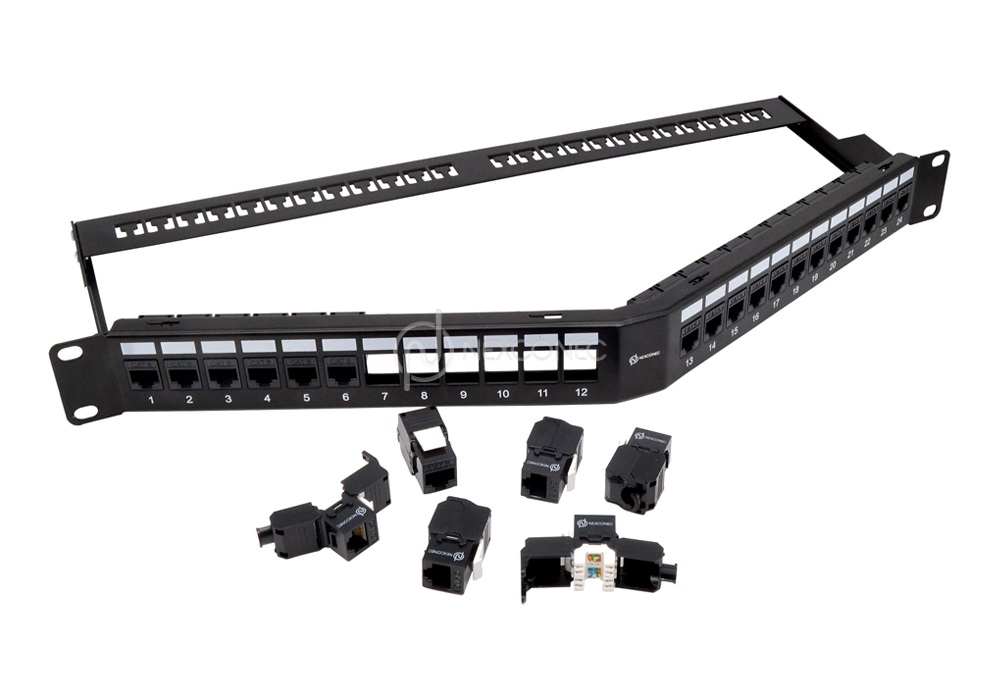

With the silkscreen printed port identification number which help the end user to recognize the ports while/after installation. When mounted with NEXCONEC keystone jacks for Cat 5E, Cat 6 and Cat 6A, your completed panel will conform to ANSI/TIA/EIA 568A-B.2.2001, ISO/IEC11801:2002 and EN50173-2 standards.

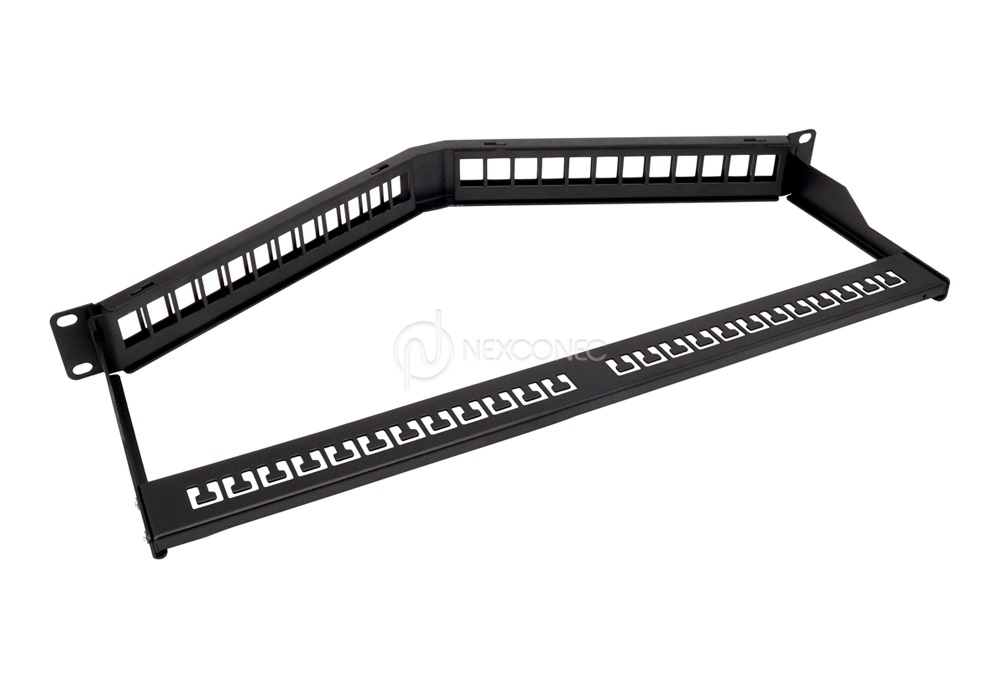

This angled keystone jack patch panel comes with cable ties, cage nuts and rear cable management bar as standard.

FEATURES AND APPLICATIONS
  • Angled design for better cable routing
  • Compatible with all NEXCONEC UTP keystone jacks
  • 19’’ rack mountable
  • Support up to 24port in 1U height
  • Supplied with rear cable managers and fixings
  • Port numerically identified
  • Connection between wall outlets or equipment’s
  • Compatible with all categories of unshielded keystone jacks

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
U Size 1U (44mm)
Depth (with rear cable manager) 235mm
Net Weight 0.75KG
Housing Material Cold-rolled steel
Material Thickness 1.6mm
Compliance ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7
RoHS Compliant
Warranty 12 Months
Width 476mm
Panel Depth 84mm
Packed Weight 0.9KG
Color Black, RAL 9004
Operating Temp. -40℃ to 60℃
Part Number Product Description
CMX1UVUN NEXCONEC 1U 24port Angled UTP KJ Patch Panel Unloaded
