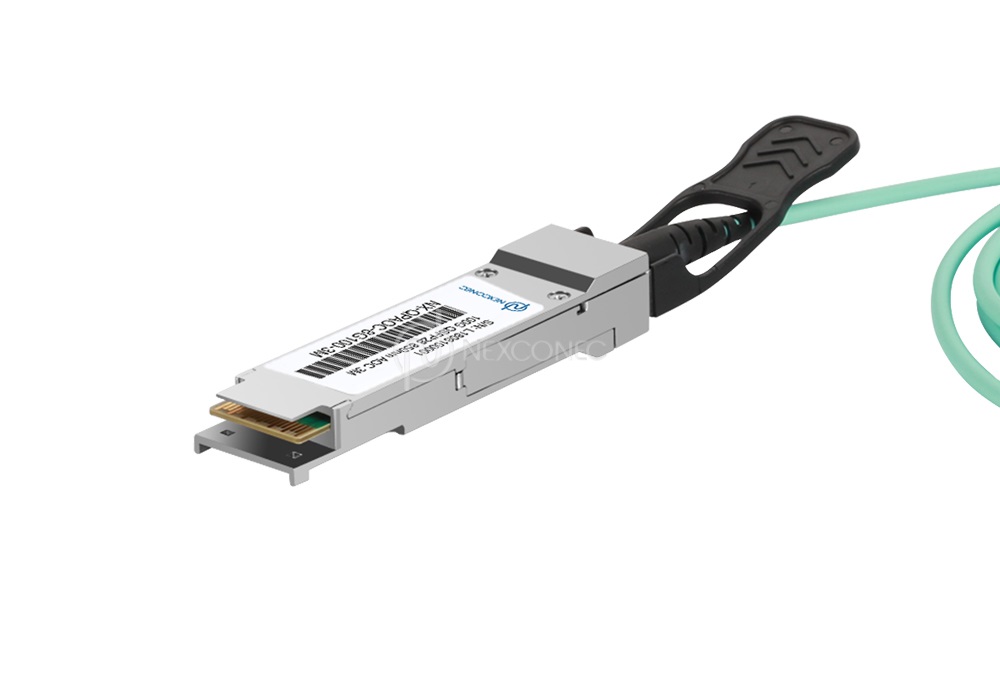

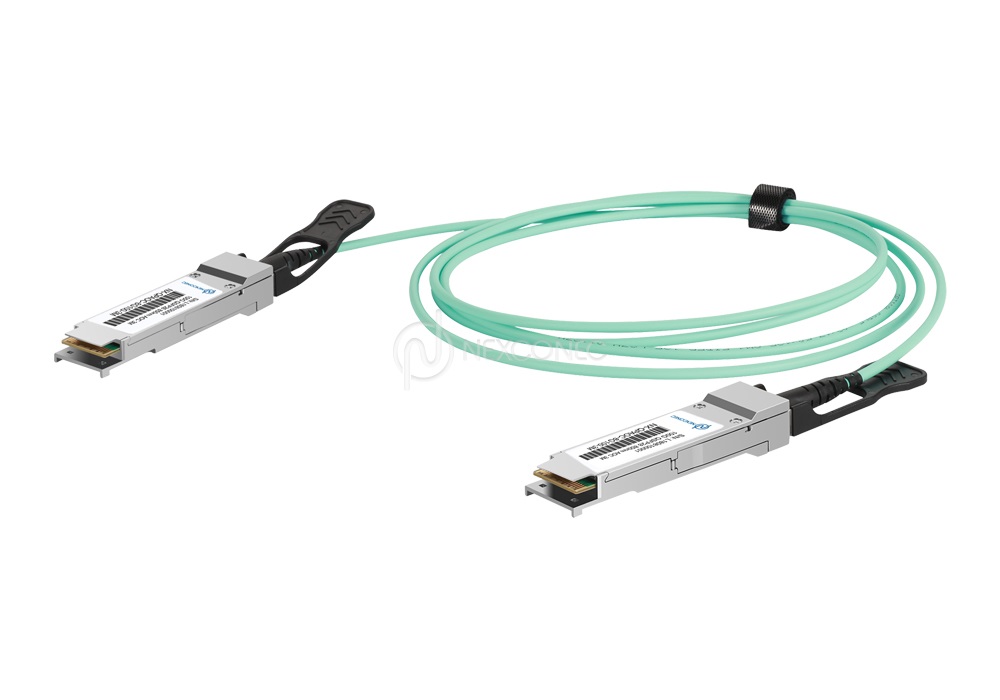

200Gbps QSFP56 ACTIVE OPTICAL CABLE
The QSFP56 AOC supports 212.5Gb/s PAM4 with a built-in 200G PAM4 DSP, 4-channel 850nm VCSEL, and PIN photodetector arrays. It features DDM, operates from 0 to 70ºC, and consumes <5W power with TDEC <4.9dB. RoHS-6 compliant and available in 1 to 100m lengths, it ensures high-speed, efficient data transmission.
FEATURES AND APPLICATIONS
- Supports 212.5Gb/s PAM4
- Digital Diagnostics Monitoring Interface
- Built-in 200G PAM4 DSP
- Available in lengths of 1 to 100 meters
- Hot Pluggable QSFP56 form factor
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- RoHS-6 Compliant
- 200G Ethernet
- Infiniband QDR
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-QPAOC-8G200-01-xx | QSFP56 | 200G | 850nm | 1m | VCSEL | PIN |
| NX-QPAOC-8G200-02-xx | QSFP56 | 200G | 850nm | 2m | VCSEL | PIN |
| NX-QPAOC-8G200-03-xx | QSFP56 | 200G | 850nm | 3m | VCSEL | PIN |
| NX-QPAOC-8G200-04-xx | QSFP56 | 200G | 850nm | 4m | VCSEL | PIN |
| NX-QPAOC-8G200-05-xx | QSFP56 | 200G | 850nm | 5m | VCSEL | PIN |
| NX-QPAOC-8G200-06-xx | QSFP56 | 200G | 850nm | 6m | VCSEL | PIN |
| NX-QPAOC-8G200-07-xx | QSFP56 | 200G | 850nm | 7m | VCSEL | PIN |
| NX-QPAOC-8G200-08-xx | QSFP56 | 200G | 850nm | 8m | VCSEL | PIN |
| NX-QPAOC-8G200-09-xx | QSFP56 | 200G | 850nm | 9m | VCSEL | PIN |
| NX-QPAOC-8G200-10-xx | QSFP56 | 200G | 850nm | 10m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-QPAOC-8G200-01-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 1m |
| NX-QPAOC-8G200-02-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 2m |
| NX-QPAOC-8G200-03-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 3m |
| NX-QPAOC-8G200-04-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 4m |
| NX-QPAOC-8G200-05-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 5m |
| NX-QPAOC-8G200-06-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 6m |
| NX-QPAOC-8G200-07-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 7m |
| NX-QPAOC-8G200-08-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 8m |
| NX-QPAOC-8G200-09-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 9m |
| NX-QPAOC-8G200-10-xx | 200Gbps QSFP56 Active Optical Cable, MMF 850nm 10m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
