25G SFP28 BiDi

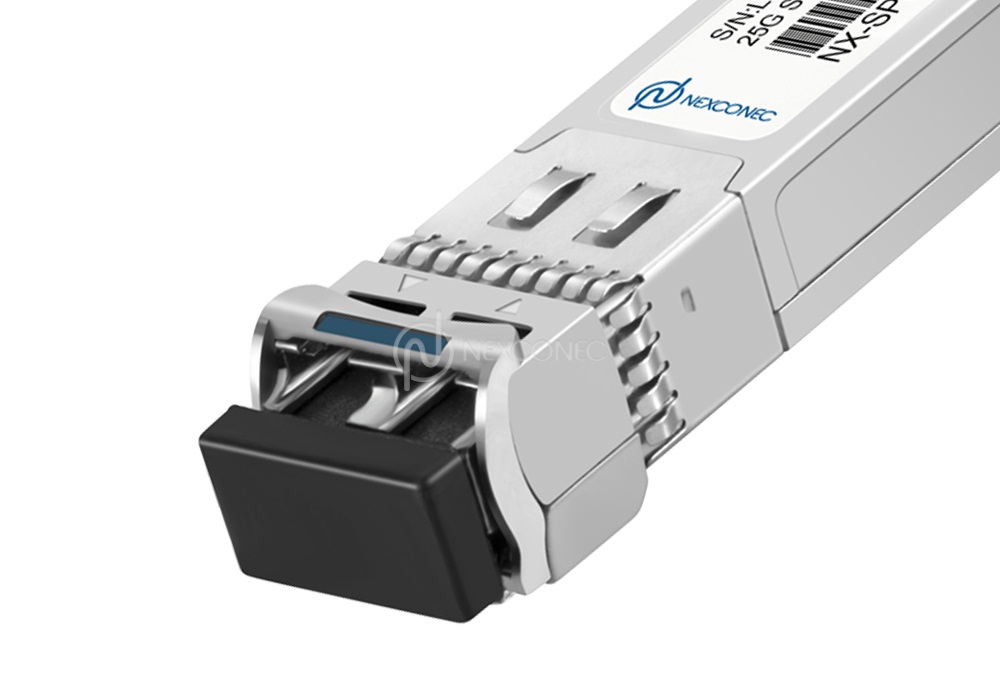

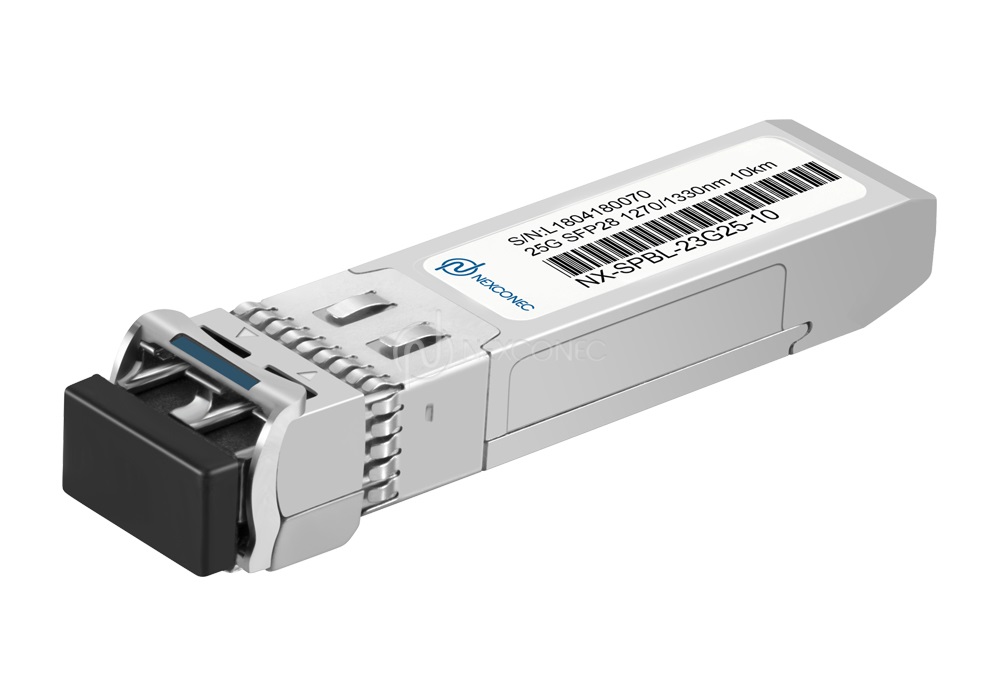

Nexconec 25G SFP28 BIDI Transceivers?are hot-pluggable, and Simplex LC receptacle optical interface compliant for 25 Gigabit Ethernet and Infiniband EDR Applications.
FEATURES AND APPLICATIONS
- One Fiber Bi-Di SFP28 Optical Transceiver, WDM SFP28
- Up to 25 Gbps Bi-directional Data Links
- Build-in CDR
- Fully Compliant with SFP+ MSA
- SFF-8472 Digital Diagnostic Function
- Simplex LC Connector
- 1270/1330 for 10km,20km,1270/1310 for 30,40km
- Distance Up to 10, 20,30,40km
- Only Required +3.3 V Power Supply
- RoHS Compliant
- Commercial: -5℃~+70℃
- Industrial:-40℃~+85℃
- 25G Ethernet, CPRI Option 10
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SPBL-23G25-10-xx | SFP28 | 25G | 1270/1330nm | 10km | DFB | PIN | LC | -1~-5dBm | -13.3dBm |
| NX-SPBL-32G25-10-xx | SFP28 | 25G | 1330/1270nm | 10km | DFB | PIN | LC | -1~-5dBm | -13.3dBm |
| NX-SPBL-23G25-15-xx | SFP28 | 25G | 1270/1330nm | 15km | DFB | PIN | LC | -1~-5dBm | -15.0dBm |
| NX-SPBL-32G25-15-xx | SFP28 | 25G | 1330/1270nm | 15km | DFB | PIN | LC | -1~-5dBm | -15.0dBm |
| Part Number | Product Description |
|---|---|
| NX-SPBL-23G25-10-xx | SFP28 BiDi Transceiver LC Duplex 1270/1330nm 10km |
| NX-SPBL-32G25-10-xx | SFP28 BiDi Transceiver LC Duplex 1330/1270nm 10km |
| NX-SPBL-23G25-15-xx | SFP28 BiDi Transceiver LC Duplex 1270/1330nm 15km |
| NX-SPBL-32G25-15-xx | SFP28 BiDi Transceiver LC Duplex 1330/1270nm 15km |
1. Where (10 = 10km, 15 = 15km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
