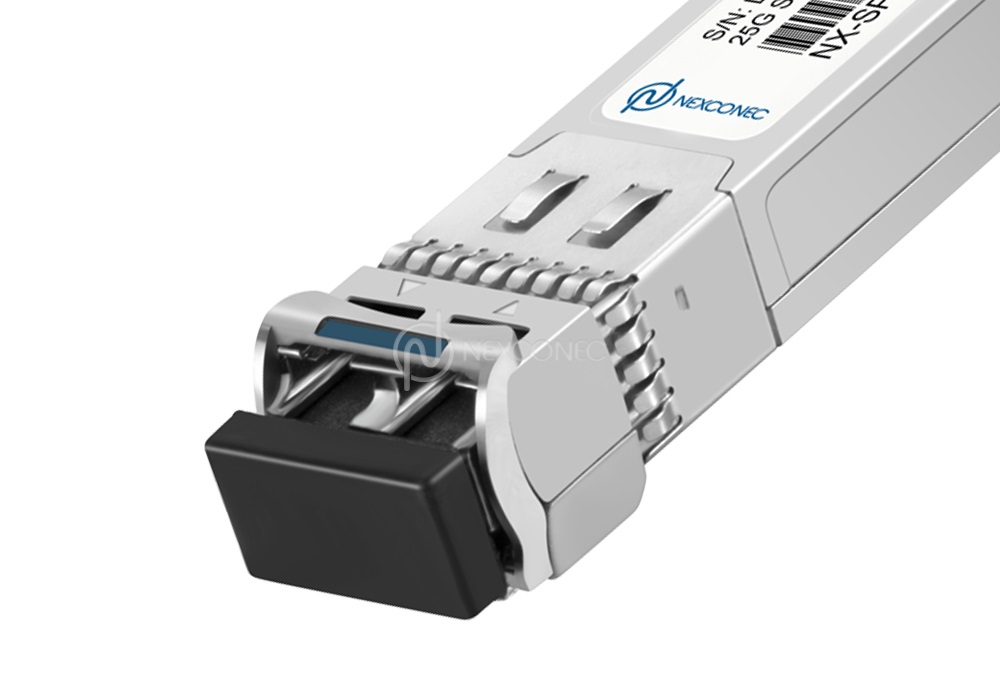

25G SFP28 CWDM
Nexconec 25G SFP28 CWDM transceivers are hot-pluggable, and operating at 1270nm to 1610nm wavelength on single mode fiber. They are used in Data Center, 25G Ethernet, Fiber Channel.
FEATURES AND APPLICATIONS
- Supports 25.78Gbps data rate
- DFB laser and PIN photo-detector
- Duplex LC receptacle optical interface compliant
- Single +3.3V power supply
- Power dissipation < 1.5W
- Hot-pluggable SFP28 form factor
- Maximum link length of 10km
- Operating temperature range:?Commercial: -5℃~+70℃
- RoHS Compliant
- Digital diagnostics functions are available via the I2C interface
- 25GBASE-LR Ethernet; CPRI Option 10
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SP-Q1G25-10-xx | SFP28 | 25G | CWDM | 10km | DFB CWDM | PIN | LC | -2~8dBm | -11.3dBm |
| Part Number | Product Description |
|---|---|
| NX-SP-Q1G25-10-xx | SFP28 CWDM Transceiver LC Duplex 10km |
1. Where (10 = 10km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
