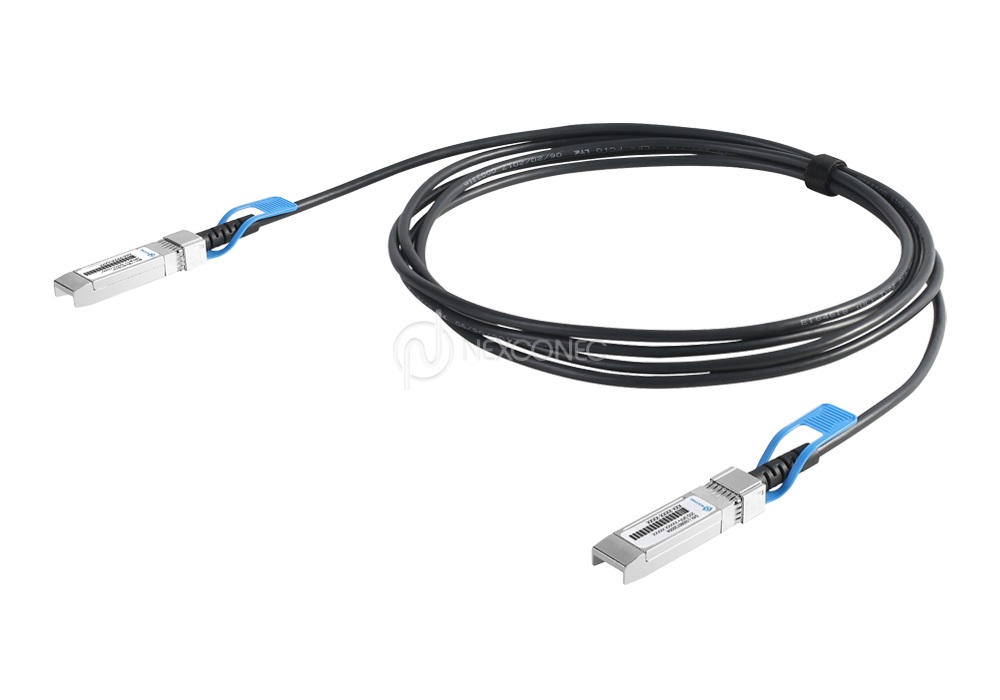

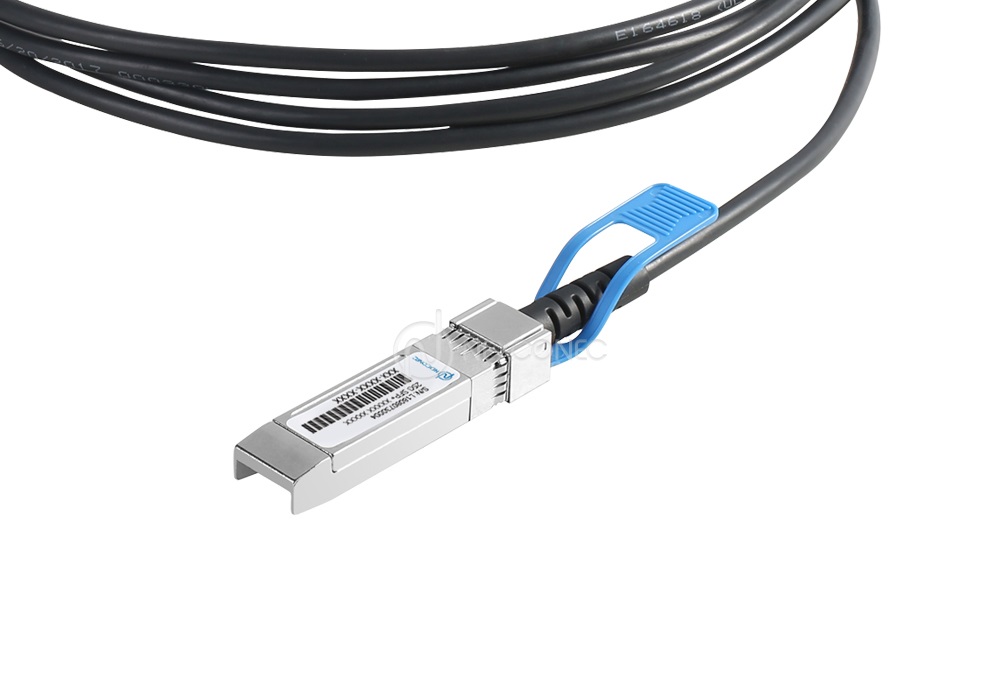

25G SFP28 DAC
Nexconec SFP28 Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).
FEATURES AND APPLICATIONS
- Up to 25.88243 Gbps data rate
- Hot-pluggable SFP 20PIN footprint
- Improved Pluggable Form Factor(IPF)
- Temperature Range: 0~ 70°C
- Compatible to SFP28 MSA, SFF-8402 and SFF-8432
- Compatible for enhanced EMI/EMC performance
- 25G Ethernet
| Part Number | Package | Data Rate | Length | Cable AWG |
|---|---|---|---|---|
| NX-XF-DG25-01-xx | SFP28 | 25G | 1m | 30 AWG |
| NX-XF-DG25-02-xx | SFP28 | 25G | 2m | 30 AWG |
| NX-XF-DG25-03-xx | SFP28 | 25G | 3m | 30 AWG |
| NX-XF-DG25-04-xx | SFP28 | 25G | 4m | 26 AWG |
| NX-XF-DG25-05-xx | SFP28 | 25G | 5m | 26 AWG |
| Part Number | Product Description |
|---|---|
| NX-XF-DG25-01-xx | 25G SFP28 DAC 30 AWG 1m |
| NX-XF-DG25-02-xx | 25G SFP28 DAC 30 AWG 2m |
| NX-XF-DG25-03-xx | 25G SFP28 DAC 30 AWG 3m |
| NX-XF-DG25-04-xx | 25G SFP28 DAC 26 AWG 4m |
| NX-XF-DG25-05-xx | 25G SFP28 DAC 26 AWG 5m |
1. Where (01 = 1m, 02 = 2m, 05 = 5m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
