Products | Active Components | SFP28 Transceivers

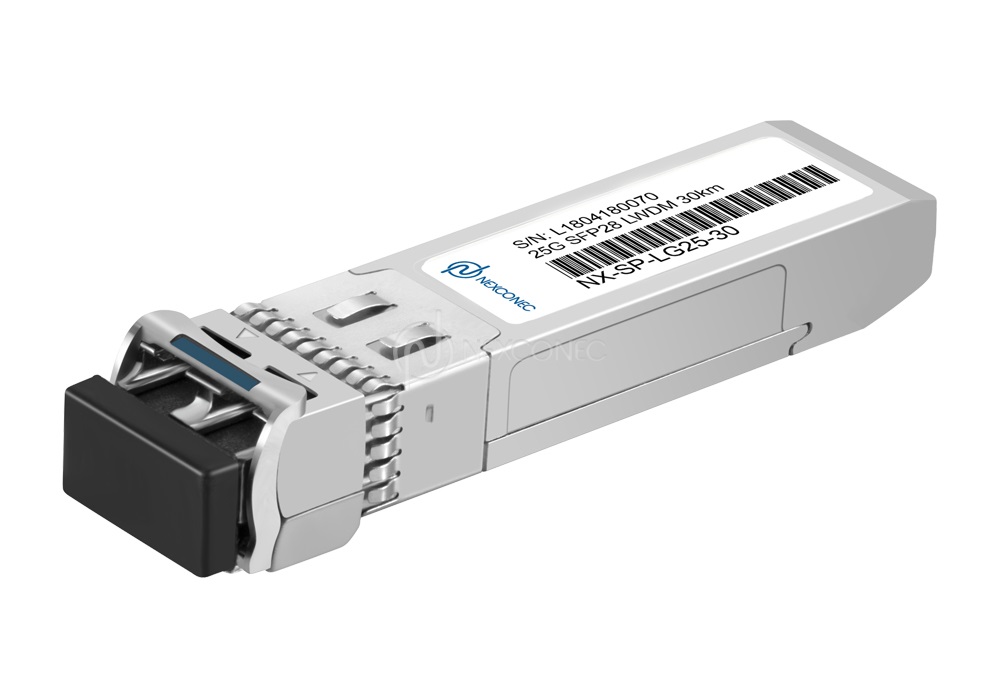

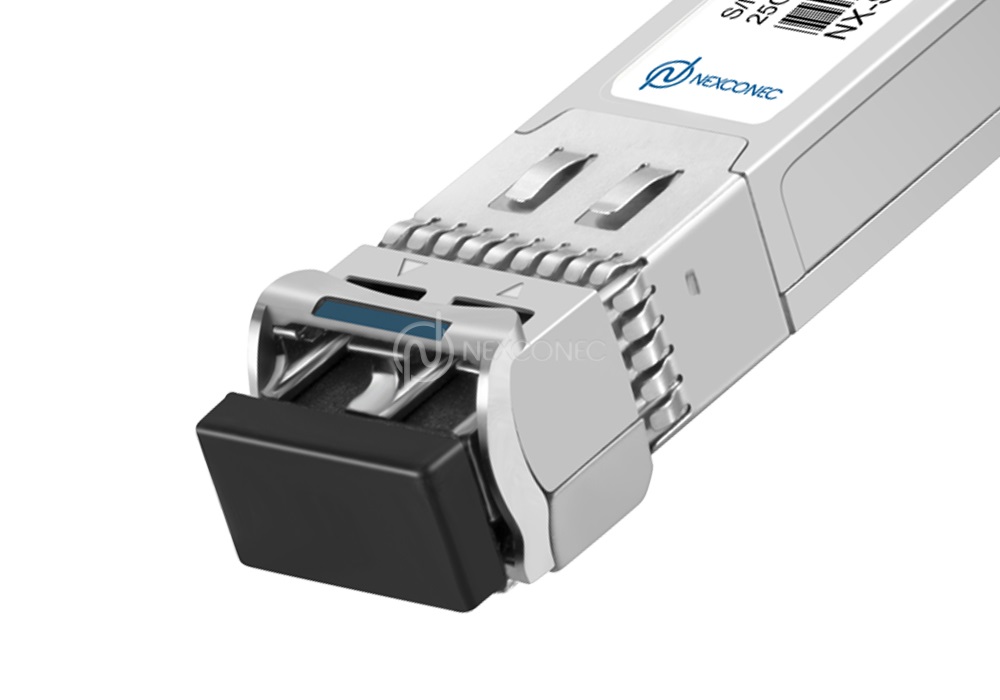

25G SFP28 LWDM
Nexconec 25G SFP28 LWDM Transceivers?are hot-pluggable, and duplex LC receptacle optical interface compliant for 5G Fronthaul transmission, 25 Gigabit Ethernet and Infiniband EDR Applications.
FEATURES AND APPLICATIONS
- Supports 24.33Gb/s to 25.78Gb/s bit rates
- compliant to IEEE 802.3CC
- compliant to SFF-8402 for SFP28 solution
- Digital Diagnostic Monitor Interface with SFF-8472
- Hot pluggable SFP+ footprint
- EML laser and APD Receiver
- Applicable for 30Km SMF connection
- High transmission margin
- Low power consumption<1.8W
- Single 3.3V power supply
- Commercial :0 to 70°C
- Industrial :-40 to 85°C
- 25.78 Gb/s single lane, 5G Fronthaul transmission,CPRI 10, Other optical links
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SP-LG25-30-xx | SFP28 | 25G | LWDM | 30km | EML | APD | LC | -1.6~6dBm | -19.0dBm |
| Part Number | Product Description |
|---|---|
| NX-SP-LG25-30-xx | SFP28 LWDM Transceiver LC Duplex 30km |
1. Where (30 = 30km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
