25G SFP28 MWDM

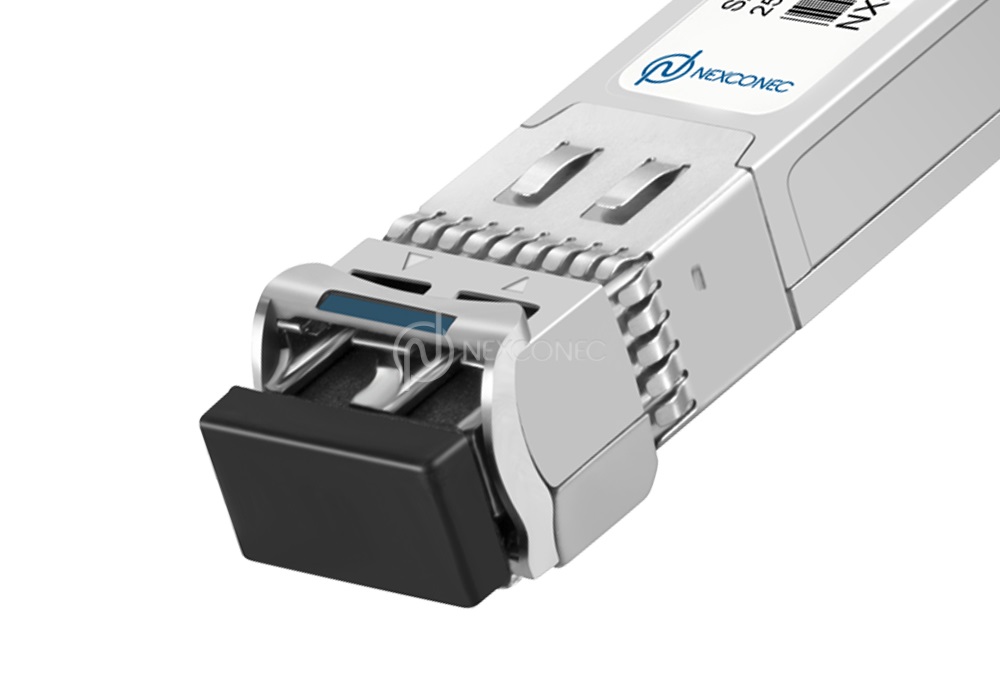

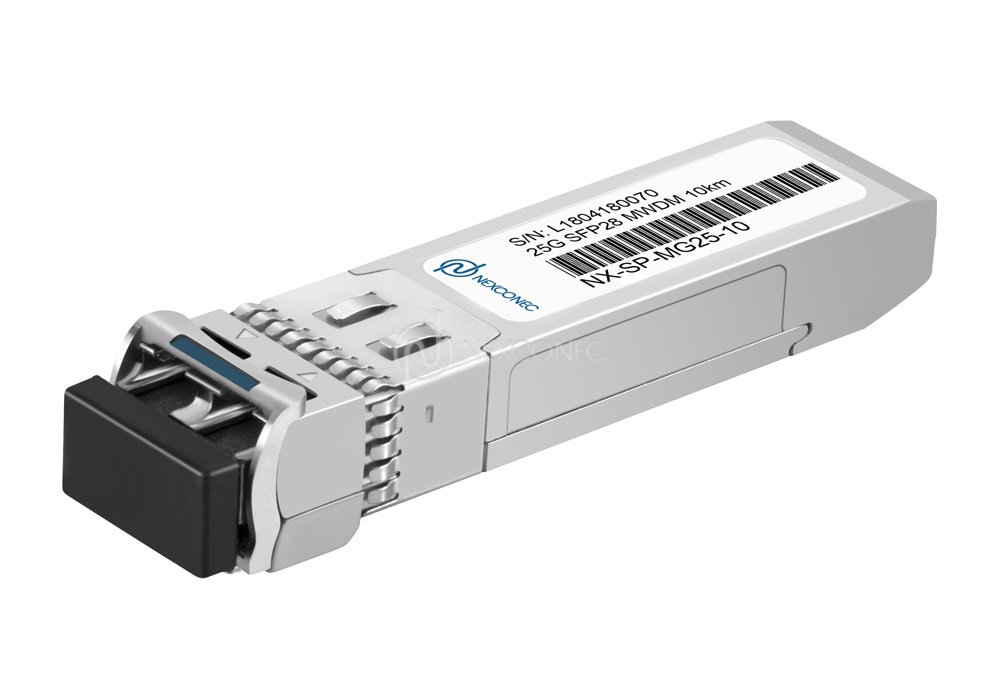

Nexconec 25G SFP28 MWDM Transceivers?are hot-pluggable, and duplex LC receptacle optical interface compliant for 5G Fronthaul transmission, 25 Gigabit Ethernet and Infiniband EDR Applications.
FEATURES AND APPLICATIONS
- Supports 25Gbps data rate
- DFB laser-TEC and PIN photo-detector
- DFB laser-TEC and APD receiver
- Duplex LC receptacle optical interface compliant
- Single +3.3V power supply
- Power dissipation < 1.8W
- Hot-pluggable SFP28 form factor
- Internal CDR on both Transmitter and Receiver channel
- Maximum link of 10km
- Commercial: -5℃~+70℃
- Industrial:-40℃~+85℃
- RoHS Compliant
- Digital diagnostics functions are available via the I2C interface
- 25.78 Gb/s single lane, 5G Fronthaul transmission,CPRI 10, Other optical links
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SP-MG25-10-xx | SFP28 | 25G | MWDM | 10km | DFB | PIN | LC | 1-6.0dBm | -10.6dBm |
| Part Number | Product Description |
|---|---|
| NX-SP-MG25-10-xx | SFP28 MWDM Transceiver LC Duplex 10km |
1. Where (10 = 10km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
