25G SFP28

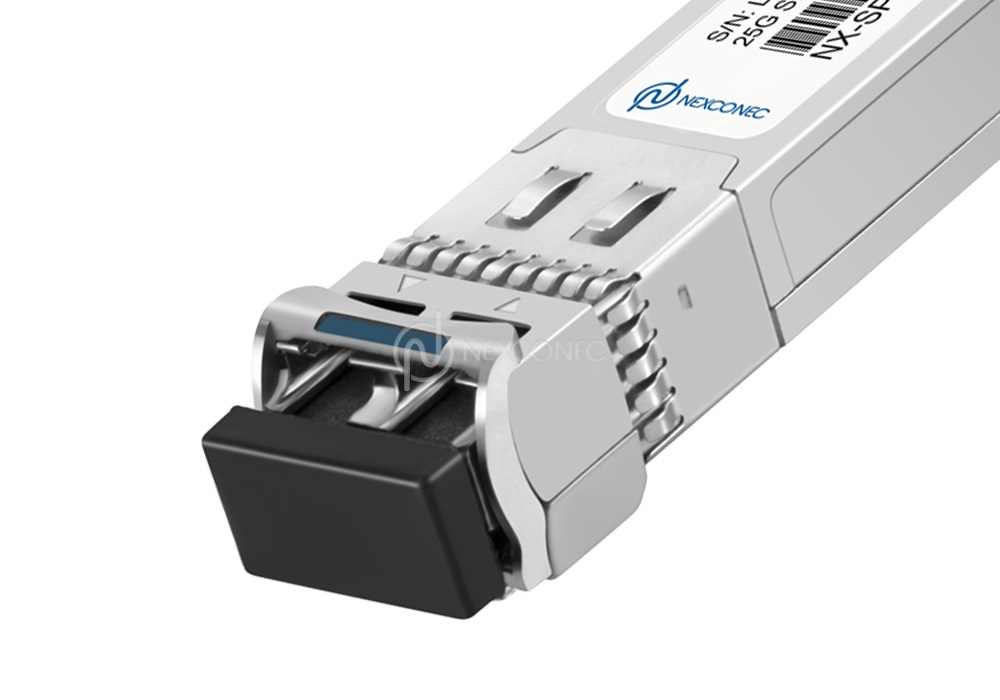

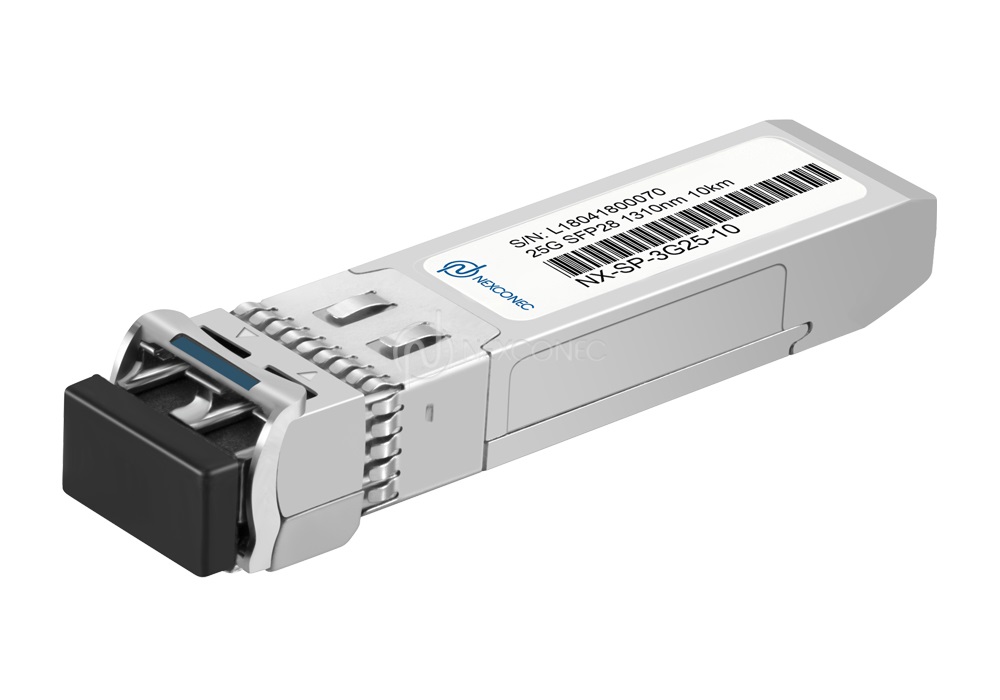

Nexconec 25G SFP28 Transceivers are hot-pluggable, and duplex LC receptacle optical interface compliant, support 25Gbps data rate.
FEATURES AND APPLICATIONS
- Hot-pluggable SFP28 form factor
- Support 25Gbps data rate
- Duplex LC receptacle optical interface compliant
- Digital diagnostics functions are available via the I2C interface
- Internal CDR on both Transmitter and Receiver channel
- Single +3.3V power supply
- Operating temperature range:? ?Commercial: -5℃~+70℃
- RoHS Compliant
- 25GBASE-SR Ethernet; 25GBASE-LR Ethernet
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SP-8G25-01-xx | SFP28 | 25G | 850nm | 100m | VCSEL | PIN | LC | -8.4~2.4dBm | -11dBm |
| NX-SP-3G25-10-xx | SFP28 | 25G | 1310nm | 10km | DFB | PIN | LC | 2~3dBm | -10.6dBm |
| NX-SP-3G25-40-xx | SFP28 | 25G | 1310nm | 40km | DFB | APD | LC | 1.6~6dBm | -19dBm |
| Part Number | Product Description |
|---|---|
| NX-SP-8G25-01-xx | SFP28 Transceiver LC Duplex 850nm 100m |
| NX-SP-3G25-10-xx | SFP28 Transceiver LC Duplex 1310nm 10km |
| NX-SP-3G25-40-xx | SFP28 Transceiver LC Duplex 1310nm 40km |
1. Where (01 = 100m, 10 = 10km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
