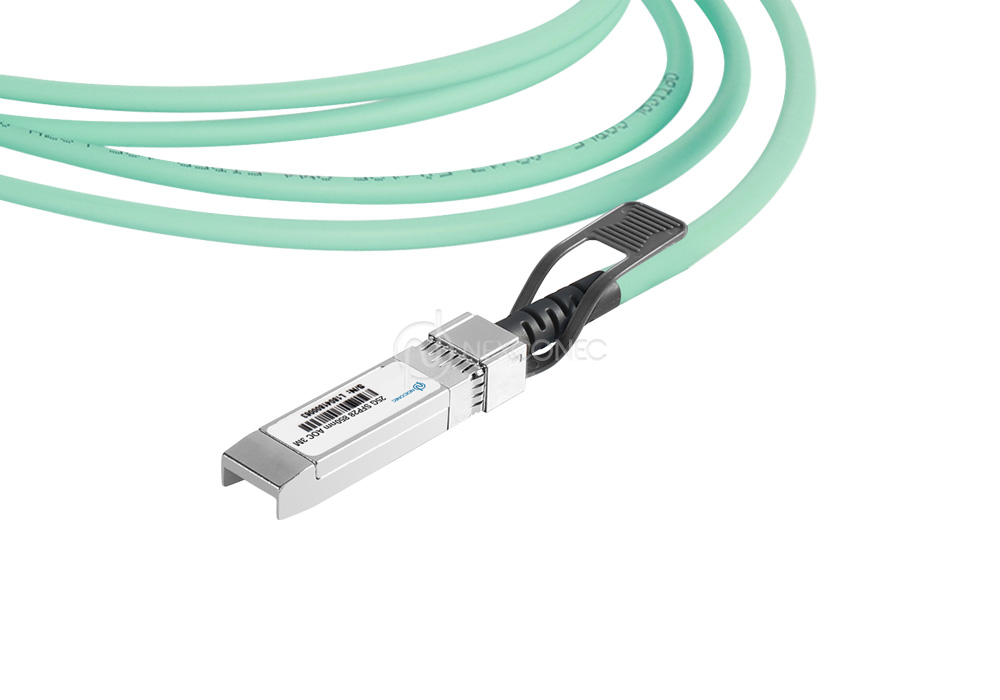

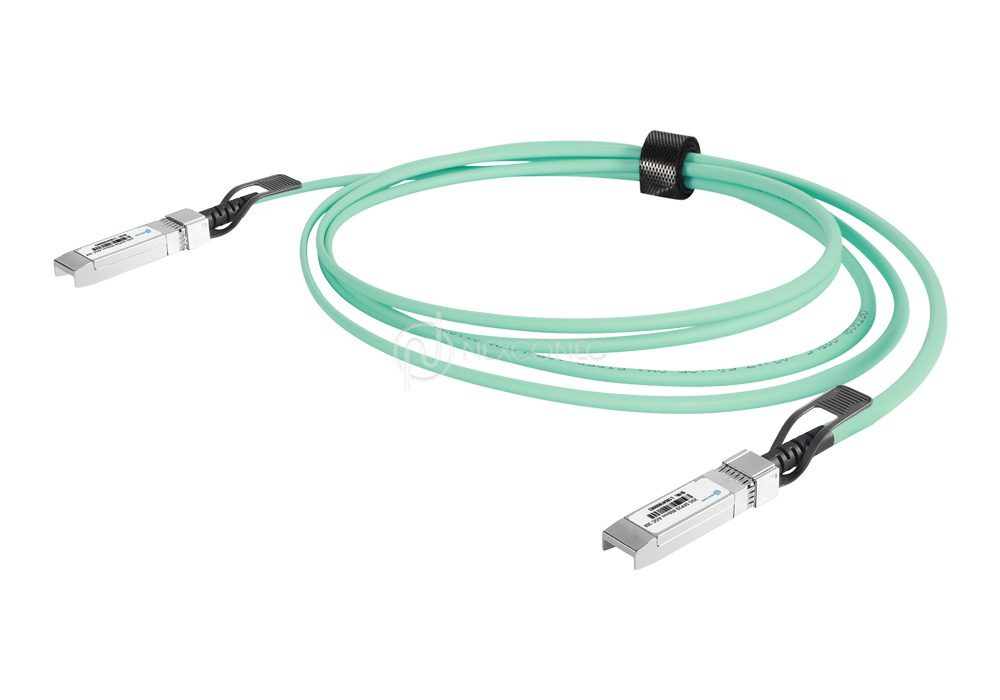

25Gbps SFP28 ACTIVE OPTICAL CABLE
NEXCONEC® 25Gbps SFP28 active optical cable supporting 25GBASE-SR and 32G Fiber Channel. It reaches up to 70m on OM3 fiber and up to 100m on OM4 fiber, offers hot-pluggability, low power consumption, and operates from 0 to 70°C.
FEATURES AND APPLICATIONS
- Support hot-pluggable
- Supports 25Gbps data rate
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- Low power consumption
- RoHS Compliant and Lead-Free
- Single 3.3V power supply
- Excellent ESD protection
- Operating environment temperature 0 ~ 70℃
- 25GBASE-SR Ethernet
- 32G Fiber Channel
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-SPAOC-8G25-01-xx | SFP28 | 25G | 850nm | 1m | VCSEL | PIN |
| NX-SPAOC-8G25-02-xx | SFP28 | 25G | 850nm | 2m | VCSEL | PIN |
| NX-SPAOC-8G25-03-xx | SFP28 | 25G | 850nm | 3m | VCSEL | PIN |
| NX-SPAOC-8G25-05-xx | SFP28 | 25G | 850nm | 5m | VCSEL | PIN |
| NX-SPAOC-8G25-07-xx | SFP28 | 25G | 850nm | 7m | VCSEL | PIN |
| NX-SPAOC-8G25-10-xx | SFP28 | 25G | 850nm | 10m | VCSEL | PIN |
| NX-SPAOC-8G25-15-xx | SFP28 | 25G | 850nm | 15m | VCSEL | PIN |
| NX-SPAOC-8G25-20-xx | SFP28 | 25G | 850nm | 20m | VCSEL | PIN |
| NX-SPAOC-8G25-30-xx | SFP28 | 25G | 850nm | 30m | VCSEL | PIN |
| NX-SPAOC-8G25-50-xx | SFP28 | 25G | 850nm | 50m | VCSEL | PIN |
| NX-SPAOC-8G25-100-xx | SFP28 | 25G | 850nm | 100m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-SPAOC-8G25-01-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 1m |
| NX-SPAOC-8G25-02-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 2m |
| NX-SPAOC-8G25-03-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 3m |
| NX-SPAOC-8G25-05-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 5m |
| NX-SPAOC-8G25-07-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 7m |
| NX-SPAOC-8G25-10-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 10m |
| NX-SPAOC-8G25-15-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 15m |
| NX-SPAOC-8G25-20-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 20m |
| NX-SPAOC-8G25-30-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 30m |
| NX-SPAOC-8G25-50-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 50m |
| NX-SPAOC-8G25-100-xx | 25Gbps SFP28 Active Optical Cable MMF 850nm 100m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
