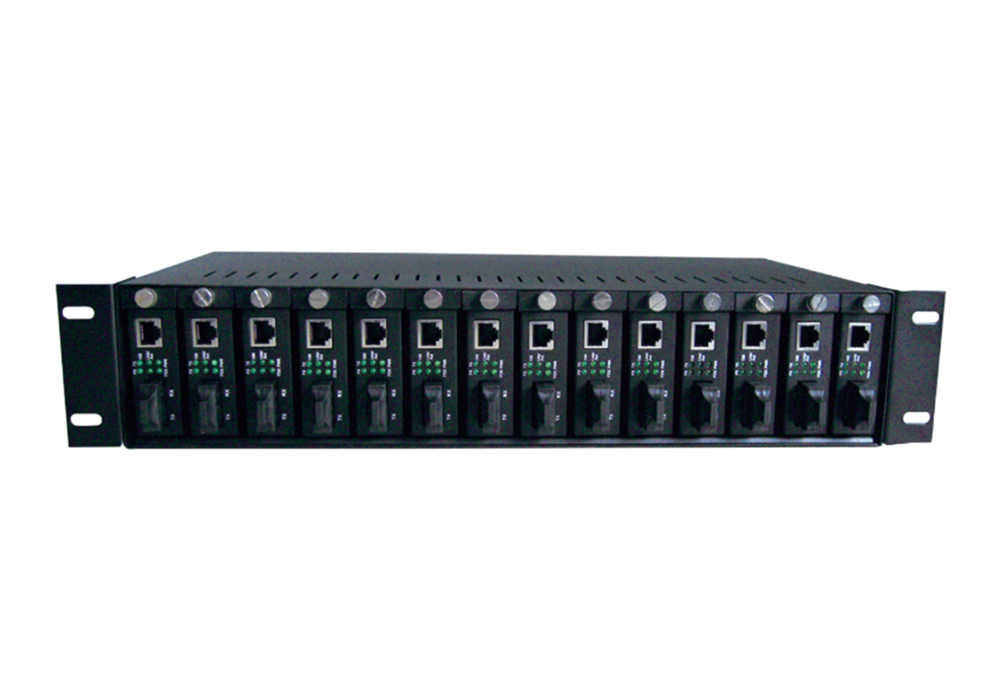

2U Media Converter Chassis 14 & 16 Slots

EMC14NMxx EMC16NMxx

NEXCONEC® Rack Mount Media Converter Chassis provides higher density for large installations of media converters in standard 2U. The innovative design allows either standalone or card type media converters to be inserted in slots.

The managed type of media converter chassis provides excellent remote operation through graphic user interface without any access to the media converter or chassis itself.

The High port density allows a variety of media converter solutions to be housed in a minimum amount of rack spaces for enterprise-level businesses and carriers. Redundant, fan-cooled load-sharing power supplies can be hot-swapped to ensure system uptime.

PRODUCT HIGHLIGHTS
  • Standard 2U height
  • Available in 14 slots and 16 slots
  • Web managed and unmanaged options
  • Redundant power supply
  • Cross flow cooling fan built-in
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
FEATURES
  • Standard 2U height
  • Available in 14 slots and 16 slots
  • Web managed and unmanaged options
  • Redundant power supply
  • Cross flow cooling fan built-in
APPLICATIONS
  • LAN
  • Telecom networks
Parameters Value
Product Dimensions (LxWxH) 485 x 231 x 90mm
Height Unit 2U
Power Supply 110~260VAC, 50~60Hz, or 48VDC
Product Type 14-Slot: used for standalone media converters (up to gigabit)
16-Slot: used for card type media converters (Ethernet only)
Operating Temperature -10 ~ +50 °C
Storage Temperature -20 ~ +70 °C
Part Number Product Description
EMC14NMxx Media Converter Chassis, 14 Slots, None Web Managed xx
EMC16NMxx Media Converter Chassis, 16 Slots, None Web Managed xx
Note: “xx” stands for the power plug type, “EU”, “UK”, “US”, “AU”.
