2U Patching Panel (Up to 288FO) - BPP05

BPP05 BPP05 BPP05 BPP05 BPP05 BPP05 BPP05 BPP05 BPP05 BPP05

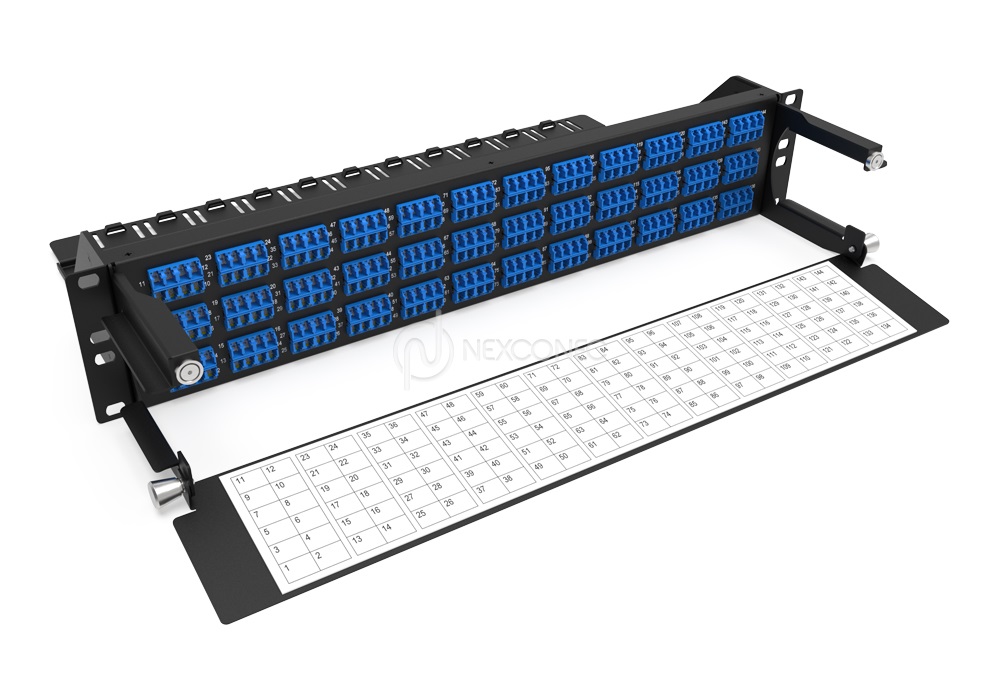

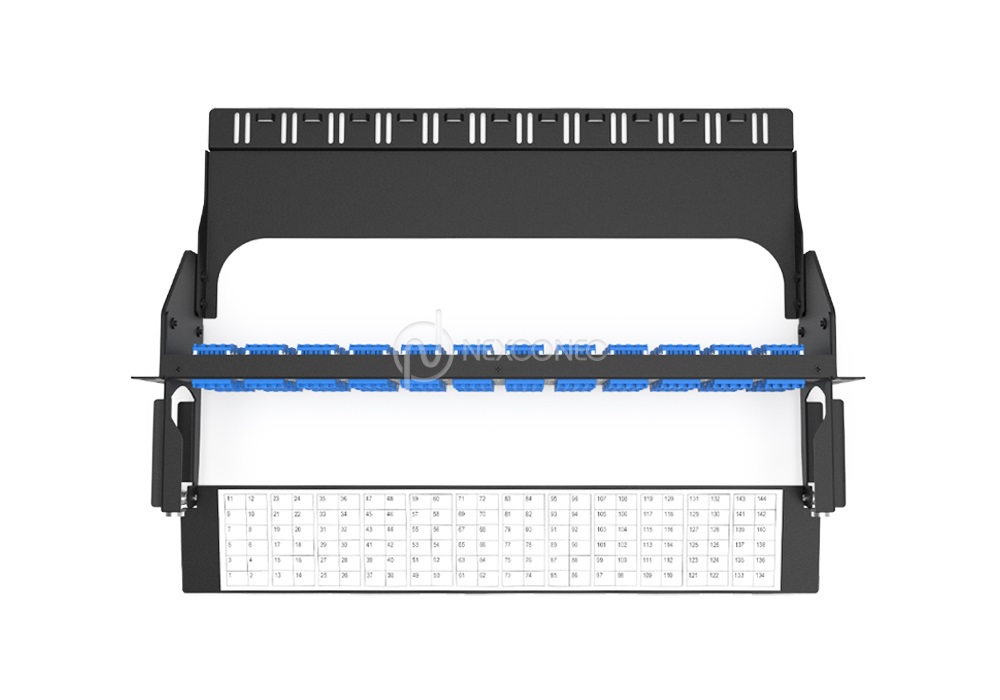

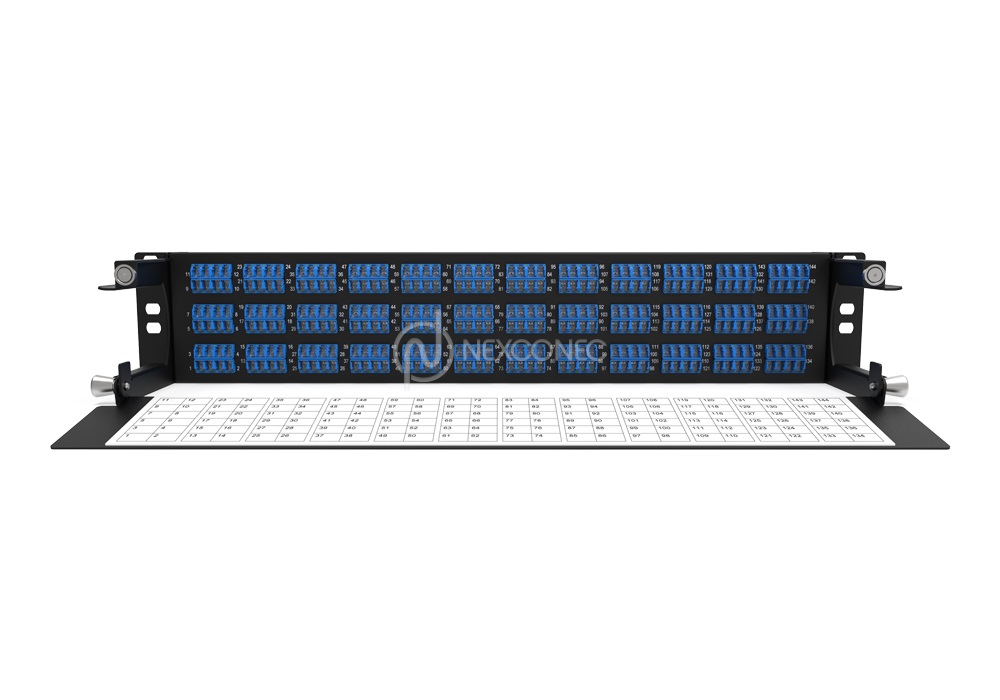

NEXCONEC® 2U Patching Panel is designed with utmost precision and durability to provide housing for connections of an incoming preterm or trunk from the rear of the panel to patch cords on the front. Its open frame high-density design ensures quick and easy installation as well as enables accommodation of up to 288FO with LC.

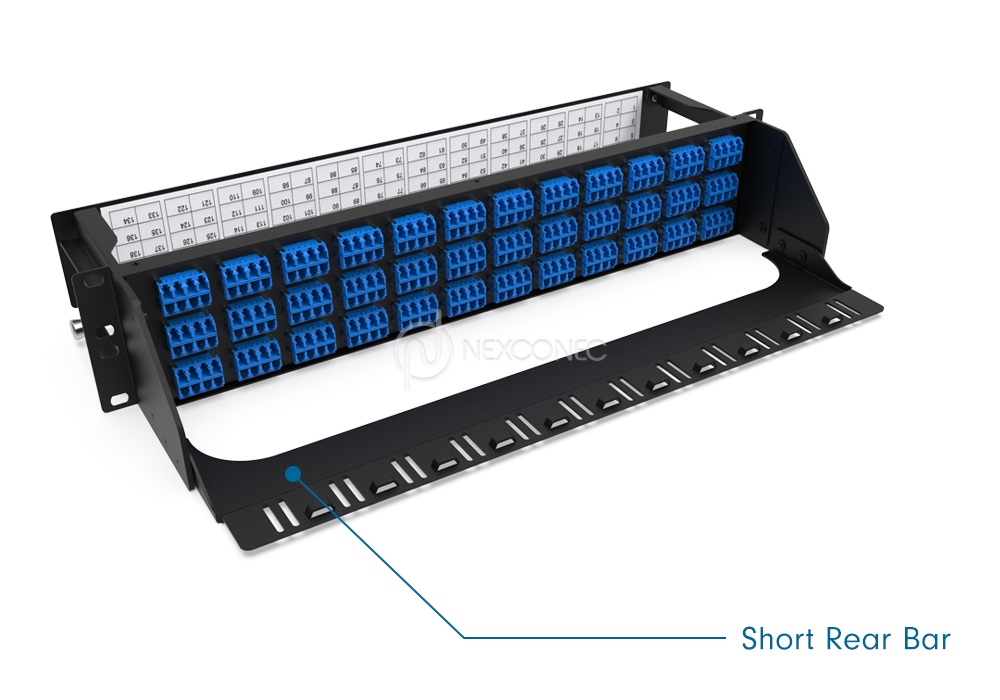

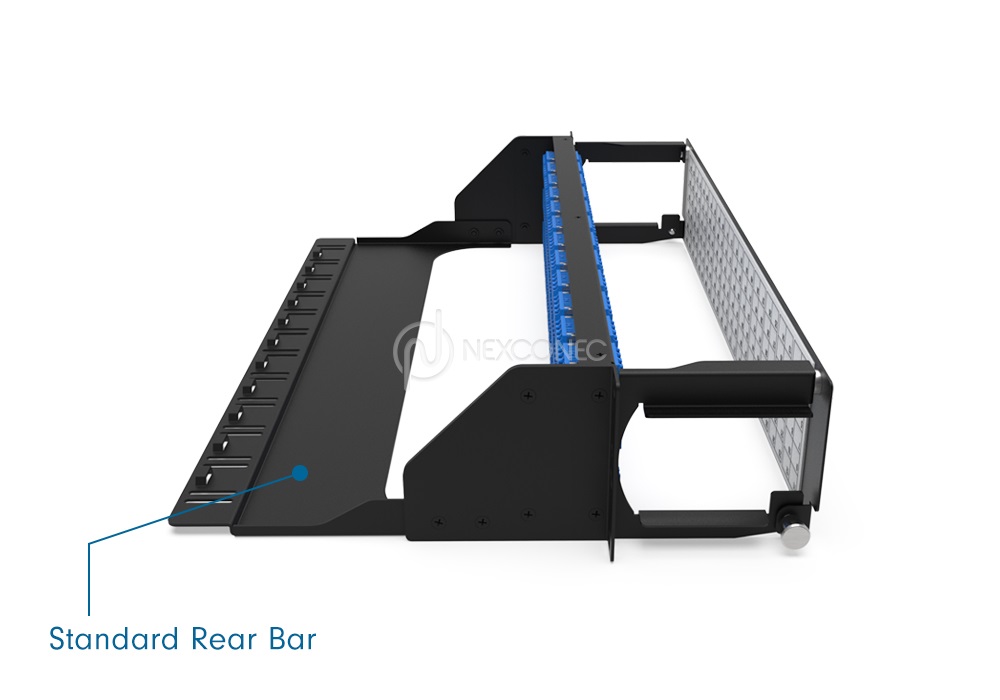

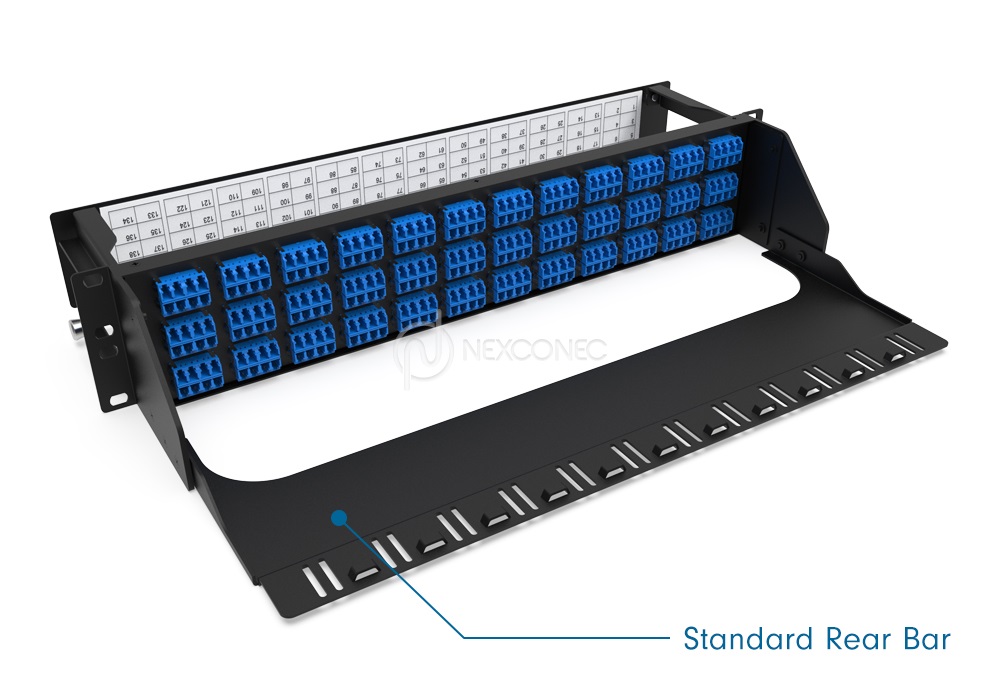

This patching panel comes with 2 rear bars (Included in the package), Standard size rear bar with 206mm Depth + Short size rear bar with 156mm depth, allowing you to customize your setup according to your specific requirements.

FEATURES AND APPLICATIONS
  • 2U height with SC, LC or MPO Thru Adapters
  • Up to 288FO in LC
  • Channel to route the patch cords to the rear of the rack within the 2U space
  • Available in shuttered dust proof LC adapters
  • 2 rear bars (Standard & Short) included in the package
  • RoHS, REACH and SVHC

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Value

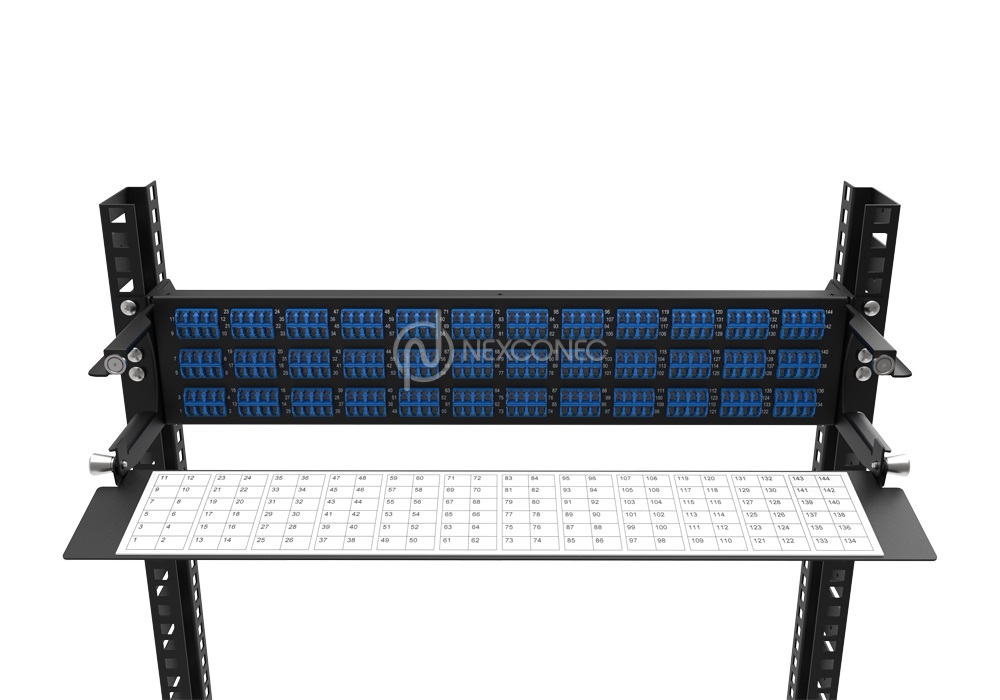

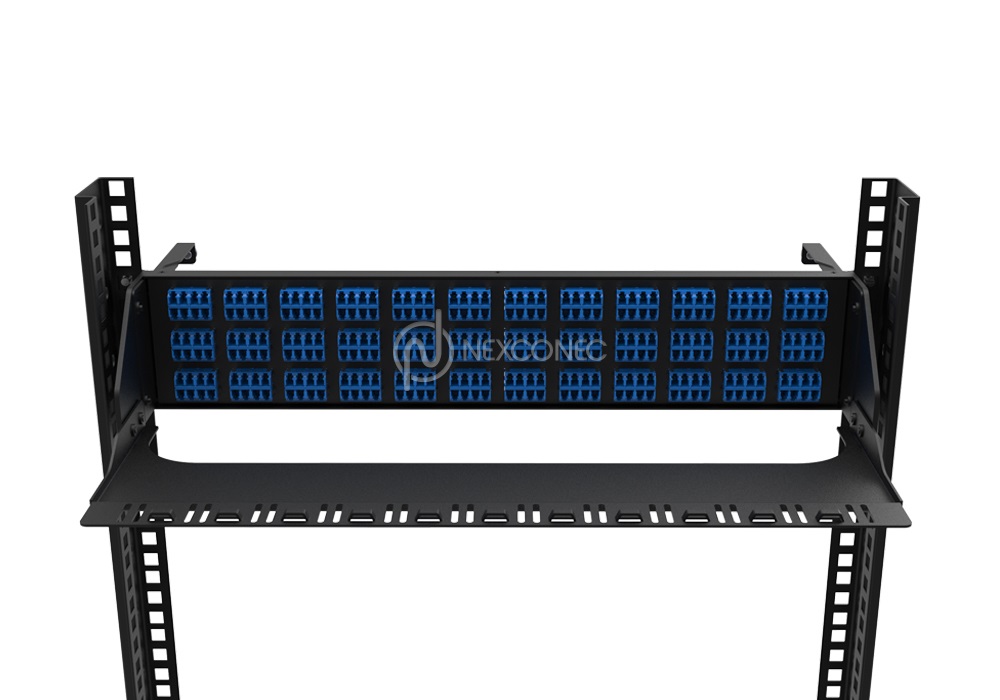

Mounting Type Rack 19”
Opening Type Fixed
Access Type Front access

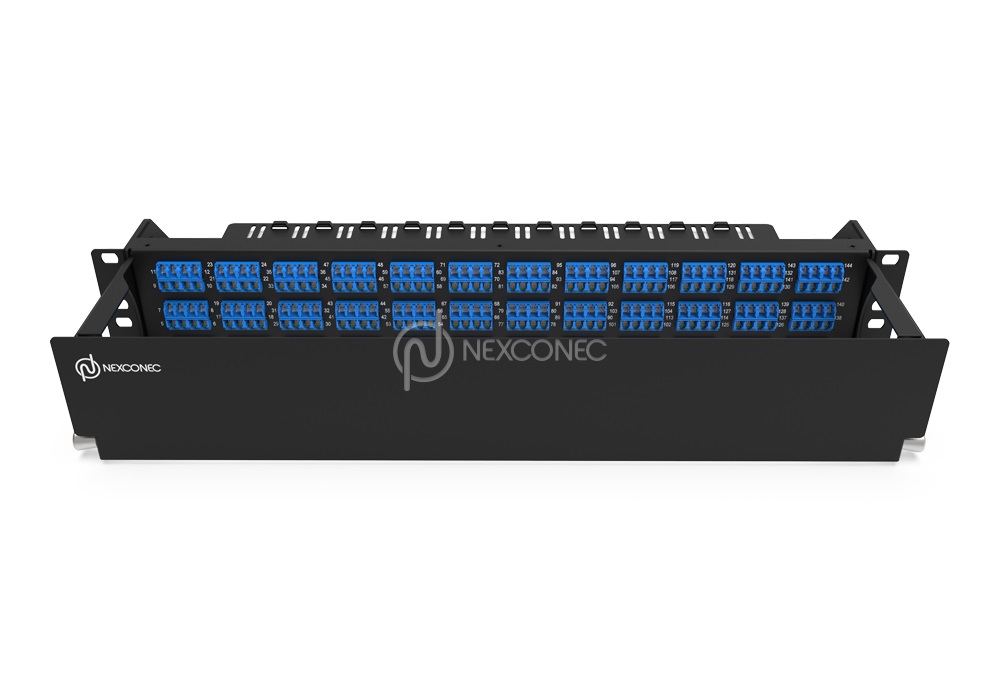

Front Cable Management Removable hinged door
Cable Entry Direction Rear and Front
Rear Cable Management Support bar
Slot Type SC Duplex / LC Quad or MTP/MPO Duplex Footprint
Number of Ports 72 Ports
Fiber Capacity Up to 288 in LC / 144 in SC
Height Unit 2U
Dimensions (W x D x H in MM) 446 x 297.70 x 88 mm (with Standard Rear Bar)
446 x 247.70 x 88 mm (with Short Rear Bar)
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Net Weight 3 Kg
Part Number Product Description
BPP05 2U Patching Panel 72 Ports SC DX/LC QD (Up to 288LC)
