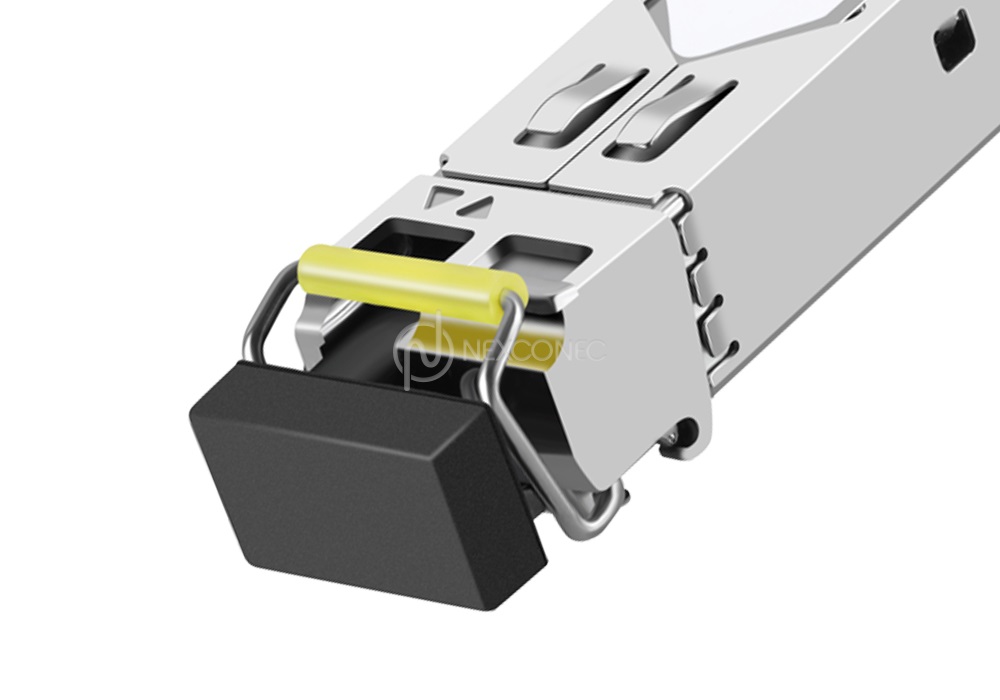

3G SFP BiDi TRANSCEIVER
Nexconec 3G SFP BiDi Transceivers are up to 3.072Gbps bi-directional data links, commerical and industial operating temperature optional.
FEATURES AND APPLICATIONS
- Up to 3.072Gbps bi-directional data links
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Hot-pluggable SFP footprint
- Metal enclosure, for lower EMI
- +3.3V single power supply
- Operating case temperature: Standard : -5 to +70°C, Industrial : -40 to +85°C
- Compatible with RoHS
- Compliant with SFP MSA and SFF-8472 with single LC receptacle
- Gigabit Ethernet; Switched Backplane Applications; Switch to Switch interface
- Router/Server interface; Other optical transmission systems
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|

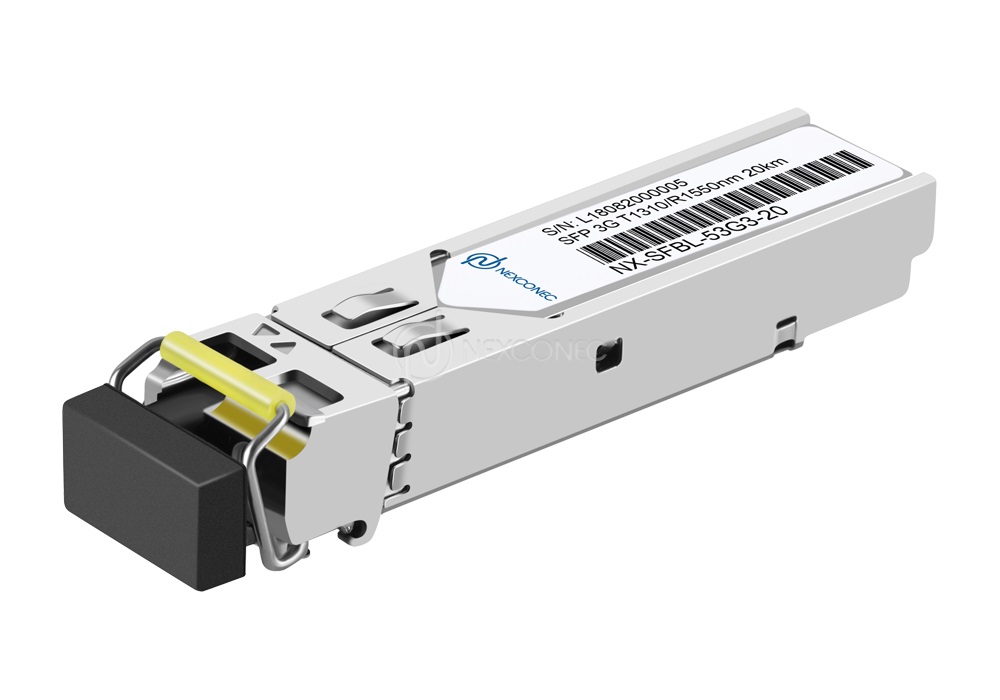

| NX-SFBL-35G3-20-xx | SFP | 3G | 1310/1550nm | 20km | DFB | PIN | LC | -5~0dBm | -18dBm |

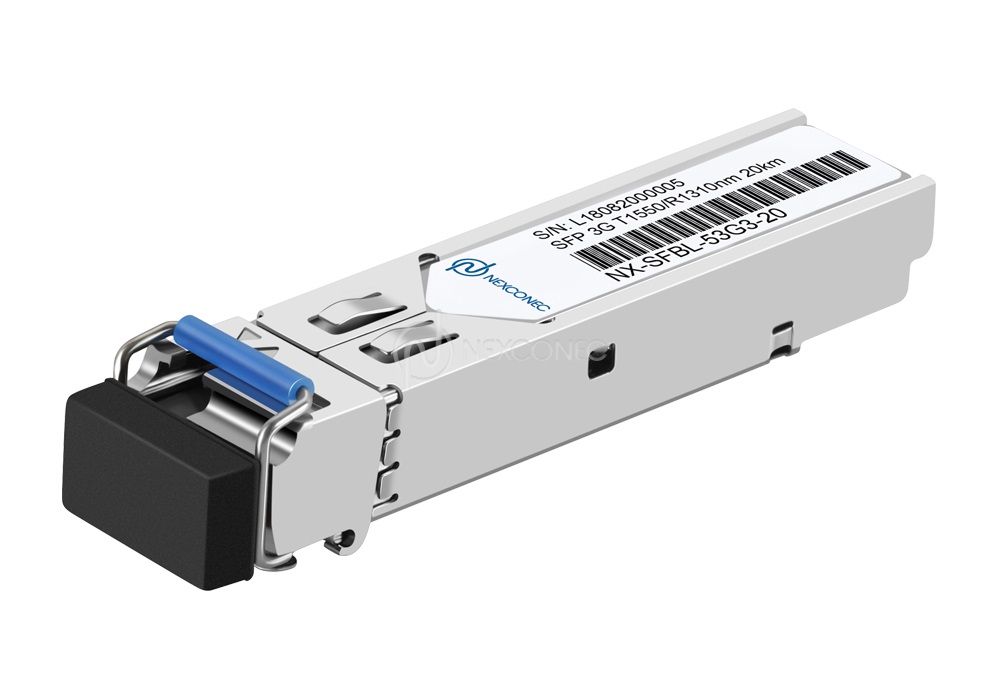

| NX-SFBL-53G3-20-xx | SFP | 3G | 1550/1310nm | 20km | DFB | PIN | LC | -5~0dBm | -18dBm |
| Part Number | Product Description |
|---|---|
| NX-SFBL-35G3-20-xx | 3G SFP BiDi Transceiver LC Simplex 1310/1550nm 20km |
| NX-SFBL-53G3-20-xx | 3G SFP BiDi Transceiver LC Simplex 1550/1310nm 20km |
1. Where (20 = 20km.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
