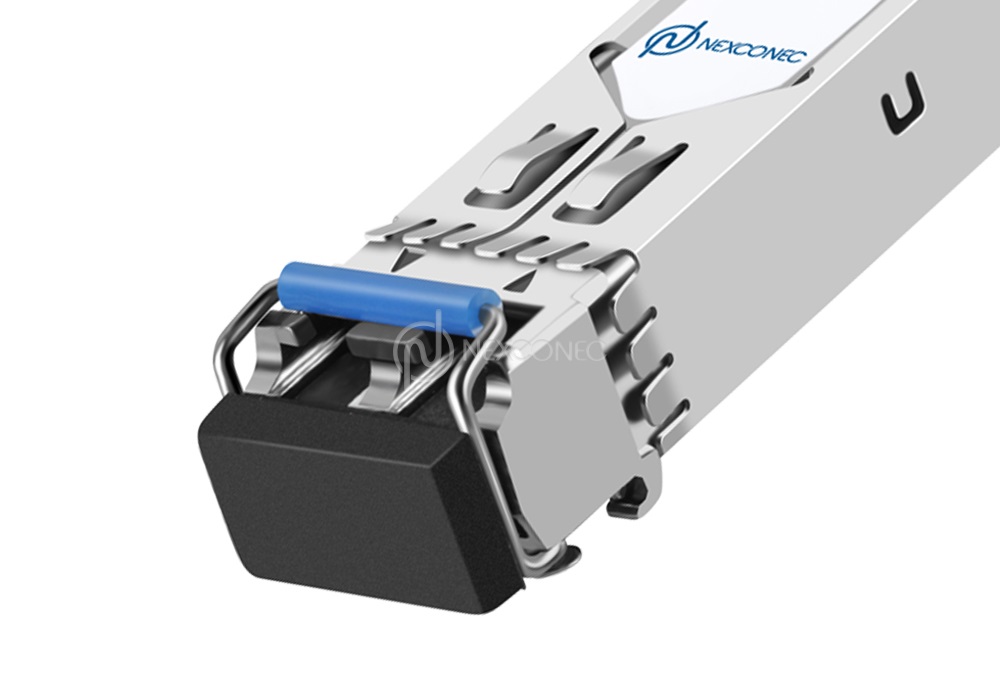

3G SFP Transceiver
Nexconec 3G SFP Transceivers cover wide various applications and distances, commerical and industial operating temperature optional.
FEATURES AND APPLICATIONS
- Up to 3.072Gbps data rate
- Duplex LC receptacle optical interface compliant
- Single +3.3V power supply
- Hot-pluggable
- DDMI function available with internally calibrated mode
- Operating temperature range: Commercial: -5℃~+70℃ Industrial: -40℃~+85℃
- RoHS compliant and lead-free
- International Class1 laser safety certified
- Switch to Switch Interface; Switched Backplane Applications; Router/Server Interface; Gigabit Ethernet; Other Optical Links
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SF-3G3-20-xx | SFP | 3G | 1310nm | 20km | DFB | PIN | LC | -5~0dBm | -18dBm |
| NX-SF-3G3-40-xx | SFP | 3G | 1310nm | 40km | DFB | PIN | LC | -1~3dBm | -19dBm |
| NX-SF-5G3-40-xx | SFP | 3G | 1550nm | 40km | DFB | PIN | LC | -1~3dBm | -19dBm |
| Part Number | Product Description |
|---|---|
| NX-SF-3G3-20-xx | 3G SFP Transceiver LC Duplex 1310nm 20km |
| NX-SF-3G3-40-xx | 3G SFP Transceiver LC Duplex 1310nm 40km |
| NX-SF-5G3-40-xx | 3G SFP Transceiver LC Duplex 1550nm 40km |
1. Where (20 = 20km, 40 = 40km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
