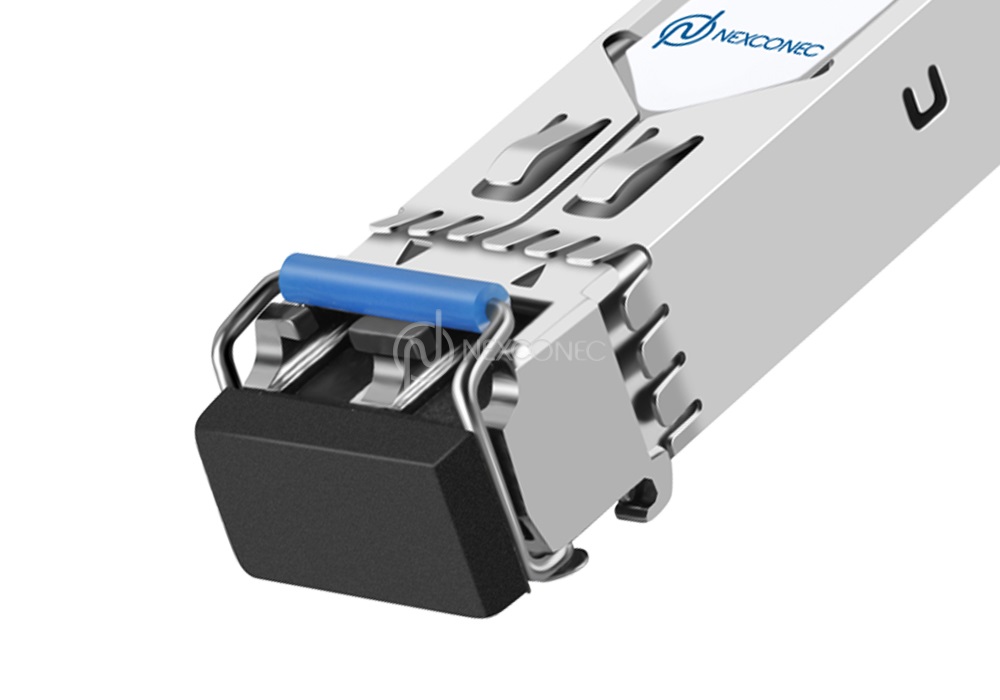

3G Video SFP Transceiver
Nexconec 3G Video SFP transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm DFB laser and the PIN photo-detector. The module data link up to 20KM in 9/125um single mode fiber.
FEATURES AND APPLICATIONS
- Up to 3Gbps data rate
- HD-SDI SFP Transceiver available
- SD-SDI SFP Transceiver available
- 3G-SDI SFP Transceiver available
- 1310nm DFB Laser and PIN photo detector; International Class1 laser safety certified
- Duplex LC receptacle optical interface compliant
- Hot-pluggable; DDMI function available with internally calibrated mode
- Single +3.3V power supply
- Operating temperature range: Commercial: -5℃~+70℃, Industrial: -40℃~+85℃
- RoHS compliant and lead-free
- Switch to Switch Interface; Switched Backplane Applications; Router/Server Interface; Gigabit Ethernet; Other Optical Links
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity | Temp |
|---|---|---|---|---|---|---|---|---|---|---|
| SDTV-31G3-20-xx | SFP | 3G | 1310nm | 20km | DFB | PIN | LC | -5~0dBm | ≤18 | -5~70℃ |
| SDTV-31G3-20F-xx | SFP | 3G | 1310nm | 20km | DFB | PIN | LC | -5~0dBm | ≤18 | -40~85℃ |
| HDTV-31G3-20-xx | SFP | 3G | 1310nm | 20km | DFB | PIN | LC | -5~0dBm | ≤18 | -5~70℃ |
| HDTV-31G3-20F-xx | SFP | 3G | 1310nm | 20km | DFB | PIN | LC | -5~0dBm | ≤18 | -40~85℃ |
| SDTV-31G3-20-T-xx | SFP | 3G | 1310nm | 20km | DFB | - | LC | -5~0dBm | - | -5~70℃ |
| SDTV-31G3-20F-T-xx | SFP | 3G | 1310nm | 20km | DFB | - | LC | -5~0dBm | - | -40~85℃ |
| HDTV-31G3-20-T-xx | SFP | 3G | 1310nm | 20km | DFB | - | LC | -5~0dBm | - | -5~70℃ |
| HDTV-31G3-20F-T-xx | SFP | 3G | 1310nm | 20km | DFB | - | LC | -5~0dBm | - | -40~85℃ |
| HDTV-31G3-20-R-xx | SFP | 3G | - | 20km | - | PIN | LC | - | ≤18 | -5~70℃ |
| HDTV-31G3-20F-R-xx | SFP | 3G | - | 20km | - | PIN | LC | - | ≤18 | -40~85℃ |
| SDTV-31G3-20-R-xx | SFP | 3G | - | 20km | - | PIN | LC | - | ≤18 | -5~70℃ |
| SDTV-31G3-20F-R-xx | SFP | 3G | - | 20km | - | PIN | LC | - | ≤18 | -40~85℃ |
| Part Number | Product Description |
|---|---|
| SDTV-31G3-20-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| SDTV-31G3-20F-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| HDTV-31G3-20-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| HDTV-31G3-20F-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| SDTV-31G3-20-T-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| SDTV-31G3-20F-T-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| HDTV-31G3-20-T-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| HDTV-31G3-20F-T-xx | 3G Video SFP Transceiver LC Duplex 1310nm 20km |
| HDTV-31G3-20-R-xx | 3G Video SFP Transceiver LC Duplex 20km |
| HDTV-31G3-20F-R-xx | 3G Video SFP Transceiver LC Duplex 20km |
| SDTV-31G3-20-R-xx | 3G Video SFP Transceiver LC Duplex 20km |
| SDTV-31G3-20F-R-xx | 3G Video SFP Transceiver LC Duplex 20km |
1. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
2. Find Compatible Short codes in datasheet at Order Information area.
