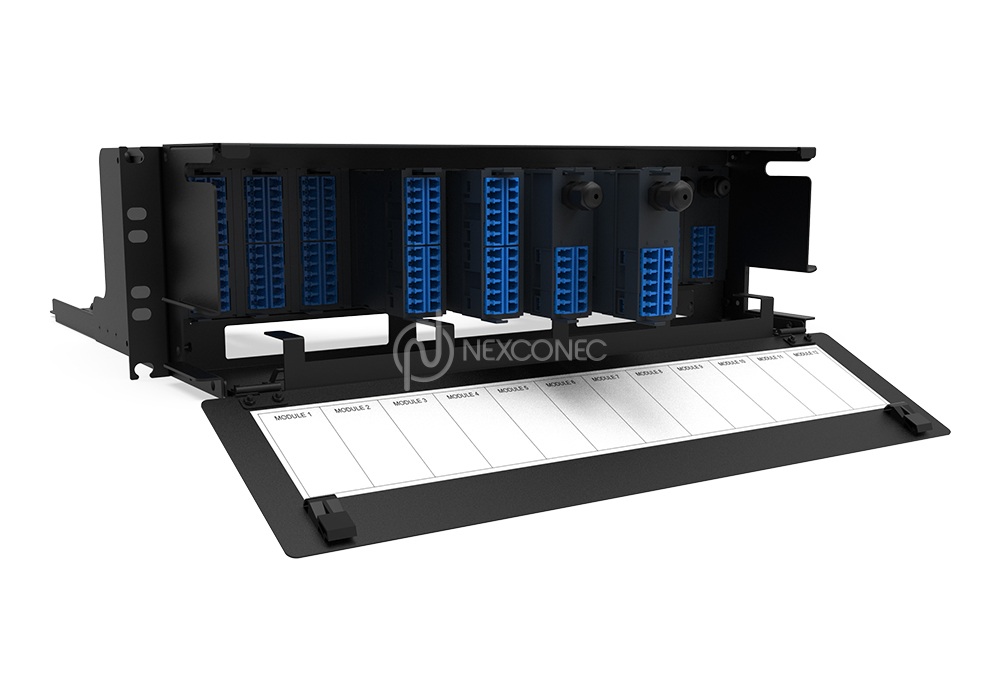

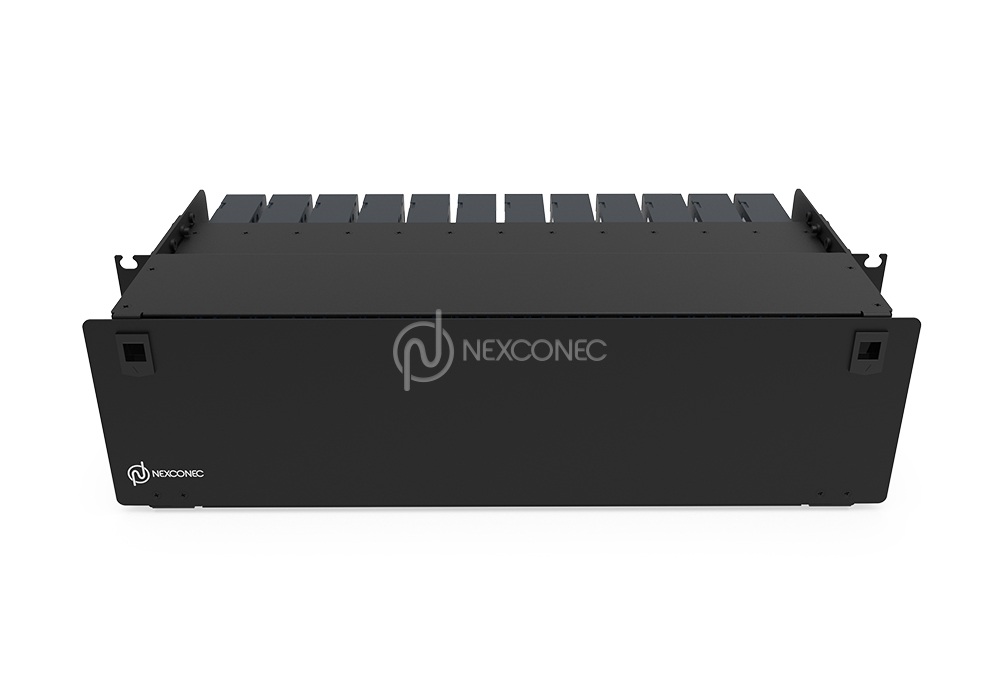

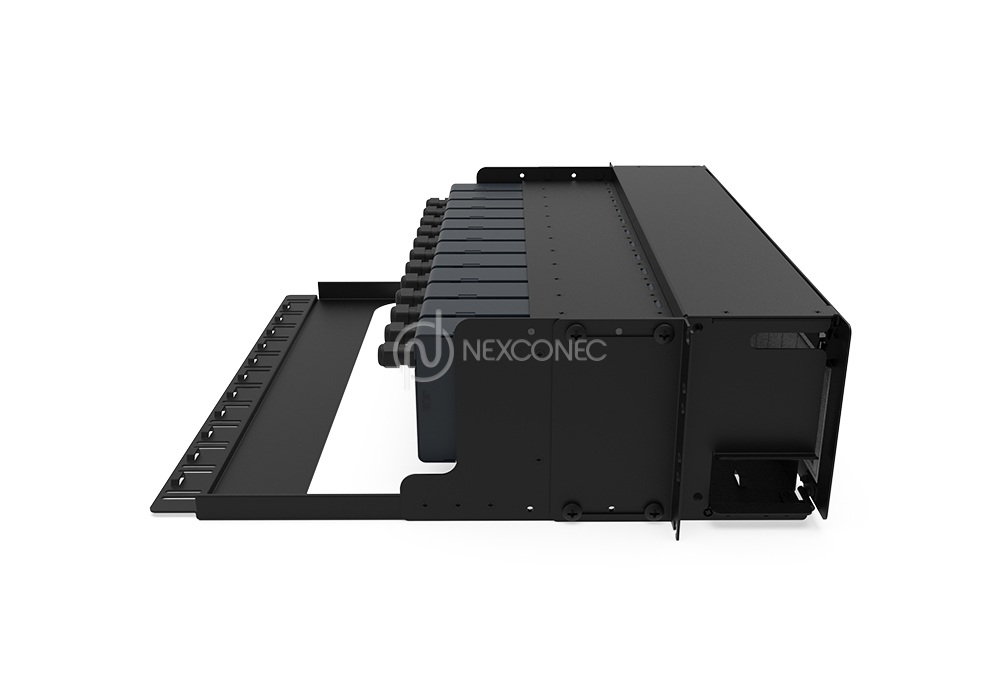

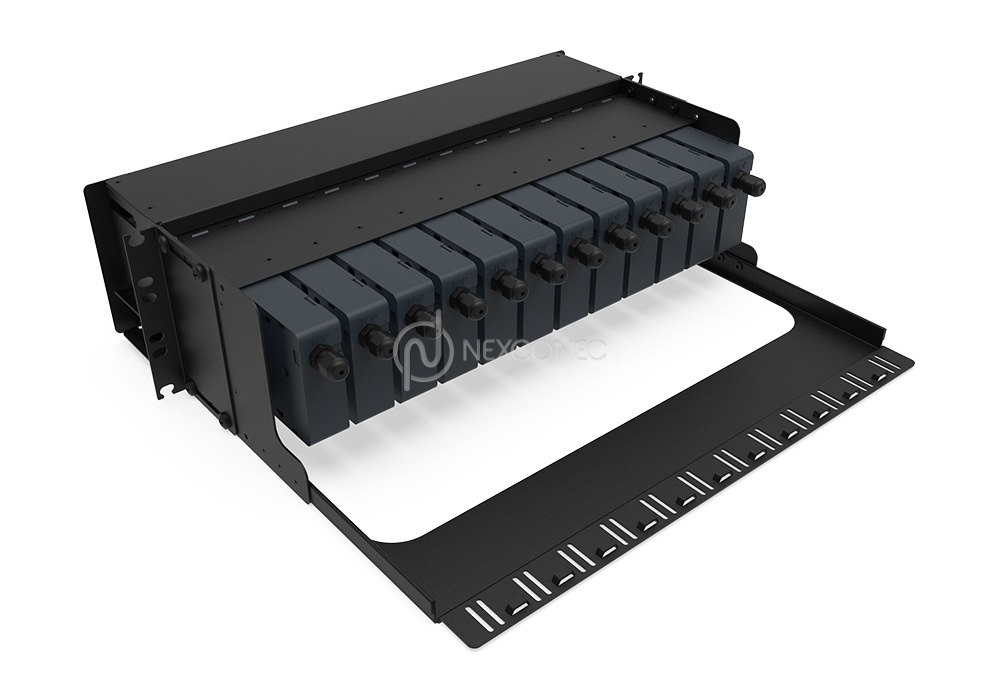

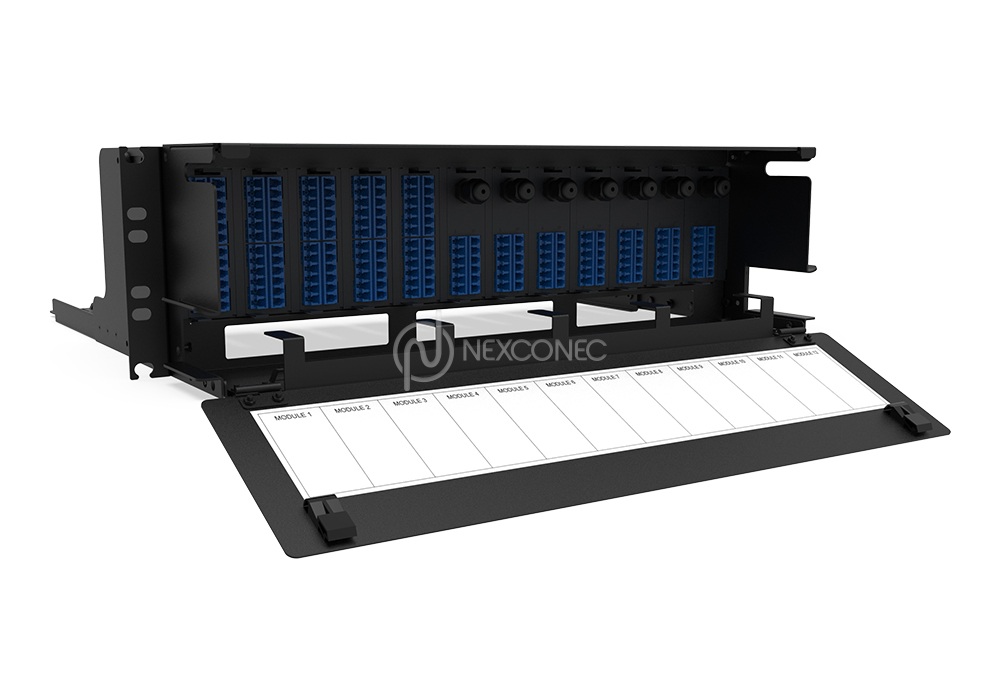

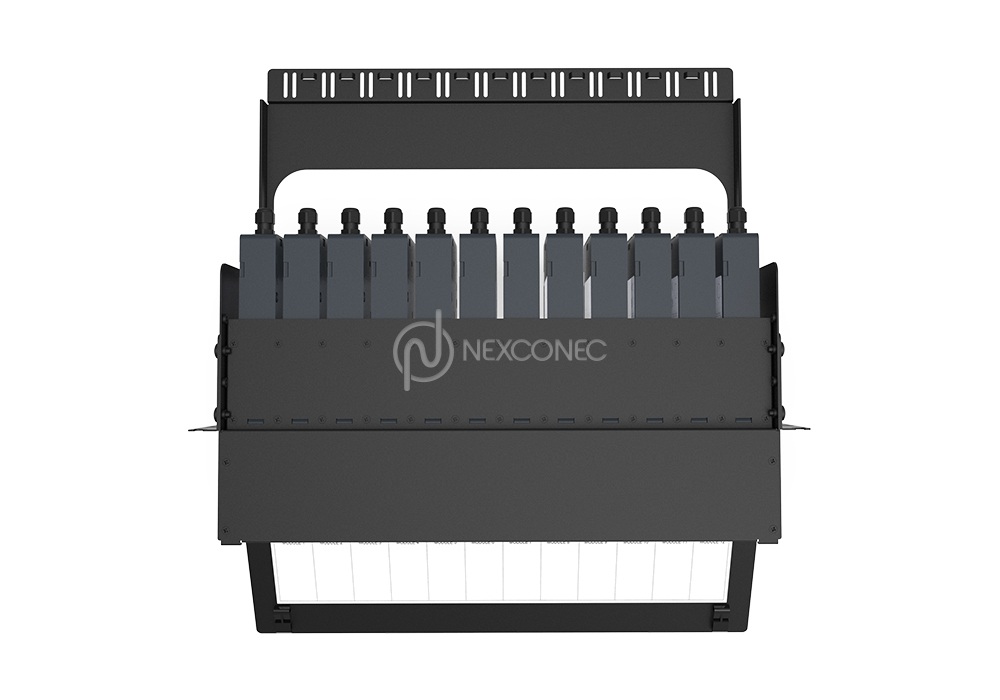

3U 12 SLOTS UPX MODULAR FIXED FRAME (Up to 288FO in LC) - UPXPP03

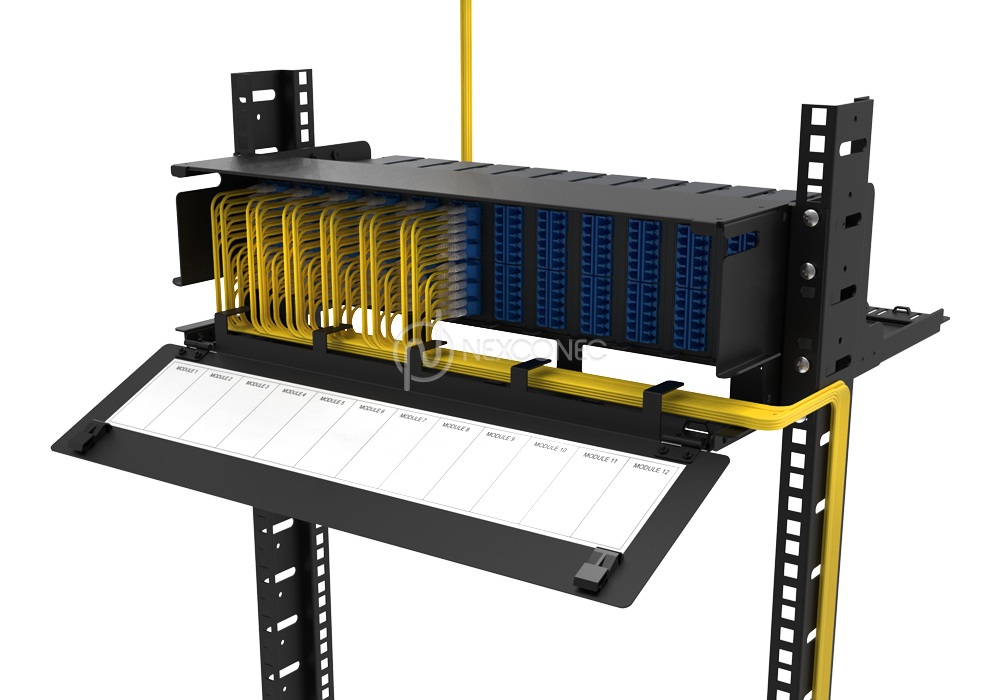

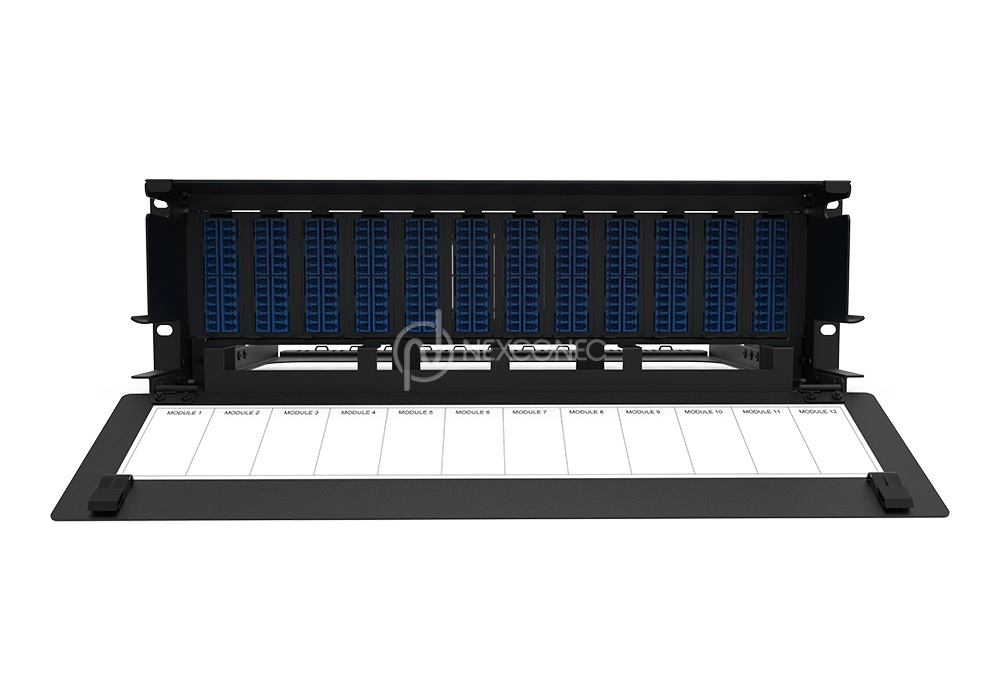

NEXCONEC® UPX (Uptime Cross-Connect Solution) High-Density Fiber Optic 3U Patching Panel (fixed frame design) supports up to 12 UPX cassettes or adapter plates, accommodating up to 288 fibers in LC or a maximum of 576 fibers in SN configuration.
This modular frame is designed for versatile applications, including MPO systems, pre-terminated custom modules, patchthrough plates, next-generation transition modules (100G/40G to 25G/10G), or traditional splicing. The multi-functional chassis provides easy access during installation or rework without disturbing existing cables or fibers.

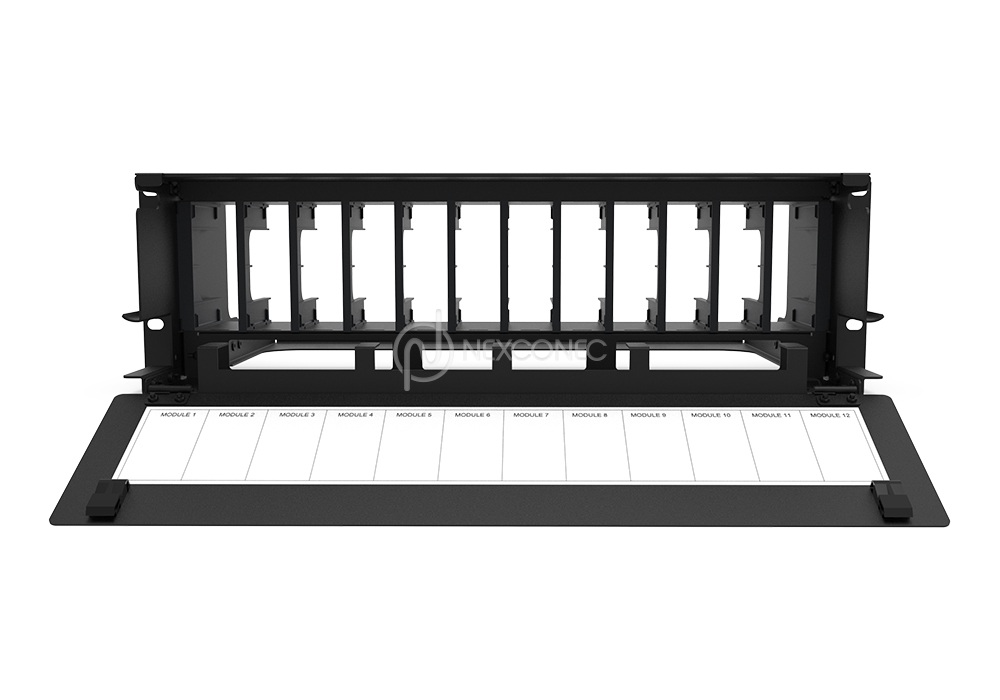

The frame is supplied unloaded, with modules and plates available separately.
PRODUCT HIGHLIGHTS
- 12 Slots UPX in 3U space
- Compact size for installation shallow-depth racks
- Up to 288FO in LC, 144FO in SC, 432FO in CS & 576FO in SN

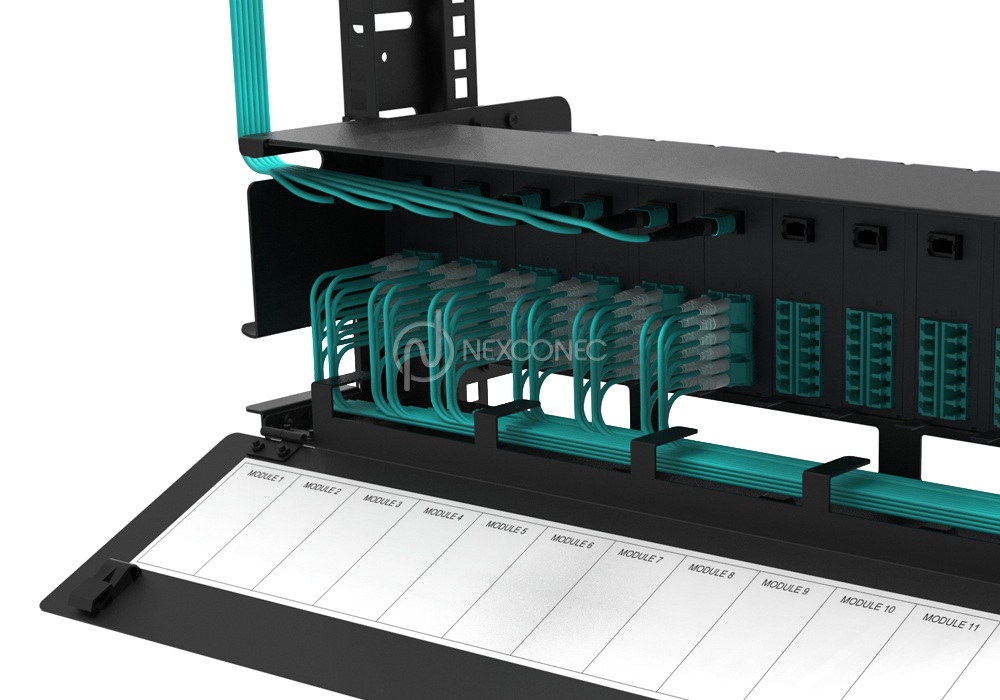

- Fully integrated fiber management with Facilitated patch cord installation
- Modular with MTP®/MPO, Splicing Cassette or Adapter plates or copper module
FEATURES
- 12 Slots UPX in 3U space
- Compact size for installation shallow-depth racks
- Up to 288FO in LC, 144FO in SC, 432FO in CS & 576FO in SN
- Fully integrated fiber management with Facilitated patch cord installation
- Individually labelled ports
- Modular with MTP®/MPO, Splicing Cassette or Adapter plates or copper module
APPLICATIONS
- Datacenter storage area network & Central Office, POP
- Indoor application
- Enterprise/Campus
PANEL SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Fixed Chassis |
| Access Type | Front Access |

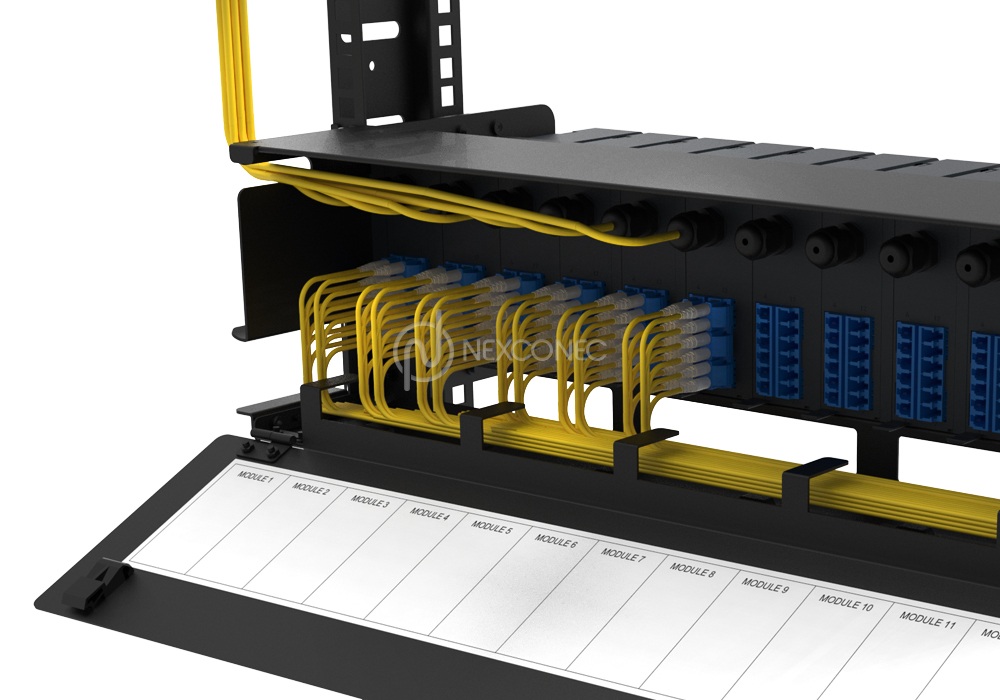

| Front Cable Management | Hinged Drop-Down Door |

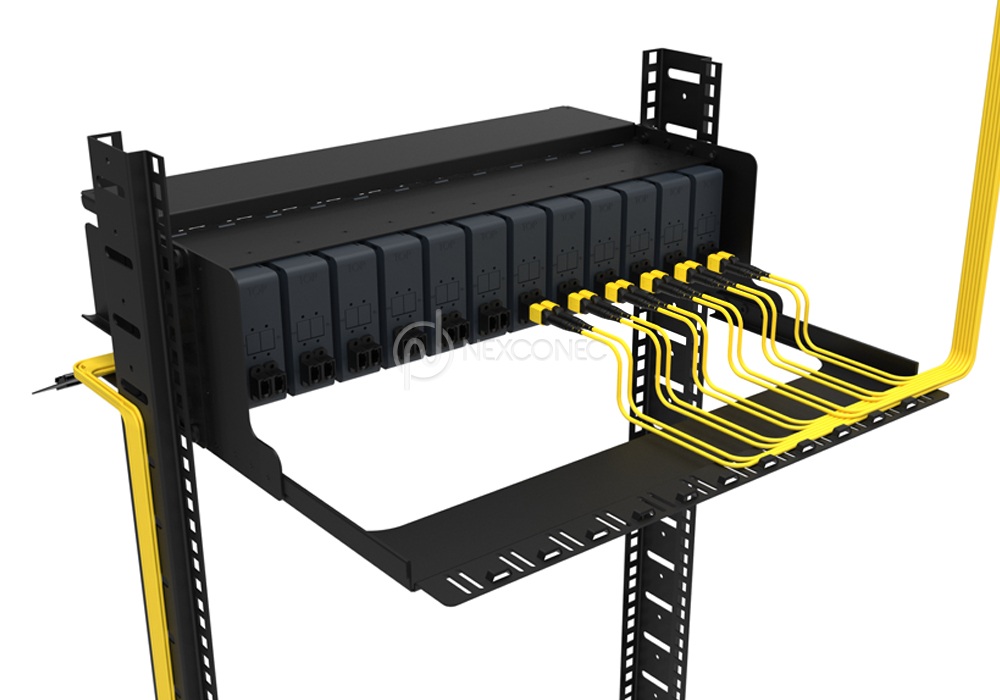

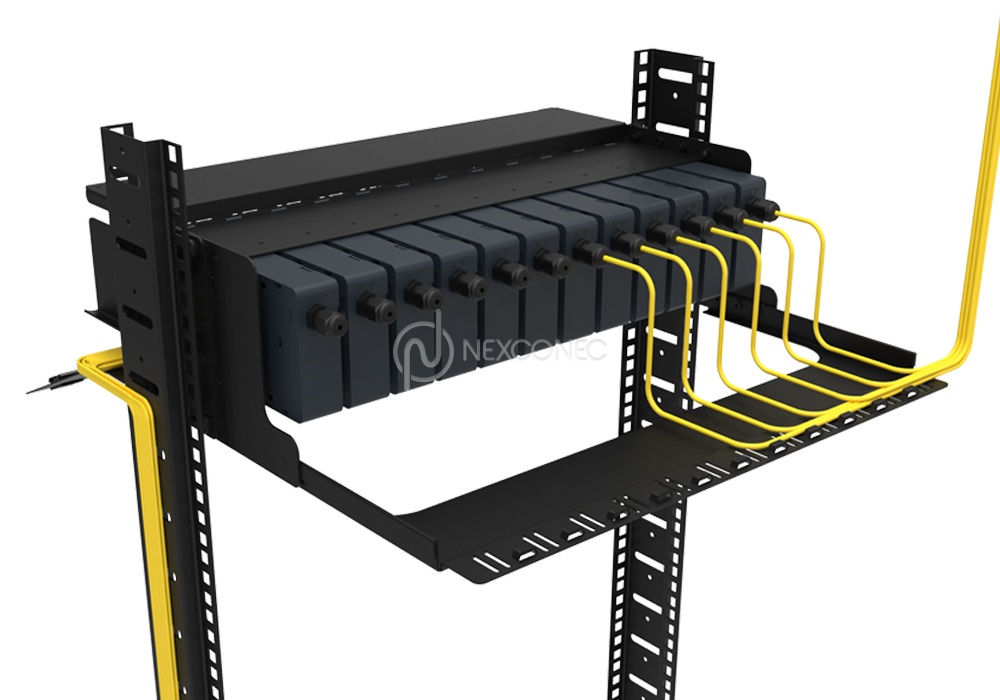

| Cable Entry Direction | Rear, left and right |
| Height Unit | 3U |
| Slot Type | UPX Modules and UPX Plates |
| Number of Slots | 12 Slots |
| Fiber Capacity | Up to 288FO in LC, 144FO in SC, 432FO in CS, 576FO in SN |
| Material | Metal Part: Cold Rolled Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Dimensions (W x D x H) | 439.60 x 404.20 x 133.20 mm |
| Net Weight | 3.5 Kg |
| Material Compliant | RoHS, REACH / SVHC |
| Telecommunication Standards | TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754 |
| Part Number | Product Description |
|---|---|
| UPXPP03 | 3U 12 Slots UPX Modular Fixed Frame (Including Front Management) |
