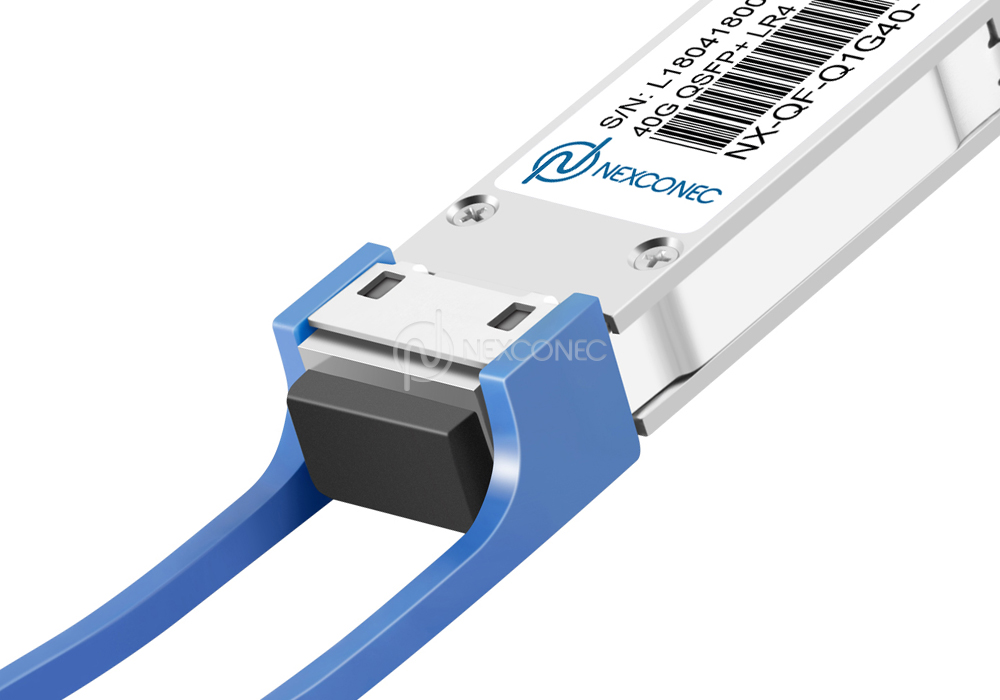

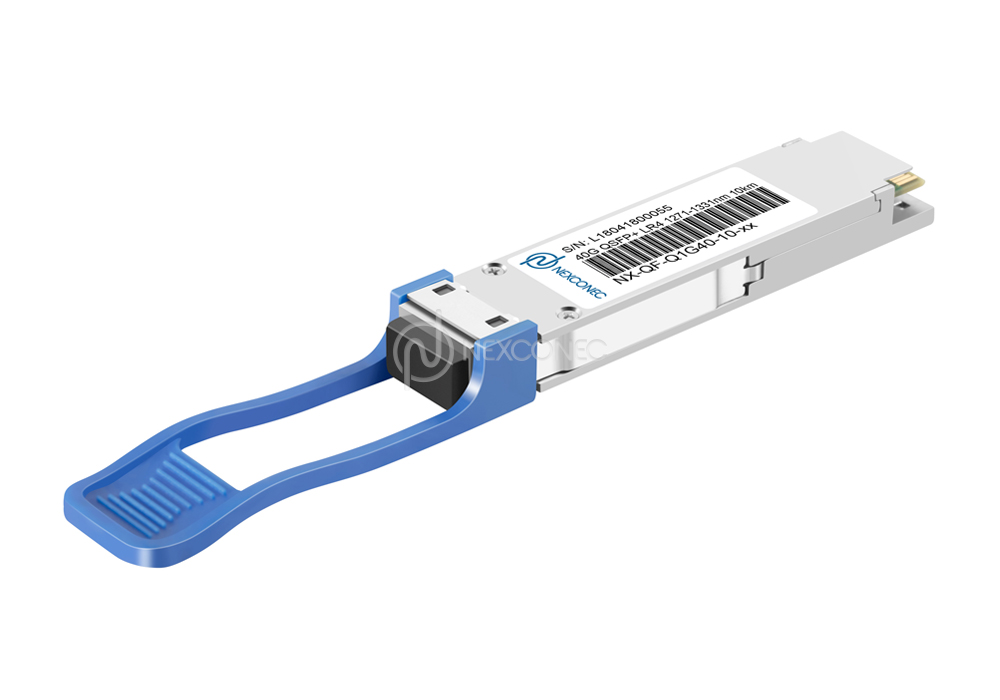

40G QSFP+ LR4 Transceiver
Nexconec® 40G QSFP+ LR4 Transceiver is designed to operate over SM fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 30km.
FEATURES AND APPLICATIONS
- Transmission data rate up to 11.2Gbps per channel
- Digital Diagnostics Monitoring Interface
- Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
- Hot-pluggable QSFP+ form factor
- 4 CWDM un-cooled DFB lasers; High Sensitivity PIN-TIA with optical DEMUX
- Using ITU G.694.2 wavelength grid at 1277, 1297, 1311 and 1331nm
- Commercial operating case temperature range: 0 to 70°C
- RoHS-6 Compliant
- Lower power consumption
- Available in 2km, 10km, 20km and 30km reach over standard SM fiber
- Compliant with QDR/DDR InfiniBand data rates
- 40GBASE-LR4 40G Ethernet links, InfiniBand QDR and DDR interconnects, Client-side 40G Telecom connections
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QF-Q1G40-02-xx | QSFP+ | 40G | 1271-1331nm | 2km | DFB CWDM | PIN | LC | -7~1dBm | -11.5dBm |
| NX-QF-Q1G40-10-xx | QSFP+ | 40G | 1271-1331nm | 10km | DFB CWDM | PIN | LC | -7~2.3dBm | -11.5dBm |
| NX-QF-Q1G40-20-xx | QSFP+ | 40G | 1271-1331nm | 20km | DFB CWDM | PIN | LC | -7~2.3dBm | -11.5dBm |
| NX-QF-Q1G40-30-xx | QSFP+ | 40G | 1271-1331nm | 30km | DFB CWDM | PIN | LC | -2~2.3dBm | -12dBm |
| Part Number | Product Description |
|---|---|
| NX-QF-Q1G40-02-xx | 40G QSFP+ LR4 Transceiver LC Duplex, (1271-1331nm) SM 2km |
| NX-QF-Q1G40-10-xx | 40G QSFP+ LR4 Transceiver LC Duplex, (1271-1331nm) SM 10km |
| NX-QF-Q1G40-20-xx | 40G QSFP+ LR4 Transceiver LC Duplex, (1271-1331nm) SM 20km |
| NX-QF-Q1G40-30-xx | 40G QSFP+ LR4 Transceiver LC Duplex, (1271-1331nm) SM 30km |
1. Where (02 = 2km, 10 = 10km etc.) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
