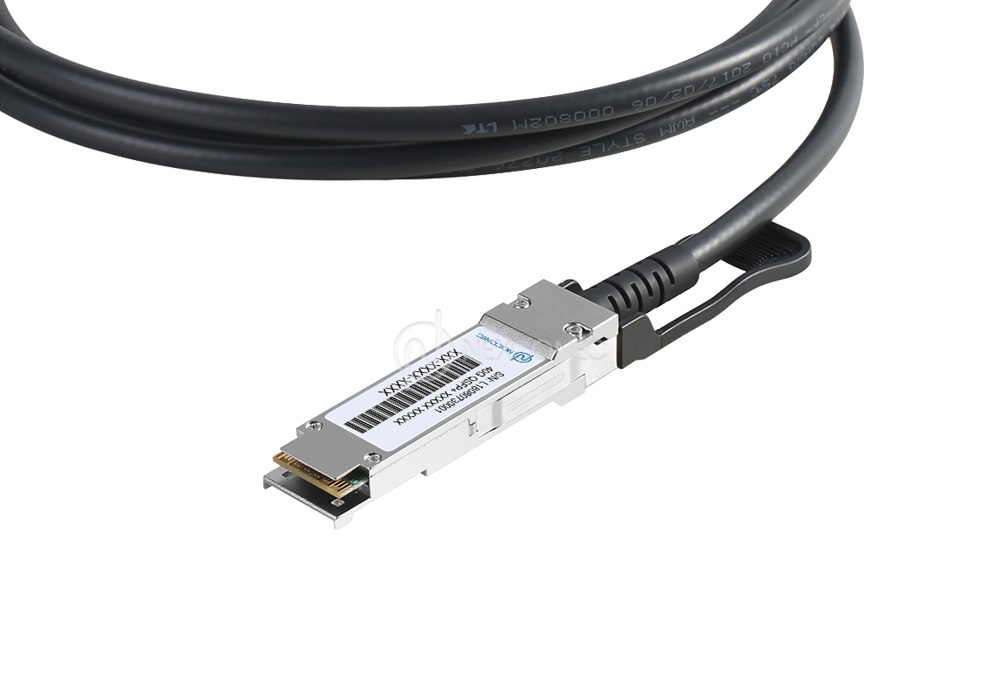

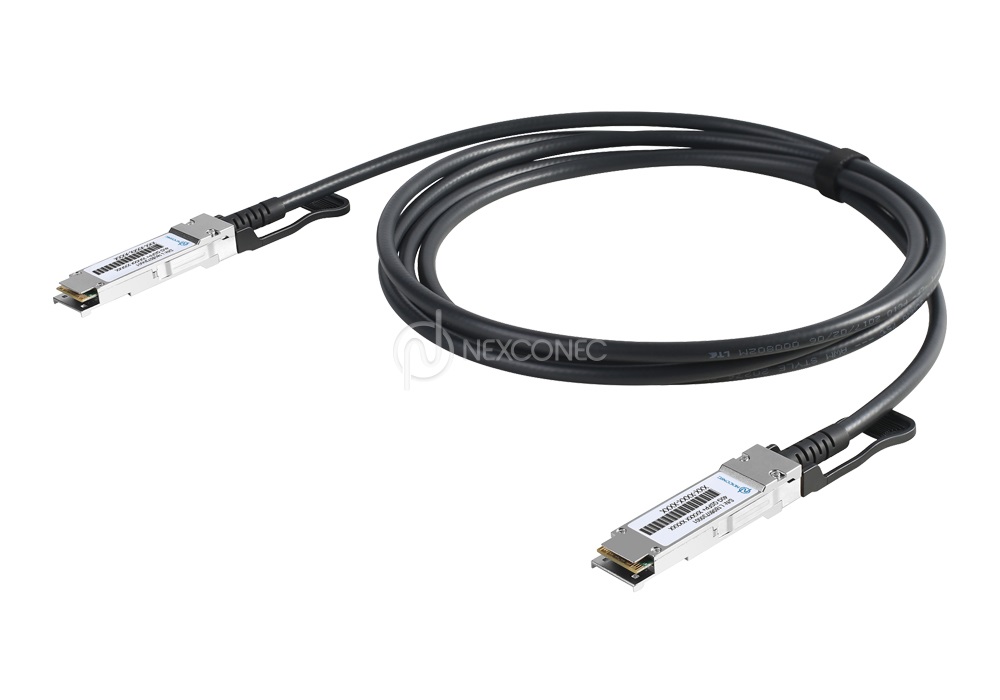

40G QSFP+ DAC
Nexconec QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).
FEATURES AND APPLICATIONS
- Up to 10.3125Gbps data rate per channel
- Operating temperature: 0~70℃
- Single 3.3V power supply
- RoHS compliant
- Compliant with SFF-8436
- 40G Ethernet
| Part Number | Package | Data Rate | Length | Cable AWG |
|---|---|---|---|---|
| NX-XF-DG40-0.5-xx | QSFP+ | 40G | 0.5m | 30 AWG |
| NX-XF-DG40-01-xx | QSFP+ | 40G | 1m | 30 AWG |
| NX-XF-DG40-02-xx | QSFP+ | 40G | 2m | 30 AWG |
| NX-XF-DG40-03-xx | QSFP+ | 40G | 3m | 30 AWG |
| NX-XF-DG40-04-xx | QSFP+ | 40G | 4m | 26 AWG |
| NX-XF-DG40-05-xx | QSFP+ | 40G | 5m | 26 AWG |
| NX-XF-DG40-06-xx | QSFP+ | 40G | 6m | 24 AWG |
| NX-XF-DG40-07-xx | QSFP+ | 40G | 7m | 24 AWG |
| Part Number | Product Description |
|---|---|
| NX-XF-DG40-0.5-xx | 40G QSFP+ DAC 30 AWG 0.5m |
| NX-XF-DG40-01-xx | 40G QSFP+ DAC 30 AWG 1m |
| NX-XF-DG40-02-xx | 40G QSFP+ DAC 30 AWG 2m |
| NX-XF-DG40-03-xx | 40G QSFP+ DAC 30 AWG 3m |
| NX-XF-DG40-04-xx | 40G QSFP+ DAC 26 AWG 4m |
| NX-XF-DG40-05-xx | 40G QSFP+ DAC 26 AWG 5m |
| NX-XF-DG40-06-xx | 40G QSFP+ DAC 24 AWG 6m |
| NX-XF-DG40-07-xx | 40G QSFP+ DAC 24 AWG 7m |
1. Where (01 = 1m, 02 = 2m, 07 = 7m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
