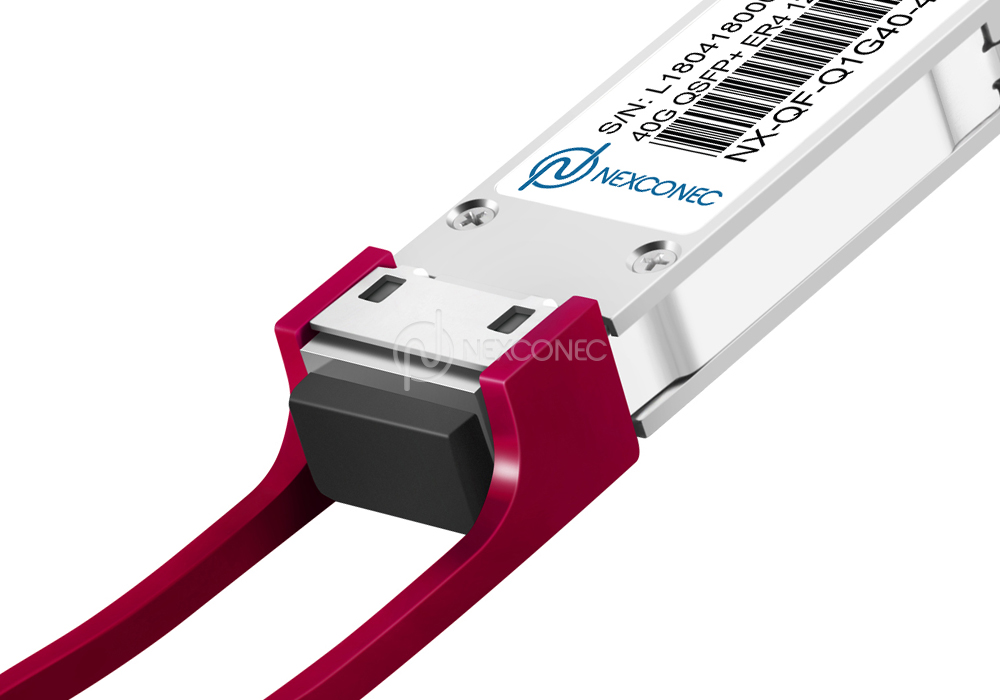

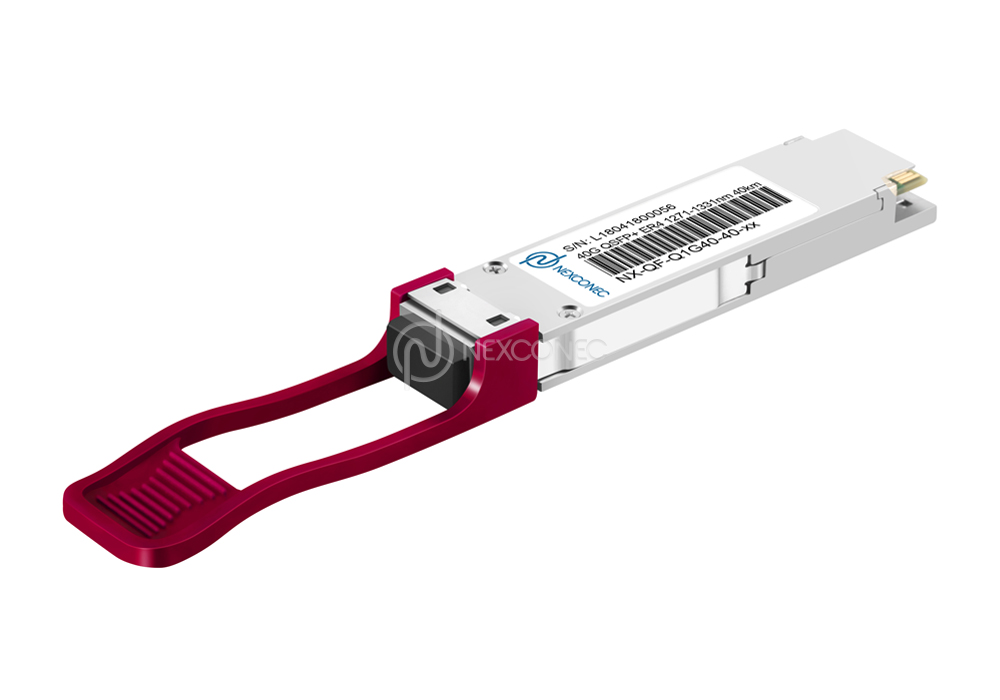

40G QSFP+ ER4 Transceiver
Nexconec® 40G QSFP+ ER4 Transceiver is designed to operate over SM fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.
FEATURES AND APPLICATIONS
- Transmission data rate up to 11.2Gbps per channel
- Digital Diagnostics Monitoring Interface
- Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links
- Hot-pluggable QSFP+ form factor
- 4 CWDM un-cooled DFB lasers, High Sensitivity APD with optical DEMUX
- Using ITU G.694.2 wavelength grid at 1277, 1297, 1311 and 1331nm
- Commercial operating case temperature range: 0 to 70°C
- RoHS-6 Compliant
- Lower power consumption
- 40km (APD) reach over standard single mode fiber
- Compliant with QDR/DDR InfiniBand data rates
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QF-Q1G40-40-xx | QSFP+ | 40G | 1271-1331nm | 40km | DFB | APD | LC | -2.7~4.5dBm | -19dBm |
| Part Number | Product Description |
|---|---|
| NX-QF-Q1G40-40-xx | 40G QSFP+ ER4 Transceiver LC Duplex, (1271-1331nm) SM 40km |
1. Where (40 = 40km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
