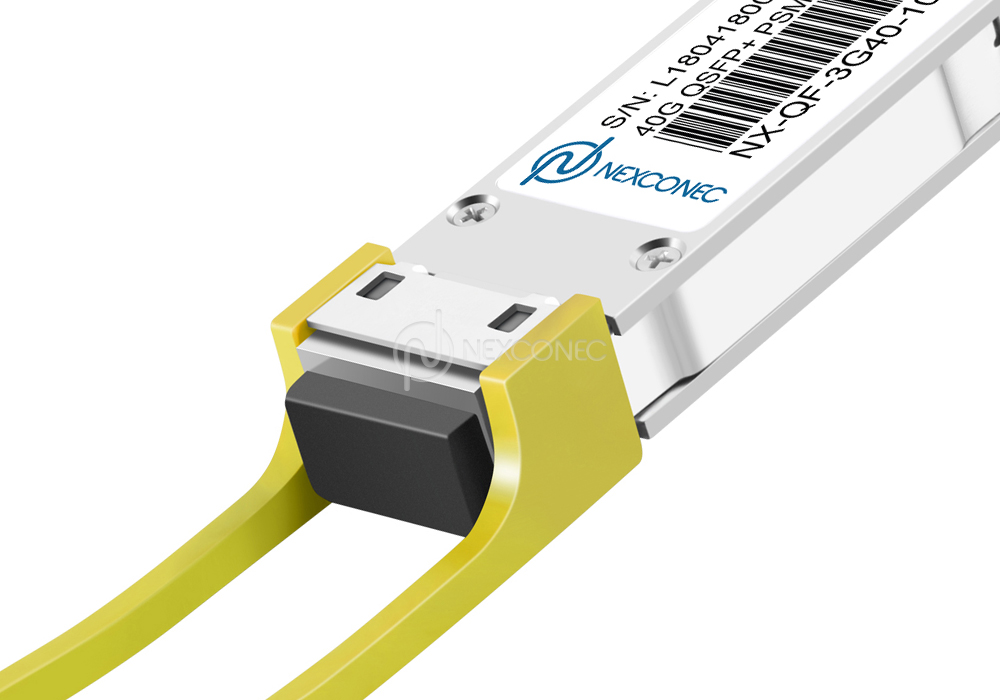

40G QSFP+ PSM4 Transceiver
Nexconec® 40G QSFP+ PSM4 optical transceiver modules include 40GE QSFP+ PSM4 2km, 40GE QSFP+ PSM4 10km. They are designed for 10G/40G Ethernet, InfiniBand SDR/DDR/QDR, reach up to 2km/10km over SMF.
FEATURES AND APPLICATIONS
- Transmission data rate up to 11.2Gbps per channel
- Digital Diagnostics Monitoring Interface
- Hot-pluggable QSFP+ form factor
- Full duplex 4 channel 1310nm parallel module
- Commercial operating case temperature range: 0°C to 70°C
- Maximum power consumption 2.5W
- Single +3.3V power supply
- Maximum link length 2km/10km over SMF
- MTP/MPO optical connector
- RoHS-6 Compliant
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QF-3G40-02-xx | QSFP+ | 40G | 1310nm | 2km | DFB | PIN | MTP/MPO | -8.2~2dBm | -12.6dBm |
| NX-QF-3G40-10-xx | QSFP+ | 40G | 1310nm | 10km | DFB | PIN | MTP/MPO | -8.2~2dBm | -12.6dBm |
| Part Number | Product Description |
|---|---|
| NX-QF-3G40-02-xx | 40G QSFP+ PSM4 Transceiver MTP/MPO, (1310nm) SM 2km |
| NX-QF-3G40-10-xx | 40G QSFP+ PSM4 Transceiver MTP/MPO, (1310nm) SM 10km |
1. Where (02 = 2km, 10 = 10km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
