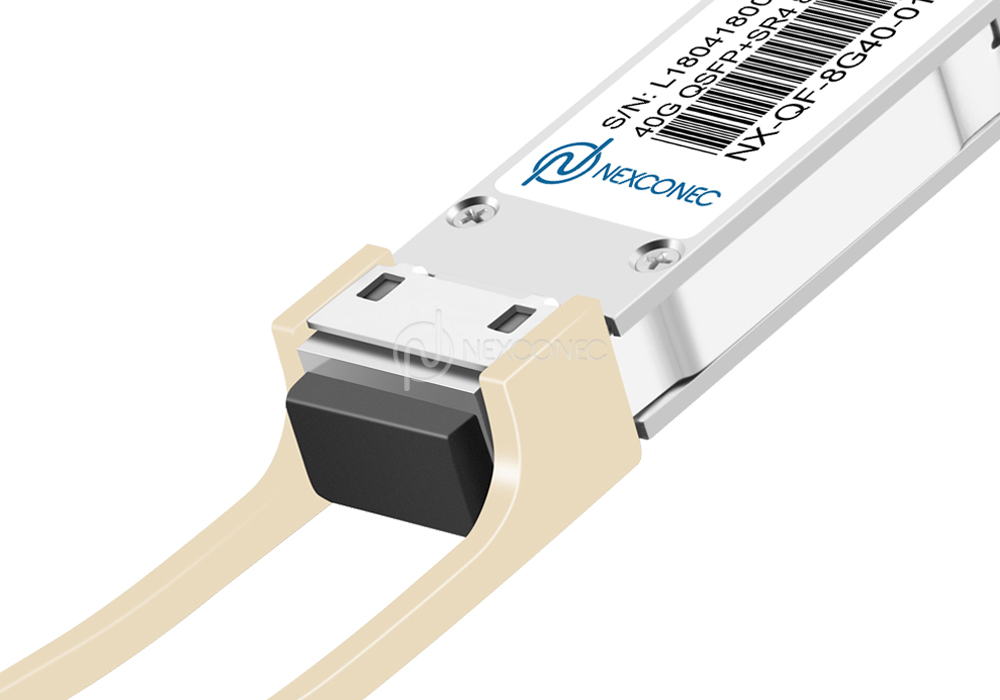

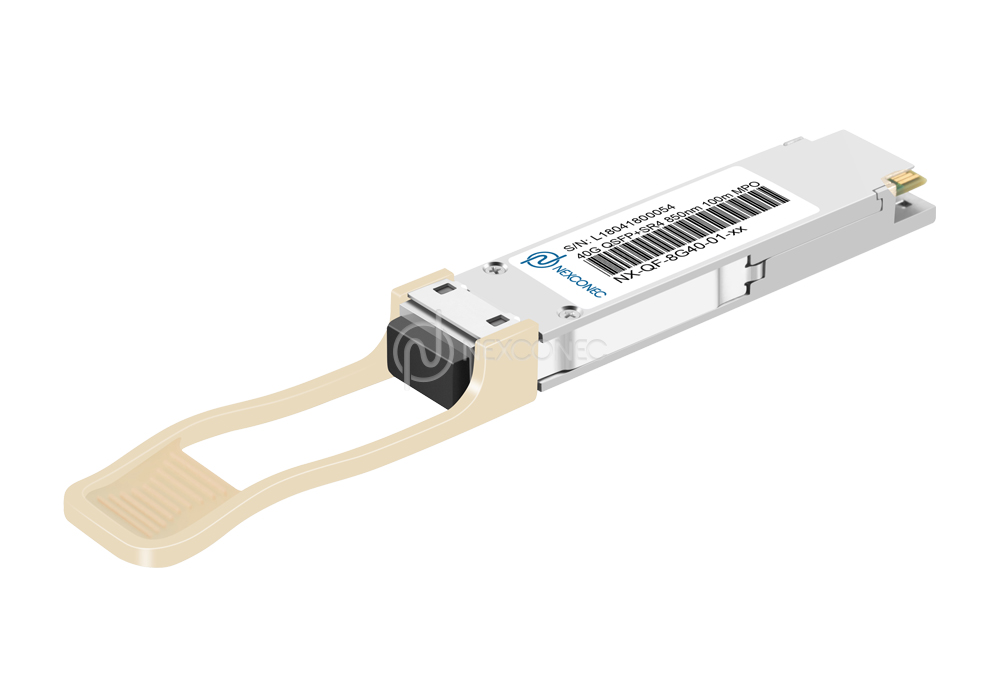

40G QSFP+ SR4 Transceiver
Nexconec® 40G QSFP+ SR4 Transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, diagnostic monitors, control and bias blocks.
FEATURES AND APPLICATIONS
- High Channel Capacity: 40Gbps per module
- Up to 11.2Gbps Data rate per channel
- MTP/MPO optical connector
- High Reliability 850nm VCSEL technology
- Maximum link length of 100m links on OM3; multimode fiber or 150m links on OM4 multimode fiber
- Hot Pluggable
- Power dissipation < 1.5 W
- Commercial operating case temperature range: 0 to 70°C
- RoHS-6 Compliant
- 40GB Ethernet links, InfiniBand QDR, DDR and SDR, 40G Telecom connections
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QF-8G40-01-xx | QSFP+ | 40G | 850nm | 100m | VCSEL | PIN | MTP/MPO | -7.6~2.4dBm | -9.5dBm |
| NX-QF-8G40-03-xx | QSFP+ | 40G | 850nm | 300m | VCSEL | PIN | MTP/MPO | -7.6~2.4dBm | -9.9dBm |
| Part Number | Product Description |
|---|---|
| NX-QF-8G40-01-xx | 40G QSFP+ SR4 Transceiver MTP/MPO, (850nm) MM 100m |
| NX-QF-8G40-03-xx | 40G QSFP+ SR4 Transceiver MTP/MPO, (850nm) MM 300m |
1. Where (01 = 100m, 03 = 300m) denotes reach in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
