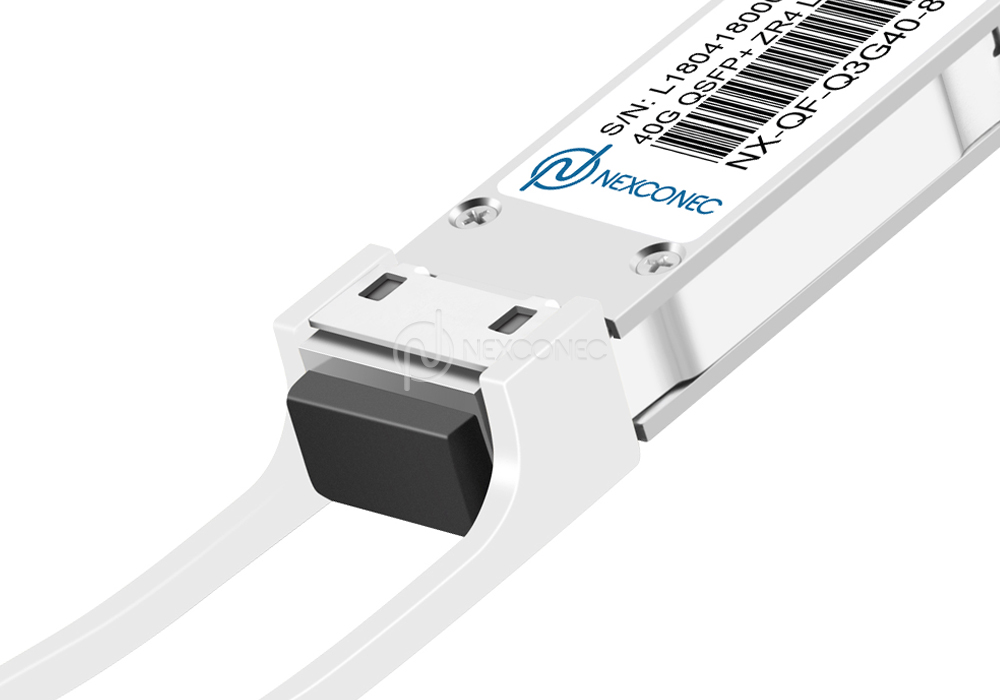

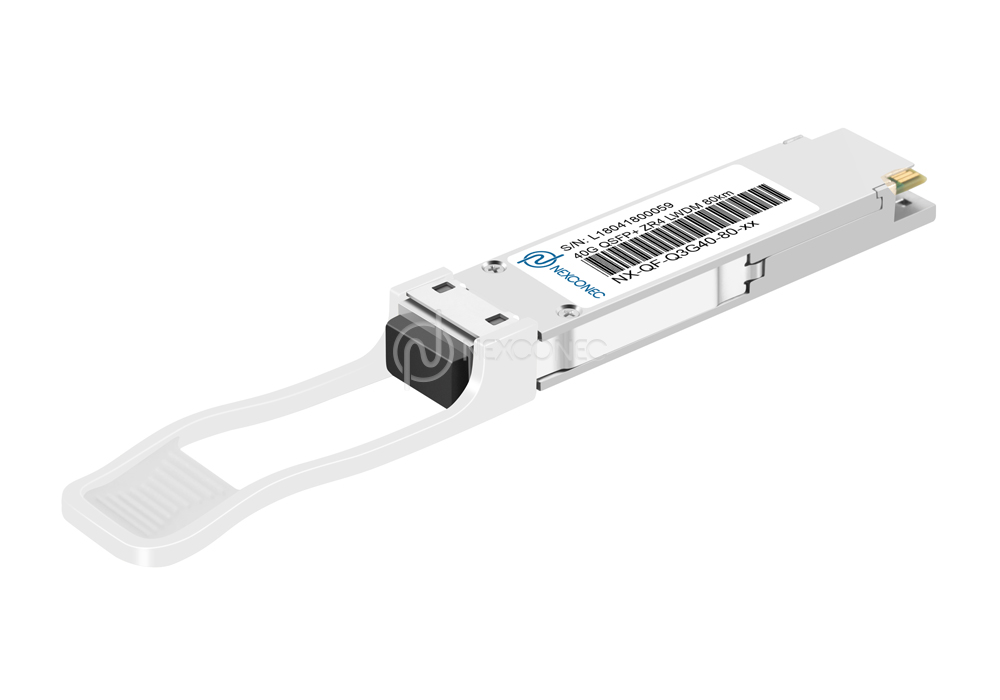

40G QSFP+ ZR4 Transceiver
Nexconec® 40G QSFP+ ZR4 Transceiver is designed to operate over SM fiber system using four 10Gbps 1300 LWDM band which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 80km.
FEATURES AND APPLICATIONS
- 4 lanes MUX/DEMUX design
- Integrated LAN WDM TOSA / ROSA
- Up to 11.2Gbps per channel bandwidth
- Aggregate bandwidth of > 40Gbps
- Duplex LC connector
- Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4
- Built-in digital diagnostic functions
- Single +3.3V power supply operating
- Up to 80 km transmission
- Temperature range 0°C to 70°C
- Compliant with QDR/DDR InfiniBand data rates
- QSFP MSA and RoHS Compliant
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-QF-Q3G40-80-xx | QSFP+ | 40G | LWDM | 80km | EML LWDM | APD | LC | 4.0~7.0dBm | -24dBm |
| Part Number | Product Description |
|---|---|
| NX-QF-Q3G40-80-xx | 40G QSFP+ ZR4 Transceiver LC Duplex, SM 80km |
1. Where (80 = 80km) denotes reach in kilometers.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = DL for DELL etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
