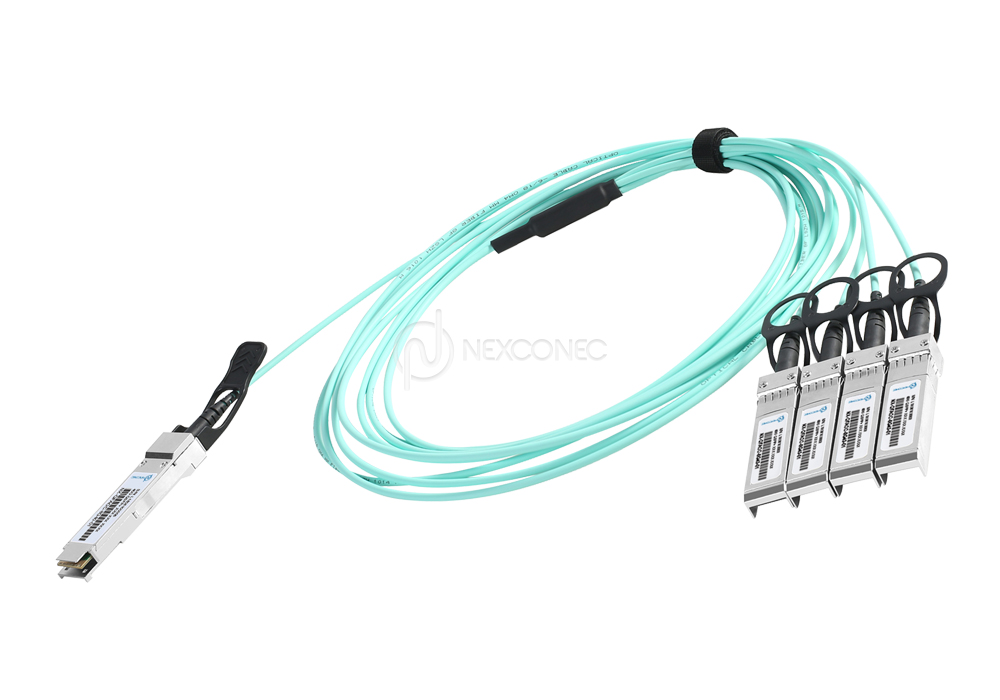

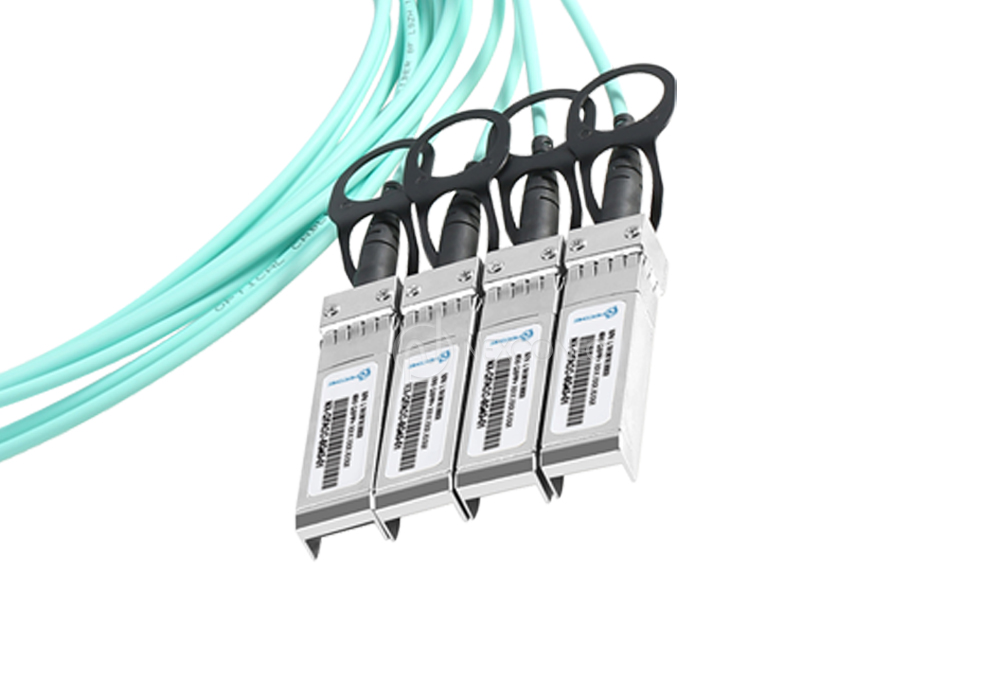

40Gbps QSFP+ – 4x10G SFP+ ACTIVE OPTICAL CABLE
Compliant to the 40GBASE-SR4 and XLPPI/Specification per IEEE 802.3ba-2010 and supporting/40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications.
FEATURES AND APPLICATIONS
- QSFP+ AOC end: as follows
- Each 4×SFP+ end: as follows
- Active Optical Cable Assembly: as follow
- 40GbE and 10GbE break-out applications for Datacom switch and router connections
- 40G to 4×10G density applications for Datacom and Proprietary protocol applications
- Datacenter
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-QFAOC-8G4010-01-xx | QSFP+ | 40G-4X10G | 850nm | 1m | VCSEL | PIN |
| NX-QFAOC-8G4010-02-xx | QSFP+ | 40G-4X10G | 850nm | 2m | VCSEL | PIN |
| NX-QFAOC-8G4010-03-xx | QSFP+ | 40G-4X10G | 850nm | 3m | VCSEL | PIN |
| NX-QFAOC-8G4010-05-xx | QSFP+ | 40G-4X10G | 850nm | 5m | VCSEL | PIN |
| NX-QFAOC-8G4010-10-xx | QSFP+ | 40G-4X10G | 850nm | 10m | VCSEL | PIN |
| NX-QFAOC-8G4010-15-xx | QSFP+ | 40G-4X10G | 850nm | 15m | VCSEL | PIN |
| NX-QFAOC-8G4010-20-xx | QSFP+ | 40G-4X10G | 850nm | 20m | VCSEL | PIN |
| NX-QFAOC-8G4010-30-xx | QSFP+ | 40G-4X10G | 850nm | 30m | VCSEL | PIN |
| NX-QFAOC-8G4010-50-xx | QSFP+ | 40G-4X10G | 850nm | 50m | VCSEL | PIN |
| NX-QFAOC-8G4010-100-xx | QSFP+ | 40G-4X10G | 850nm | 100m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-QFAOC-8G4010-01-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 1m |
| NX-QFAOC-8G4010-02-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 2m |
| NX-QFAOC-8G4010-03-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 3m |
| NX-QFAOC-8G4010-05-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 5m |
| NX-QFAOC-8G4010-10-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 10m |
| NX-QFAOC-8G4010-15-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 15m |
| NX-QFAOC-8G4010-20-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 20m |
| NX-QFAOC-8G4010-30-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 30m |
| NX-QFAOC-8G4010-50-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 50m |
| NX-QFAOC-8G4010-100-xx | 40Gbps QSFP+ – 4x10G SFP+ Active Optical Cable 850nm 100m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
