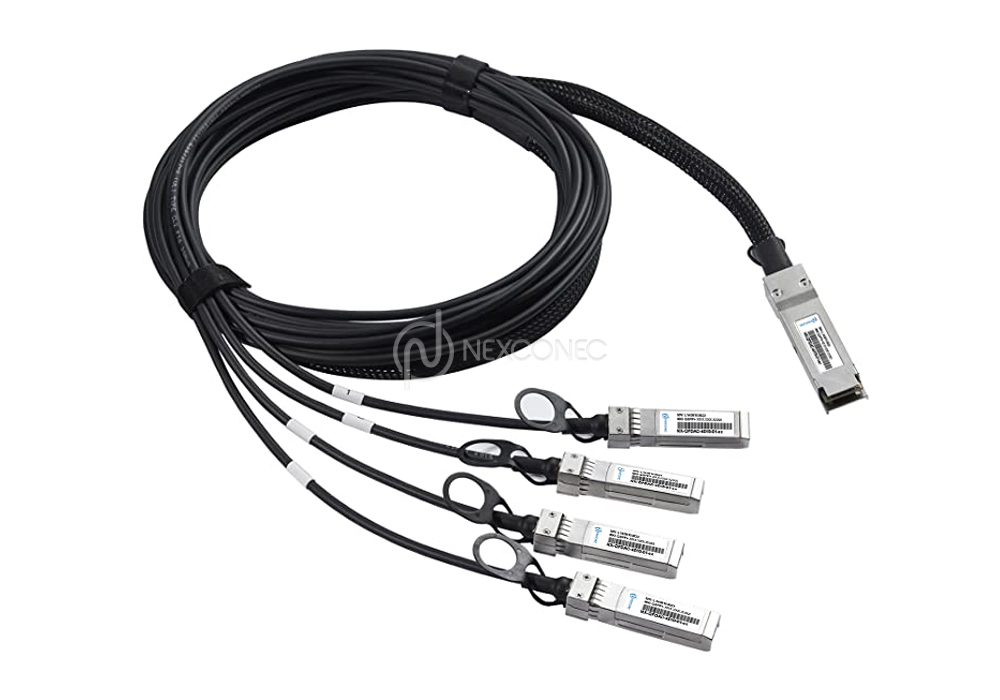

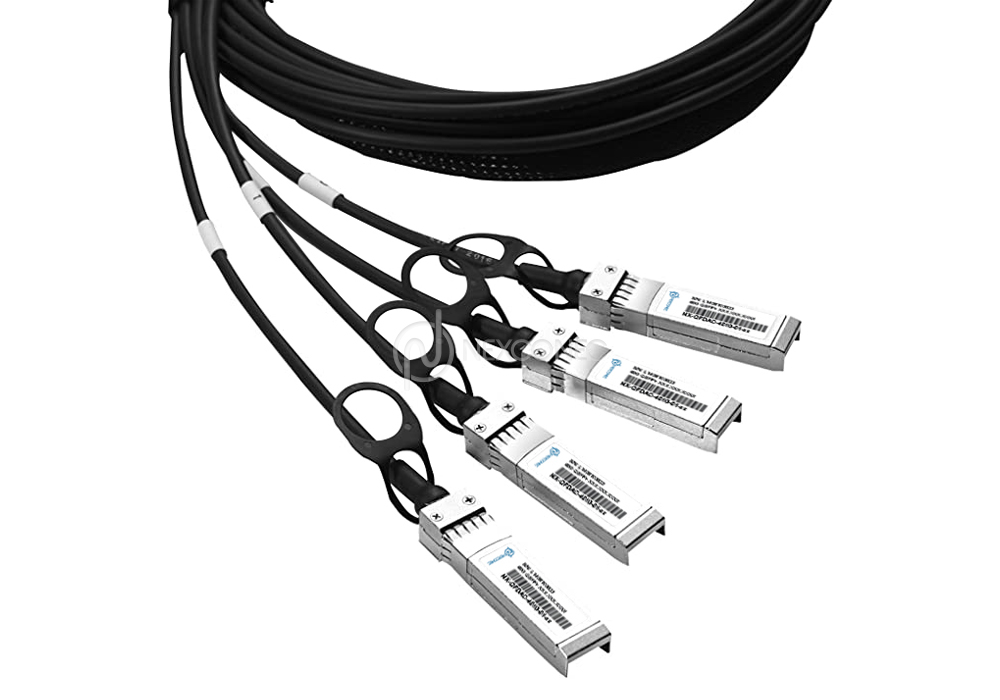

40G QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC)
Nexconec 40G QSFP+ to 4x10G SFP+ passive, copper splitter cable assemblies are compliant with SFF-8431/8432/8472 and SFF-8436 specifications and provide connectivity between devices using QSFP+ port on one end and four SFP+ ports on the other end.
The unique quality passive copper cable solutions provide power-efficient replacement for active power connectivity such as fiber optic cables. Rigorous cable production testing ensures the best out-of-the-box installation experience, performance and durability.
FEATURES AND APPLICATIONS
- Up to 10. 3125Gbps data rate per channel
- Up to 7m transmission
- Operating temperature: 0℃~70℃
- Single +3.3V power supply
- RoHS Compliant
- Compliant with SFF- 8436
- SFF-8431, SFF-8432, SFF-8472
- 40G Ethernet
| Part Number | Package | Data Rate | Cable AWG | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-QFDAC-4010-01-xx | QSFP+ | 40G-4X10G | 30 AWG | 1m | VCSEL | PIN |
| NX-QFDAC-4010-02-xx | QSFP+ | 40G-4X10G | 30 AWG | 2m | VCSEL | PIN |
| NX-QFDAC-4010-03-xx | QSFP+ | 40G-4X10G | 30 AWG | 3m | VCSEL | PIN |
| NX-QFDAC-4010-04-xx | QSFP+ | 40G-4X10G | 24/26 AWG | 4m | VCSEL | PIN |
| NX-QFDAC-4010-05-xx | QSFP+ | 40G-4X10G | 24/26 AWG | 5m | VCSEL | PIN |
| NX-QFDAC-4010-06-xx | QSFP+ | 40G-4X10G | 24 AWG | 6m | VCSEL | PIN |
| NX-QFDAC-4010-07-xx | QSFP+ | 40G-4X10G | 24 AWG | 7m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-QFDAC-4010-01-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 1m |
| NX-QFDAC-4010-02-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 2m |
| NX-QFDAC-4010-03-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 3m |
| NX-QFDAC-4010-04-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 4m |
| NX-QFDAC-4010-05-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 5m |
| NX-QFDAC-4010-06-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 6m |
| NX-QFDAC-4010-07-xx | 40Gbps QSFP+ – 4x10G SFP+ Direct Attach Copper (DAC) 7m |
1. Where (01 = 1m, 02 = 2m, 07 = 7m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
